CATALYTIC CONVERTER (TWC), CHECKING



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE On-Board Diagnostic (OBD), 2.0L Generic Scan Tool - New Beetle



2003 ENGINE PERFORMANCE

Vacuum Diagrams

INTRODUCTION

This article contains underhood views or schematics of vacuum hose routing. Vacuum diagrams are an excellent
tool for identifying improperly routed vacuum hoses. Improperly routed vacuum hoses cause driveability and
computer-indicated malfunctions.

BEETLE, GOLF, GTI & JETTA

Gasoline

NOTE:

Always refer to Emission Control label in engine compartment before
attempting service. If manual and label differ, always use emission label
vacuum hose routing.

NOTE:

Starting with model year 2000 some Secondary Air Injection Systems do not
use vacuum for actuation of system components.



2003 Volkswagen New Beetle GLS

2003 ENGINE PERFORMANCE Vacuum Diagrams





2003 Volkswagen New Beetle GLS

2003 ENGINE PERFORMANCE Vacuum Diagrams



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:50:54 AM

Page 1

© 2004 Mitchell Repair Information Company, LLC.

Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:50:57 AM

Page 1

© 2004 Mitchell Repair Information Company, LLC.

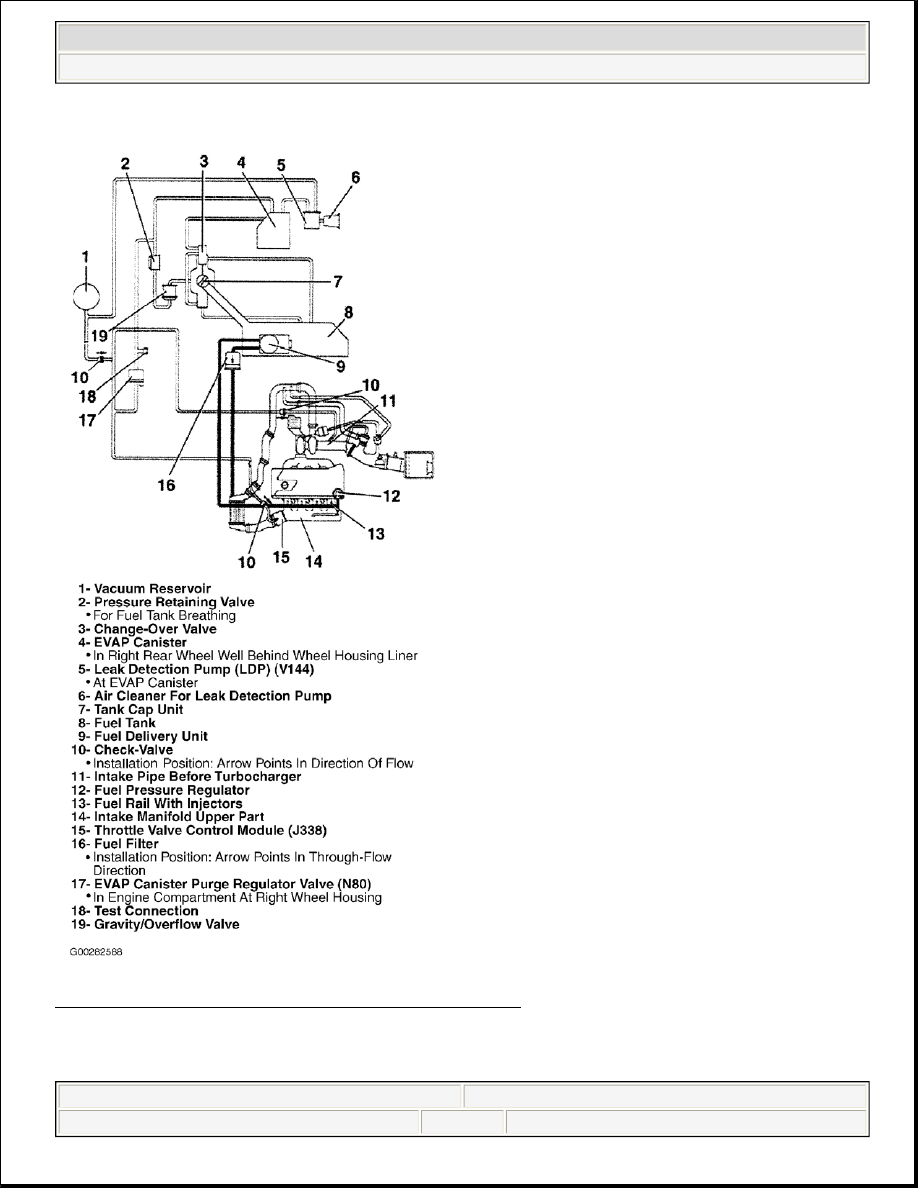

Fig. 1: Vacuum Diagram EVAP System (Beetle: 1.8L Turbo)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2003 ENGINE PERFORMANCE Vacuum Diagrams



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:50:54 AM

Page 2

© 2004 Mitchell Repair Information Company, LLC.

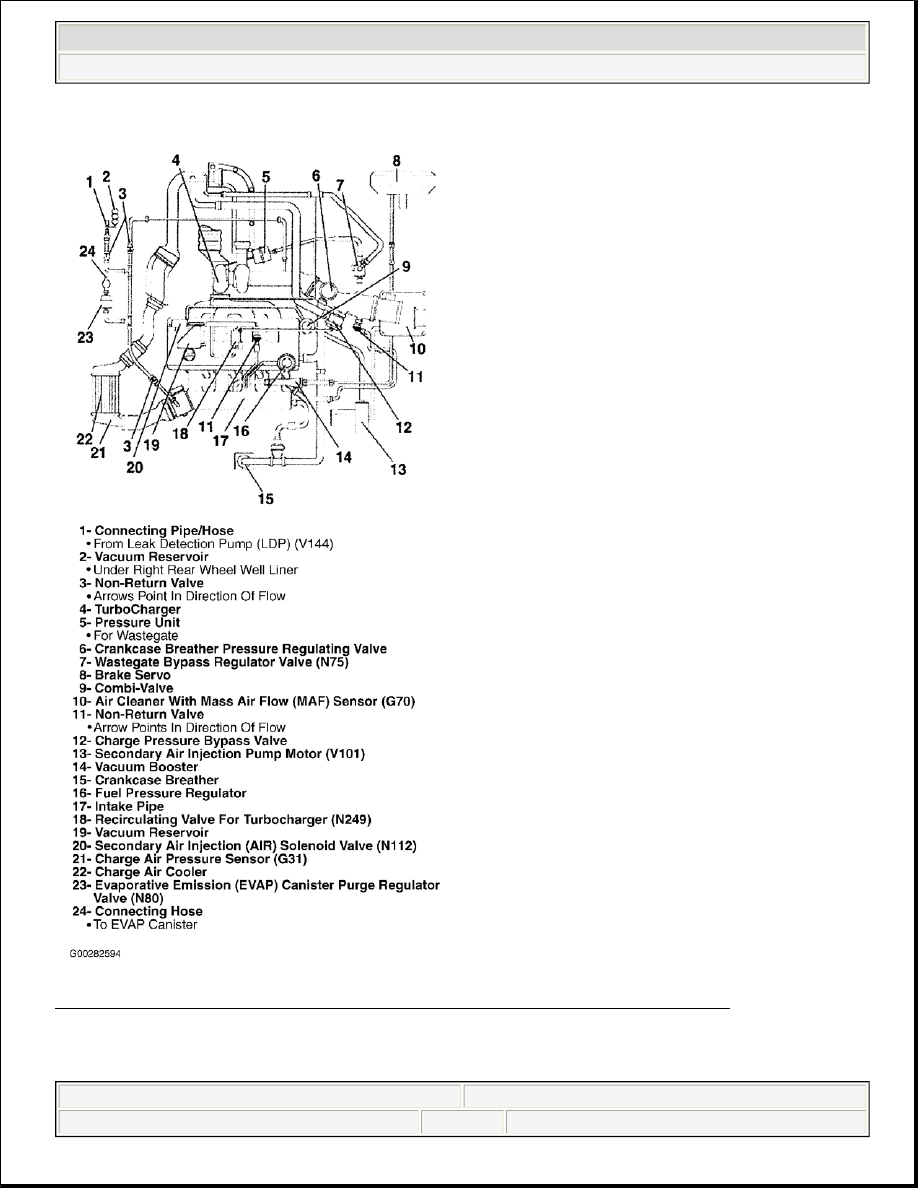

Fig. 2: Vacuum Diagram Secondary Air Injection & Turbo System (Beetle: 1.8L Turbo)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2003 ENGINE PERFORMANCE Vacuum Diagrams



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:50:54 AM

Page 3

© 2004 Mitchell Repair Information Company, LLC.
