FRONT SIDE MARKER LIGHTS, REMOVING AND INSTALLING

Removing

z

Remove front inner fender liner

See WHEEL HOUSING LINER .

z

Carefully press retainer clip in direction of -arrow-.

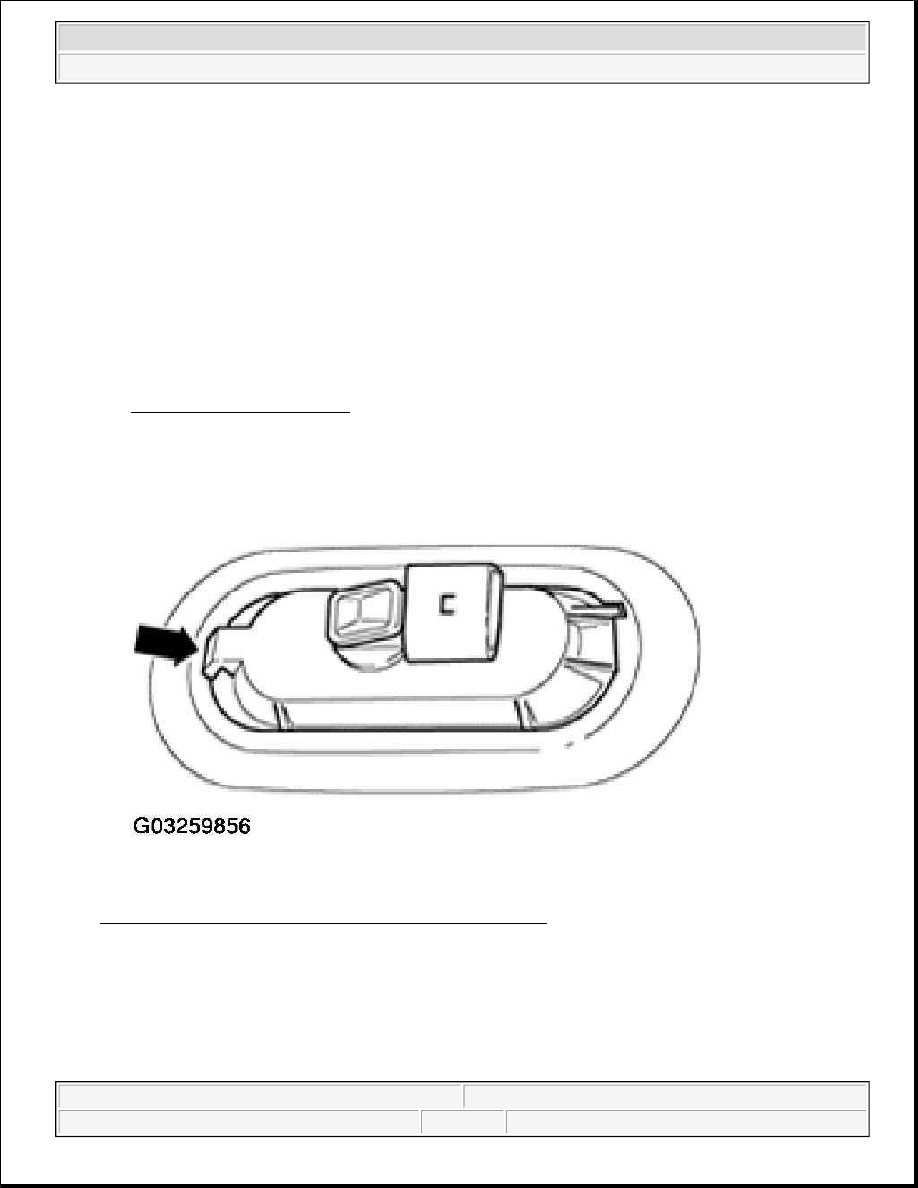

Fig. 70: Removing Front Side Marker Light Retainer Clip
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Disconnect electrical connection.

Installing

z

Reconnect electrical connection.

NOTE:

When installing, ensure bulb holder engages fully in housing, and turn in
opposite direction of removal.

CAUTION:

z

Switch off all electrical consumers.

z

Switch ignition off and remove ignition key.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



z

Insert side marker light into bumper and click in place, make sure locating boss is seated correctly in
cutout -arrow-

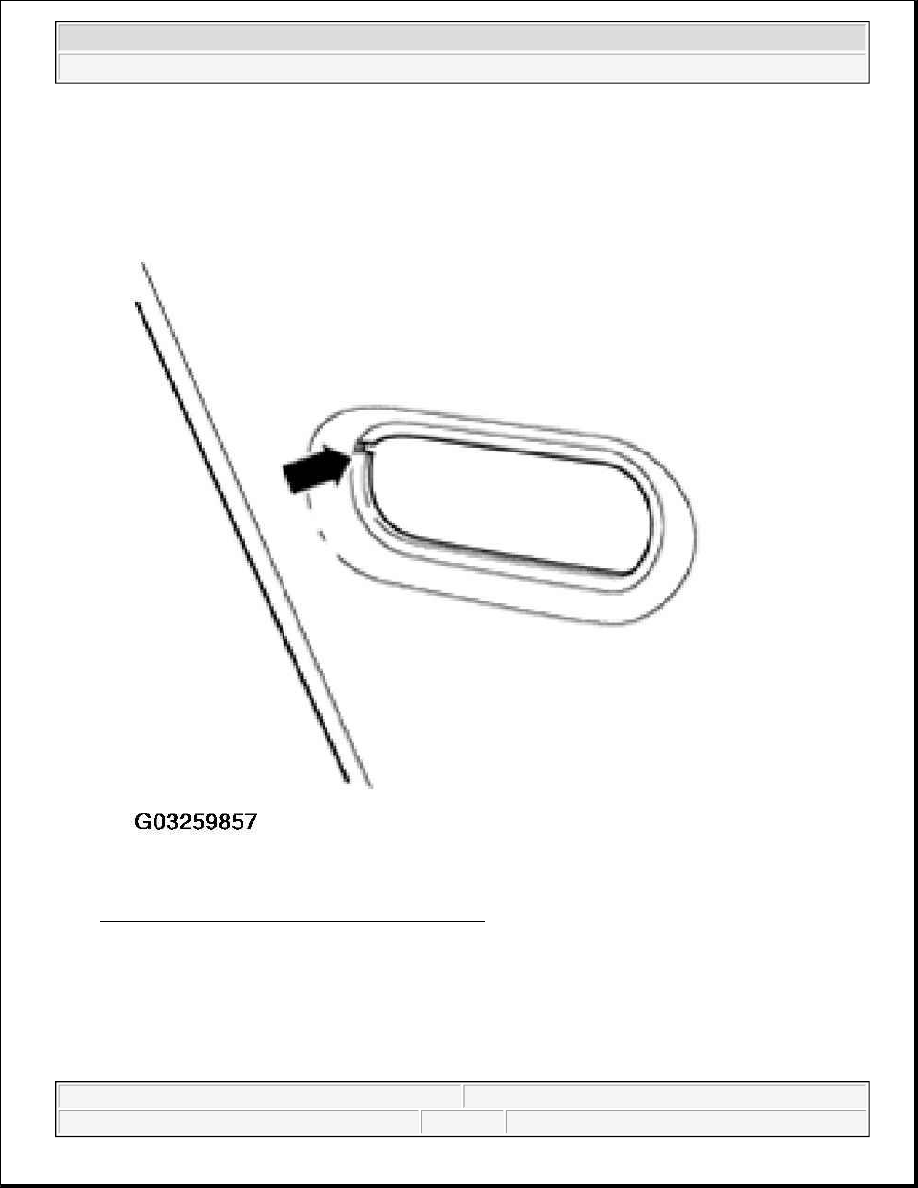

Fig. 71: Inserting Side Marker Light Into Bumper
Courtesy of VOLKSWAGEN OF AMERICA, INC.

FRONT SIDE MARKER LIGHT BULB, REPLACING

CAUTION:

z

Switch off all electrical consumers.

z

Switch ignition off and remove ignition key.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



Removing

z

Remove front inner fender liner.

See WHEEL HOUSING LINER .

z

Turn bulb holder in direction of -arrow- and pull out from housing.

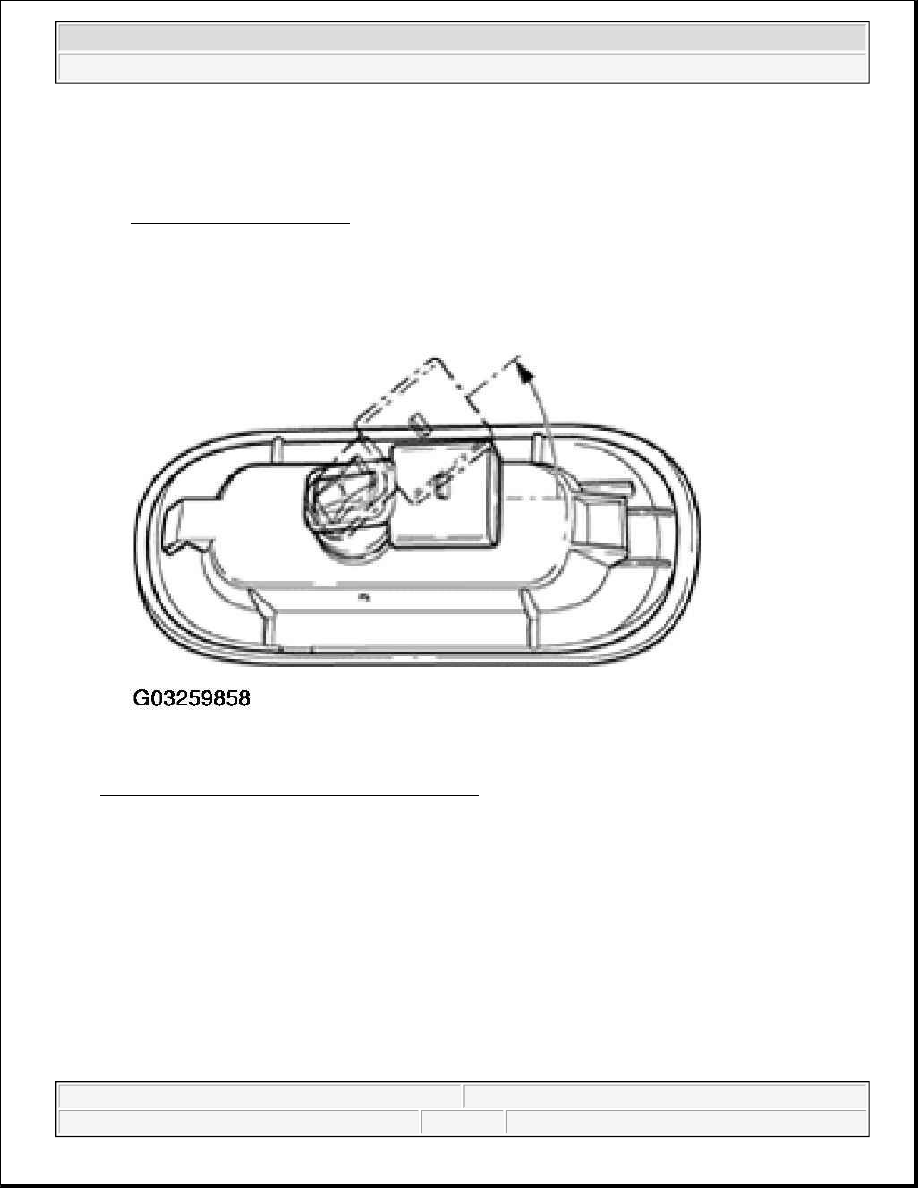

Fig. 72: Removing Front Side Marker Light Bulb
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Pull out bulb, do not turn.

Installing

z

Install in reverse order of removal.

CAUTION: Do not touch the glass portion of the bulb with bare hands. The moisture

and/or grease from fingers that evaporates on the bulb during operation,
can cause the glass to cloud over.

NOTE:

When installing, ensure bulb holder engages fully in housing, and turn in



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



SIDE MOUNTED TURN SIGNALS

SIDE MOUNTED TURN SIGNALS IN FRONT QUARTER PANELS, REMOVING AND
INSTALLING

Removing

z

Remove inner plenum panel cover:

See PLENUM CHAMBER INNER COVER, REMOVING AND INSTALLING .

z

Remove dust and pollen filter (right-hand side only)

See CABIN AIR FILTER .

z

Pull rubber grommet -3- off.

opposite direction of removal.

NOTE:

z

New Beetle Sedan from 06.99 through m.y. 2003 have side mounted turn
signals mounted in the front quarter panels.

z

Side mounted turn signals can only be removed from the vehicle interior.

z

Light emitting diodes (LED) with a long service life are installed in the side
mounted turn signals, instead of normal bulbs.

z

The complete turn signal must be replaced if damaged.

CAUTION:

z

Switch off all electrical consumers.

z

Switch ignition off and remove ignition key.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle
