z

Remove securing screw.

z

Pull turn signal out forwards.

z

Disconnect electrical connector.

Installing

z

Connect electrical connector.

z

Slide turn signal into fender opening.

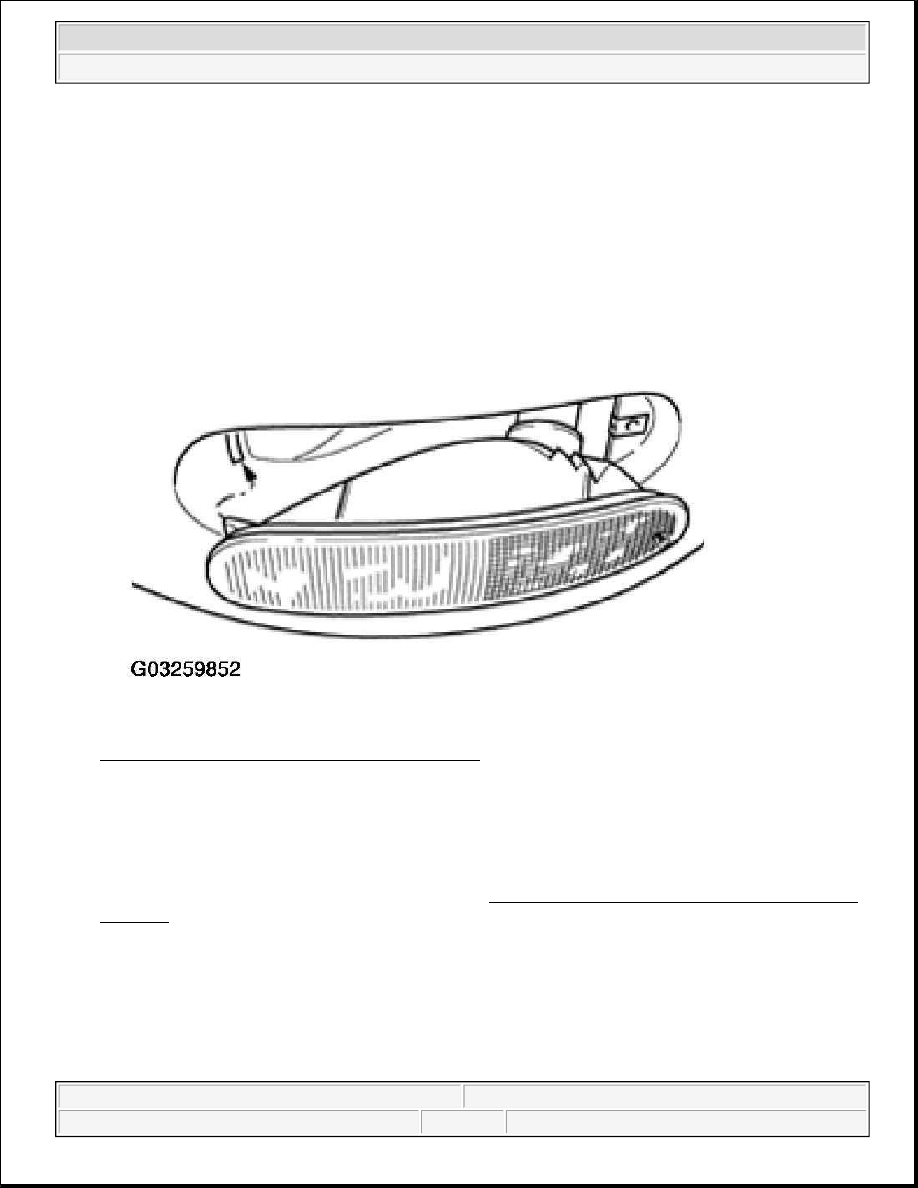

Fig. 66: Sliding Turn Signal Into Fender Opening
Courtesy of VOLKSWAGEN OF AMERICA, INC.

FRONT TURN SIGNAL AND SIDE MARKER LIGHT BULB, REPLACING

Removing

z

Remove turn signal lights and side marker lights. See FRONT TURN SIGNAL AND SIDE MARKER
LIGHTS
 .

z

Turn bulb holder in direction shown -arrow- and pull out from housing.

z

Remove bulb from holder.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



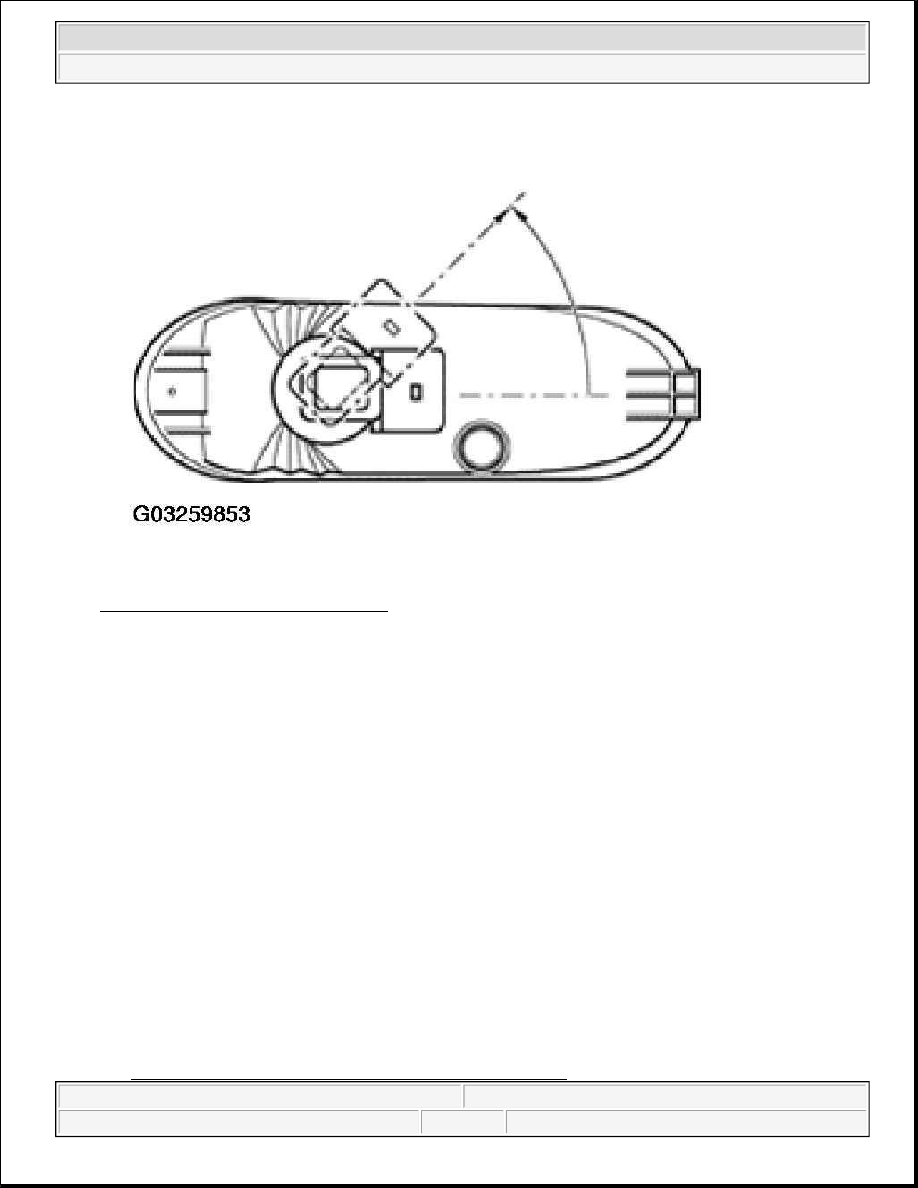

Fig. 67: Removing Bulb From Holder
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Installing

z

Install in reverse order of removal.

z

When installing, make sure bulb holder engages in housing by turning in opposite direction to direction
shown -arrow-.

FRONT TURN SIGNAL AND SIDE MARKER LIGHTS (TURBO S MODELS
ONLY)

FRONT TURN SIGNAL LIGHTS, REMOVING AND INSTALLING

Removing

z

Bring lock carrier into service position

See LOCK CARRIER, MOVING TO SERVICE POSITION .

CAUTION: Do not touch the glass portion of the bulb with bare hands. The moisture

and/or grease from fingers that evaporates on the bulb during operation,
can cause the glass to cloud over.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



z

Disconnect electrical connection to turn signal housing.

z

Remove screw -1- and swing turn signal housing -2- out of mounting.

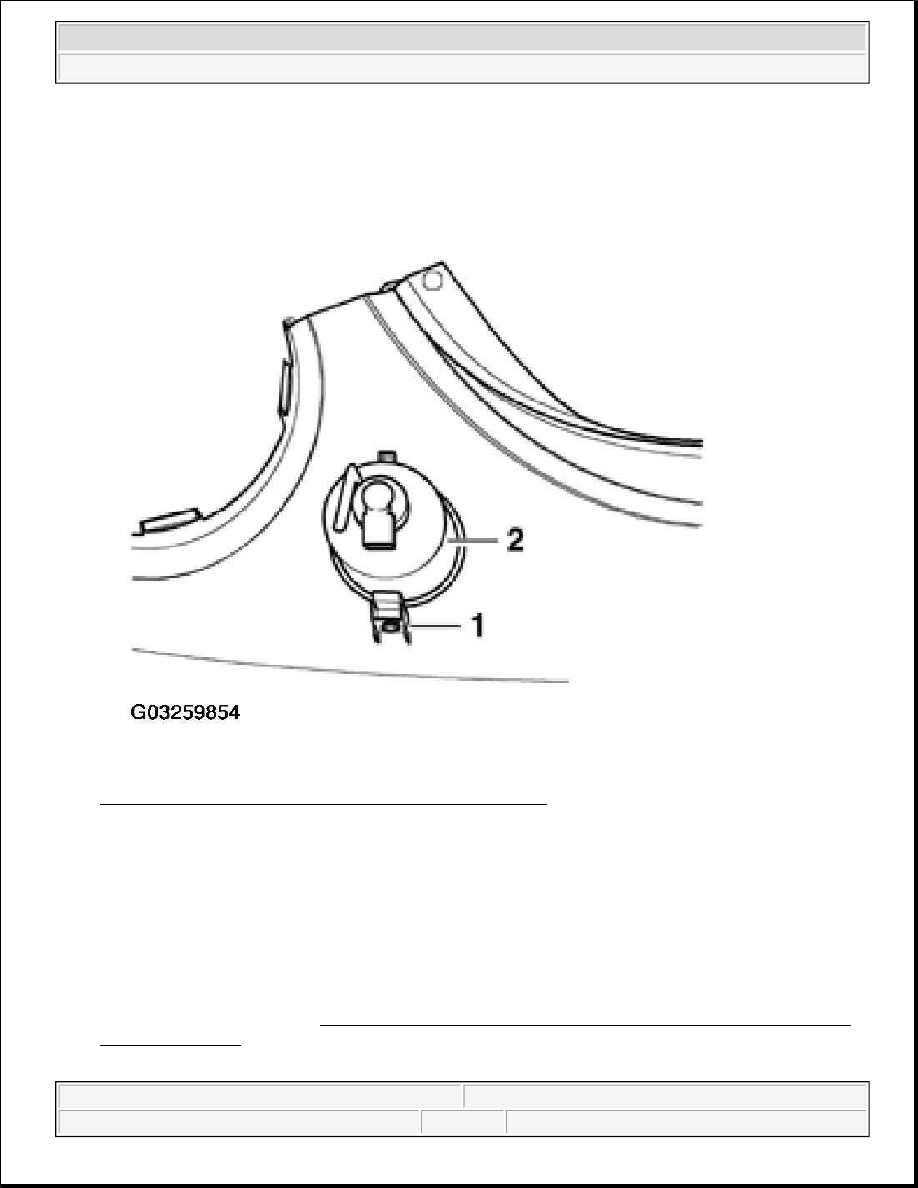

Fig. 68: Removing Screw And Swing Turn Signal Housing
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Installing

Install in reverse order of removal.

FRONT TURN SIGNAL BULB, REPLACING

Removing

z

Remove front turn signal. See FRONT TURN SIGNAL AND SIDE MARKER LIGHTS (TURBO S
MODELS ONLY)
 .

z

Turn bulb holder and pull out from housing as follows:



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



Left light: turn bulb holder counterclockwise

Right light: turn bulb holder clockwise.

z

Remove bulb from bulb holder.

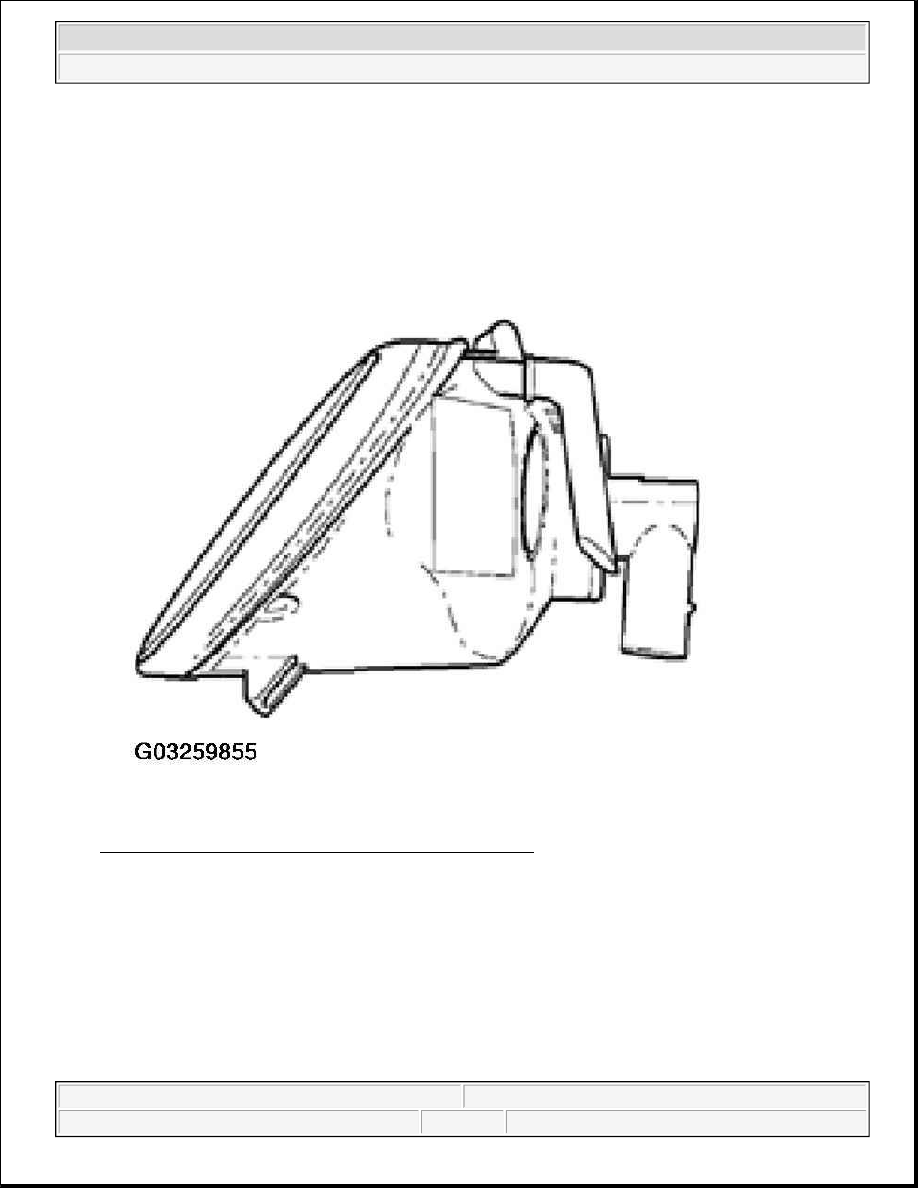

Fig. 69: Removing Front Turn Signal Bulb From Holder
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Installing

z

Install in reverse order of removal.

CAUTION: Do not touch the glass portion of the bulb with bare hands. The moisture

and/or grease from fingers that evaporates on the bulb during operation,
can cause the glass to cloud over.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle
