Volkswagen New Beetle. Manual - part 1884





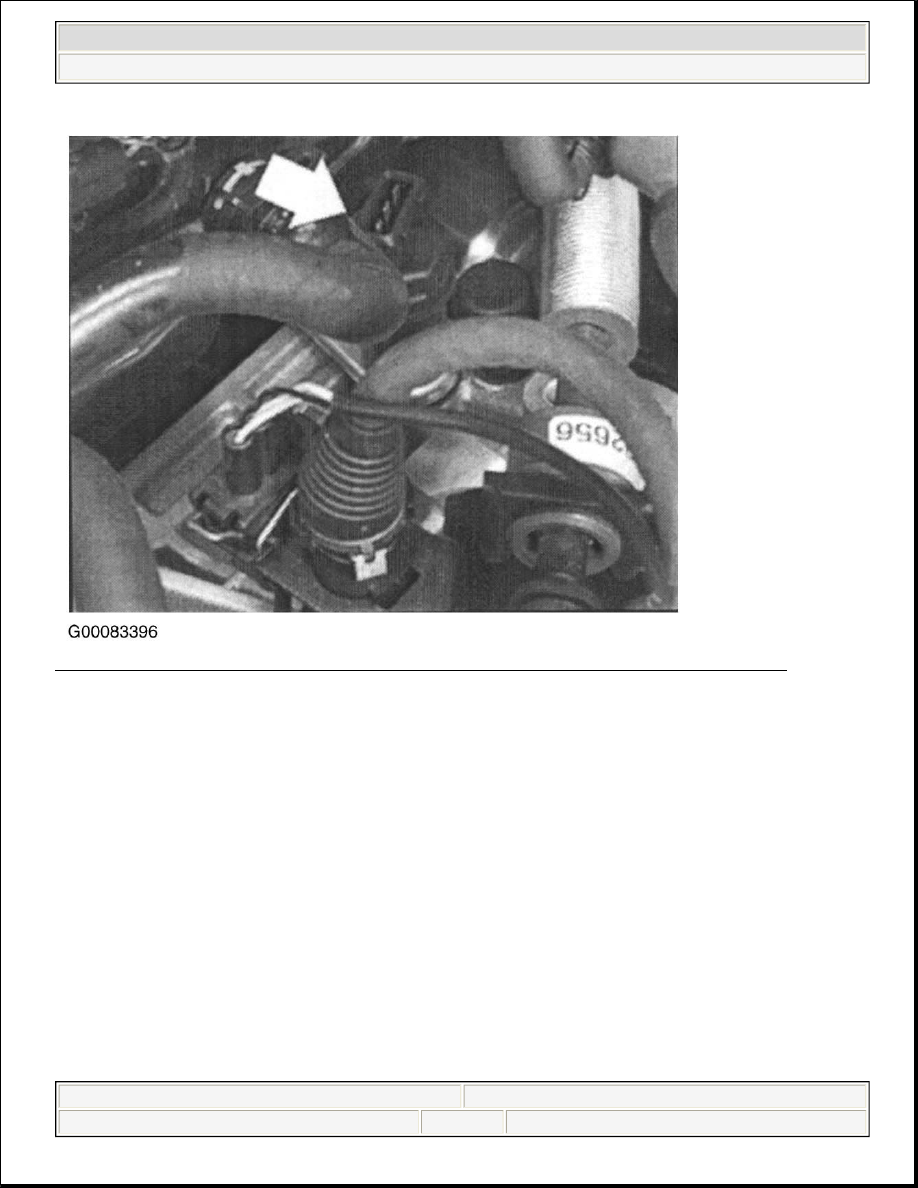

Fig. 59: Locating Vehicle Speed Sensor, For A/T On Top Of Differential Housing (G22 - Beetle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2002-2003 ENGINE PERFORMANCE Self-Diagnostics - 1.8L Turbo



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:44:42 AM

Page 158

© 2004 Mitchell Repair Information Company, LLC.

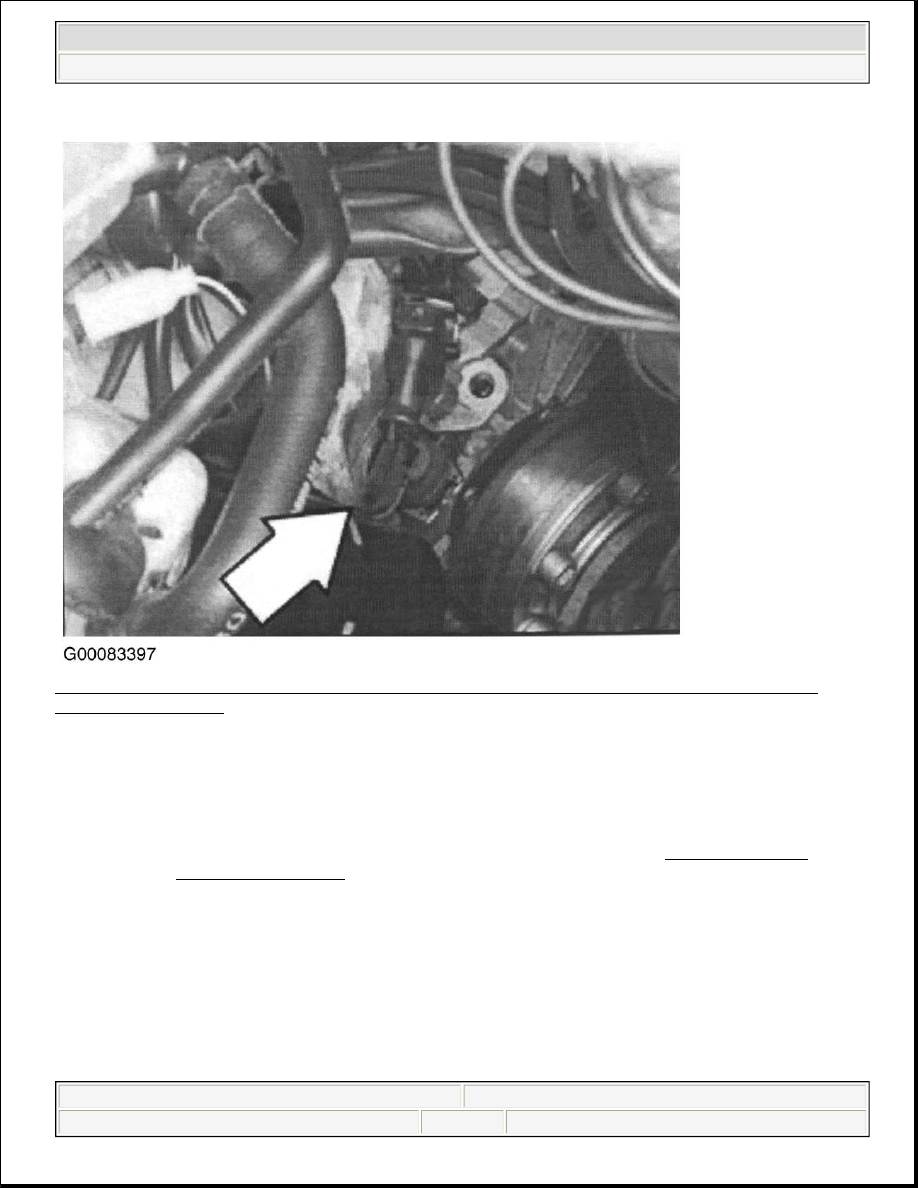

Fig. 60: Locating Vehicle Speed Sensor, For M/T On Left Side OF Transaxle, Below Back-Up Light
Switch (G22 - Passat )

Courtesy of VOLKSWAGEN UNITED STATES, INC.

DTC P0506/16890 & DTC P0507/16891

Code Definition

z

DTC P0506/16890: Idle Speed Control - RPM Too Low

z

DTC P0507/16891: Idle Speed Control - RPM Too High

Circuit/Component Description

Throttle Valve Control Module (TVCM - J338) is located on throttle body. Throttle valve drive angle sensors

NOTE:

If a test ends with ECM replacement. Before replacing ECM be certain that, all
wiring, power and ground supplies are okay. See ENGINE PERFORMANCE in
SYSTEM WIRING DIAGRAMS article in ELECTRICAL and ECM GROUND &
VOLTAGE SUPPLY .



2003 Volkswagen New Beetle GLS

2002-2003 ENGINE PERFORMANCE Self-Diagnostics - 1.8L Turbo



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:44:42 AM

Page 159

© 2004 Mitchell Repair Information Company, LLC.

and are located in TVCM (J338). ECM monitors throttle valve drive angle sensors for throttle valve position.
ECM calculates throttle position based on percentage values sent by throttle valve drive angle sensors. Throttle
valve drive angle sensors run in opposite directions of each other. Throttle Valve Drive Angle sensor No. 1
(G187) displays throttle positions from 3-97 percent. Throttle Valve Drive Angle sensor No. 2 (G188) displays
throttle positions from 97-3 percent. Throttle Valve Drive Angle sensor No. 1 (G187) ranges from 3-93 percent
(0.15-4.65 volts), the larger the throttle opening the higher the percentage (voltage) reading. Throttle Valve
Drive Angle sensor No. 2 (G188) ranges from 97-3 percent (4.90-0.15 volts), the larger the throttle opening the
smaller the percentage (voltage) reading. When the engine is running (under load) the ECM can operate throttle
valve independently of driver input.

Test Requirements

Ensure throttle valve is not damaged or dirty. Ensure all fuses are okay, battery voltage is at least 11.5 volts and
fuel pump relay is okay. Ensure all electrical accessories are off and A/C is off. Ensure engine is mechanically
sound. Ensure no intake or exhaust system leaks exist. Ensure engine coolant temperature is at least 176°F (80°
C).

Test Procedure

1.

Turn ignition off. Disconnect TVCM (J338) 6-pin harness connector. Using DVOM check resistance
between terminals No. 3 and 5 on TVCM. See Fig. 20 . Specification is one to 5 ohms. If resistance is
okay, go to next step. If resistance is not okay, replace faulty TVCM. Erase DTC memory. Verify repair.
Test is complete. Adapt TVCM (J338) to ECM (J220), see THROTTLE VALVE CONTROL
MODULE (J338)
. For vehicles with A/T, adapt TVCM (J338) to Transmission Control Module (J217),
see A/T BASIC SETTING . On all models, perform ECM relearn procedure. See TEST DRIVE
RELEARN PROCEDURE
.

2. Connect scan tool. See RETRIEVING DIAGNOSTIC TROUBLE CODES . Turn ignition on, engine

off. Following scan tool manufacturer's instructions, observe percentage reading for Throttle Valve Drive
Angle sensor No. 1 (G187) and Throttle Valve Drive Angle sensor No. 2 (G188).

3. Operate accelerator pedal slowly to Wide Open Throttle and observe percentage (voltage) readings for

Throttle Valve Drive Angle sensor No. 1 (G187) and Throttle Valve Drive Angle sensor No. 2 (G188).
Specification for Throttle Valve Drive Angle sensor No. 1 (G187) is 3 to 93 percent (0.15 to 4.65 volts).
Specification for Throttle Valve Drive Angle sensor No. 2 (G188) is 97 to 3 percent (4.90 to 0.15 volts).
If throttle valve drive angle sensor tests are not okay, go to step 6 . If throttle valve drive angle sensor
tests are okay, go to next step.

4. Check Accelerator Pedal Position (APP) sensors. See DTC P0226/16610: ACCELERATOR PEDAL

POSITION SENSOR 1 (G79) ACCELERATOR PEDAL POSITION SENSOR 2 (G185),
IMPLAUSIBLE SIGNAL
. If APP sensors are not okay, go to next step. If APP sensors are okay. Erase

NOTE:

Test ranges for throttle valve drive angle sensors may not fully display on scan
tool. No idle specifications for throttle valve drive angle sensors are given by
manufacturer.

NOTE:

If TVCM (J338) is replaced, it must be adapted to the ECM and A/T control
module (if equipped).



2003 Volkswagen New Beetle GLS

2002-2003 ENGINE PERFORMANCE Self-Diagnostics - 1.8L Turbo



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:44:43 AM

Page 160

© 2004 Mitchell Repair Information Company, LLC.

DTC memory. Perform ECM relearn procedure. See TEST DRIVE RELEARN PROCEDURE . If
code did not return on test drive, test is complete.

5. Replace APP sensors as necessary. Erase DTC memory. Verify repair. Test is complete. For vehicles with

A/T, adapt APP sensors to Transmission Control Module (J217). See A/T BASIC SETTING . On all
models, perform ECM relearn procedure. See TEST DRIVE RELEARN PROCEDURE .

6. Turn ignition off. Disconnect ECM harness connector. Leave ECM disconnected from test box. Connect

Test Box (VAG 1598/31) to ECM harness connector. See CONNECTING VAG TEST BOX . Using
DVOM, check resistance between TVCM (J338) 6-pin harness connector and test box sockets, see
TVCM (J338) 6-PIN HARNESS CONNECTOR/VAG TEST BOX SOCKET IDENTIFICATION
table. Record resistance readings. Resistance should be a maximum of 1.5 ohms for each reading. Check
wiring in TVCM (J338) 6-pin harness connector for short circuits to one another, and for short circuits to
B+ and ground. If resistance measurements are okay and no short circuits exist, go to next step. If any
resistance measurement is not okay, or a short circuit exists, repair circuit(s) as necessary. After repairs,
erase DTC memory. Verify repair. Test is complete. Perform ECM relearn procedure. See TEST DRIVE
RELEARN PROCEDURE

TVCM (J338) 6-PIN HARNESS CONNECTOR/VAG TEST BOX SOCKET IDENTIFICATION

7. Turn ignition on. Using DVOM, measure voltage between TVCM (J338) 6-pin harness connector

specified terminals. See TVCM (J338) VOLTAGE SPECIFICATIONS table. See Fig. 33 . Record
voltage readings. If voltage readings are not okay, go to next step. If voltage readings are okay, resistance
measurements are okay and no short circuits exist, replace faulty TVCM. After repairs, erase DTC
memory. Verify repair. Test is complete. Adapt TVCM (J338) to ECM (J220). See THROTTLE
VALVE CONTROL MODULE (J338)
. For vehicles with A/T, adapt TVCM (J338) to Transmission
Control Module (J217), see A/T BASIC SETTING . On all models, perform ECM relearn procedure.
See TEST DRIVE RELEARN PROCEDURE

TVCM (J338) VOLTAGE SPECIFICATIONS

8. Check ECM voltage supply. See ECM GROUND & VOLTAGE SUPPLY under ECM (J220) ME SFI

CONTROL MODULE. If ECM ground circuits and ECM voltage supply are okay, go to next step. If
ECM ground circuits and/or ECM voltage supply are not okay, repair as necessary. After repairs, erase
DTC memory. Verify repair. Test is complete. Perform ECM relearn procedure. See TEST DRIVE
RELEARN PROCEDURE
.

TVCM 6-Pin Harness Connector Terminal

VAG Test Box Socket

92

83

117

84

118

91

TVCM 6-Pin Harness Connector Terminals

Voltage

2 & Ground

Minimum 4.5

2 & 6

Minimum 4.5
