TROUBLE CODES .

z

Perform adaptation of throttle valve control module. See THROTTLE VALVE CONTROL
MODULE (J338)
.

z

On vehicles equipped with cruise control, activate cruise control to ECM. See
ACTIVATING/DEACTIVATING CRUISE CONTROL .

z

On vehicles equipped with A/T, perform adaptation of A/T to basic setting. See A/T BASIC
SETTING
.

z

On vehicles equipped with A/T, perform adaptation of kickdown switch. See ADAPTING
KICKDOWN FUNCTION
.

z

On vehicles equipped with factory alarm system, perform adaptation of immobilizer to ECM. See
IMMOBILIZER .

z

Perform idle check. See IDLE CHECK .

z

Generate ECM readiness code. See READINESS CODE



2003 Volkswagen New Beetle GLS

2002-2003 ENGINE PERFORMANCE Self-Diagnostics - 1.8L Turbo



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:44:28 AM

Page 18

© 2004 Mitchell Repair Information Company, LLC.



2003 Volkswagen New Beetle GLS

2002-2003 ENGINE PERFORMANCE Self-Diagnostics - 1.8L Turbo



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:44:28 AM

Page 19

© 2004 Mitchell Repair Information Company, LLC.

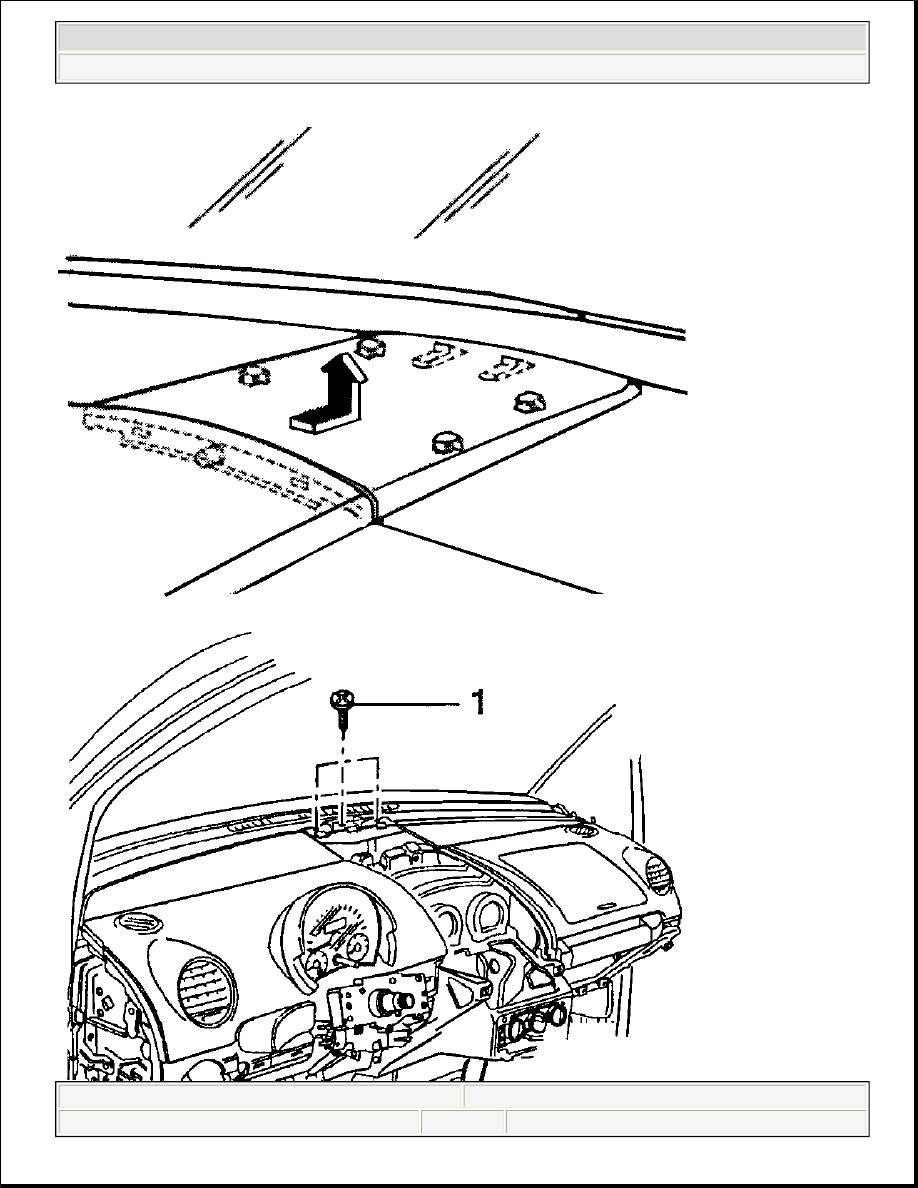

Fig. 6: Removing Center & Left Inner Dash Covers (Beetle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

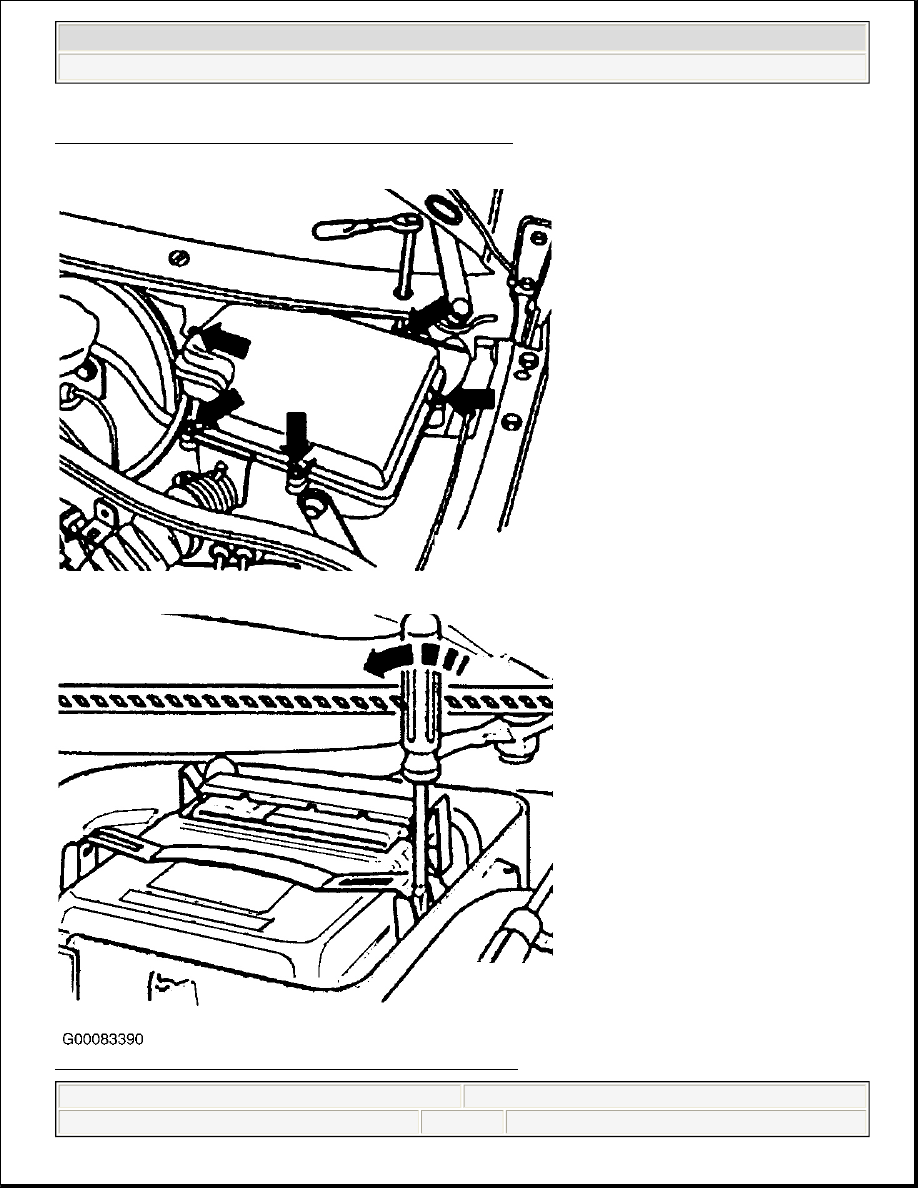

Fig. 7: Removing ECM Protective Cover & Bracket (Passat)



2003 Volkswagen New Beetle GLS

2002-2003 ENGINE PERFORMANCE Self-Diagnostics - 1.8L Turbo



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:44:28 AM

Page 20

© 2004 Mitchell Repair Information Company, LLC.

Courtesy of VOLKSWAGEN UNITED STATES, INC.

ECM Ground & Voltage Supply

1. Verify battery voltage is a minimum of 11.5 volts and all fuses are okay. Ensure battery and engine to

body grounds are okay. Repair as necessary. Turn off all electrical consumers and A/C. Position shift
lever in park (A/T) or neutral (M/T) and set parking brake. Connect scan tool. See Fig. 1 .

2. Start engine and idle. Press keys "0" and "1" for address word "Engine Electronics". Press keys "0" and

"8" for "Read Measuring Value Block" function 08 and enter by pressing "Q" key. Press keys "0", "0"
and "4" for display group "4" and enter by pressing "Q" key. Read ECM voltage supply in "Specified
value" window of display field "2". Press right arrow key and enter by pressing "Q" key. ECM voltage
supply should be 12-14.5 volts. Turn ignition off. If voltage is less than 12 volts, go to next step. If
voltage is more than 14.5 volts, go to step 4 . If voltage checks are okay. ECM power and ground circuits
are okay. Test is complete.

3. Check battery, alternator, parasitic load and ECM grounds. See appropriate WIRING DIAGRAM under

ENGINE PERFORMANCE in SYSTEM WIRING DIAGRAMS. Repair as necessary. If repairs where
performed, repeat steps 1 and 2 . If battery, alternator, parasitic load and ECM grounds are okay, go to
step 5 .

4. Possible cause is alternator and/or voltage regulator failure. Repair as necessary. If repairs were

performed, repeat steps 1 and 2 . If alternator and voltage regulator are okay, go to next step.

5. Turn ignition off. Connect Test Box (VAG 1598/31) to ECM harness connector. See CONNECTING

VAG TEST BOX and go to next step.

6.

Turn ignition on. Using adapter cables from Test Kit (VAG 1594) and DVOM. Measure voltage supply at
test box sockets No. 1 and 62 (ground and B+ 30). Battery voltage should be present. Measure voltage
supply at test box sockets No. 2 and 3 (ground and ignition 15). Battery voltage should be present. If
either voltage tests have failed, for all models (except Beetle engine code AWV) go to next step. For
Beetle (engine code AWV), go to step 8 . If both voltage checks are okay. ECM power and ground
circuits are okay. Test is complete. After reconnecting ECM, it is necessary to perform relearn procedure.
Perform ECM relearn procedure. See TEST DRIVE RELEARN PROCEDURE

7. Except Beetle (Engine Code AWV)

Check voltage supply through ECM power supply relay. Turn ignition on. Using adapter cables from Test
Kit (VAG 1594) and a DVOM, measure voltage supply at test box sockets No. 2 and 121. Battery voltage
should be present. Check continuity of wire from terminal No. 21 at ECM to ECM power supply relay
No. 5, (No. 4 on relay for Passat). If any voltage tests have failed, go to next step. If voltage and

NOTE:

Manufacturer recommends using Scan Tool (VAG 1551/1552 or VAS 5051/5052).
The following tests are preformed using Scan Tool (VAG 1551/1552 or VAS
5051/5052). For location of Data Link Connector (DLC), see RETRIEVING
DIAGNOSTIC TROUBLE CODES .

NOTE:

If test box is not available. Use wiring diagram and DVOM to check ECM
grounds and voltage supply, see appropriate WIRING DIAGRAM under
ENGINE PERFORMANCE in SYSTEM WIRING DIAGRAMS.



2003 Volkswagen New Beetle GLS

2002-2003 ENGINE PERFORMANCE Self-Diagnostics - 1.8L Turbo



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:44:28 AM

Page 21

© 2004 Mitchell Repair Information Company, LLC.
