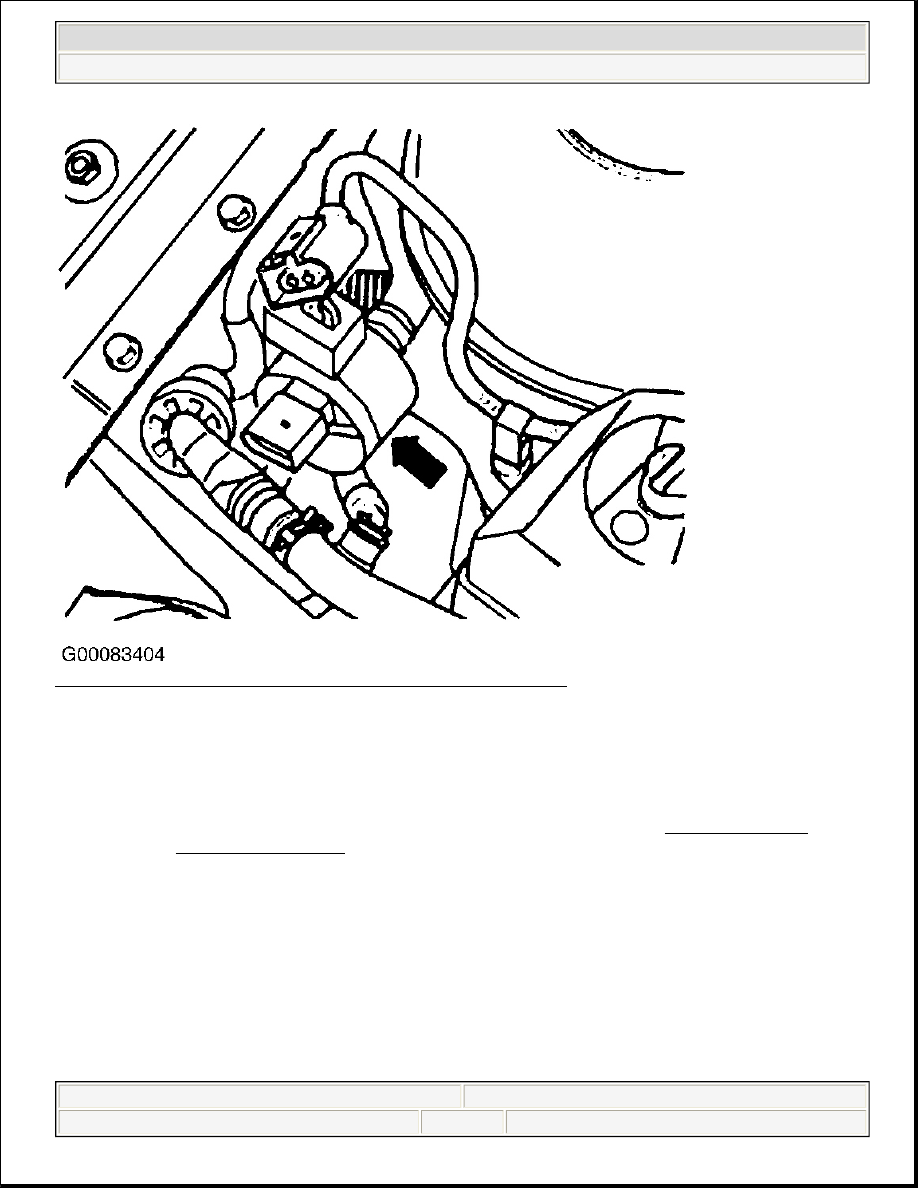

Fig. 36: Locating EVAP Canister Purge Valve (N80 - Golf & Jetta)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

DTC P0442/16827, P0455/16839 & P0456/16840: EVAP LEAK

Code Definition

DTC P0442/16827
EVAP - Small Leak Detected

DTC P0455/16839
EVAP - Very Large Leak Detected

DTC P0456/16840
EVAP - Very Small Leak Detected

NOTE:

If a test ends with ECM replacement, before replacing ECM be certain that, all
wiring, power and ground supplies are okay. See ENGINE PERFORMANCE in
SYSTEM WIRING DIAGRAMS article in ELECTRICAL and ECM GROUND &
VOLTAGE SUPPLY .



2003 Volkswagen New Beetle GLS

2001-2003 ENGINE PERFORMANCE Self-Diagnostics - 2.0L - Beetle, Golf & Jetta (Engine Codes AVH & AZG)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:49:57 AM

Page 100

© 2004 Mitchell Repair Information Company, LLC.

Test Requirements

Ensure intake air temperature is less than 140°F (60°C). Ensure engine coolant temperature is less than 176°F
(80°C). Ensure all fuses are okay, battery voltage is at least 11.5 volts and fuel pump relay is okay. Ensure all
electrical accessories are off and A/C is off. Ensure engine is mechanically sound. Ensure no intake or exhaust
system leaks exist. On vehicles with M/T, gear shifter must be in neutral with parking brake set. On vehicles
with A/T, selector lever must be in park or neutral with parking brake set.

Test Procedure

1. Check tubing and hoses from fuel tank to throttle body. If tubing and hoses are okay, go to next step. If

tubing and/or hoses are not okay, repair as necessary. Erase DTC memory. Verify repair. Perform ECM
relearn procedure. See TEST DRIVE RELEARN PROCEDURE .

2.

Connect scan tool. See RETRIEVING DIAGNOSTIC TROUBLE CODES . Turn ignition on. Using
scan tool, follow scan tool manufacturer's instructions, check EVAP system for leaks. If leak(s) are
detected, check fuel tank filler cap using a fuel tank filler cap tester, check fuel pump housing, EVAP
canister, EVAP components, hoses and tubes for leaks. Repair as necessary. Erase DTC memory. Verify
repair. Test is complete. Perform ECM relearn procedure. See TEST DRIVE RELEARN
PROCEDURE
. If no leaks are detected. Erase DTC memory. Perform ECM relearn procedure. See
TEST DRIVE RELEARN PROCEDURE . If DTC does not reset on test drive. Test is complete. If
DTC returns on test drive, go to next step.

3. Check EVAP Canister Purge Valve (N80). See DTC P0441/16825 .

4. Check EVAP Leak Detection Pump (V144) using Output Diagnostic Test Mode. See OUTPUT

DIAGNOSTIC TEST MODE . EVAP Leak Detection Pump (V144) should run in intervals (cycle on
and off). If EVAP Leak Detection Pump (V144) does not run, go to next step.

5. Disconnect EVAP Leak Detection Pump (V144) harness connector, install LED test light at EVAP leak

detection pump harness connector terminal No. 2 and B+. See Fig. 37 . Turn ignition on. Using scan tool,
activate EVAP Leak Detection Pump (V144). See OUTPUT DIAGNOSTIC TEST MODE . Turn
ignition off. Install LED test light at EVAP leak detection pump harness connector terminal No. 3 and
Ground. Turn ignition on. Using scan tool, activate EVAP Leak Detection Pump (V144). See OUTPUT
DIAGNOSTIC TEST MODE
. LED test light should flash during each test. If LED test light does not
flash during each test, go to next step. If LED test light at EVAP Leak Detection Pump (V144) harness
connector flashes during each test, replace faulty EVAP Leak Detection Pump (V144). Erase DTC
memory. Verify repair. Test is complete. Perform ECM relearn procedure. See TEST DRIVE
RELEARN PROCEDURE
.

NOTE:

Output Diagnostic Test Mode is used when using Scan Tools VAG 1551/1552 or
VAS 5051/5052, always continue with output diagnostic test mode until last
component in output diagnostic test mode test sequence has been checked.
Follow scan tool manufacturer's instructions.

NOTE:

When checking for leaks in EVAP system, pay particular attention to fuel
tank filler cap, EVAP Canister Purge Valve (N80), EVAP Canister and EVAP
canister hose connections.



2003 Volkswagen New Beetle GLS

2001-2003 ENGINE PERFORMANCE Self-Diagnostics - 2.0L - Beetle, Golf & Jetta (Engine Codes AVH & AZG)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:49:57 AM

Page 101

© 2004 Mitchell Repair Information Company, LLC.

6. Turn ignition off. Disconnect ECM harness connector, leave ECM disconnected from test box. Connect

Test Box (VAG 1598/31) to ECM harness connector. See CONNECTING VAG TEST BOX . Using
DVOM, check resistance between the following EVAP Leak Detection Pump (V144) harness connector
terminals and test box sockets. See Fig. 37 .

z

EVAP Leak Detection Pump (V144) harness connector terminal No. 1 and test box socket No. 80.

z

EVAP Leak Detection Pump (V144) harness connector terminal No. 2 and test box socket No. 25.

z

EVAP Leak Detection Pump (V144) harness connector terminal No. 3 and Fuel Pump Relay (J17).

Resistance should be a maximum of 1.5 ohms for each reading. Check harness connector wiring No. 1
and 2 for short circuit to one another and all harness connector wiring for short circuit to ground and B+.
Repair as necessary. Erase DTC memory. Verify repair. Test is complete. Perform ECM relearn
procedure. See TEST DRIVE RELEARN PROCEDURE . If EVAP Leak Detection Pump (V144)
wiring is okay, go to next step.

7. Replace faulty ECM. See ENGINE CONTROL MODULE REMOVAL & INSTALLATION . Erase

DTC memory. Verify repair. Test is complete. Perform ECM relearn procedure. See TEST DRIVE
RELEARN PROCEDURE
.

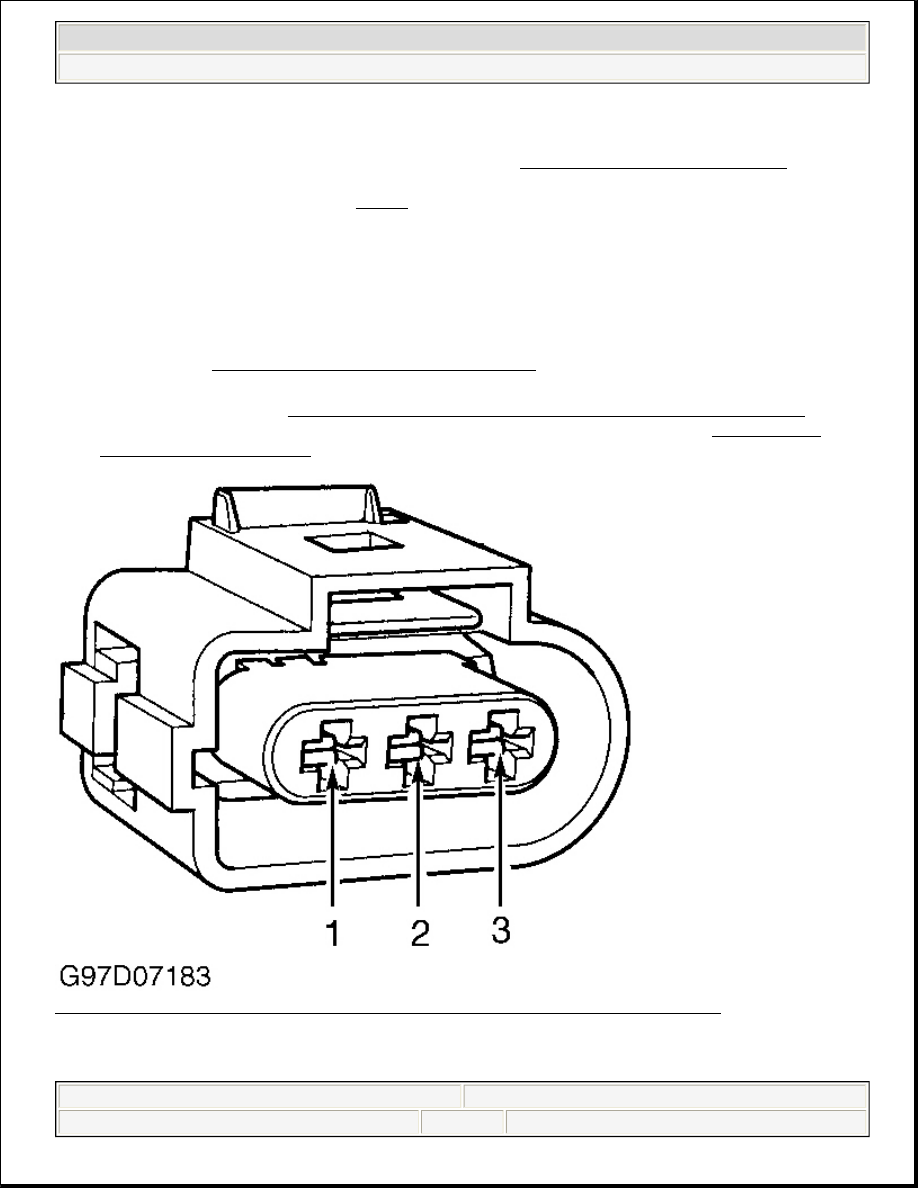

Fig. 37: Identifying EVAP Leak Detection Pump (V144) Harness Connector Terminals
Courtesy of VOLKSWAGEN UNITED STATES, INC.

DTC P0501/16885: VEHICLE SPEED SIGNAL - IMPLAUSIBLE SIGNAL



2003 Volkswagen New Beetle GLS

2001-2003 ENGINE PERFORMANCE Self-Diagnostics - 2.0L - Beetle, Golf & Jetta (Engine Codes AVH & AZG)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:49:57 AM

Page 102

© 2004 Mitchell Repair Information Company, LLC.

Test Requirements

Ensure all fuses are okay, battery voltage is at least 11.5 volts, all electrical accessories are off, A/C is off.
Engine is mechanically sound. Ensure engine coolant temperature is at least 176°F (80°C).

Test Procedure

1. Connect scan tool. See RETRIEVING DIAGNOSTIC TROUBLE CODES . Turn ignition on, engine

off. Following scan tool manufacturer's instructions, check vehicle speed signal. Vehicle must be test
driven to check speed signal. With help from a second person in the back seat to read scan tool, observe
scan tool display. Scan tool display should be approximately driven speed. If no speed is displayed on
scan tool, go to next step. If scan tool and speedometer displays approximately driven speed. Erase DTC
memory. Perform ECM relearn procedure. See TEST DRIVE RELEARN PROCEDURE . If DTC
P0501/16885 did not return on test drive, test is complete.

2. Turn ignition off. Disconnect Engine Control Module (ECM) harness connector. Connect Test Box (VAG

1598/31) to ECM harness connector, leave ECM disconnected. See CONNECTING VAG TEST BOX
Raise one front wheel off the ground. Turn ignition on, engine off. Measure voltage between terminals
No. 3 and 54 at test box while rotating front wheel. Voltage should fluctuate between zero and 4 volts. If
voltage does not fluctuate, check Vehicle Speed sensor (G22) wiring for open and short circuits. See
ENGINE PERFORMANCE in SYSTEM WIRING DIAGRAMS article in ELECTRICAL.

3. If wiring is okay, replace faulty Vehicle Speed sensor (G22). With A/T see Fig. 38 . With M/T see Fig.

39 . Erase DTC memory. Verify repair. Test is complete. Perform ECM relearn procedure. See TEST
DRIVE RELEARN PROCEDURE
. If wiring is not okay, repair as necessary. Erase DTC memory.
Verify repair. Test is complete. Perform ECM relearn procedure. See TEST DRIVE RELEARN
PROCEDURE
.
