ELECTRICAL.

ON-BOARD DIAGNOSTICS

Misfire

A malfunction that causes a misfire during vehicle operation causes MIL to flash in equally timed increments.
This is a malfunction (e.g. misfire) that may cause catalytic converter damage. If MIL flashes in equally timed
increments during vehicle operation, cause of malfunction must be determined. See DTC IDENTIFICATION
table.

Hard Failures

Hard failures cause MIL to illuminate and remain on until problem is repaired. If MIL comes on and remains on
during vehicle operation, cause of malfunction must be determined. See DTC IDENTIFICATION table. In
addition EPC malfunctions are indicated by an EPC warning light and MIL in instrument cluster. See Fig. 2 and
Fig. 3 under MALFUNCTION INDICATOR LIGHT (K83) . For most sensors, if a sensor fails, ECM will
use a substitute value in its calculations to continue engine operation. In this condition, commonly known as
limp-in or limp-home mode, the vehicle runs but driveability will not be optimum.

The Engine Speed (RPM) sensor (G28) is a speed and reference mark sensor. The engine will not start if there
is no engine speed (RPM) signal. If the engine speed (RPM) signal fails when the engine is running, it will
cause the engine to stall immediately.

Sporadic Malfunctions (Intermittent Failures)

Sporadic malfunctions (intermittent failures) may cause Malfunction Indicator Light (MIL) to flicker or
illuminate and go out after the intermittent fault goes away. DTC will be retained in ECM memory. Sporadic
malfunctions (intermittent failures) may be caused by a sensor, connector or wiring related problems.

MALFUNCTION INDICATOR LIGHT (K83)

CAUTION: A Malfunction Indicator Light (MIL) flashing in equally timed increments

during vehicle operation indicates malfunction(s) causing a misfire.
Vehicle must not be driven at full power and must be diagnosed and
repaired before catalytic converter damage occurs.

NOTE:

When using Scan Tool VAG 1551/1552 or VAS 5051/5052, malfunctions which
only occur sporadically (intermittently) will have the addendum sporadic
(intermittent) malfunction on the print out and will be indicated on the display
by the addendum /SP. Cause of sporadic malfunctions can be e.g. a loose
contact or a intermittently open circuit. If a sporadic malfunction does not occur
again within 40 warm-up phases, sporadic DTC(s) will be erased from ECM
memory. A warm-up phase is, engine started with coolant temperature below
122°F (50°C), switched off at above 162°F (72°C).



2003 Volkswagen New Beetle GLS

2001-2003 ENGINE PERFORMANCE Self-Diagnostics - 2.0L - Beetle, Golf & Jetta (Engine Codes AVH & AZG)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:49:53 AM

Page 4

© 2004 Mitchell Repair Information Company, LLC.

All models are equipped with a Malfunction Indicator Light (MIL). MIL illuminates when a system failure has
been detected and DTC has been stored in Engine Control Module (ECM) memory. For location of MIL, see
Fig. 2 and Fig. 4 .

MIL and Electronic Power Control (EPC) warning light both illuminate when a system failure has been detected
in the EPC system. DTC is also stored in ECM memory.

NOTE:

Instrument Cluster Control Module (J285) and Can Data Bus OBD Interface
(J533) are integral parts of the instrument cluster. If instrument cluster is
replaced, Can Data Bus OBD Interface (J533) must be coded. See CAN DATA
BUS OBD INTERFACE (J533) CODING .

CAUTION: A Malfunction Indicator Light (MIL) flashing in equally timed increments

during vehicle operation indicates malfunction(s) causing a misfire.
Vehicle must not be driven at full power and must be diagnosed and
repaired before catalytic converter damage occurs.



2003 Volkswagen New Beetle GLS

2001-2003 ENGINE PERFORMANCE Self-Diagnostics - 2.0L - Beetle, Golf & Jetta (Engine Codes AVH & AZG)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:49:53 AM

Page 5

© 2004 Mitchell Repair Information Company, LLC.

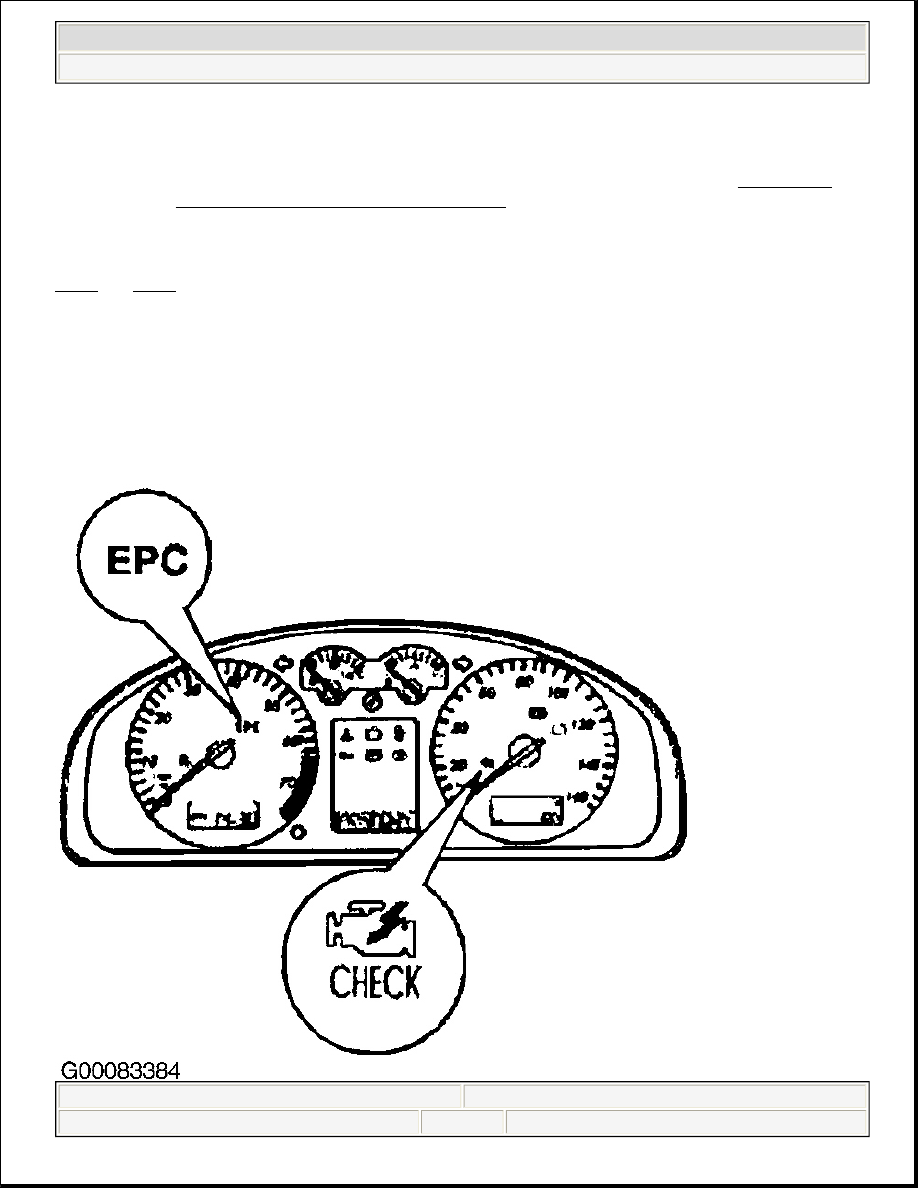

Fig. 2: Locating Malfunction Indicator Light & Electronic Power Control Warning Light (Golf & Jetta)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

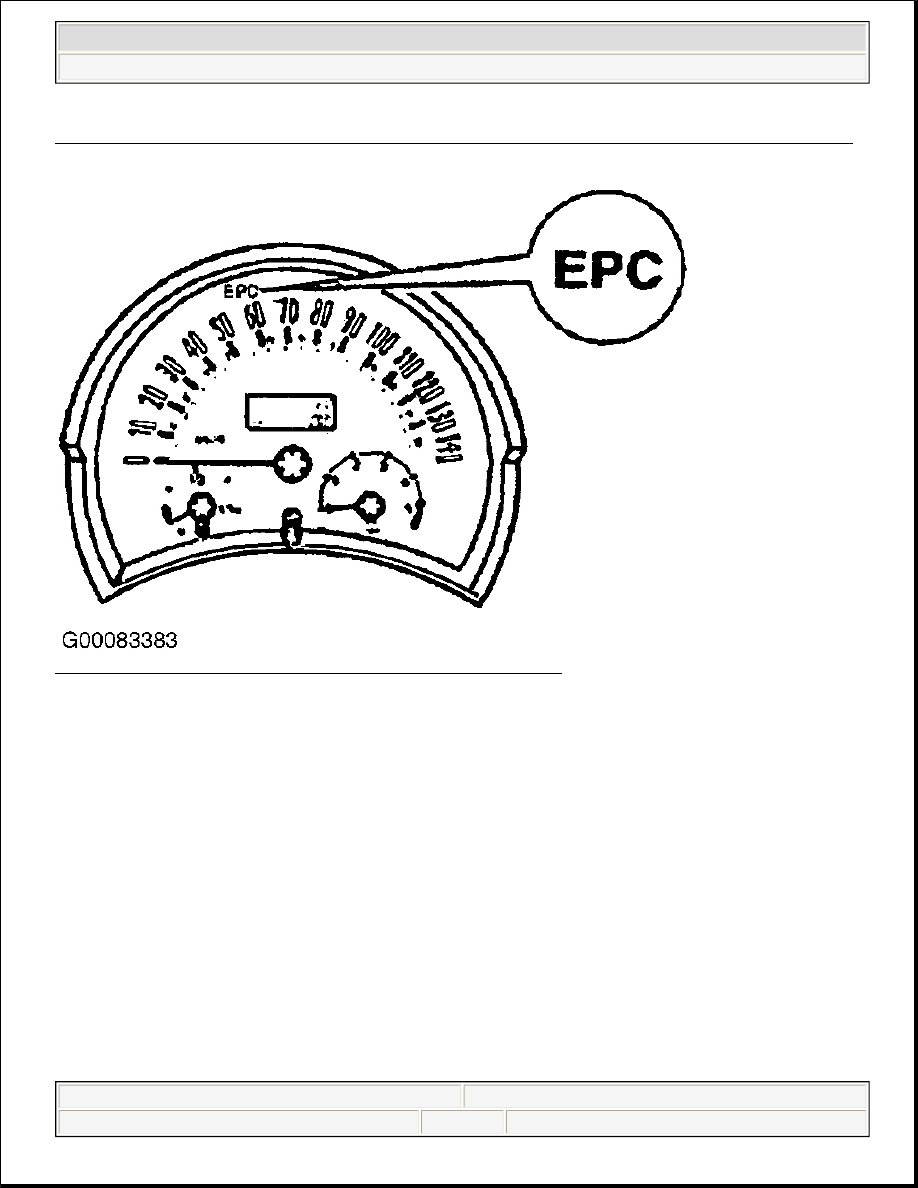

Fig. 3: Locating Electronic Power Control Warning Light (Beetle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2001-2003 ENGINE PERFORMANCE Self-Diagnostics - 2.0L - Beetle, Golf & Jetta (Engine Codes AVH & AZG)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:49:53 AM

Page 6

© 2004 Mitchell Repair Information Company, LLC.

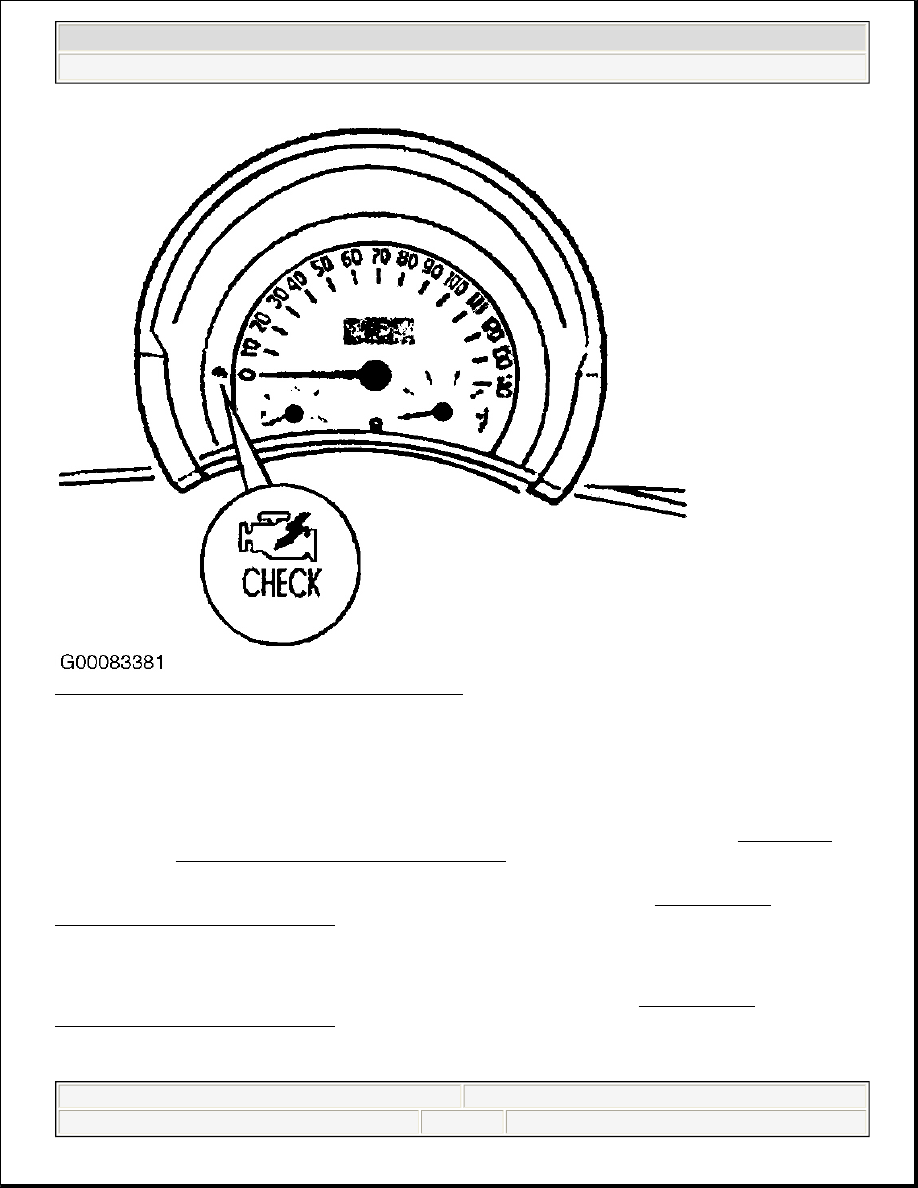

Fig. 4: Locating Malfunction Indicator Light (Beetle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

MALFUNCTION INDICATOR LIGHT CHECK

Turn ignition on, with engine off. If MIL does not illuminate, check for codes. See RETRIEVING
DIAGNOSTIC TROUBLE CODES
, repair as necessary. If no DTCs are present, check wiring and
instrument cluster for MIL. See ENGINE PERFORMANCE in SYSTEM WIRING DIAGRAMS article in
ELECTRICAL.

If MIL is illuminated with engine running, turn engine off. Check for codes. See RETRIEVING
DIAGNOSTIC TROUBLE CODES
, repair as necessary. If no DTCs are present, check wiring and
instrument cluster MIL. See ENGINE PERFORMANCE in SYSTEM WIRING DIAGRAMS article in
ELECTRICAL.

NOTE:

Instrument Cluster Control Module (J285) and Can Data Bus OBD Interface
(J533) are integral parts of the instrument cluster. If instrument cluster is
replaced, Can Data Bus OBD Interface (J533) must be coded. See CAN DATA
BUS OBD INTERFACE (J533) CODING .



2003 Volkswagen New Beetle GLS

2001-2003 ENGINE PERFORMANCE Self-Diagnostics - 2.0L - Beetle, Golf & Jetta (Engine Codes AVH & AZG)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:49:53 AM

Page 7

© 2004 Mitchell Repair Information Company, LLC.
