Volkswagen New Beetle. Manual - part 1795





Measure resistance between 10 pin harness connector terminals and test box sockets. See INJECTION
PUMP QUALITY ADJUSTER (N146) / TEST BOX SOCKET
table and Fig. 20 .

INJECTION PUMP QUALITY ADJUSTER (N146) / TEST BOX SOCKET

5. Resistance should be less than 1.5 ohms for each reading. If resistance is as specified, go to next step. If

any resistance is not as specified, repair open in wiring between 10 pin Injection Pump Quality Adjuster
(N146) harness connector and ECM. After repairs, erase DTC memory. See CLEARING
DIAGNOSTIC TROUBLE CODES (FUNCTION 05)
under SELF DIAGNOSTIC SYSTEM. Verify
repair. Test is complete. Perform ECM relearn procedure. See TEST DRIVE RELEARN
PROCEDURE
.

6. Check terminals No. 5 and 6 for short to each other. Check terminals No. 5 and 6 for short to B+. Check

terminals No. 5 and 6 for short to ground. If wiring is okay, go to next step. If wiring is not okay, repair
short circuit(s) as necessary. After repairs, erase DTC memory. See CLEARING DIAGNOSTIC
TROUBLE CODES (FUNCTION 05)
under SELF DIAGNOSTIC SYSTEM. Verify repair. Test is
complete. Perform ECM relearn procedure. See TEST DRIVE RELEARN PROCEDURE .

7. If resistances are as specified and all wiring is okay, replace faulty ECM. After repairs, erase DTC

memory. See CLEARING DIAGNOSTIC TROUBLE CODES (FUNCTION 05) under SELF
DIAGNOSTIC SYSTEM. Verify repair. Test is complete. Perform ECM relearn procedure. See TEST
DRIVE RELEARN PROCEDURE
.

DTC P1569/17977 & VAG DTC 00671

Code Definition

DTC P1569/17977
Cruise Control Switch (E45) - Implausible Signal

VAG DTC 00671
Cruise Control Switch (E45) - Undefined Switch Position (DTC 00671 is displayed in VW factory scan
tool format only.)

NOTE:

Test box socket numbers correspond to ECM pin numbers.

Injection Pump Quality Adjuster (N146)

VAG Test Box Socket

116

121

NOTE:

For connector terminal wire colors, see appropriate WIRING DIAGRAM under
ENGINE PERFORMANCE in SYSTEM WIRING DIAGRAMS. For component
locations, see COMPONENT LOCATIONS .

NOTE:

Before replacing any component, ensure all connectors at component and ECM



2003 Volkswagen New Beetle GLS

2002-2004 ENGINE PERFORMANCE Self-Diagnostics - 1.9L Turbo Diesel - Beetle, Golf & Jetta (Engine Code ALH)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:48:23 AM

Page 92

© 2004 Mitchell Repair Information Company, LLC.

Possible Effects

Possible effects are no cruise control.

Test Procedures

1. Ensure battery is okay. Ensure all fuses are okay, battery voltage is at least 11.5 volts and fuel pump relay

is okay. Ensure all electrical accessories are off and A/C is off.

2. Check cruise control system. Turn ignition on, engine off. Connect scan tool, see Fig. 1 . Press keys "0"

and "1" for address word "Engine Electronics". If "00SG" is present in top line of scan tool display, cruise
control is not activated. Activate cruise control, see, ACTIVATING/DEACTIVATING CRUISE
CONTROL
.

3. If "G00SG" is present in top line of scan tool display, continue with testing. Press "right arrow" key, press

keys "0" and "8" for "Read measured value block" and enter by pressing "Q" key. Press keys "0", "0" and
"6" for display group "6" and enter by pressing "Q" key. "Display field 4" should read 0. If "Display field
4" reads 255, go to next step. If "Display field 4" reads 0, erase DTC memory. See CLEARING
DIAGNOSTIC TROUBLE CODES (FUNCTION 05)
under SELF DIAGNOSTIC SYSTEM. Perform
ECM relearn procedure. See TEST DRIVE RELEARN PROCEDURE . Test is complete if no DTCs
reset.

4.

Check CCS (E45). Start engine and let engine idle. Vehicles with (A/T) should be test driven to a
minimum of 25 MPH (40 KM/H) in 2nd gear or higher. It is not necessary to test drive vehicles with
manual transmissions (M/T).

5.

Set parking brake. Turn ignition key into on position, (engine off). For A/T, select 2nd gear or higher. For
M/T, select neutral. Check CCS (E45) test positions, moving down test requirement table. See Fig. 39 . If
any reading in display field 3 is not okay, go to next step. If all readings are okay, erase DTC memory.
See CLEARING DIAGNOSTIC TROUBLE CODES (FUNCTION 05) under SELF DIAGNOSTIC
SYSTEM. Perform ECM relearn procedure. See TEST DRIVE RELEARN PROCEDURE . Test is
complete if no DTCs reset.

are clean and tight. After making any repairs, disconnect ECM harness
connector for 10 seconds, connect ECM harness connector and retest system.
It is necessary to generate an ECM readiness code if ECM memory is cleared,
battery voltage is disconnected or ECM is disconnected.

NOTE:

In vehicles with automatic transmissions (A/T). ECM (J248) does not
supply voltage to Cruise Control Switch (CCS) (E45) until 20 MPH (32
KM/H) is exceeded.

NOTE:

All following readings in this step are in display field 3. See Fig. 39 .



2003 Volkswagen New Beetle GLS

2002-2004 ENGINE PERFORMANCE Self-Diagnostics - 1.9L Turbo Diesel - Beetle, Golf & Jetta (Engine Code ALH)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:48:24 AM

Page 93

© 2004 Mitchell Repair Information Company, LLC.

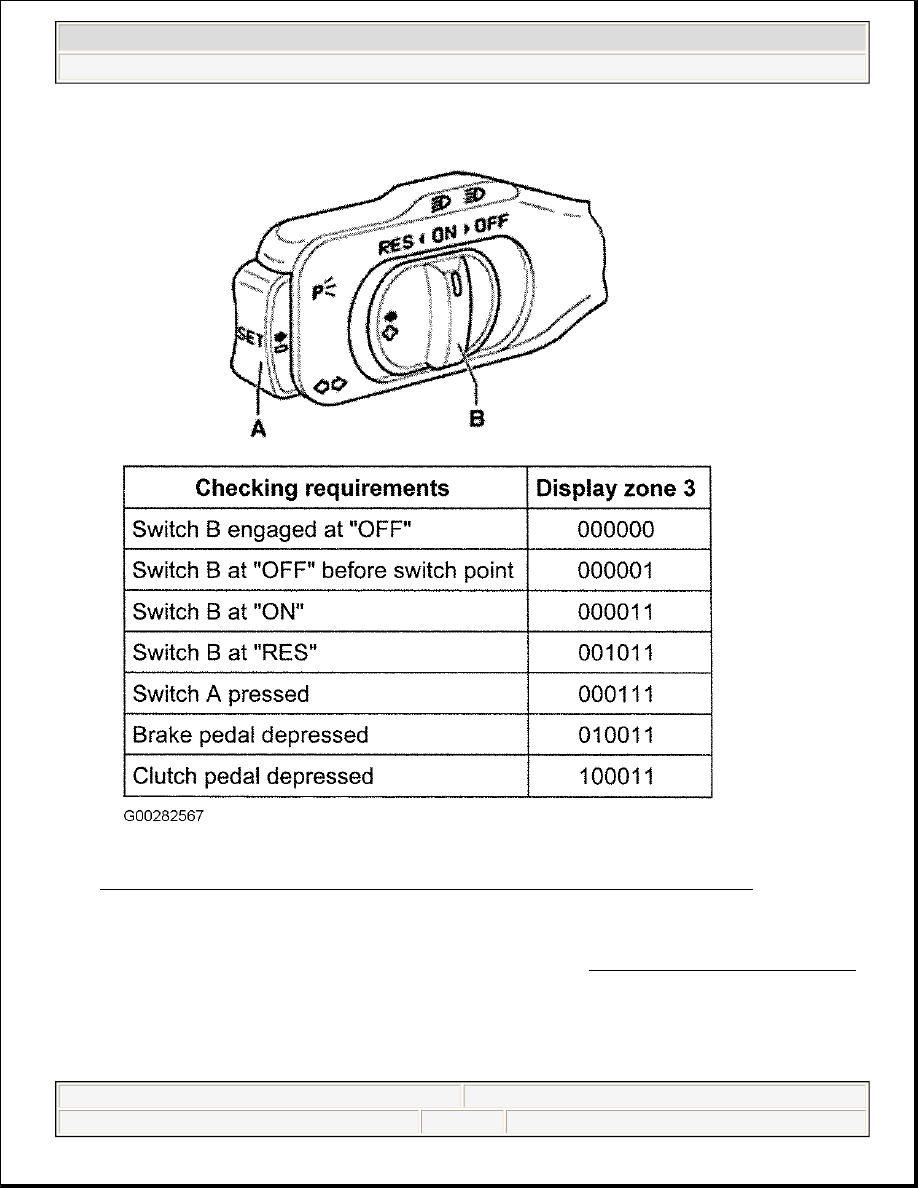

Fig. 39: Identifying Cruise Control Switch Test Positions & Test Requirements Table
Courtesy of VOLKSWAGEN UNITED STATES, INC.

6. Turn ignition off. Disconnect Engine Control Module (ECM) harness connector. Connect VAG 1598/31

test box to ECM harness connector (leave ECM disconnected). See CONNECTING VAG TEST BOX

7.

Check wring for open circuits between CCS (E45) terminals and ECM (J248). See appropriate WIRING
DIAGRAM under CRUISE CONTROL in SYSTEM WIRING DIAGRAMS. Resistance should be less

NOTE:

Test box socket numbers correspond to ECM pin numbers.



2003 Volkswagen New Beetle GLS

2002-2004 ENGINE PERFORMANCE Self-Diagnostics - 1.9L Turbo Diesel - Beetle, Golf & Jetta (Engine Code ALH)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:48:24 AM

Page 94

© 2004 Mitchell Repair Information Company, LLC.

than 1.5 ohms for each reading. If resistance is as specified, go to next step. If resistance is not as
specified, repair open and/or short circuit in wiring between CCS (E45) and ECM. After repairs, erase
DTC memory. See CLEARING DIAGNOSTIC TROUBLE CODES (FUNCTION 05) under SELF
DIAGNOSTIC SYSTEM. Verify repair. Test is complete. Perform ECM relearn procedure. See TEST
DRIVE RELEARN PROCEDURE
.

8. Check wring for short circuit between CCS (E45) terminals and ECM (J248). See appropriate WIRING

DIAGRAM under CRUISE CONTROL in SYSTEM WIRING DIAGRAMS. If circuits are not okay, go
to next step. If circuits are okay, erase DTC memory. See CLEARING DIAGNOSTIC TROUBLE
CODES (FUNCTION 05)
under SELF DIAGNOSTIC SYSTEM. Perform ECM relearn procedure. See
TEST DRIVE RELEARN PROCEDURE . Test is complete if no DTCs reset.

9. Repair short circuit(s) in wiring between CCS (E45) and ECM. After repairs, erase DTC memory. See

CLEARING DIAGNOSTIC TROUBLE CODES (FUNCTION 05) under SELF DIAGNOSTIC
SYSTEM. Verify repair. Test is complete. Perform ECM relearn procedure. See TEST DRIVE
RELEARN PROCEDURE
.

DTC P1570/17978: ECM (J248) - BLOCKED

DTC P1600/18008, DTC P1601/18009 & VAG DTC 00668

Code Definition

DTC P1600/18008
ECM Voltage Supply Terminal 15 - Voltage To Low

DTC P1601/18009
Power Supply Relay Terminal 30 (B +) - Relay Sticking (Intermittent)

VAG DTC 00668


Voltage Terminal 30 - Implausible Signal

CAUTION: When replacing ECM (J248). It is necessary to adapt ECM to immobilizer.

No information is available for VW.

CAUTION: Manufacturers states that scan tools VAS 5051 and VAS 5052 MUST be

programmed with correct Importer/Dealer number as well as correct time
when adapt ECM to immobilizer from model year 2002 on (Generation III
immobilizer).

NOTE:

Manufacturer recommends use of Scan Tool VAG 1551/1552 or VAS 5051/5052.
Follow scan tool manufacturer instructions for adapting ECM to immobilizer.

NOTE:

DTC 00668 is displayed in VW factory scan tool format only.



2003 Volkswagen New Beetle GLS

2002-2004 ENGINE PERFORMANCE Self-Diagnostics - 1.9L Turbo Diesel - Beetle, Golf & Jetta (Engine Code ALH)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:48:24 AM

Page 95

© 2004 Mitchell Repair Information Company, LLC.
