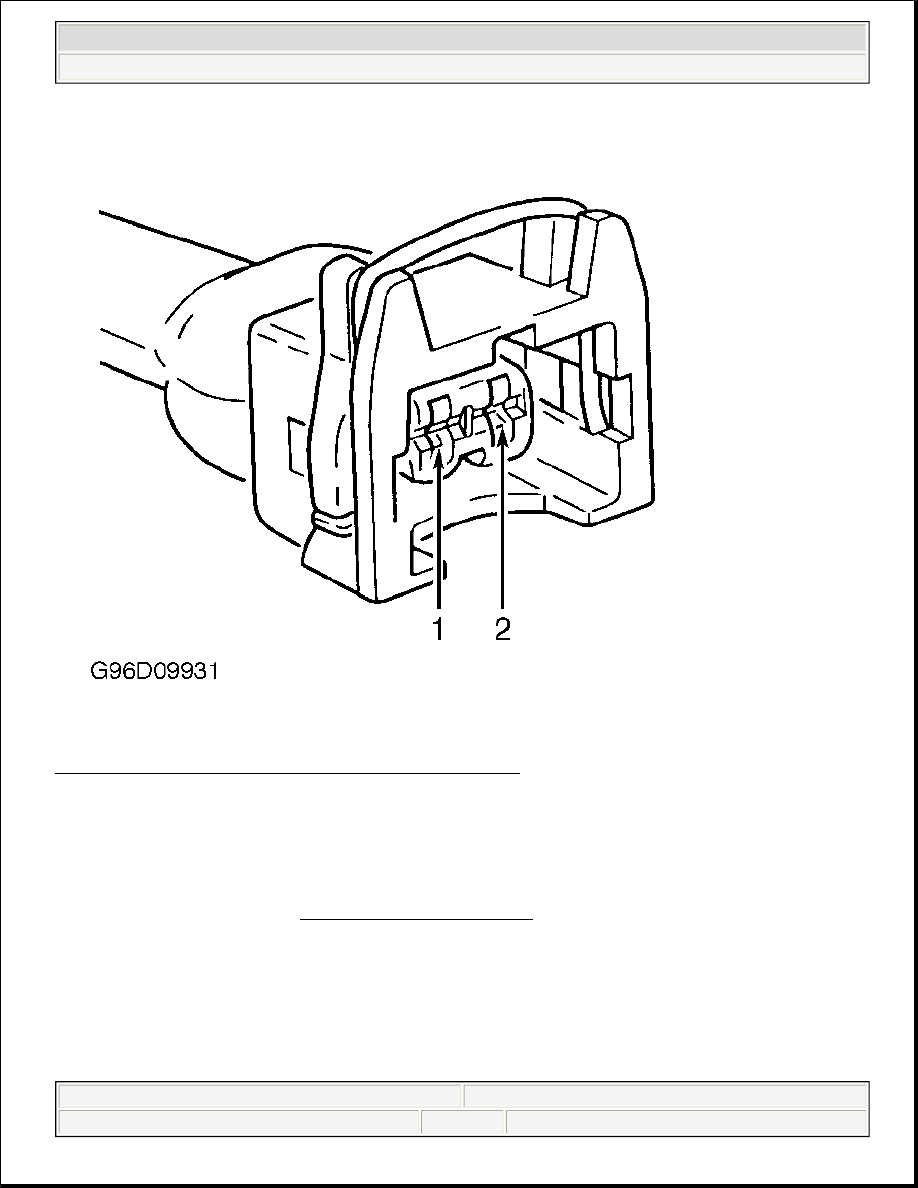

Fig. 30: Identifying Test Points On 2-Pin Harness Connector
Courtesy of VOLKSWAGEN UNITED STATES, INC.

DTC P1248/17656: COLD START INJECTOR (N108) - CONTROL DIFFERENCE

NOTE:

For connector terminal wire colors, see appropriate WIRING DIAGRAM under
ENGINE PERFORMANCE in SYSTEM WIRING DIAGRAMS. For component
locations, see COMPONENT LOCATIONS .

NOTE:

Before replacing any component, ensure all connectors at component and ECM
are clean and tight. After making any repairs, disconnect ECM harness
connector for 10 seconds, connect ECM harness connector and retest system.
It is necessary to generate an ECM readiness code if ECM memory is cleared,
battery voltage is disconnected or ECM is disconnected.



2003 Volkswagen New Beetle GLS

2002-2004 ENGINE PERFORMANCE Self-Diagnostics - 1.9L Turbo Diesel - Beetle, Golf & Jetta (Engine Code ALH)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:48:23 AM

Page 72

© 2004 Mitchell Repair Information Company, LLC.

Possible Effects

Possible effects are engine runs rough, lack of power, increased emissions and/or poor cold start performance.

Test Procedures

1. Ensure there is adequate fuel in tank. Ensure fuel filter is not plugged. Check for air in fuel system. If

problem does not exist, go to next step. If problem exists, repair as necessary. After repairs, erase DTC
memory. See CLEARING DIAGNOSTIC TROUBLE CODES (FUNCTION 05) under SELF
DIAGNOSTIC SYSTEM. Verify repair. Test is complete. Perform ECM relearn procedure. See TEST
DRIVE RELEARN PROCEDURE
.

2.

Let engine idle. Connect scan tool. See Fig. 1 . Press keys "0" and "1" for address word "Engine
Electronics", press keys "0" and "4" for "Basic setting" and enter by pressing "Q" key. Press keys "0", "0"
and "4" for display group "4" and enter by pressing "Q" key. Press keys "0" and "6" for "End output" and
enter by pressing "Q" key.

3. Specified value in "display field 3" of scan tool is 7° to 9° BTDC. In approximately 10 seconds "display

field 3" should change into 3° to 5°. Turn ignition off. If specification is okay, go to step 5 . If
specification is not obtained, go to next step.

4. Turn ignition off. To check cold start injector, disconnect 10 pin connector. See COMPONENT

LOCATIONS . Measure resistance between terminals 9 and 10 (component side). See Fig. 19 .
Resistance should be 12 to 20 ohms. If resistance is okay, go to next step. If resistance is not okay,
replace faulty Cold Start Injector (N108). See COMPONENT LOCATIONS . After repairs, erase DTC
memory. See CLEARING DIAGNOSTIC TROUBLE CODES (FUNCTION 05) under SELF
DIAGNOSTIC SYSTEM. Verify repair. Test is complete. Perform ECM relearn procedure. See TEST
DRIVE RELEARN PROCEDURE
.

5. Turn ignition off. Disconnect ECM harness connector. Connect VAG 1598/31 test box to ECM harness

connector. See CONNECTING VAG TEST BOX (leave ECM disconnected).

6.

Measure resistance between terminal No. 9 at 10 pin harness connector and socket No. 114 at test box.
See Fig. 20 . Measure resistance between terminal No. 10 at 10 pin harness connector and socket No. 1 at
test box. Measure resistance between terminal No. 10 at 10 pin harness connector and socket No. 2 at test
box. Resistance should be less than 1.5 ohms for each reading. If resistance is as specified, go to next
step. If any resistance is not as specified, repair open in wiring between 10 pin Cold Start Injector (N108)
harness connector and ECM. After repairs, erase DTC memory. See CLEARING DIAGNOSTIC
TROUBLE CODES (FUNCTION 05)
under SELF DIAGNOSTIC SYSTEM. Verify repair. Test is

NOTE:

If a test ends with ECM replacement. Before replacing ECM be certain that, all
wiring, power and ground supplies are okay. See ENGINE PERFORMANCE in
SYSTEM WIRING DIAGRAMS article in ELECTRICAL and ECM GROUND &
VOLTAGE SUPPLY .

NOTE:

This procedure is used to check Diesel injection timing control range.

NOTE:

Test box socket numbers correspond to ECM pin numbers.



2003 Volkswagen New Beetle GLS

2002-2004 ENGINE PERFORMANCE Self-Diagnostics - 1.9L Turbo Diesel - Beetle, Golf & Jetta (Engine Code ALH)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:48:23 AM

Page 73

© 2004 Mitchell Repair Information Company, LLC.

complete. Perform ECM relearn procedure. See TEST DRIVE RELEARN PROCEDURE .

7. Check terminals No. 9 and 10 for short to each other. Check terminals No. 9 and 10 for short to B+.

Check terminals No. 9 and 10 for short to ground. If wiring is okay, go to next step. If wiring is not okay,
repair short circuit(s) as necessary. After repairs, erase DTC memory. See CLEARING DIAGNOSTIC
TROUBLE CODES (FUNCTION 05)
under SELF DIAGNOSTIC SYSTEM. Verify repair. Test is
complete. Perform ECM relearn procedure. See TEST DRIVE RELEARN PROCEDURE .

8. Check Needle Lift Sensor (G80). See DTC P1245/17653, P1246/17654 & P1247/17655 . If Needle Lift

Sensor (G80) is okay, go to next step. If Needle Lift Sensor (G80) is not okay, replace Needle Lift Sensor
(G80) and No. 3 fuel injector. After repairs, erase DTC memory. See CLEARING DIAGNOSTIC
TROUBLE CODES (FUNCTION 05)
under SELF DIAGNOSTIC SYSTEM. Verify repair. Test is
complete. Perform ECM relearn procedure. See TEST DRIVE RELEARN PROCEDURE .

9. Replace faulty ECM. After repairs, erase DTC memory. See CLEARING DIAGNOSTIC TROUBLE

CODES (FUNCTION 05) under SELF DIAGNOSTIC SYSTEM. Verify repair. Test is complete.
Perform ECM relearn procedure. See TEST DRIVE RELEARN PROCEDURE .

DTC P1354/17762: MODULATING PISTON DISPLACEMENT SENSOR (G149) - ELECTRICAL
MALFUNCTION IN CIRCUIT

Possible Effects

Possible effects are poor engine performance, engine stalling, engine will not start, or glow plug indicator lamp
may flash.

Test Procedures

1. Turn ignition off. Connect scan tool, see Fig. 1 . Start engine and let engine idle. Press keys "0" and "1"

for address word "Engine Electronics", press keys "0" and "8" for "Read measuring value block". Enter
by pressing "Q" key. Press keys "0", "0" and "1" for display group "1" and enter by pressing "Q" key.

2. Scan tool display should read "Read measuring value block 1". Coolant temperature readout in "display

field 4" must be minimum of 185° F (85° C), voltage reading in "display field 3" should be 1.450 to 2.000
volts. Press "right arrow key", press "0" and "6" for "end output" and enter by pressing "Q" key. If
voltage reading is not okay, go to next step. If voltage reading is okay, erase DTC memory. See

NOTE:

Modulating Piston Displacement Sensor (G149) is an integral part of injection
pump.

NOTE:

For connector terminal wire colors, see appropriate WIRING DIAGRAM under
ENGINE PERFORMANCE in SYSTEM WIRING DIAGRAMS. For component
locations, see COMPONENT LOCATIONS .

NOTE:

Before replacing any component, ensure all connectors at component and ECM
are clean and tight. After making any repairs, disconnect ECM harness
connector for 10 seconds, connect ECM harness connector and retest system.
It is necessary to generate an ECM readiness code if ECM memory is cleared,
battery voltage is disconnected or ECM is disconnected.



2003 Volkswagen New Beetle GLS

2002-2004 ENGINE PERFORMANCE Self-Diagnostics - 1.9L Turbo Diesel - Beetle, Golf & Jetta (Engine Code ALH)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:48:23 AM

Page 74

© 2004 Mitchell Repair Information Company, LLC.

CLEARING DIAGNOSTIC TROUBLE CODES (FUNCTION 05) under SELF DIAGNOSTIC
SYSTEM. Perform ECM relearn procedure. See TEST DRIVE RELEARN PROCEDURE . If no DTC
resets, test is complete.

3. Turn ignition off. Disconnect Modulating Piston Displacement Sensor (G149) 10 pin harness connector,

see COMPONENT LOCATIONS .

4. Measure resistance between terminals No. 1 and 2 at Modulating Piston Displacement Sensor (G149).

See Fig. 19 (component side). Measure resistance between terminals No. 2 and 3 at fuel temperature
sensor (component side). Resistance should be 4.9-7.5 ohms for each reading. If resistance is as specified,
go to next step. If resistance is not as specified, replace injection pump. See appropriate ENGINE
MECHANICAL article in ENGINES. After repairs, erase DTC memory. See CLEARING
DIAGNOSTIC TROUBLE CODES (FUNCTION 05)
under SELF DIAGNOSTIC SYSTEM. Verify
repair. Test is complete. Perform ECM relearn procedure. See TEST DRIVE RELEARN
PROCEDURE
.

5. Turn ignition off. Disconnect ECM harness connector. Connect VAG 1598/31 test box to ECM harness

connector, see CONNECTING VAG TEST BOX (leave ECM disconnected).

6.

Measure resistance between terminal No. 1 at 10 pin harness connector and socket No. 108 at test box.
See Fig. 20 . Measure resistance between terminal No. 2 at 10 pin harness connector and socket No. 106
at test box. Measure resistance between terminal No. 3 at 10 pin harness connector and socket No. 99 at
test box. Resistance should be less than 1.5 ohms for each reading. If resistance is as specified, go to next
step. If any resistance is not as specified, repair open in wiring between 10 pin Modulating Piston
Displacement Sensor (G149) harness connector and ECM. After repairs, erase DTC memory. See
CLEARING DIAGNOSTIC TROUBLE CODES (FUNCTION 05) under SELF DIAGNOSTIC
SYSTEM. Verify repair. Test is complete. Perform ECM relearn procedure. See TEST DRIVE
RELEARN PROCEDURE
.

7. Check 10 pin Modulating Piston Displacement Sensor (G149) harness connector terminals No. 1, No. 2

and 3 for short to one another. Check terminals No. 1, No. 2 and 3 for short to B+. Check terminals No. 1,
No. 2 and 3 for short to ground. If wiring is okay, go to next step. If wiring is not okay, repair short
circuit(s) as necessary. After repairs, erase DTC memory. See CLEARING DIAGNOSTIC TROUBLE
CODES (FUNCTION 05)
under SELF DIAGNOSTIC SYSTEM. Verify repair. Test is complete.
Perform ECM relearn procedure. See TEST DRIVE RELEARN PROCEDURE .

8. Replace faulty ECM. After repairs, erase DTC memory. See CLEARING DIAGNOSTIC TROUBLE

CODES (FUNCTION 05) under SELF DIAGNOSTIC SYSTEM. Verify repair. Test is complete.
Perform ECM relearn procedure. See TEST DRIVE RELEARN PROCEDURE .

DTC P1403/17811: EGR SYSTEM - CONTROL DIFFERENCE

NOTE:

Test box socket numbers correspond to ECM pin numbers.

NOTE:

For connector terminal wire colors, see appropriate WIRING DIAGRAM under
ENGINE PERFORMANCE in SYSTEM WIRING DIAGRAMS. For component
locations, see COMPONENT LOCATIONS .

NOTE:

Before replacing any component, ensure all connectors at component and ECM
are clean and tight. After making any repairs, disconnect ECM harness
