14. If brake light switch/brake pedal switch and all wiring is okay, replace faulty ECM. After repairs, erase

DTC memory. See CLEARING DIAGNOSTIC TROUBLE CODES (FUNCTION 05) under SELF
DIAGNOSTIC SYSTEM. Verify repair. Test is complete. Perform ECM relearn procedure. See TEST
DRIVE RELEARN PROCEDURE
.

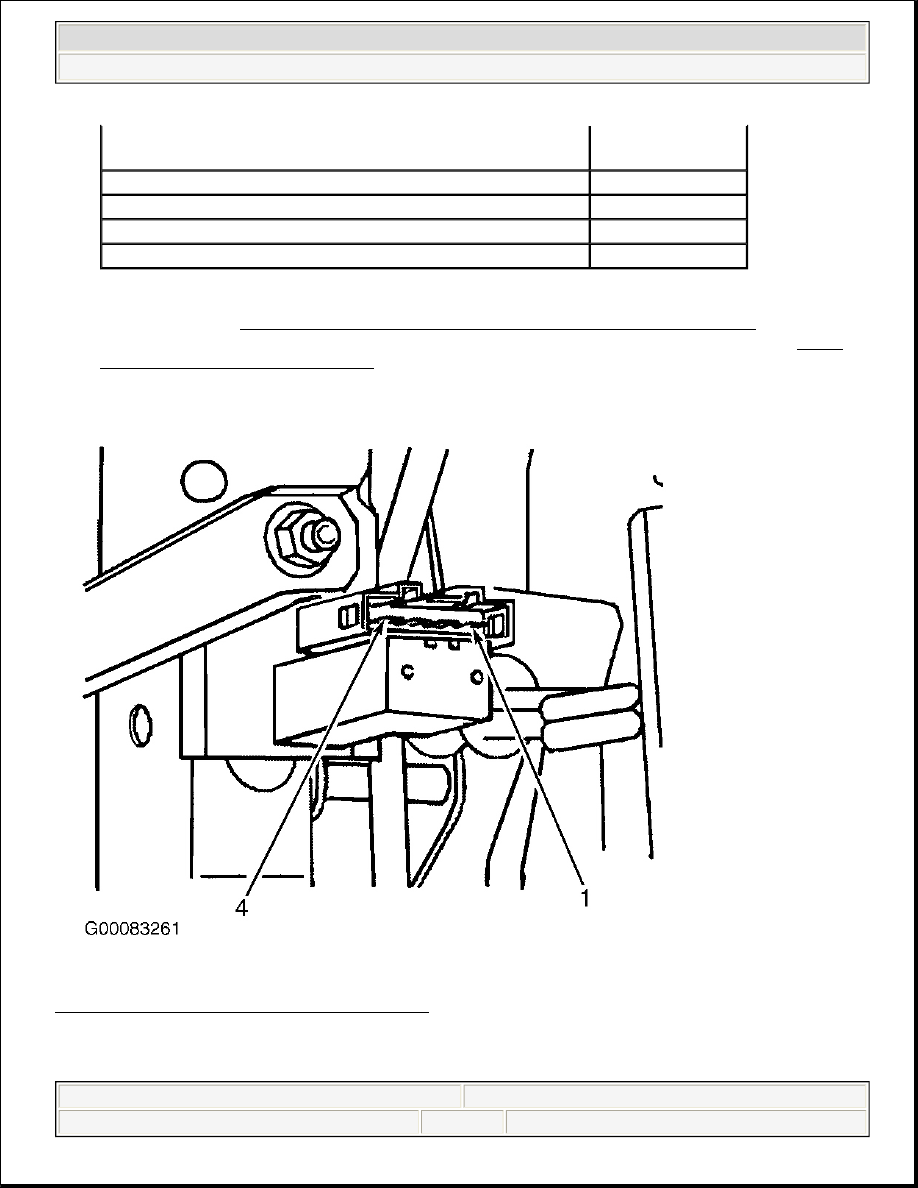

Fig. 27: Identifying Test Points On Brake Switch
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Brake Light Switch/Brake Pedal Switch Harness Connector
Terminal

VAG Test Box

Socket

65

32



2003 Volkswagen New Beetle GLS

2002-2004 ENGINE PERFORMANCE Self-Diagnostics - 1.9L Turbo Diesel - Beetle, Golf & Jetta (Engine Code ALH)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:48:22 AM

Page 64

© 2004 Mitchell Repair Information Company, LLC.

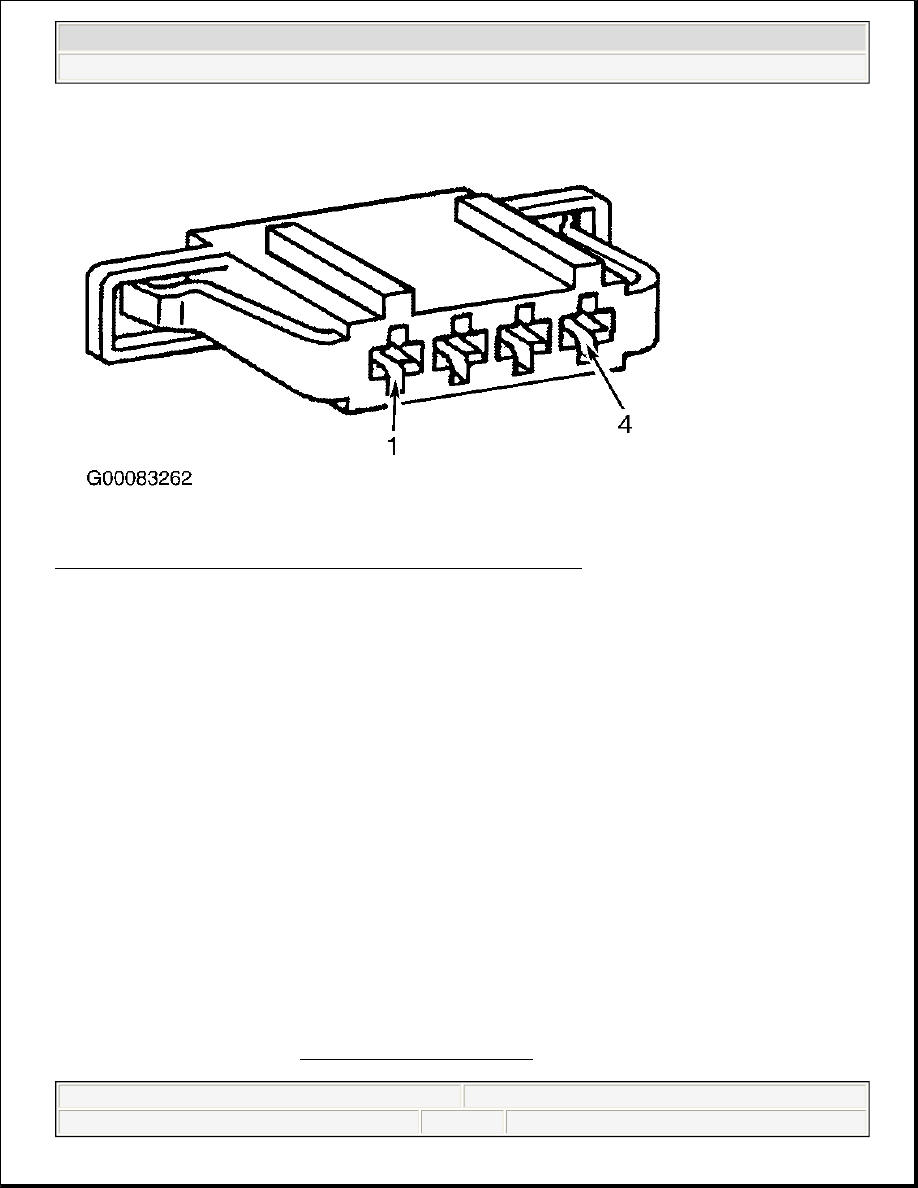

Fig. 28: Identifying Test Points On Brake Switch Harness Connector
Courtesy of VOLKSWAGEN UNITED STATES, INC.

DTC P0601/16985, DTC P0605/16989, DTC P0606/16990, DTC P1387/17795 & DTC P1640/18048

Code Definition

DTC P0601/16985
ECM (J248) - Inoperative

DTC P0605/16989
ECM (J248) - Inoperative

DTC P0606/16990
ECM (J248) - Inoperative

DTC P1387/17795
ECM (J248) - Inoperative

DTC P1640/18048
ECM (J248) - Inoperative

NOTE:

For connector terminal wire colors, see appropriate WIRING DIAGRAM under
ENGINE PERFORMANCE in SYSTEM WIRING DIAGRAMS. For component
locations, see COMPONENT LOCATIONS .



2003 Volkswagen New Beetle GLS

2002-2004 ENGINE PERFORMANCE Self-Diagnostics - 1.9L Turbo Diesel - Beetle, Golf & Jetta (Engine Code ALH)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:48:22 AM

Page 65

© 2004 Mitchell Repair Information Company, LLC.

Possible Effects

Possible effects are poor engine performance, engine may not start and/or engine stalls.

Test Procedures

No test procedure is required for this fault code. Replace Engine Control Module (ECM).

DTC P0670/17054, DTC P0671/17055, DTC P0672/17056, DTC P0673/17057, DTC P0674/17058 & DTC
P0684/17068

Code Definition

DTC P0670/17054
Glow Plug Control Module (J370) - Open Circuit/Short To Ground

DTC P0671/17055
Glow Plug Cylinder No. 1 - Open Circuit/Short To Ground

DTC P0672/17056
Glow Plug Cylinder No. 2 - Open Circuit/Short To Ground

DTC P0673/17057
Glow Plug Cylinder No. 3 - Open Circuit/Short To Ground

DTC P0674/17058
Glow Plug Cylinder No. 4 - Open Circuit/Short To Ground

DTC P0684/17068
Glow Plug Control Module (J370) - Open Circuit To ECM

NOTE:

Before replacing any component, ensure all connectors at component and ECM
are clean and tight. After making any repairs, disconnect ECM harness
connector for 10 seconds, connect ECM harness connector and retest system.
It is necessary to generate an ECM readiness code if ECM memory is cleared,
battery voltage is disconnected or ECM is disconnected.

NOTE:

Before replacing ECM be certain that, all wiring, power and ground supplies are
okay. See ENGINE PERFORMANCE in SYSTEM WIRING DIAGRAMS article in
ELECTRICAL and ECM GROUND & VOLTAGE SUPPLY .

NOTE:

For connector terminal wire colors, see appropriate ENGINE PERFORMANCE
wiring diagram in SYSTEM WIRING DIAGRAMS. For component locations, see
COMPONENT LOCATIONS .

NOTE:

Before replacing any component, ensure all connectors at component and ECM



2003 Volkswagen New Beetle GLS

2002-2004 ENGINE PERFORMANCE Self-Diagnostics - 1.9L Turbo Diesel - Beetle, Golf & Jetta (Engine Code ALH)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:48:22 AM

Page 66

© 2004 Mitchell Repair Information Company, LLC.

Possible Effects

Possible effects are no glow plug operation and/or engine runs rough when cold.

Test Requirements

Fuses must be okay. Ensure battery voltage is at least 11.5 volts, glow plug fuse strip is okay, glow plug relay is
operating properly. A/C and all electrical accessories must be switched off. Alternator must be okay. Engine
must be cold.

Test Procedures

1. Check wiring going to Glow Plug Control Module (J370). See appropriate WIRING DIAGRAM under

ENGINE PERFORMANCE in SYSTEM WIRING DIAGRAMS.

2. If wiring going to Glow Plug Control Module (J370) is okay, go to next step. If wiring is NOT okay,

repair as necessary. After repairs, erase DTC memory. See CLEARING DIAGNOSTIC TROUBLE
CODES (FUNCTION 05)
under SELF DIAGNOSTIC SYSTEM. Verify repair. Test is complete.
Perform ECM relearn procedure. See TEST DRIVE RELEARN PROCEDURE .

3.

Engine must be cold. Start the engine and run at idling speed. Connect VAG 1715 Multimeter in
sequence to glow plug wire for each cylinder using current pick-up clamp. Record each reading.
Specified value is minimum of 6 amps for each reading. If specification is obtained, go to next step. If
specification is not obtained, check and repair wiring going to Glow Plug Control Module (J370). See
appropriate WIRING DIAGRAM under ENGINE PERFORMANCE in SYSTEM WIRING
DIAGRAMS. After repairs, erase DTC memory. See CLEARING DIAGNOSTIC TROUBLE CODES
(FUNCTION 05)
under SELF DIAGNOSTIC SYSTEM. Verify repair. Test is complete. Perform ECM
relearn procedure. See TEST DRIVE RELEARN PROCEDURE .

4. Turn ignition off. Disconnect glow plug harness connectors. Check glow plugs using diode test lamp.

Connect diode test lamp to battery positive (+). Probe each glow plug terminal. Diode test lamp should
light up. If diode test lamp does not light up, replace glow plug. After repairs, erase DTC memory. See
CLEARING DIAGNOSTIC TROUBLE CODES (FUNCTION 05) under SELF DIAGNOSTIC
SYSTEM. Verify repair. Test is complete. Perform ECM relearn procedure. See TEST DRIVE
RELEARN PROCEDURE
. Tightening torque for glow plugs are 11 ft. lbs. (15 N.m).

DTC P1160/17568 & DTC P1161/17569

Code Definition

DTC P1160/17568

are clean and tight. After making any repairs, disconnect ECM harness
connector for 10 seconds, connect ECM harness connector and retest system.
It is necessary to generate an ECM readiness code if ECM memory is cleared,
battery voltage is disconnected or ECM is disconnected.

NOTE:

Test must be done within 3 minutes after starting engine.



2003 Volkswagen New Beetle GLS

2002-2004 ENGINE PERFORMANCE Self-Diagnostics - 1.9L Turbo Diesel - Beetle, Golf & Jetta (Engine Code ALH)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:48:22 AM

Page 67

© 2004 Mitchell Repair Information Company, LLC.
