Volkswagen New Beetle. Manual - part 1784





Boost Pressure Regulation - Control Limit Exceeded

Possible Effects

Possible effect is boost pressure too high or reduce power.

Test Requirements

Ensure all fuses are okay, battery voltage is at least 11.5 volts and fuel pump relay is okay. Ensure all electrical
accessories are off and A/C is off. Ensure engine is mechanically sound. Ensure no intake or exhaust system
leaks exist. Ensure engine coolant temperature is at least 176°F (80°C).

Test Procedures

1. Verify battery voltage is a minimum of 11.5 volts and all fuses are okay. Repair as necessary. Connect

Scan Tool VAG 1551/1552 or 5051/5052. See Fig. 1 .

2. Start engine and idle. Using scan tool access "Display group 11". With a helper to operate scan tool from

rear seat, accelerate vehicle in 3rd gear from about 1500 RPM to wide open throttle. Press VAG 1551
PRINT button at approximately 3000 RPM. Boost value should be 24.5-32 psi (1.7-2.2 bar). If specified
boost pressure is not attained, go to next step.

3. Check Wastegate by-pass regulator valve, see DTC P0245/1629, P0246/16630, P1546/17954 &

P1549/17957 . Repeat turbocharger test. If Wastegate by-pass regulator valve was replaced and boost
pressure is still to low, go to next step. If Wastegate by-pass regulator valve was replaced and boost
pressure is okay, erase DTC memory. See CLEARING DIAGNOSTIC TROUBLE CODES
(FUNCTION 05)
under SELF DIAGNOSTIC SYSTEM. Verify repair. Test is complete. Perform ECM
relearn procedure. See TEST DRIVE RELEARN PROCEDURE

NOTE:

For connector terminal wire colors, see appropriate WIRING DIAGRAM under
ENGINE PERFORMANCE in SYSTEM WIRING DIAGRAMS. For component
locations, see COMPONENT LOCATIONS .

NOTE:

Before replacing any component, ensure all connectors at component and ECM
are clean and tight. After making any repairs, disconnect ECM harness
connector for 10 seconds, connect ECM harness connector and retest system.
It is necessary to generate an ECM readiness code if ECM memory is cleared,
battery voltage is disconnected or ECM is disconnected.

NOTE:

When using scan tool to activate wastegate by-pass regulator valve, it is barely
audible. Check by touch or use mechanics stethoscope if necessary.

NOTE:

Manufacturer recommends using Scan Tool (VAG 1551/VAG 1552, VAS
5051/VAS 5052) and Test Box (VAG 1598) to diagnose this code. Follow test
equipment manufacturer's instructions for operation. If scan tool is not
available, check components and wiring for damage. See appropriate WIRING
DIAGRAM under ENGINE PERFORMANCE in SYSTEM WIRING DIAGRAMS.



2003 Volkswagen New Beetle GLS

2002-2004 ENGINE PERFORMANCE Self-Diagnostics - 1.9L Turbo Diesel - Beetle, Golf & Jetta (Engine Code ALH)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:48:21 AM

Page 48

© 2004 Mitchell Repair Information Company, LLC.

4. Inspect turbo charger and waste gate, repair or replace as necessary. After repairs, erase DTC memory.

See CLEARING DIAGNOSTIC TROUBLE CODES (FUNCTION 05) under SELF DIAGNOSTIC
SYSTEM. Verify repair. Test is complete. Perform ECM relearn procedure. See TEST DRIVE
RELEARN PROCEDURE
.

DTC P0245/16629, DTC P0246/16630, DTC P1546/17954 & DTC P1549/17957

Code Definition

DTC P0245/16629
Wastegate By-Pass Regulator Valve (N75) - Open Circuit/Short To Ground

DTC P0246/16630
Wastegate By-Pass Regulator Valve (N75) - Short To Positive

DTC P1546/17954
Wastegate By-Pass Regulator Valve (N75) - Short To Positive

DTC P1549/17957
Wastegate By-Pass Regulator Valve (N75) - Open Circuit/Short To Ground

Possible Effects

Possible effects are boost pressure too low and/or lack of power.

Test Procedures

1. Turn ignition off. Locate wastegate by-pass regulator valve. See COMPONENT LOCATIONS and Fig.

22 .

2. Disconnect harness connector from wastegate by-pass regulator valve. Measure resistance between

wastegate by-pass regulator valve terminals. See Fig. 22 . If resistance is between 14-20 ohms, go to next
step. If resistance is not 14-20 ohms, replace wastegate by-pass regulator valve. After repairs, erase DTC

NOTE:

For connector terminal wire colors, see appropriate WIRING DIAGRAM under
ENGINE PERFORMANCE in SYSTEM WIRING DIAGRAMS. For component
locations, see COMPONENT LOCATIONS .

NOTE:

Before replacing any component, ensure all connectors at component and ECM
are clean and tight. After making any repairs, disconnect ECM harness
connector for 10 seconds, connect ECM harness connector and retest system.
It is necessary to generate an ECM readiness code if ECM memory is cleared,
battery voltage is disconnected or ECM is disconnected.

NOTE:

When using scan tool to activate wastegate by-pass regulator valve, it is barely
audible. Check by touch or use mechanics stethoscope if necessary.



2003 Volkswagen New Beetle GLS

2002-2004 ENGINE PERFORMANCE Self-Diagnostics - 1.9L Turbo Diesel - Beetle, Golf & Jetta (Engine Code ALH)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:48:21 AM

Page 49

© 2004 Mitchell Repair Information Company, LLC.

memory. See CLEARING DIAGNOSTIC TROUBLE CODES (FUNCTION 05) under SELF
DIAGNOSTIC SYSTEM. Verify repair. Test is complete. Perform ECM relearn procedure. See TEST
DRIVE RELEARN PROCEDURE
.

3. Verify battery voltage is a minimum of 11.5 volts and all fuses are okay. Repair as necessary. Connect

Scan Tool VAG 1551/1552 or 5051/5052. See Fig. 1 . Turn ignition on, engine off.

4. Using scan tool, activate wastegate by-pass regulator valve. Wastegate by-pass regulator valve should

audibly click. If wastegate by-pass regulator valve does not click, go to next step. If wastegate by-pass
regulator valve clicks check vacuum supply to wastegate by-pass regulator valve. Repair as necessary.
After repairs, erase DTC memory. See CLEARING DIAGNOSTIC TROUBLE CODES
(FUNCTION 05)
under SELF DIAGNOSTIC SYSTEM. Verify repair. Test is complete. Perform ECM
relearn procedure. See TEST DRIVE RELEARN PROCEDURE .

5. Disconnect wastegate by-pass regulator valve 2-pin connector. See Fig. 22 . Turn ignition on, with engine

off.

6. Using DVOM and adapter cables from Test Kit (VAG 1594), measure voltage between wastegate by-pass

regulator valve 2-pin harness connector terminal 1 and engine ground. Battery voltage should be present.
Turn ignition off. If readings are not okay, go to next step. If readings are okay, replace faulty wastegate
by-pass regulator valve. After repairs, erase DTC memory. See CLEARING DIAGNOSTIC
TROUBLE CODES (FUNCTION 05)
under SELF DIAGNOSTIC SYSTEM. Verify repair. Test is
complete. Perform ECM relearn procedure. See TEST DRIVE RELEARN PROCEDURE .

7. Turn ignition off. Disconnect ECM harness connector. Connect Test Box (VAG 1598/22) to ECM

harness connector. See CONNECTING VAG TEST BOX .

8.

Using DVOM, check resistance between the following wastegate by-pass regulator valve (N75) 2-pin
harness connector terminals and test box sockets. See Fig. 30 .

z

Wastegate By-Pass Regulator Valve (N75) harness connector terminal No. 1 and test box socket
No. 1.

z

Wastegate By-Pass Regulator Valve (N75) harness connector terminal No. 1 and test box socket
No. 2.

z

Wastegate By-Pass Regulator Valve (N75) harness connector terminal No. 2 and test box socket
No. 62.

9. Resistance should be a maximum of 1.5 ohms for each reading. If resistance is not okay, repair as

necessary. Verify repair. Test is complete. Check wires in wastegate by-pass regulator valve 2-pin
harness connector for short circuits to one another, also for short circuits to battery positive and ground. If
wiring is not okay, repair as necessary. Verify repair. Test is complete.

10. If resistance is okay and all wiring is okay, replace faulty ECM. See ENGINE CONTROL MODULE

under REMOVAL, OVERHAUL & INSTALLATION. After repairs, erase DTC memory. See
CLEARING DIAGNOSTIC TROUBLE CODES (FUNCTION 05) under SELF DIAGNOSTIC
SYSTEM. Verify repair. Test is complete. Perform ECM relearn procedure. See TEST DRIVE
RELEARN PROCEDURE
.

NOTE:

Test box socket numbers correspond to ECM pin numbers.



2003 Volkswagen New Beetle GLS

2002-2004 ENGINE PERFORMANCE Self-Diagnostics - 1.9L Turbo Diesel - Beetle, Golf & Jetta (Engine Code ALH)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:48:22 AM

Page 50

© 2004 Mitchell Repair Information Company, LLC.

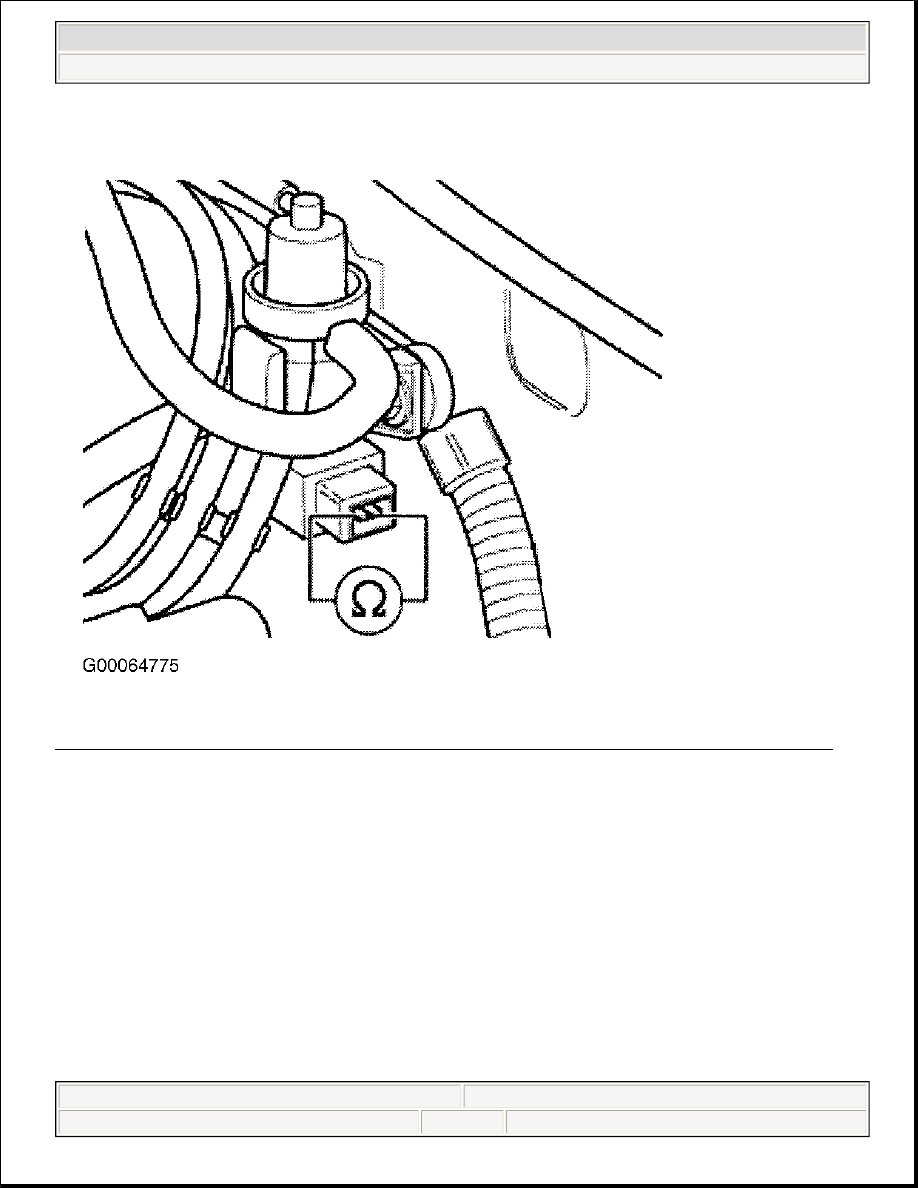

Fig. 22: Identifying Test Points On Wastegate By-Pass Valve (N75) (Golf & Jetta - 1.9L Turbo Diesel)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

DTC P0300/16684, DTC P0301/16685, DTC P0302/16686, DTC P0303/16687 & DTC P0304/16688

Code Definition

DTC P0300/16684
Misfire Recognized

DTC P0301/16685
Misfire Recognized - Cylinder No. 1

DTC P0302/16686
Misfire Recognized - Cylinder No. 2

DTC P0303/16687



2003 Volkswagen New Beetle GLS

2002-2004 ENGINE PERFORMANCE Self-Diagnostics - 1.9L Turbo Diesel - Beetle, Golf & Jetta (Engine Code ALH)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:48:22 AM

Page 51

© 2004 Mitchell Repair Information Company, LLC.
