4. Measure resistance between terminals No. 3 and 4 at ECT sensor harness connector. Resistance should be

infinite. If resistance is as specified, go to next step. If resistance is not as specified, repair circuits shorted
to each other between ECT sensor and ECM. After repairs, erase DTC memory. See CLEARING
DIAGNOSTIC TROUBLE CODES (FUNCTION 05)
under SELF DIAGNOSTIC SYSTEM. Verify
repair. Test is complete. Perform ECM relearn procedure. See TEST DRIVE RELEARN
PROCEDURE
.

5. Measure resistance between ground and terminals No. 3 and 4 at ECT sensor harness connector. Both

resistances should be infinite. If resistances are as specified, go to next step. If any resistance is not as
specified, repair short to ground in wiring between ECT sensor and ECM. After repairs, erase DTC
memory. See CLEARING DIAGNOSTIC TROUBLE CODES (FUNCTION 05) under SELF
DIAGNOSTIC SYSTEM. Verify repair. Test is complete. Perform ECM relearn procedure. See TEST
DRIVE RELEARN PROCEDURE
.

6. Measure resistance between positive battery terminal and terminals No. 3 and 4 at ECT sensor harness

connector. Both resistances should be infinite.

7. If resistances are as specified, replace ECM. After repairs, erase DTC memory. See CLEARING

DIAGNOSTIC TROUBLE CODES (FUNCTION 05) under SELF DIAGNOSTIC SYSTEM. Verify
repair. Test is complete. Perform ECM relearn procedure. See TEST DRIVE RELEARN
PROCEDURE
. If any resistance is not as specified, repair short to voltage in wiring between MAF
sensor and ECM. After repairs, erase DTC memory. See CLEARING DIAGNOSTIC TROUBLE
CODES (FUNCTION 05)
under SELF DIAGNOSTIC SYSTEM. Verify repair. Test is complete.
Perform ECM relearn procedure. See TEST DRIVE RELEARN PROCEDURE .



2003 Volkswagen New Beetle GLS

2002-2004 ENGINE PERFORMANCE Self-Diagnostics - 1.9L Turbo Diesel - Beetle, Golf & Jetta (Engine Code ALH)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:48:21 AM

Page 36

© 2004 Mitchell Repair Information Company, LLC.

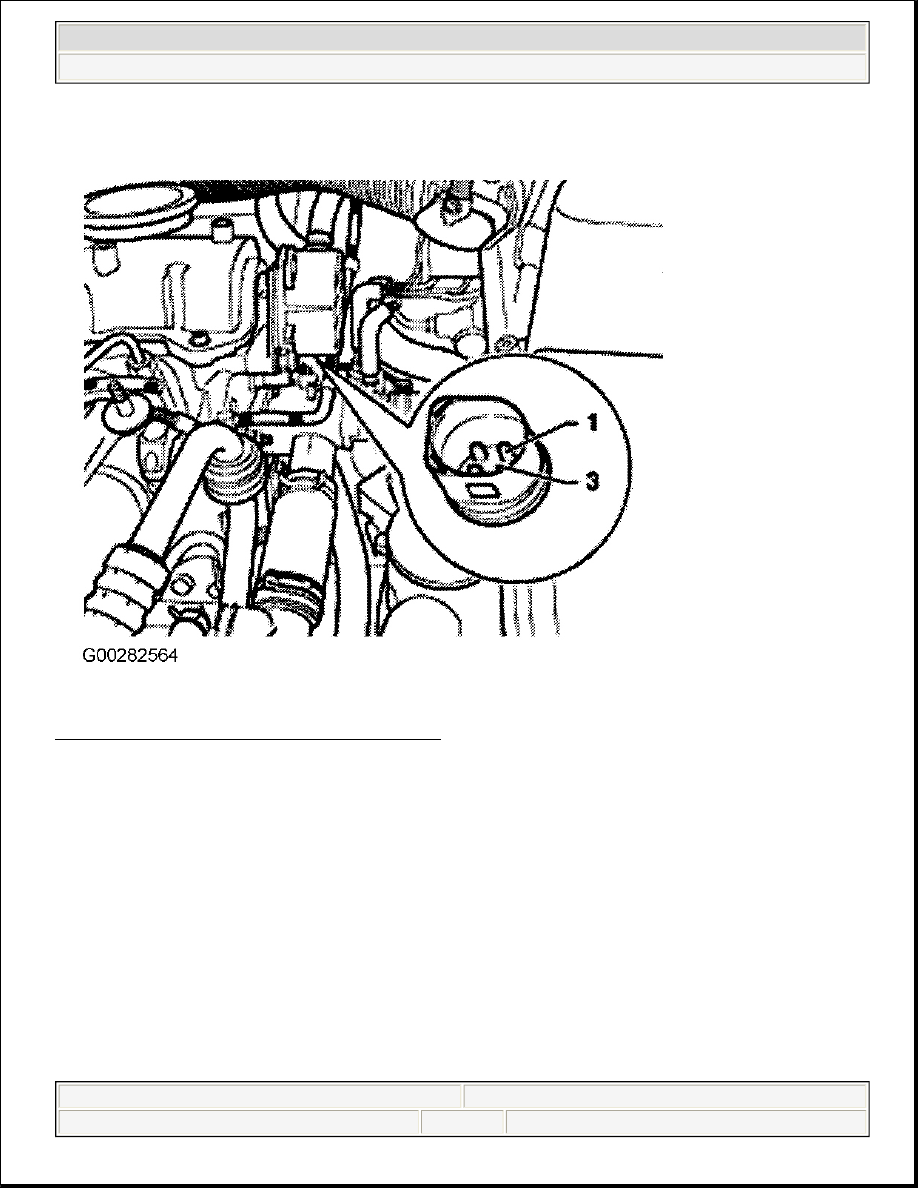

Fig. 16: Locating & Identifying ECT Sensor (G62)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2002-2004 ENGINE PERFORMANCE Self-Diagnostics - 1.9L Turbo Diesel - Beetle, Golf & Jetta (Engine Code ALH)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:48:21 AM

Page 37

© 2004 Mitchell Repair Information Company, LLC.

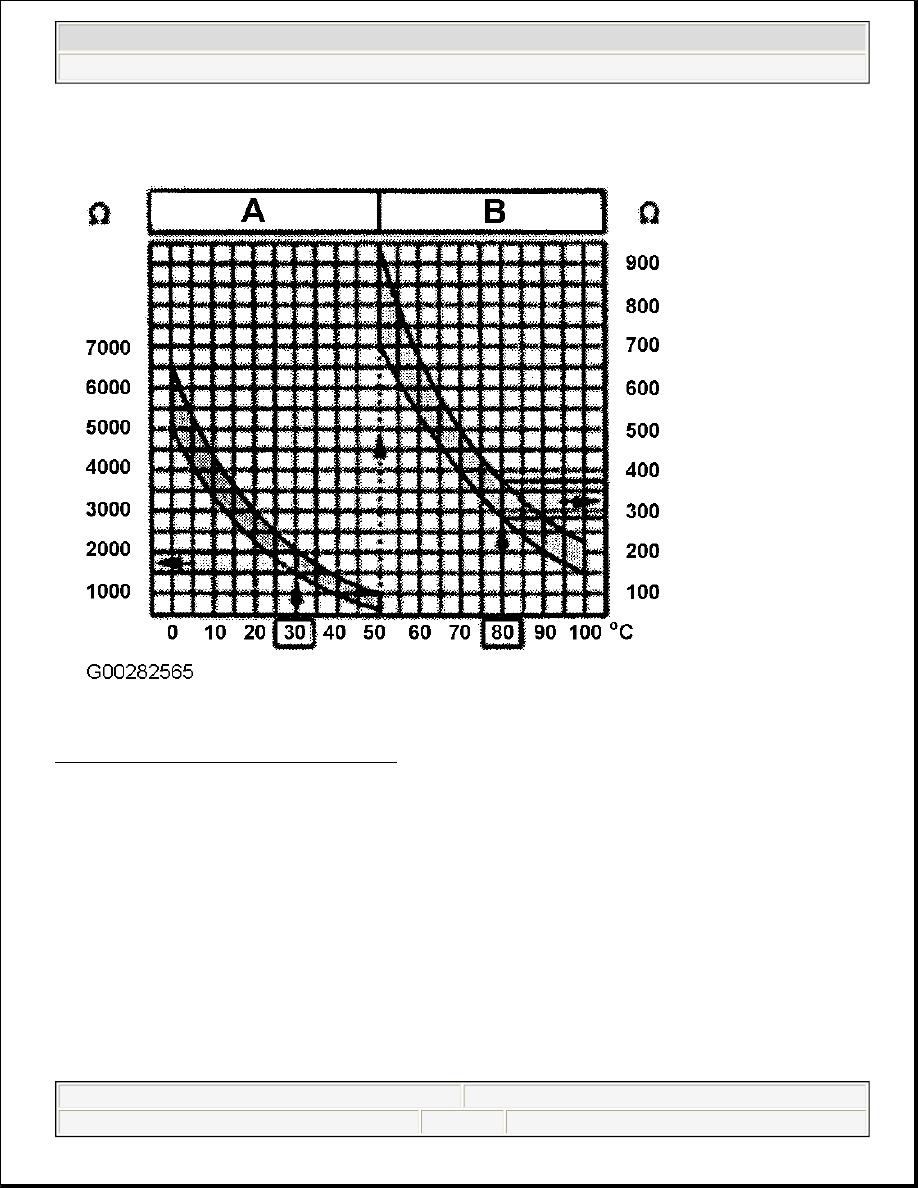

Fig. 17: Coolant & IAT Temperature Graph
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2002-2004 ENGINE PERFORMANCE Self-Diagnostics - 1.9L Turbo Diesel - Beetle, Golf & Jetta (Engine Code ALH)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:48:21 AM

Page 38

© 2004 Mitchell Repair Information Company, LLC.

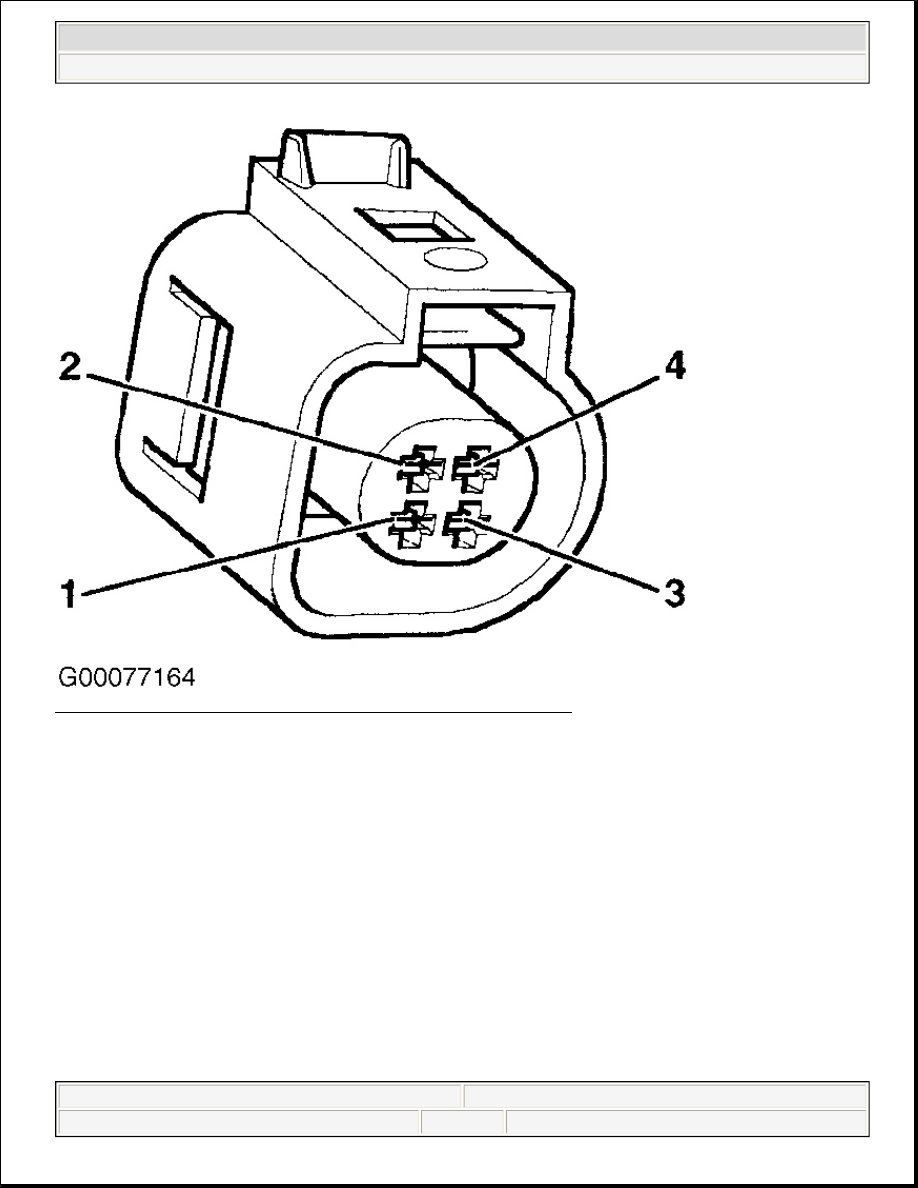

Fig. 18: Identifying Test Points On ECT Sensor Harness Connector
Courtesy of VOLKSWAGEN UNITED STATES, INC.

DTC P0183/16567, DTC P1162/17570, DTC P1163/17571 & DTC P1164/17572

Code Definition

DTC P0183/16567
Fuel Temperature Sensor (G81) - Open Circuit/Short To B+

DTC P1162/17570
Fuel Temperature Sensor (G81) - Short To Ground

DTC P1163/17571
Fuel Temperature Sensor (G81) - Open Circuit/Short To B+

DTC P1164/17572
Fuel Temperature Sensor (G81) - Implausible Signal
