Read measured value block "10" on scan too. For examplel, display field 1 (0 mg/H), display field 2
(1027 mbar), display field 3 (1013 mbar) and display field 4 (0.0 %). Compare display in field 2 (BARO
Sensor -F96) and display on turbocharger test unit VAG 1397/A. Compare display in field 3 (MAP
Sensor G71) and display on turbocharger test unit VAG 1397/A. All 3 pressure readings should be the
same (+ or -) 0.45 psi (30 mbar). If display field 3 is outside of specification, go to next step. If display
field 2 is outside of turbocharger test unit reading by more than 0.45 psi (30 mbar), replace faulty ECM.
After repairs, erase DTC memory. See CLEARING DIAGNOSTIC TROUBLE CODES
(FUNCTION 05)
under SELF DIAGNOSTIC SYSTEM. Verify repair. Test is complete. Perform ECM
relearn procedure. See TEST DRIVE RELEARN PROCEDURE .

3.

Turn ignition off. Disconnect MAP sensor harness connector. Disconnect ECM harness connector,
Connect VAG 1598/31 test box to ECM harness connector, see CONNECTING VAG TEST BOX
(leave ECM disconnected). Measure resistance between terminal No. 3 at MAP sensor harness connector
and socket No. 31 at test box. See Fig. 14 and Fig. 15 . Measure resistance between terminal No. 4 at
MAP sensor harness connector and socket No. 71 at test box. Both resistances should be less than 1.5
ohms. If resistances are as specified, go to next step. If any resistance is not as specified, repair open in
wiring between MAP sensor and ECM. After repairs, erase DTC memory. See CLEARING
DIAGNOSTIC TROUBLE CODES (FUNCTION 05)
under SELF DIAGNOSTIC SYSTEM. Verify
repair. Test is complete. Perform ECM relearn procedure. See TEST DRIVE RELEARN
PROCEDURE
.

4. Measure resistance (check for short circuits) between terminals No. 3 and 4 at MAP sensor harness

connector. See Fig. 15 . Resistance should be infinite. If resistance is as specified, go to next step. If
resistance is not as specified, repair short circuits between MAP sensor and ECM. After repairs, erase
DTC memory. See CLEARING DIAGNOSTIC TROUBLE CODES (FUNCTION 05) under SELF
DIAGNOSTIC SYSTEM. Verify repair. Test is complete. Perform ECM relearn procedure. See TEST
DRIVE RELEARN PROCEDURE
.

5. Measure resistance between ground and terminals No. 3 and 4 at MAP sensor harness connector. Both

resistances should be infinite. If resistances are as specified, go to next step. If any resistance is not as
specified, repair short to ground in wiring between MAP sensor and ECM. After repairs, erase DTC
memory. See CLEARING DIAGNOSTIC TROUBLE CODES (FUNCTION 05) under SELF
DIAGNOSTIC SYSTEM. Verify repair. Test is complete. Perform ECM relearn procedure. See TEST
DRIVE RELEARN PROCEDURE
.

6. Measure resistance between positive battery terminal and terminals No. 3 and 4 at MAP sensor harness

connector. Both resistances should be infinite. If resistances are as specified, replace ECM. If any
resistance is not as specified, repair short to voltage in wiring between MAP sensor and ECM. After
repairs, erase DTC memory. See CLEARING DIAGNOSTIC TROUBLE CODES (FUNCTION 05)
under SELF DIAGNOSTIC SYSTEM. Verify repair. Test is complete. Perform ECM relearn procedure.
See TEST DRIVE RELEARN PROCEDURE .

7. If all wiring is okay, replace faulty ECM. After repairs, erase DTC memory. See CLEARING

DIAGNOSTIC TROUBLE CODES (FUNCTION 05) under SELF DIAGNOSTIC SYSTEM. Verify
repair. Test is complete. Perform ECM relearn procedure. See TEST DRIVE RELEARN
PROCEDURE
.

NOTE:

Test box socket numbers correspond to ECM pin numbers.



2003 Volkswagen New Beetle GLS

2002-2004 ENGINE PERFORMANCE Self-Diagnostics - 1.9L Turbo Diesel - Beetle, Golf & Jetta (Engine Code ALH)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:48:21 AM

Page 32

© 2004 Mitchell Repair Information Company, LLC.

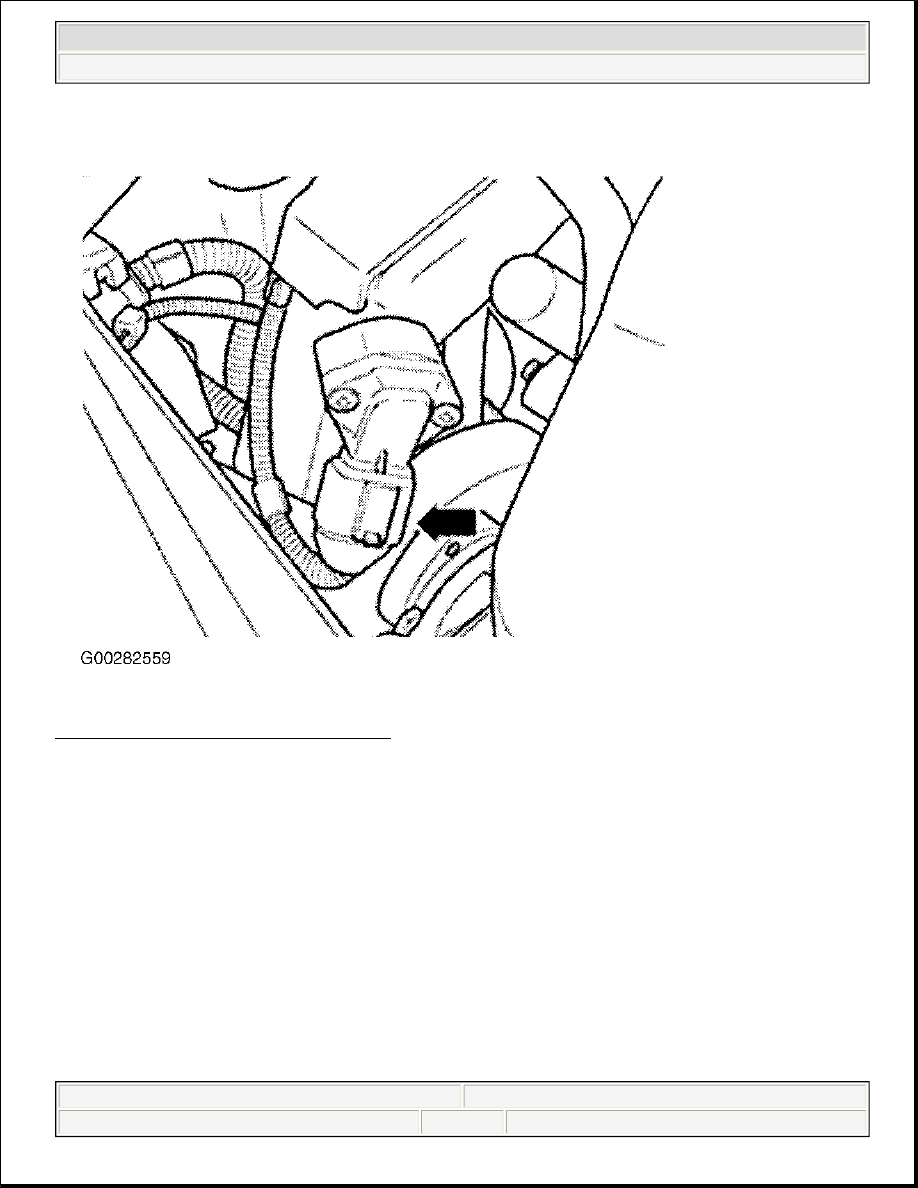

Fig. 14: Locating MAP Sensor - IAT Sensor
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2002-2004 ENGINE PERFORMANCE Self-Diagnostics - 1.9L Turbo Diesel - Beetle, Golf & Jetta (Engine Code ALH)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:48:21 AM

Page 33

© 2004 Mitchell Repair Information Company, LLC.

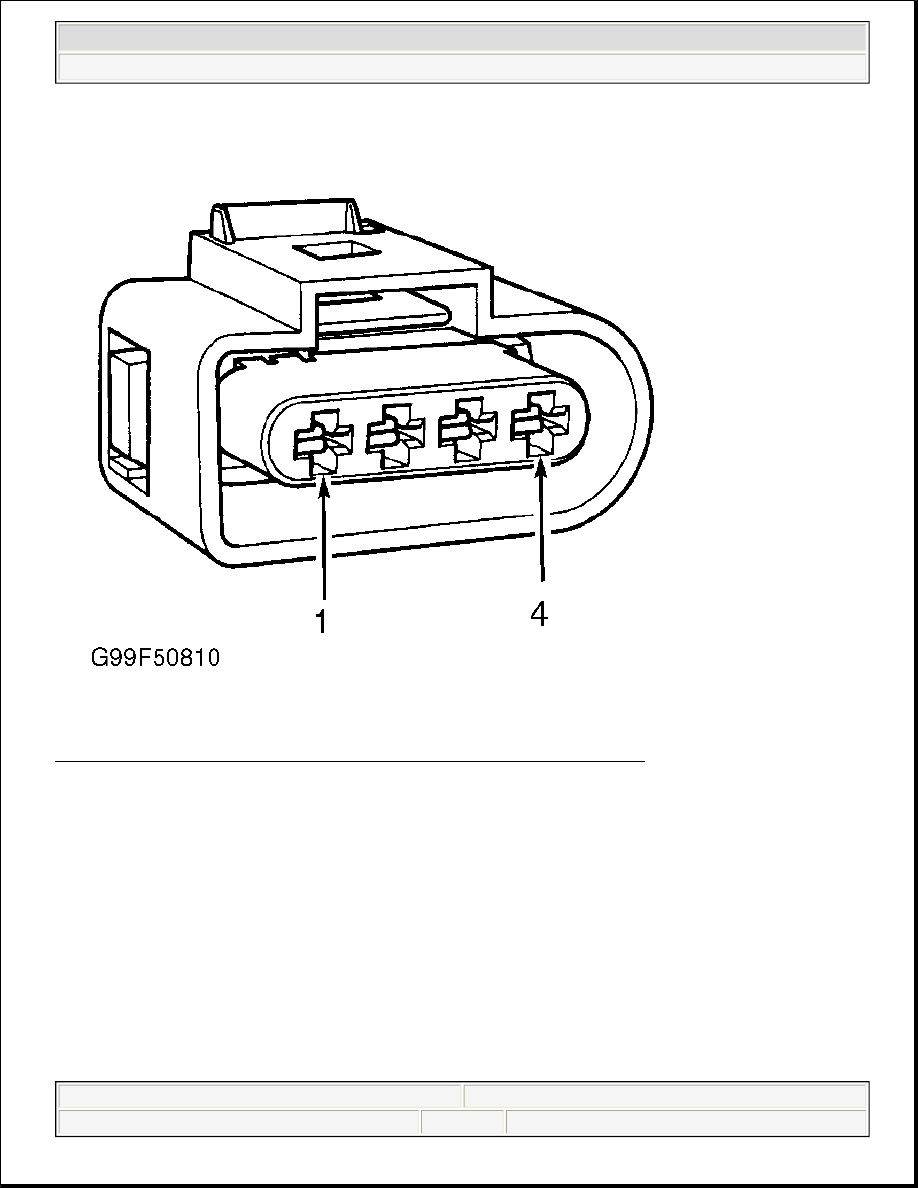

Fig. 15: Identifying MAP Sensor - IAT Sensor Harness Connector Terminals
Courtesy of VOLKSWAGEN UNITED STATES, INC.

DTC P0116/16500, DTC P0117/16501, DTC P0118/16502, DTC P1255/17663, DTC P1256/17664 & DTC
P1296/17704

Code Definition

DTC P0116/16500
ECT Sensor (G62) - Implausible Signal

DTC P0117/16501
ECT Sensor (G62) - Signal Too Low

DTC P0118/16502
ECT Sensor (G62) - Signal Too High



2003 Volkswagen New Beetle GLS

2002-2004 ENGINE PERFORMANCE Self-Diagnostics - 1.9L Turbo Diesel - Beetle, Golf & Jetta (Engine Code ALH)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:48:21 AM

Page 34

© 2004 Mitchell Repair Information Company, LLC.

DTC P1255/17663
ECT Sensor (G62) - Short To Ground

DTC P1256/17664
ECT Sensor (G62) - Open Circuit/Short To B+

DTC P1296/17704
Malfunction In Cooling System

Possible Effects

Possible effects are black smoke during start, glow plugs not functioning and/or glow plugs always take 15-20
seconds.

Test Procedures

1. Turn ignition off. Disconnect ECT sensor harness connector.

2. Measure resistance between terminals No. 3 and 4 at ECT sensor (component side), see, Fig. 16 .

Resistance should be 1500-2000 ohms at 86°F (30°C) and 275-375 ohms at 176°F (80°C). See Fig. 17 . If
resistance is as specified, go to next step. If resistance is not as specified, replace ECT sensor. After
repairs, erase DTC memory. See CLEARING DIAGNOSTIC TROUBLE CODES (FUNCTION 05)
under SELF DIAGNOSTIC SYSTEM. Verify repair. Test is complete. Perform ECM relearn procedure.
See TEST DRIVE RELEARN PROCEDURE .

3.

Turn ignition off. Disconnect Engine Control Module (ECM) harness connector. Connect VAG 1598/31
test box to ECM harness connector, leaving ECM disconnected. See CONNECTING VAG TEST
BOX
. Measure resistance between terminal No. 3 at ECT sensor harness connector and socket No. 112 at
test box, then measure resistance between terminal No. 4 at ECT sensor harness connector and socket No.
104 at test box. See Fig. 18 . Resistance should be less than 1.5 ohms for each reading. If resistance is as
specified, go to next step. If resistance is not as specified, repair open in wiring between ECT sensor and
ECM. After repairs, erase DTC memory. See CLEARING DIAGNOSTIC TROUBLE CODES
(FUNCTION 05)
under SELF DIAGNOSTIC SYSTEM. Verify repair. Test is complete. Perform ECM
relearn procedure. See TEST DRIVE RELEARN PROCEDURE

NOTE:

For connector terminal wire colors, see appropriate WIRING DIAGRAM under
ENGINE PERFORMANCE in SYSTEM WIRING DIAGRAMS. For component
locations, see COMPONENT LOCATIONS .

NOTE:

Before replacing any component, ensure all connectors at component and ECM
are clean and tight. After making any repairs, disconnect ECM harness
connector for 10 seconds, connect ECM harness connector and retest system.
It is necessary to generate an ECM readiness code if ECM memory is cleared,
battery voltage is disconnected or ECM is disconnected.

NOTE:

Test box socket numbers correspond to ECM pin numbers.



2003 Volkswagen New Beetle GLS

2002-2004 ENGINE PERFORMANCE Self-Diagnostics - 1.9L Turbo Diesel - Beetle, Golf & Jetta (Engine Code ALH)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:48:21 AM

Page 35

© 2004 Mitchell Repair Information Company, LLC.
