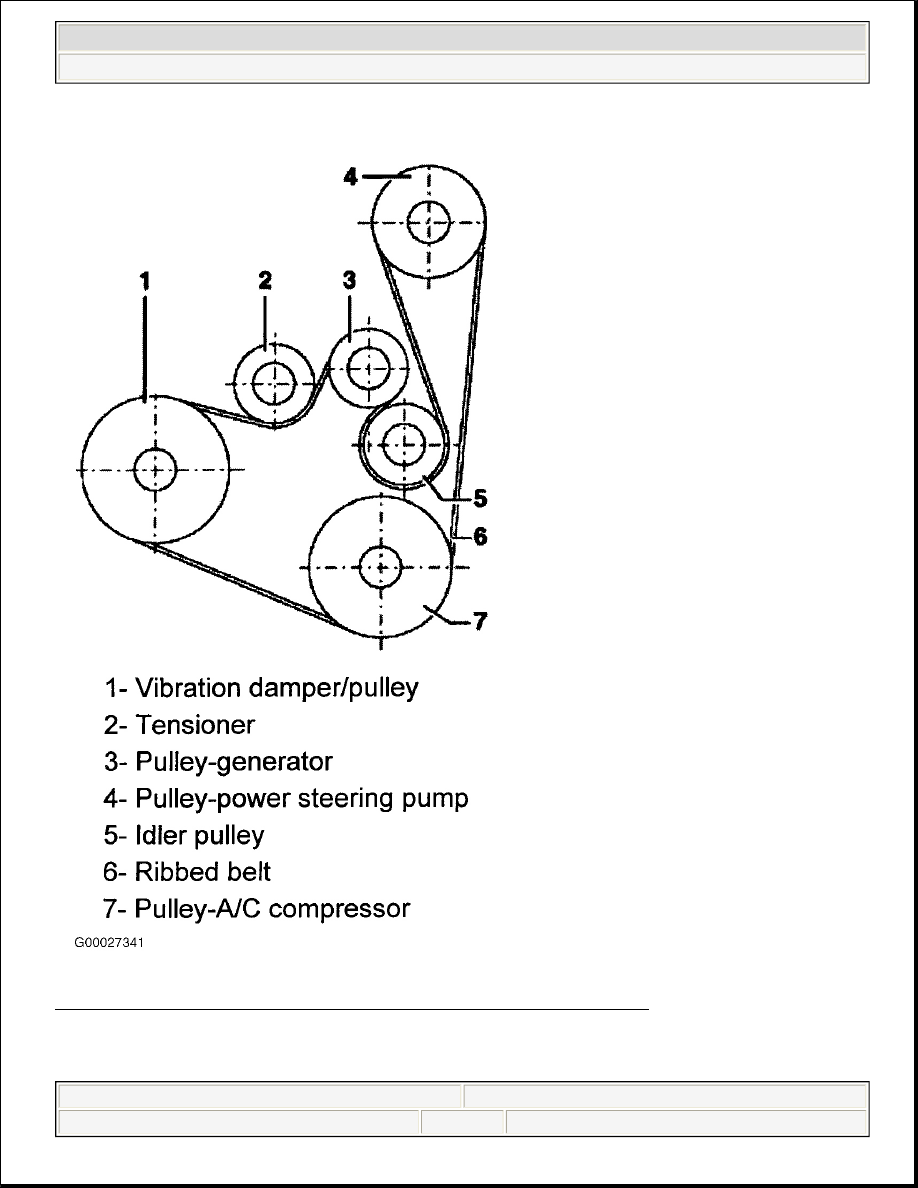

Fig. 7: Drive Belt Routing - 1.9L Turbo Diesel, Engine Code ALH (With A/C)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2003 SPECIFICATIONS New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:54:44 AM

Page 11

© 2004 Mitchell Repair Information Company, LLC.

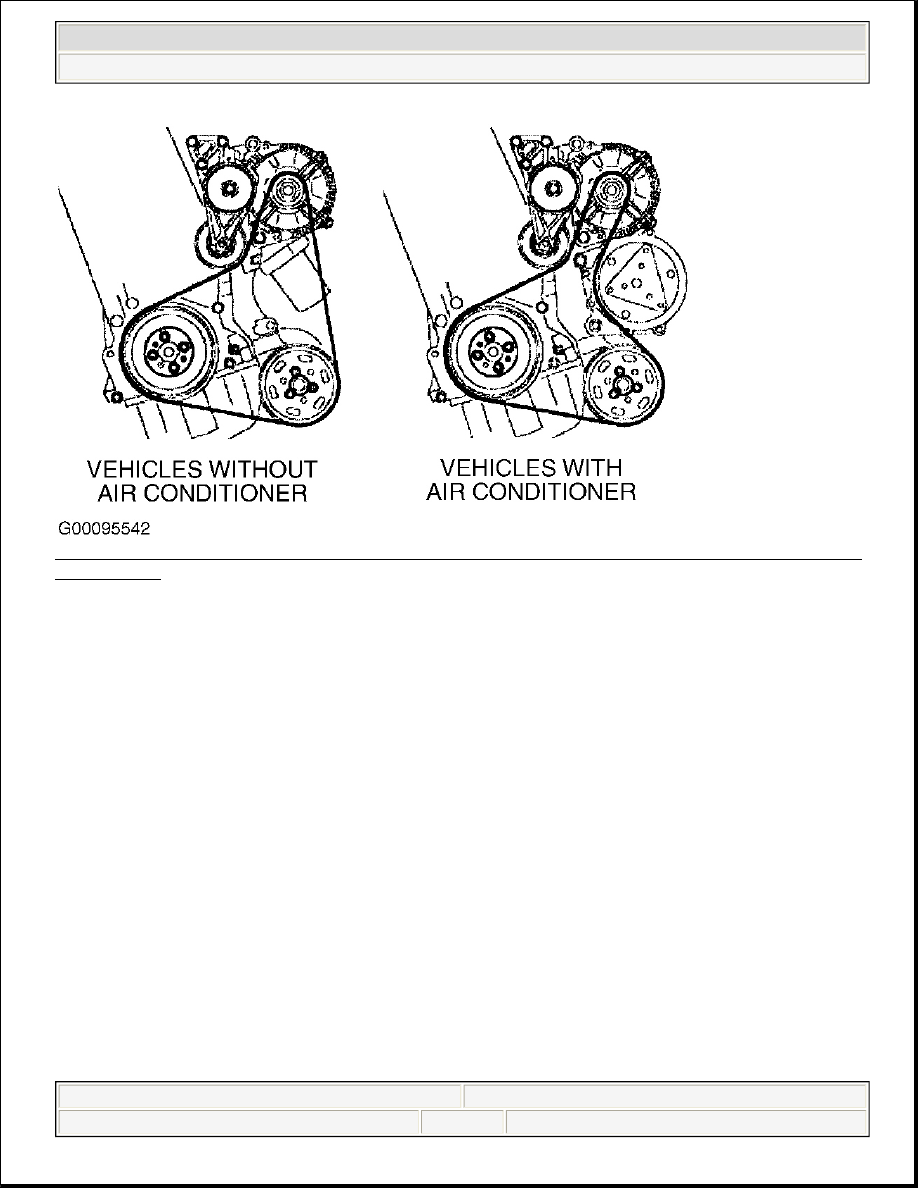

Fig. 8: Drive Belt Routing - 1.8L, Engine Codes AWP/AWV & 2.0L, Engine Codes AVH & BDC (With &
Without A/C)

Courtesy of AUDI OF AMERICA, INC.

ENGINE COOLING

SERVICE

Cooling System Precautions

If the fluid in expansion tank is brown, G12 has been mixed with other coolant. In this is the case, coolant must
be replaced. "G12" and coolant additives marked "In accordance with TL VW 774 D" prevent frost and
corrosion damage, scaling and also raise the boiling point of the coolant. Therefore, cooling system must be
filled year round with frost and corrosion protection additives.

A higher boiling point improves engine reliability under heavy load particularly in countries with tropical
climates. Frost protection additives protect against frost to about -25 C (about -35 C in arctic climates). The
coolant concentration must not be reduced by adding water even in warmer seasons and in warmer countries.
The anti-freeze ratio must be at least 40%.

If for climatic reasons greater frost protection is required, the amount of G 12 can be increased, but only up to
60% (frost protection to about -40 C), otherwise frost protection and cooling effectiveness will be reduced.

CAUTION: Only use coolant additive G12 (according to TL VW 774 D).It is a red color.

Do NOT mix G12 with any other coolant additive!



2003 Volkswagen New Beetle GLS

2003 SPECIFICATIONS New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:54:44 AM

Page 12

© 2004 Mitchell Repair Information Company, LLC.

Specifications

COOLING SYSTEM SPECIFICATIONS (1.8L - ENGINE CODE AWP/AWV)

Application

Specification

Volume

(1)

5.3 Qts. (5.0L)

Thermostat

Starts To Open

187°F (86°C)

Fully Open

216°F (102°C)

Opening Stroke

.28" (7mm)

Thermostatic Fan Switch (In Radiator)

Stage 1

On

198-207°F (92-97°C)

Off

183-196°F (84-91°C)

Stage 2

On

210-221°F (99-105°C)

Off

196-208°F (91-98°C)

Reservoir Cap Opening Pressure

20-23 psi

(1)

Only use coolant additive G12 (according to TL VW 774 D).It is a red color. Do
NOT mix G12 with any other coolant additive! See COOLING SYSTEM
PRECAUTIONS
. Total coolant quantity may vary depending on vehicle
equipment.



2003 Volkswagen New Beetle GLS

2003 SPECIFICATIONS New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:54:44 AM

Page 13

© 2004 Mitchell Repair Information Company, LLC.



2003 Volkswagen New Beetle GLS

2003 SPECIFICATIONS New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:54:44 AM

Page 14

© 2004 Mitchell Repair Information Company, LLC.
