BLEEDING SEQUENCE

Only use new brake fluid conforming to US standard FMVSS 116, DOT 4. Manufacturer recommends
replacing brake fluid every 2 years.

BRAKELINE BLEEDING SEQUENCE

DISC BRAKES

Service Specifications

DISC BRAKE SPECIFICATIONS

Application

Sequence

All Models

RR, LR, RF, LF

NOTE:

Manufacturer recommends changing brake fluid every 2 years.

Application

In. (mm)

ABS Speed Sensor-To-Rotor Gap

Front & Rear

.003 (.08)

Front

Beetle

FS III Brake Disc

Disc Diameter

11.023 (280)

Original Thickness

.866 (22)

Wear Limit

.748 (19)

Parallelism & Run-Out

(1)

FN 3 Brake Disc

(2)

Disc Diameter

11.338 (288)

Original Thickness

.984 (25)

Wear Limit

.866 (22)

Parallelism & Run-Out

(1)

Brake Pads

Original Thickness

.551 (14)

Wear Limit (With Pad Backing Plate)

.276 (7)

Rear

Beetle

Brake Disc

Disc Diameter

9.133 (232)

Original Thickness

.354 (9)

Wear Limit

.276 (7)



2003 Volkswagen New Beetle GLS

2003 SPECIFICATIONS New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:54:44 AM

Page 3

© 2004 Mitchell Repair Information Company, LLC.

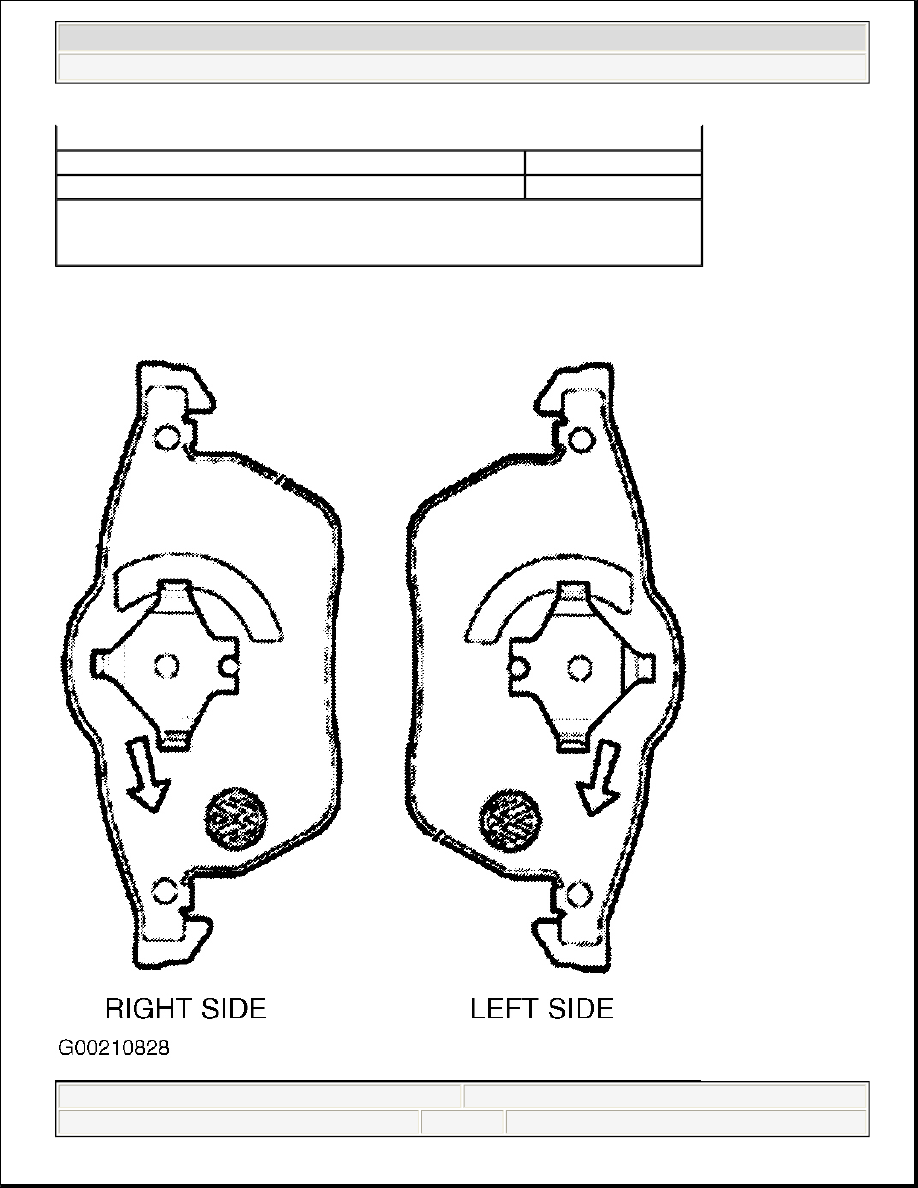

Fig. 1: Positioning Front Brake Pads (Arrow Must Point Downwards - FN3 Caliper)

Brake Pads

Original Thickness

.472 (12)

Wear Limit (With Pad Backing Plate)

.276 (7)

(1)

Information is not available from manufacturer.

(2)

FN 3 brake caliper is equipped with a brake pad retaining spring.

NOTE:

Brake pad wear indicator light will come on when front pads are near wear limit.
Light will go out when new pads are installed.



2003 Volkswagen New Beetle GLS

2003 SPECIFICATIONS New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:54:44 AM

Page 4

© 2004 Mitchell Repair Information Company, LLC.

Courtesy of VOLKSWAGEN UNITED STATES, INC.

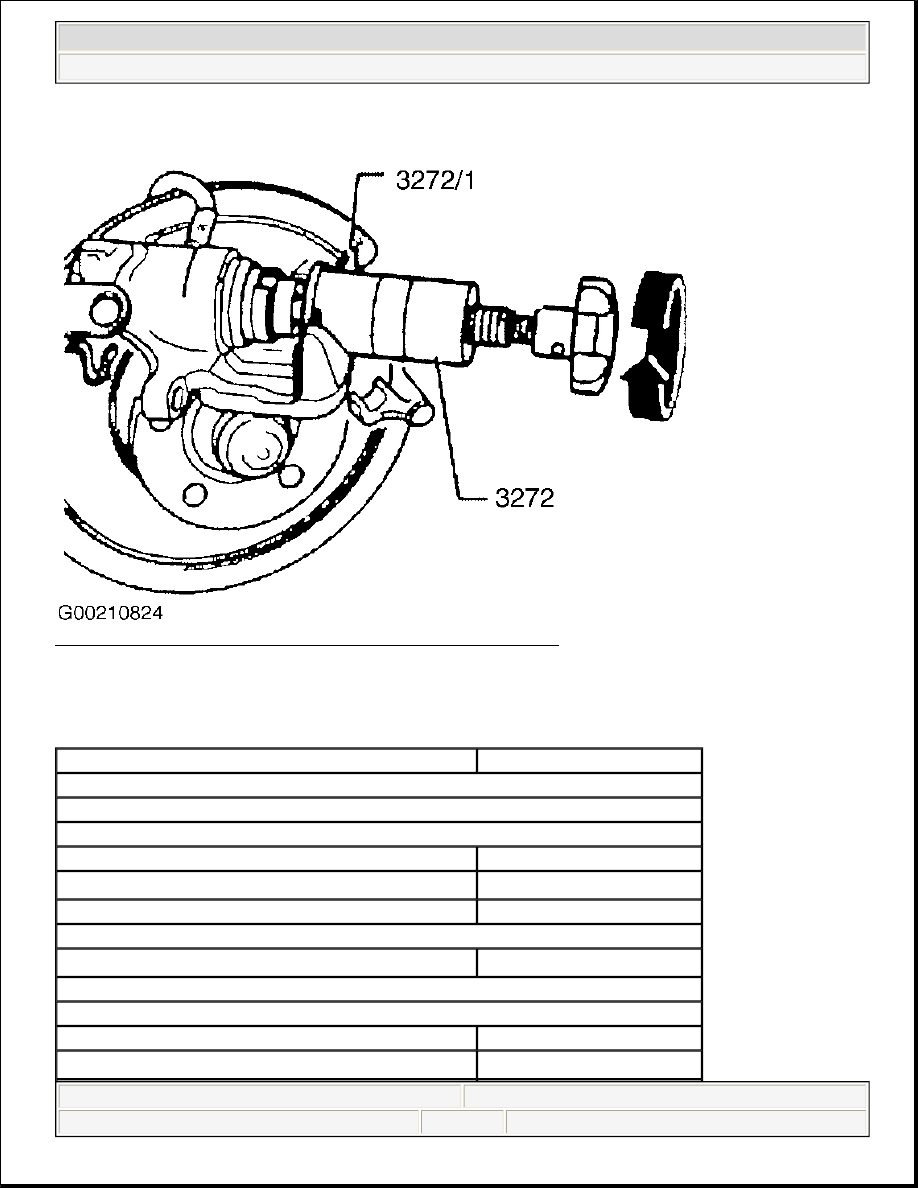

Fig. 2: Retracting Rear Brake Caliper Piston For Pad Installation
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Torque Specifications

TORQUE SPECIFICATIONS(BRAKES)

Application

Ft. Lbs. (N.m)

Front

Beetle

Brake Hose-To-Caliper Banjo Bolt

FS III (280mm Diameter Disc)

26 (35)

FN 3 (288mm Diameter Disc)

(1)

26 (35)

Caliper Guide Pins

21 (28)

Caliper Mount-to-Steering Knuckle Bolt

FN 3 (288mm Diameter Disc)

(1)

92 (125)

Rear

Beetle

Brake Hose-To-Caliper Banjo Bolt

26 (35)

Caliper Mount Bolts

(2)

26 (35)



2003 Volkswagen New Beetle GLS

2003 SPECIFICATIONS New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:54:44 AM

Page 5

© 2004 Mitchell Repair Information Company, LLC.

CHARGING SYSTEM

GENERATOR

Service Specifications

GENERATOR APPLICATION

Torque Specifications

TORQUE SPECIFICATIONS (GENERATOR)

DRIVE BELTS

ADJUSTMENT

DRIVE BELT ROUTING

Caliper Mount-to-Spindle Bolts

48 (65)

Rear Wheel Bearing Hub Nut

(2)

129 (175)

Wheel Lug Bolt

Beetle

89 (120)

INCH Lbs. (N.m)

ABS Speed Sensor Mounting Bolt

Front & Rear

71 (8)

(1)

FN 3 caliper is equipped with a brake pad retaining spring.

(2)

Always replace all self-locking bolts.

Application

Output AMPS

Beetle

70, 90 or 120

Application

Ft. Lbs. (N.m)

Generator Mount Bolt

All Models

18 (25)

Generator Belt Pulley Nut

Without Freewheel

48 +/- 4 (65 +/- 5)

With Freewheel

59 (80)

Serpentine Belt Tensioner-To-Engine Bolt

All Models

18 (25)

NOTE:

All engines are equipped with automatic belt tensioners. No adjustments are
necessary.



2003 Volkswagen New Beetle GLS

2003 SPECIFICATIONS New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:54:44 AM

Page 6

© 2004 Mitchell Repair Information Company, LLC.
