not depressed).

5. While observing Display Field "2", slowly open throttle to Wide Open Throttle (WOT). Display should

increase uniformly from zero percent at closed throttle to 100 percent at wide open throttle.

6. If display are correct, press right arrow button. Press "0" and "6" to select ENDING OUTPUT function.

Press "Q" button to enter input. If display is incorrect, readjust TP sensor. Retest TP sensor. If readings
are not corrected by adjustment, check TP sensor circuit, replace as necessary.



2003 Volkswagen New Beetle GLS

2000-03 ENGINE PERFORMANCE On-Vehicle Adjustments



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:41:48 AM

Page 5

© 2004 Mitchell Repair Information Company, LLC.

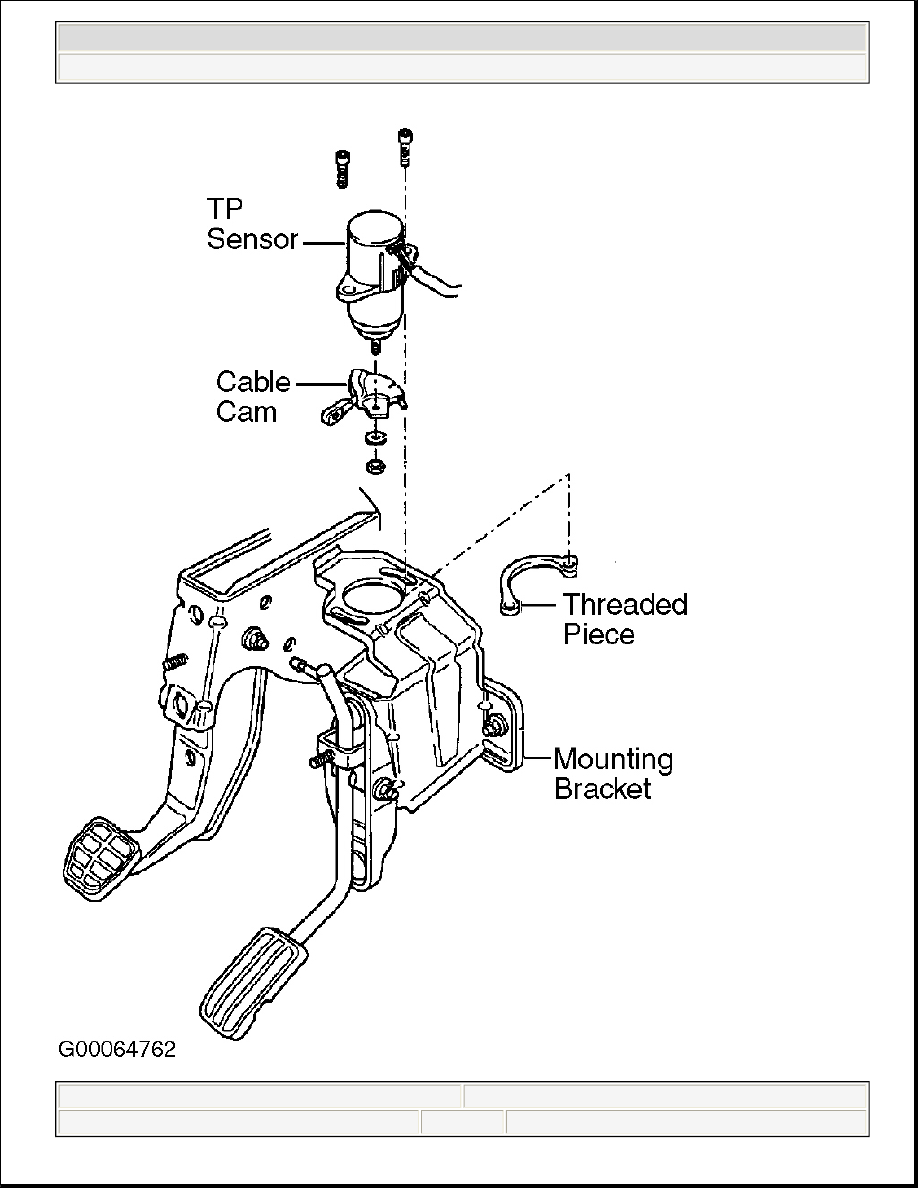

Fig. 4: Identifying TP Sensor Components (1.9L Turbo Diesel)



2003 Volkswagen New Beetle GLS

2000-03 ENGINE PERFORMANCE On-Vehicle Adjustments



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:41:48 AM

Page 6

© 2004 Mitchell Repair Information Company, LLC.

Courtesy of VOLKSWAGEN UNITED STATES, INC.

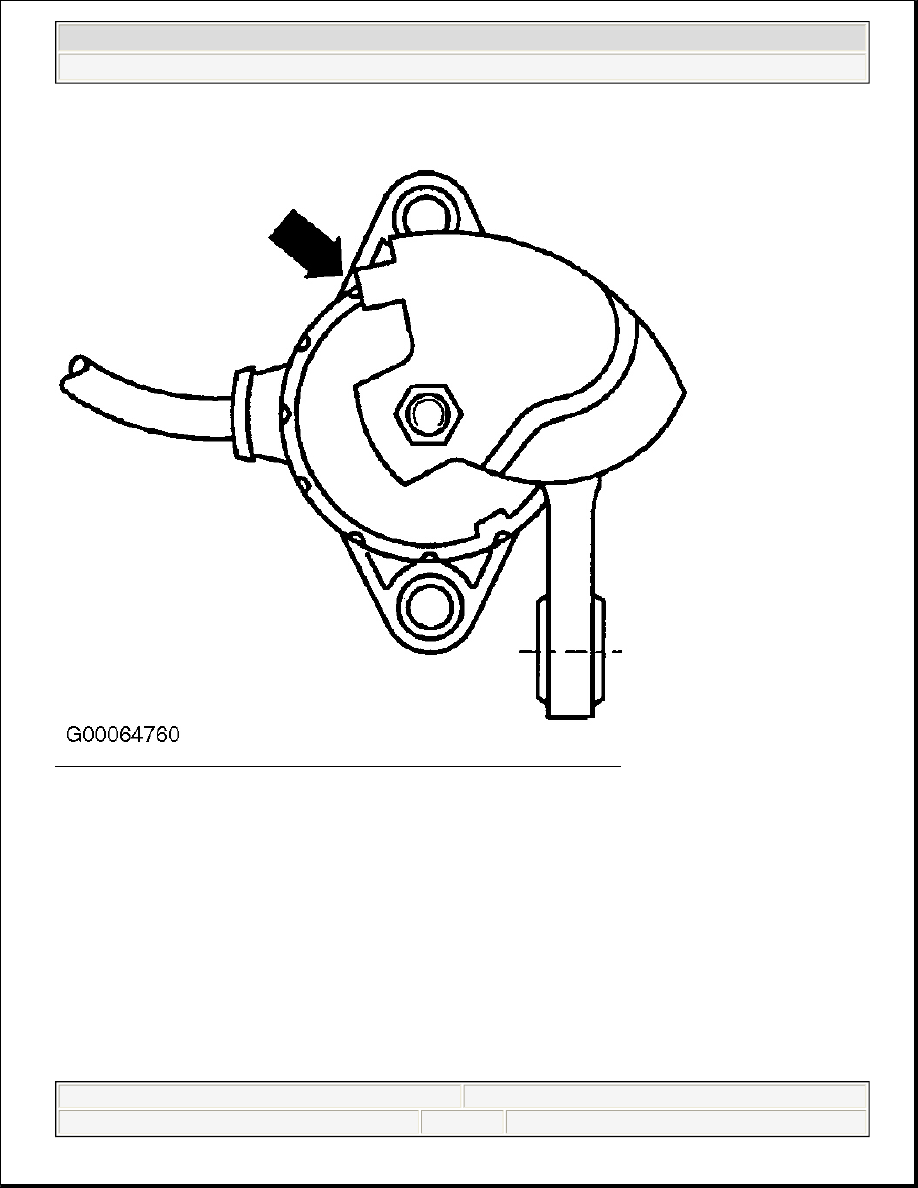

Fig. 5: Adjusting Cable Cam (TP Sensor Adjustment - 1.9L Turbo Diesel)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2000-03 ENGINE PERFORMANCE On-Vehicle Adjustments



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:41:48 AM

Page 7

© 2004 Mitchell Repair Information Company, LLC.

1998-2003 ENGINE PEFORMANCE

Basic Diagnostic Procedures - Beetle - Gasoline

IDENTIFICATION

2.0L ENGINE

Engine identification is stamped on machined surface between engine and transmission. Additionally, there is a
sticker, located on timing belt guard. Engine code is also included on vehicle data plate.

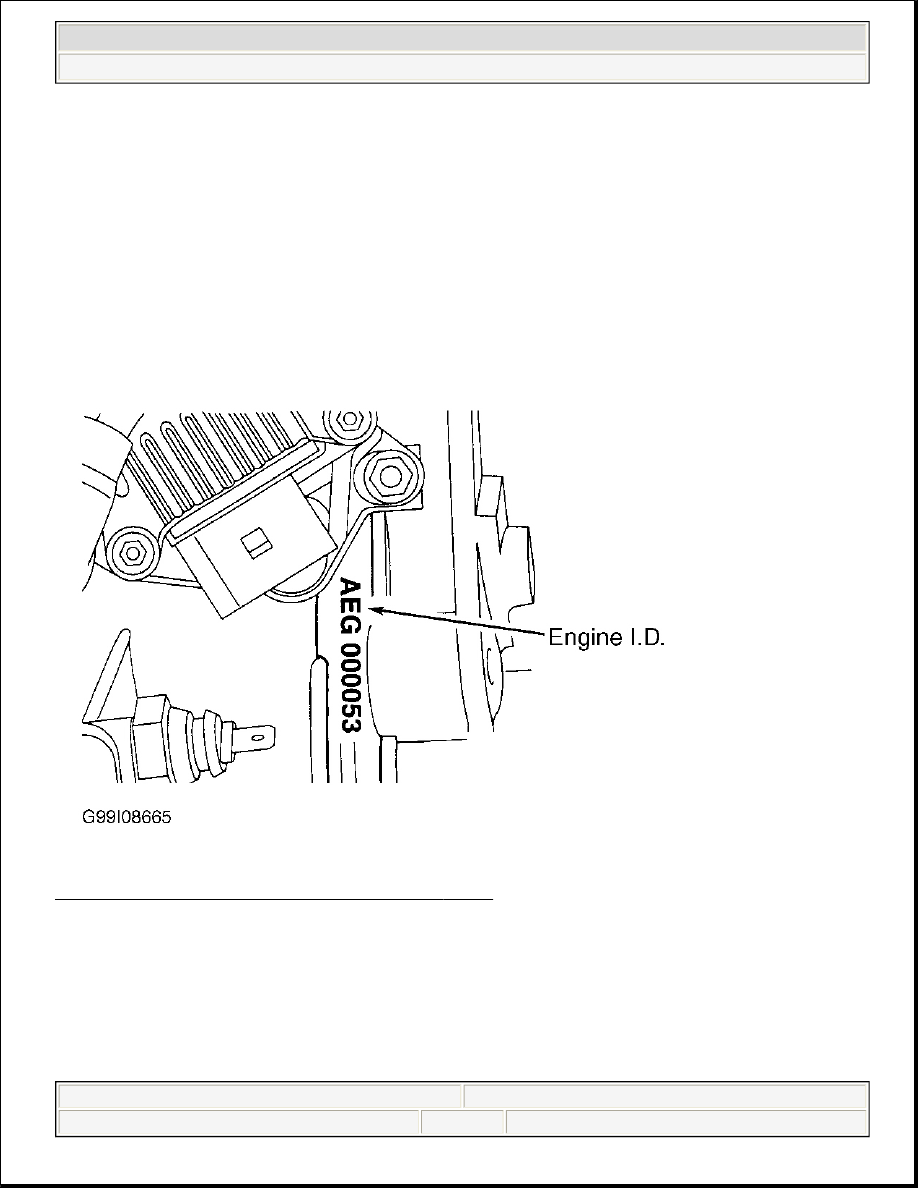

Fig. 1: Locating Engine Identification Code (2.0L - AEG)
Courtesy of VOLKSWAGEN UNITED STATES, INC.
