Volkswagen New Beetle. Manual - part 1731





z

Performance deficiency or tip-in shocks

Test sequence

z

Connect hand vacuum pump (VAG1390) to vacuum connection for deceleration shut -off valve.

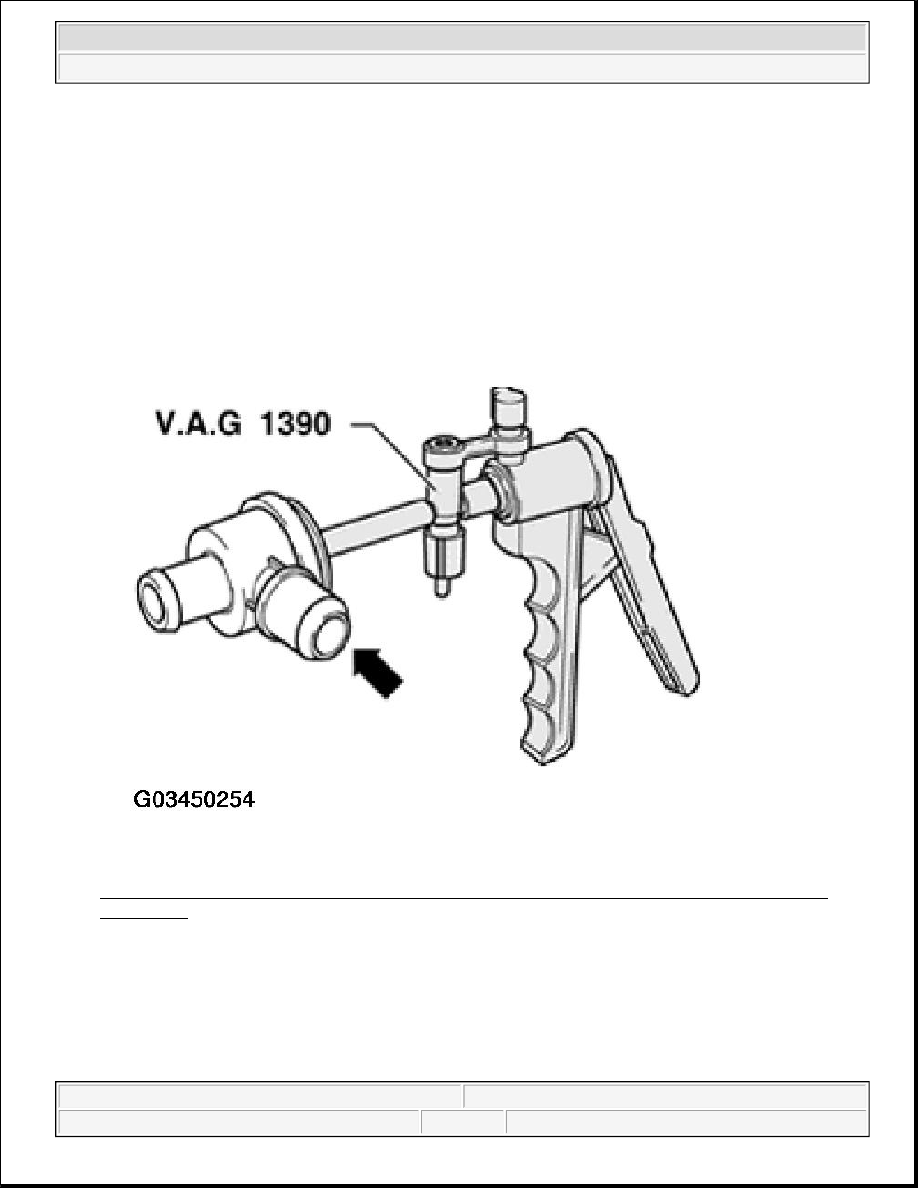

Fig. 19: Connecting Hand Vacuum Pump (VAG1390) To Deceleration Shut-Off Valve Vacuum
Connection

Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Operate vacuum pump.

Deceleration shut-off valve must open in direction of arrow

z

Operate ventilation valve at vacuum pump.

NOTE:

The deceleration shut-off valve is located in front of the turbocharger. It is
opened by vacuum during deceleration and at idle.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Turbocharger, G - Charger, 1.8L Generic Scan Tool - New Beetle



Deceleration shut-off valve must close

If deceleration shut -off valve does not open or does not close, replace valve, see VEHICLES WITH ENGINE
CODE APH
 .

NOTE:

Secure connections of deceleration valve using screw-type clamps.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Turbocharger, G - Charger, 1.8L Generic Scan Tool - New Beetle



1998-2004 ENGINE PERFORMANCE

Turbocharger, G-Charger - New Beetle

TURBOCHARGER G-CHARGER

CHARGE AIR SYSTEM WITH TURBOCHARGER

Turbocharger with attachments, removing and installing

Observe rules for cleanliness. See RULES OF CLEANLINESS .

WARNING:

Observe the following for all installations, especially in engine
compartment due to dense construction:

z

Route lines of all types (e.g. for fuel, hydraulics, coolant and
refrigerant, brake fluid, vacuum) and electrical wiring so that the
original path is re-established.

z

Watch for sufficient clearance to all moving or hot components.

NOTE:

z

All hose connections are secured with clamps.

z

VAS5024A spring clip installation tool is recommended for installing
spring-type clamps.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Turbocharger, G-Charger - New Beetle





2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Turbocharger, G-Charger - New Beetle



Assembly overview

1. Exhaust manifold

z

with turbocharger

z

Replace as complete unit only

2. Intake manifold

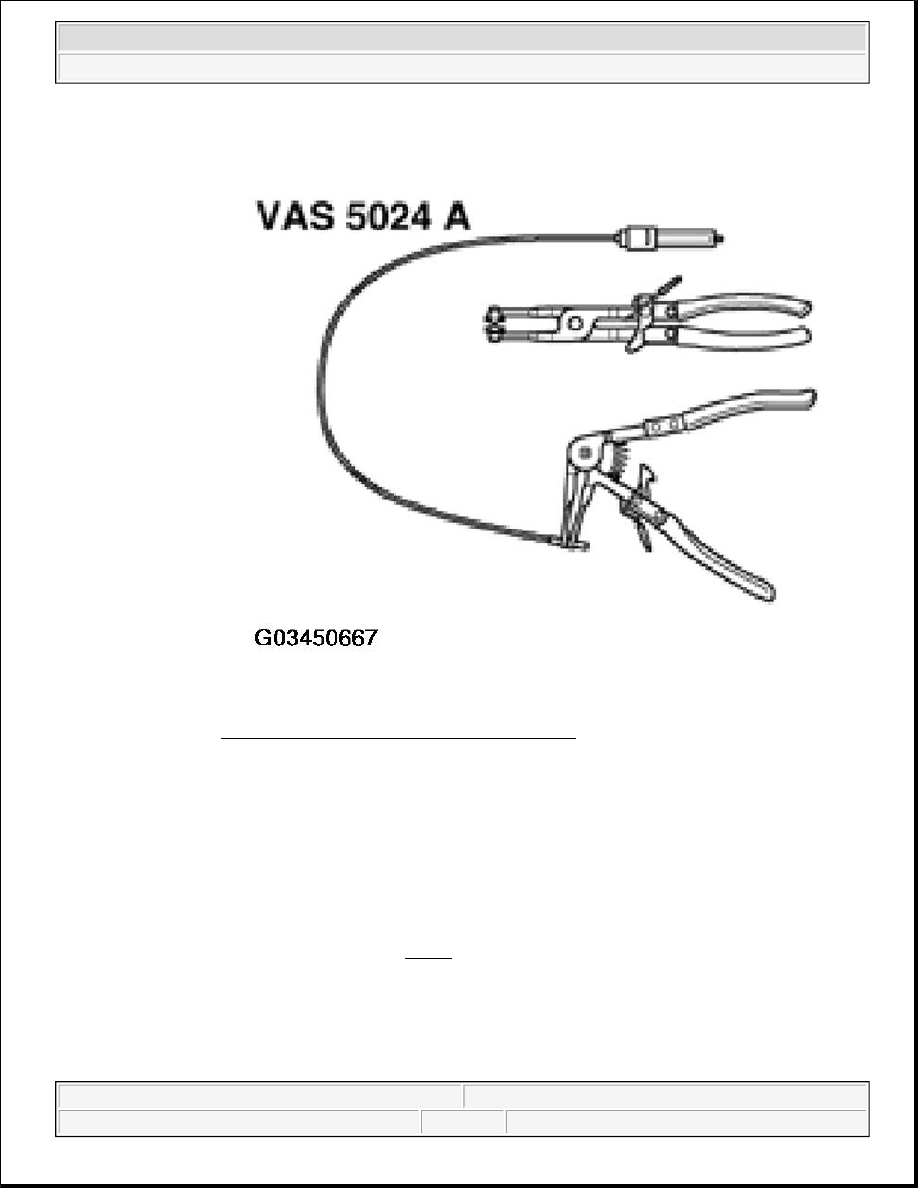

Fig. 1: Identifying Special Tool VAS5024A
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Charge air system must be properly sealed.

z

Charge pressure hoses and pipes as well as their connections must be
free of oil and grease before re-installation.

z

Always replace self-locking nuts.

NOTE:

The following list refers to Fig. 2 .



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Turbocharger, G-Charger - New Beetle
