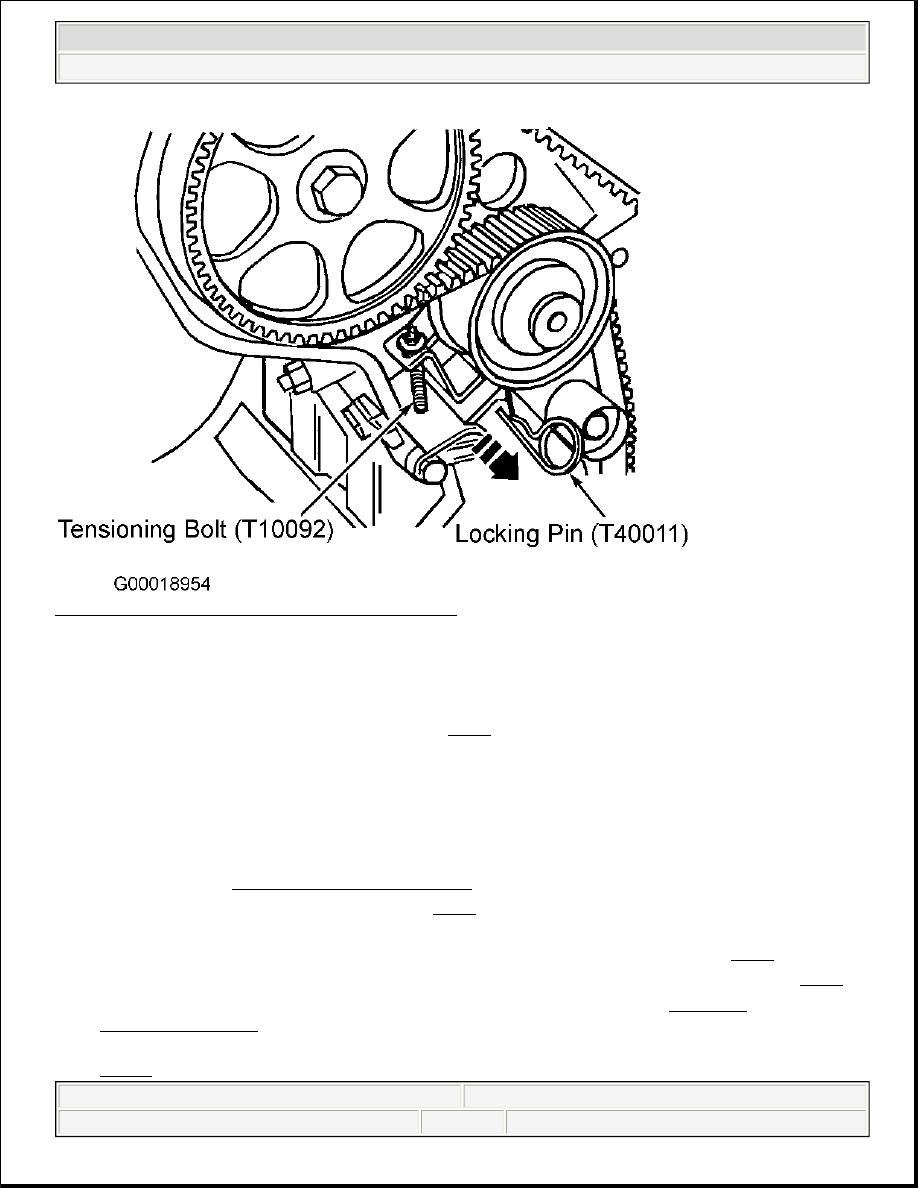

Fig. 8: Installing Timing Belt Tensioner Locking Pin
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Installation

1. Ensure camshaft is still at TDC of compression stroke for No. 1 cylinder. Align timing marks on camshaft

sprocket with mark on cylinder head cover. See Fig. 9 .

2.

Install timing belt around crankshaft sprocket. If installing used belt, ensure it is installed in original
direction of rotation. Install engine mount bracket to block. Install lower timing belt guard. Use Locking
Fluid (D 000 600 A2) on lower timing belt cover bolts. Install crankshaft pulley, and tighten bolts to
specification. See TORQUE SPECIFICATIONS .

3. Rotate crankshaft to TDC No. 1 cylinder. See Fig. 9 . Place timing belt on water pump, tensioner pulley

and camshaft sprocket.

4. Remove Locking Pin (T40011) or drill bit and unscrew Tensioning Bolt (T10092). See Fig. 8 .

5. Turn crankshaft 2 revolutions, and check that camshaft and crankshaft marks align properly. See Fig. 9 .

6. Install middle and upper timing belt covers. Tighten bolts to specification. See TORQUE

SPECIFICATIONS .

7. Install engine mount to engine bracket and body using NEW bolts. Adjust engine mount clearance. See

Fig. 10 .

NOTE:

Before installing engine mount, insert bolts into engine mount.



2003 Volkswagen New Beetle GLS

VOLKSWAGEN 1.8L 4-Cylinder - New Beetle - APH, AWP & AWV Engines



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:40:23 AM

Page 10

© 2004 Mitchell Repair Information Company, LLC.

8. Remove engine support bridge or floor jack. Install serpentine drive belt tensioner. Install serpentine drive

belt. Install the A/C compressor drive belt (if equipped). Ensure used belts are installed in original
direction of rotation.

9. To complete installation, reverse remaining removal procedure. Tighten all fasteners to specification. See

TORQUE SPECIFICATIONS .

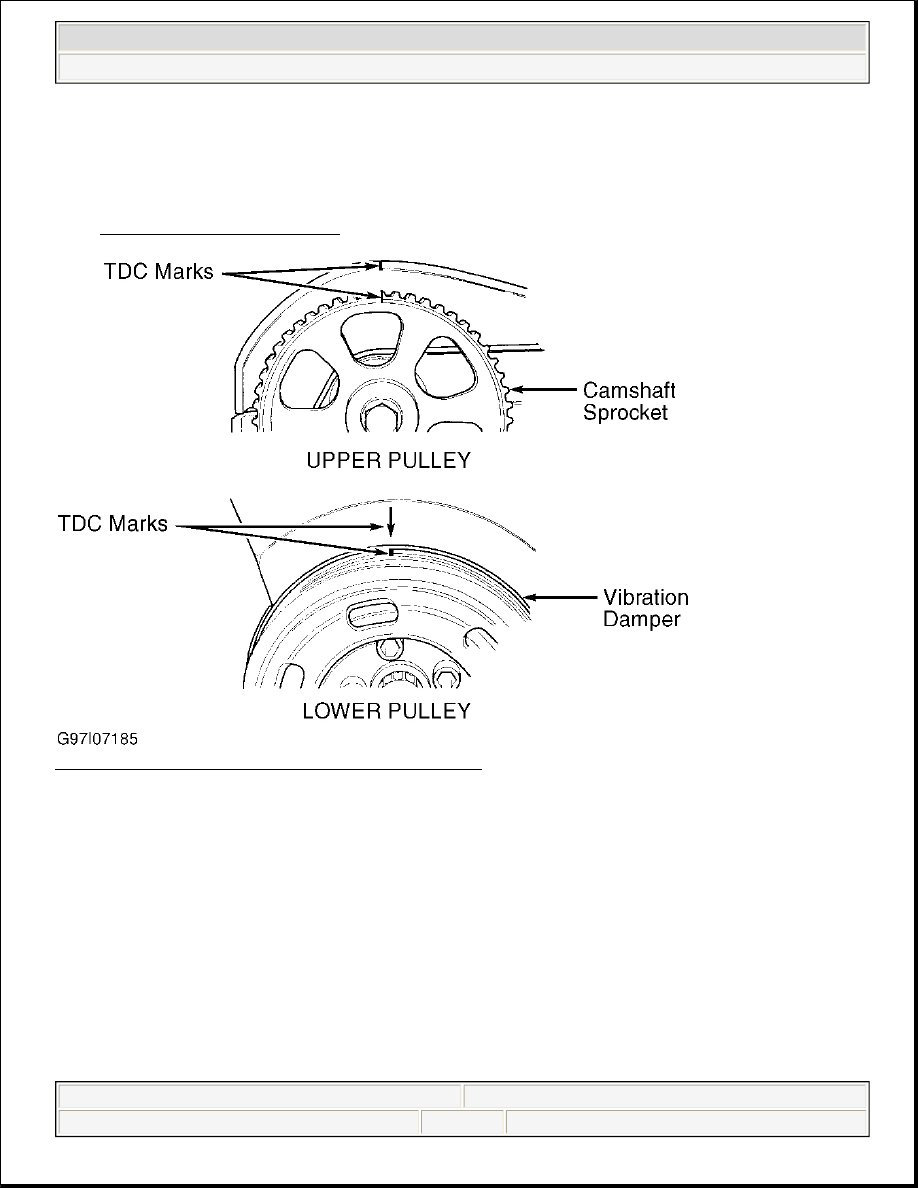

Fig. 9: Aligning Camshaft & Crankshaft Timing Marks
Courtesy of AUDI OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

VOLKSWAGEN 1.8L 4-Cylinder - New Beetle - APH, AWP & AWV Engines



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:40:23 AM

Page 11

© 2004 Mitchell Repair Information Company, LLC.

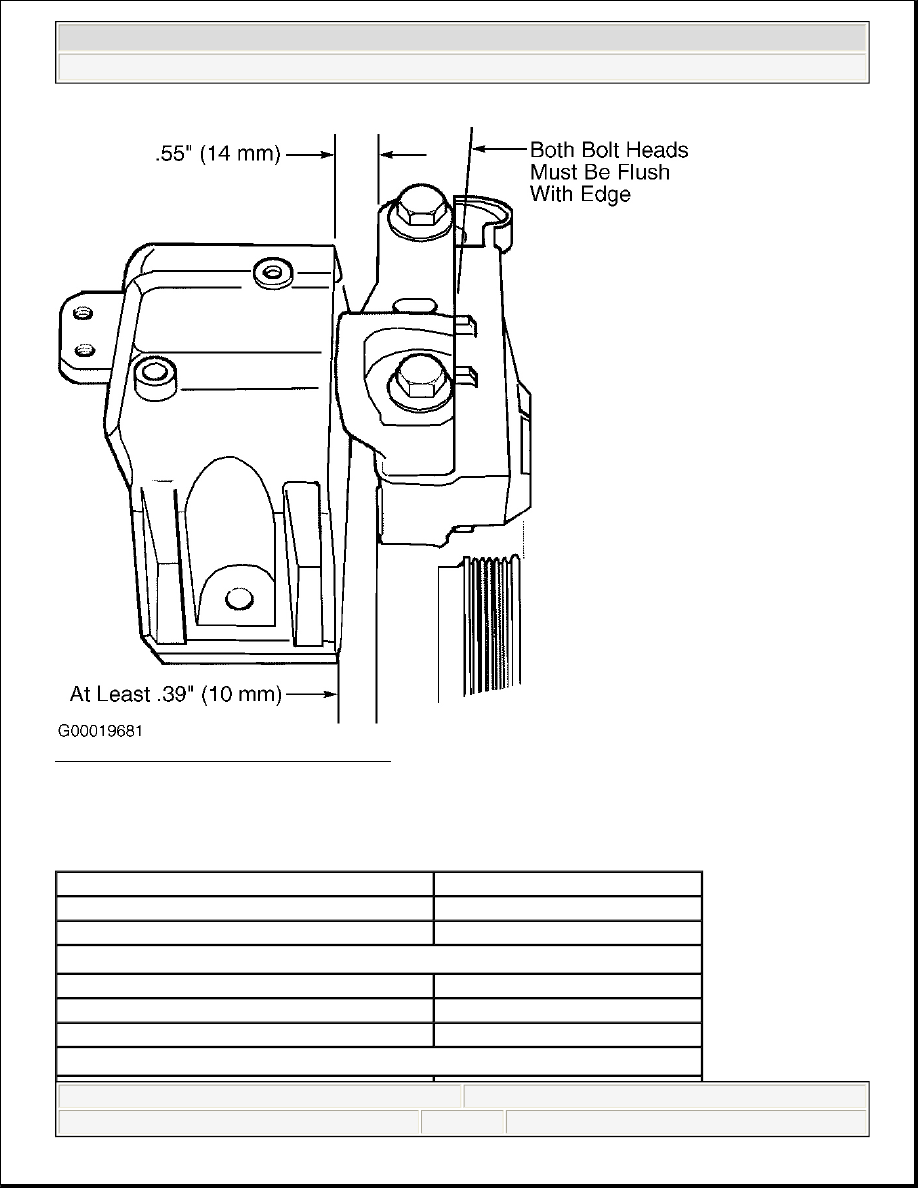

Fig. 10: Adjusting Engine Mount Clearance
Courtesy of VOLKSWAGEN UNITED STATES, INC.

TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

Application

Ft. Lbs. (N.m)

Camshaft Sprocket Bolt

59 (80)

Crankshaft Pulley Bolt

18 (25)

Crankshaft Sprocket Center Bolt

(1)

Step 1

66 (90)

Step 2

Plus 1/4 Turn (90 Degrees

Engine Mount Bracket-To-Engine

33 (45)

Engine Mount-To-Body

(1)



2003 Volkswagen New Beetle GLS

VOLKSWAGEN 1.8L 4-Cylinder - New Beetle - APH, AWP & AWV Engines



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:40:23 AM

Page 12

© 2004 Mitchell Repair Information Company, LLC.

Step 1

30 (40)

Step 2

Plus 1/4 Turn (90 Degrees

Engine Mount-To-Engine Bracket

(1)

Step 1

44 (60)

Step 2

Plus 1/4 Turn (90 Degrees

Serpentine Drive Belt Tensioner Bolt

18 (25)

Timing Belt Cover Bolt

15 (20)

Timing Belt Idler Pulley Bolt

15 (20)

Timing Belt Tensioner Mount Bolt

11 (15)

Timing Belt Tensioner Pulley Bolt

18 (25)

Water Pump Bolt

11 (15)

(1)

Replace bolts if loosened or removed.
