Volkswagen New Beetle. Manual - part 1717





Courtesy of VOLKSWAGEN UNITED STATES, INC.

TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS (GOLF & JETTA)

TORQUE SPECIFICATIONS (NEW BEETLE)

Application

Ft. Lbs. (N.m)

Camshaft Sprocket Bolt

33 (45)

Crankshaft Pulley Bolt

18 (25)

Diesel Injection Pump Sprocket Bolts

(1)

15 (20) + 90 Degrees

Engine Mount Bracket-To-Engine Bolt

33 (45)

Idler Pulley Bolt

15 (20)

Serpentine Drive Belt Tensioner

18 (25)

Timing Belt Tensioner Pulley Nut

15 (20)

Vacuum Pump Bolt

15 (20)

Water Pump Bolts

16 (22)

INCH. Lbs. (N.m)

Timing Belt Cover Bolt

89 (10)

Valve Cover Nut

89 (10)

(1)

Replace with new torque-to-yield bolts on installation.

Application

Ft. Lbs. (N.m)

Camshaft Sprocket Bolt

33 (45)

Crankshaft Pulley Bolt

18 (25)

Diesel Injection Pump Sprocket Bolts

(1)

15 (20 ) + 90 Degrees

Engine Mount Bracket-To-Engine Bolt

(1)

30 (40) + 90 Degrees

Engine Mount-To-Bracket Bolt

(1)

44 (60) + 90 Degrees

Idler Pulley Bolt

15 (20)

Timing Belt Tensioner Pulley Nut

15 (20)

Water Pump Bolts

11 (15)

INCH Lbs. (N.m)

Timing Belt Cover Bolt

89 (10)

Valve Cover Nut

89 (10)

(1)

Replace with new torque-to-yield bolts on installation.



2003 Volkswagen New Beetle GLS

VOLKSWAGEN 1.9L 4-Cylinder - Turbo Diesel - ALH Engine



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:41:00 AM

Page 11

© 2004 Mitchell Repair Information Company, LLC.

VOLKSWAGEN

2.0L 4-Cylinder - AEG, AVH, AZG, BDC & BEV Engines

MANUFACTURER'S SUGGESTED SCHEDULED MAINTENANCE

For 1998-00 model years, although the manufacturer does not recommend a specific scheduled maintenance
interval, belt manufacturers suggest the belt be replaced at 60,000 mile intervals. For 2001-03 model years, the
manufacturer recommends the belt be replaced at 105,000 mile intervals.

REMOVAL & INSTALLATION

NOTE:

For 2004, manufacturer does not provide a timing belt replacement interval.

CAUTION: This application is an interference engine. Do not rotate camshaft or

crankshaft when timing belt is removed, or engine damage may occur.

NOTE:

Engine code AEG is stamped into machined pad on front of cylinder block
above crankcase breather, near cylinder head mating surface. See Fig. 1 . For
all other 2.0L engines, engine code is stamped on transmission mating flange at
the rear of the engine. See Fig. 2 . For all engines, code can also be found on
the vehicle data plate and on a sticker on the timing belt cover.



2003 Volkswagen New Beetle GLS

VOLKSWAGEN 2.0L 4-Cylinder - AEG, AVH, AZG, BDC & BEV Engines





2003 Volkswagen New Beetle GLS

VOLKSWAGEN 2.0L 4-Cylinder - AEG, AVH, AZG, BDC & BEV Engines



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:41:21 AM

Page 1

© 2004 Mitchell Repair Information Company, LLC.

Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:41:24 AM

Page 1

© 2004 Mitchell Repair Information Company, LLC.

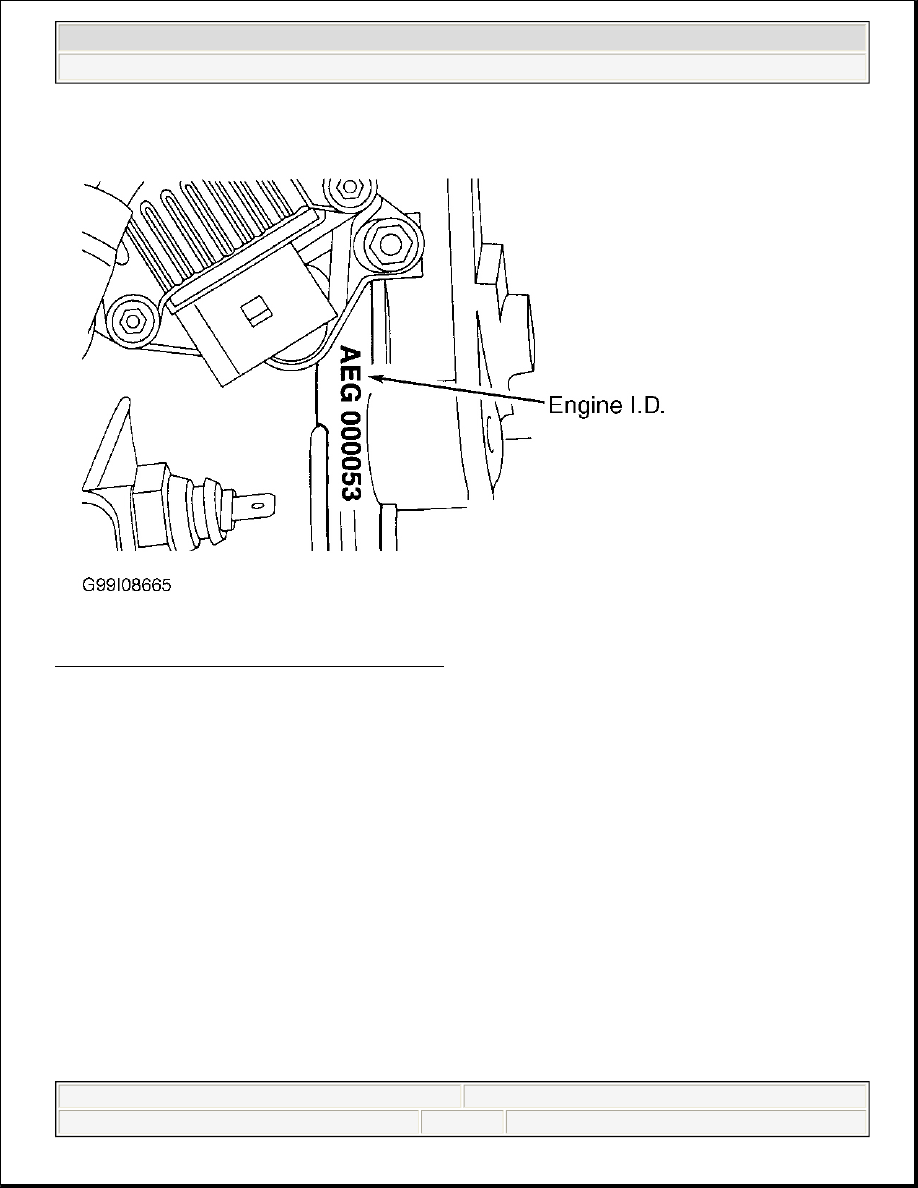

Fig. 1: Locating Engine Identification Code (AEG)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

VOLKSWAGEN 2.0L 4-Cylinder - AEG, AVH, AZG, BDC & BEV Engines



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:41:22 AM

Page 2

© 2004 Mitchell Repair Information Company, LLC.

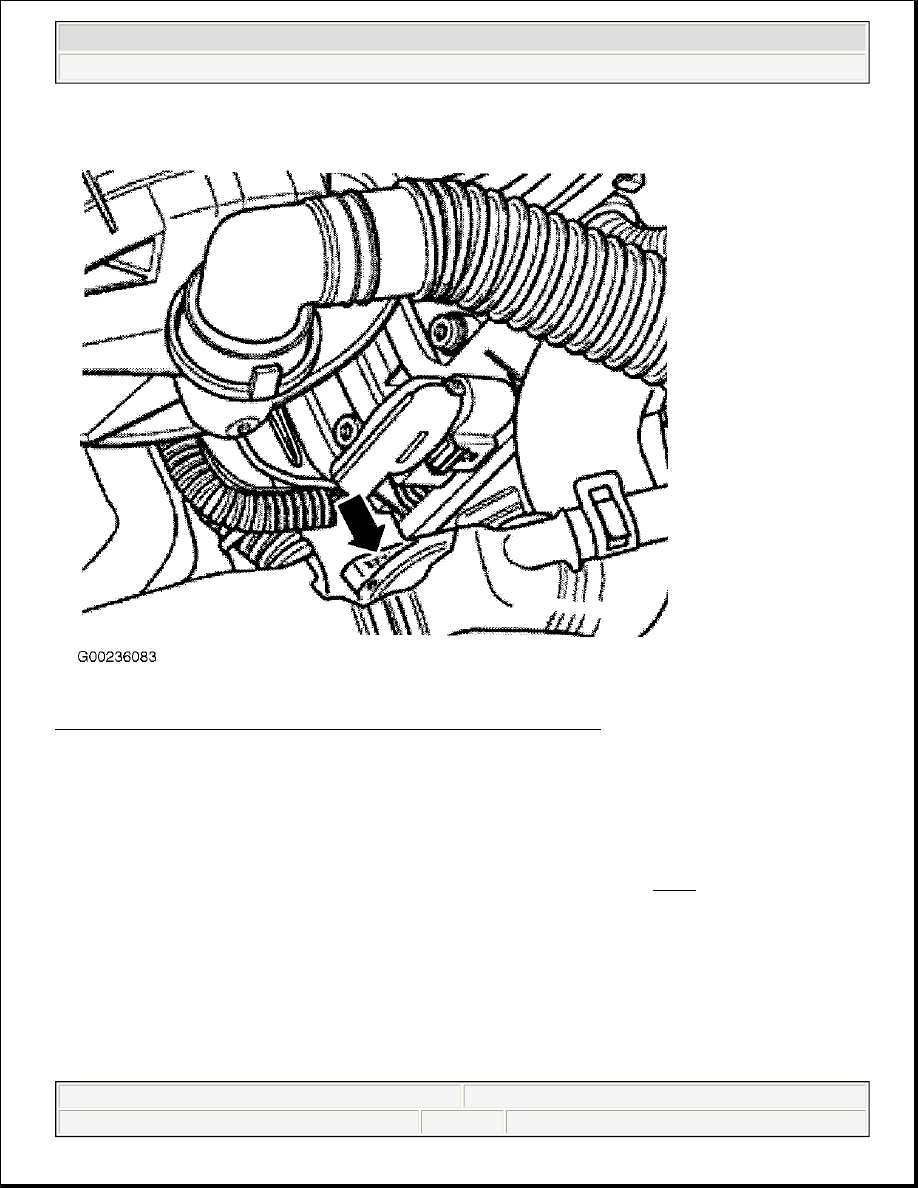

Fig. 2: Locating Engine Identification Code (AVH, AZG, BDC & BEV)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

TIMING BELT

Removal (AEG, AVH, AZG, BEV & BDC Engine Codes)

1. Remove right hand insulation tray from engine compartment. Remove engine cover. Rotate serpentine

belt tensioner clockwise to relieve belt tension. Remove serpentine belt. See Fig. 3 . Lock in place using
Mandrel (T10060) or a drift.



2003 Volkswagen New Beetle GLS

VOLKSWAGEN 2.0L 4-Cylinder - AEG, AVH, AZG, BDC & BEV Engines



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:41:22 AM

Page 3

© 2004 Mitchell Repair Information Company, LLC.
