Volkswagen New Beetle. Manual - part 1690





Fig. 112: Identifying Scan Tool Display - Checking HO2S After TWC (3 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check status of oxygen sensor control after Three Way Catalytic Converter (TWC) (display zone 2).

Specification: 1 1 0

DISPLAY GROUP 30: OXYGEN SENSOR CONTROL

Notes on display zone 2:

z

The first figure in the 3 figure number block periodically changes between 0 and 1 (Heated Oxygen



Display zones

1

2

3 4

Display group 30: Oxygen sensor control
Display

xxx

xxx

- -

Indicated

Status of oxygen sensor

control before Three Way

Catalytic Converter

(TWC)

Status of oxygen sensor control after Three Way Catalytic

Converter (TWC)

- -

Working
range

-

-

- -

Specification

111

110

- -



-

Significance, see POSSIBLE CAUSES OF

MALFUNCTION IF SENSOR CONTROL

FREQUENCY IS TOO SLOW:

- -



-

If the specification is not obtained, see HEATED

OXYGEN SENSOR (HO2S) FOR OXYGEN SENSOR

AFTER THREE WAY CATALYTIC CONVERTER

(TWC), CHECKING

- -



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Sensor (HO2S) on and off).

z

The numbers in the 3 figure number block can alternate from 0 and 1 in the display depending on the
status of the oxygen sensor control.


z

The third position of the 3 digit number block will be set to 1 only at increased exhaust temperature and
part load.


Significance of 3 digit number block in display zone 2

Significance of 3 digit number block in display zone 2 SPECIFICATION

If the specification is obtained:

z

Change to display group 36 as follows:

z

Press --> button.

z

Press buttons -0- and -4- for "Basic Setting" function and confirm entry with -Q- button.

Indicated on display

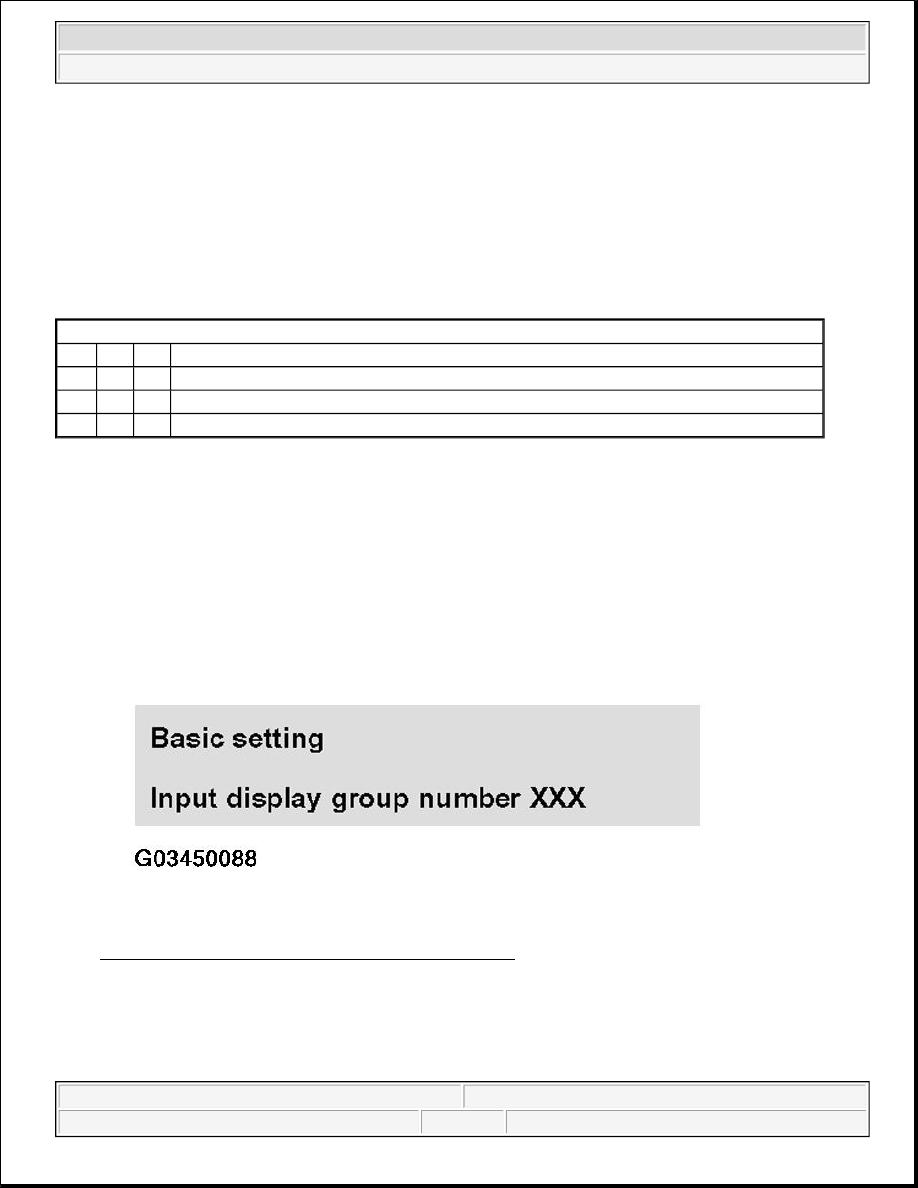

Fig. 113: Identifying Scan Tool Display - Basic Setting
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0-, -3- and -6- for "Display group number 36" and confirm entry with -Q- button.

Indicated on display (1 to 2 - Display zones)

Significance if display = 1
1

2

3

Significance





1

Oxygen sensor control active



1



Oxygen sensor operationally ready

1





Heated Oxygen Sensor (HO2S) on



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Fig. 114: Identifying Scan Tool Display - System In Basic Setting 36
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check oxygen sensor voltage after Three Way Catalytic Converter (TWC) in display zone 1.

Specification: 0.100...0.900 V (can fluctuate slightly)

z

Maintain engine speed at 1800 -2200 RPM.

If the diagnostic is initiated from Engine Control Module the display in display zone 4 jumps from "Test
OFF" to "Test ON."

Specification: "B1-S2 OK." appears in display zone 2.

DISPLAY GROUP 36: OXYGEN SENSOR CONTROL, OPERATIONAL READINESS AFTER
THREE WAY CATALYTIC CONVERTER (TWC)


NOTE:

It can take a few minutes until display jumps from "Test ON" to "B1 -S2
OK".



Display zones

1

2

3 4

Display group 36: Oxygen sensor control, operational readiness after Three Way Catalytic
Converter (TWC)
Display
Indicated

x.xxx V

Oxygen sensor voltage for oxygen sensor

after Three Way Catalytic Converter

(TWC)

Test OFF/Test ON

B1-S2 OK.

B1-S2 n. OK.

Diagnostic condition and Diagnostic

result

-

Working
range

0.100 to 0.900 V (must fluctuate slightly)

B1-S2 OK.

-



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



If the specification is obtained:

z

Press --> button.

z

Press buttons -0- and -6- for function "End output" and confirm entry with -Q- button.

z

Switch off ignition.

Continuation

If the specification is not obtained:

z

Press --> button.

z

Press buttons -0- and -6- for function "End output" and confirm entry with -Q- button.

z

Check DTC Memory, if necessary, repair any malfunctions and then Erase DTC Memory, see DTC
MEMORY OF MOTRONIC ENGINE CONTROL MODULE (ECM) -J220-, CHECKING AND
ERASING
 .

z

Perform a road test to remove possible contaminates on oxygen sensor and repeat check.

Observe the valid safety precautions when carrying out a road test, see SAFETY PRECAUTIONS .

If the specifications are again not obtained:

z

Replace Oxygen Sensor (O2S) after Three Way Catalytic Converter (TWC) -G130-, see item 8 .

z

Check DTC Memory, if necessary, repair any malfunctions and then Erase DTC Memory, see DTC
MEMORY OF MOTRONIC ENGINE CONTROL MODULE (ECM) -J220-, CHECKING AND
ERASING
 .

z

Read readiness code, see READINESS CODE, DISPLAYING . If DTC memory has been erased or
Motronic Engine Control Module (ECM) -J220- was disconnected from battery positive, readiness code
must be generated again, see READINESS CODE, GENERATING .

Evaluating display group 36, display zone 1 - oxygen sensor voltage oxygen sensor after Three Way
Catalytic Converter (TWC)


EVALUATING DISPLAY GROUP 36, DISPLAY ZONE 1 - OXYGEN SENSOR VOLTAGE OXYGEN
SENSOR AFTER THREE WAY CATALYTIC CONVERTER (TWC)


Specification

If specifications are not achieved, see

POSSIBLE CAUSES OF

MALFUNCTION IF SENSOR

CONTROL FREQUENCY IS TOO

SLOW: , Evaluating display group 36

If specifications are not achieved, see

POSSIBLE CAUSES OF

MALFUNCTION IF SENSOR

CONTROL FREQUENCY IS TOO

SLOW: , Continuation

Appears on
display

Possible cause

Corrective action

Constant 1.105
V

z

Short to positive via: oxygen sensor,

sensor wiring, Ground (GND) wiring,

z

Check oxygen sensor basic voltage,

see CHECKING BASIC



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle
