Volkswagen New Beetle. Manual - part 1686





If the specification is obtained:

z

Press --> button.

z

Press buttons -0- and -6- for function "End output" and confirm entry with -Q- button.

z

Switch off ignition.

Continuation

If the idle speed is not obtained:

z

Adapt ECM to Throttle Valve Control Module - J338-, see MOTRONIC ENGINE CONTROL
MODULE (ECM) - J220- TO THROTTLE VALVE CONTROL MODULE - J338-, ADAPTING
 .

z

Road test vehicle.

Observe the valid safety precautions when road testing, see SAFETY PRECAUTIONS .

z

Again check control module DTC memory.

z

Repeat idle check.

If the specifications are not obtained again:

z

Check Throttle Valve Control Module -J338-, see THROTTLE VALVE CONTROL MODULE -
J338-, CHECKING
 .

z

Check operating condition of engine, see ENGINE OPERATING MODE, CHECKING .

z

Check intake air system for unmetered air, see INTAKE AIR SYSTEM (UNMETERED AIR),
CHECKING FOR LEAKS


z

Check signals from/to air conditioner, see SIGNAL FROM/TO AIR CONDITIONING,
CHECKING
 .

Oxygen Sensor and oxygen sensor control before Three Way Catalytic Converter (TWC), checking







1



Driving range (gear) selected





1





Air conditioning system switched on



1







Rear mirror defogger on

1









Power assisted steering pressure switch on

NOTE:

z

Raise vehicle to reach oxygen sensor connector.

z

The Oxygen Sensor (O2S) before Three Way Catalytic Converter (TWC)
has constant regulation and can be distinguished by a 6 -pin connector
from the Oxygen Sensor (O2S) behind the Three Way Catalytic Converter
(TWC).

z

Only gold terminals may be used for servicing the terminals in the
connector for the oxygen sensor.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Special tools, test equipment and auxiliary items

z

VAG 1551 scan tool or VAG 1552 mobile scan tool with VAG 1551/3B cable

z

VAG 1598/31 test box

z

VAG 1526 A or Fluke 83 multimeter

z

VAG 1594 adapter set

z

Electrical Wiring Diagram

Test conditions

z

All fuses must be OK. Fuse holder located behind access panel at far left end of dash.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

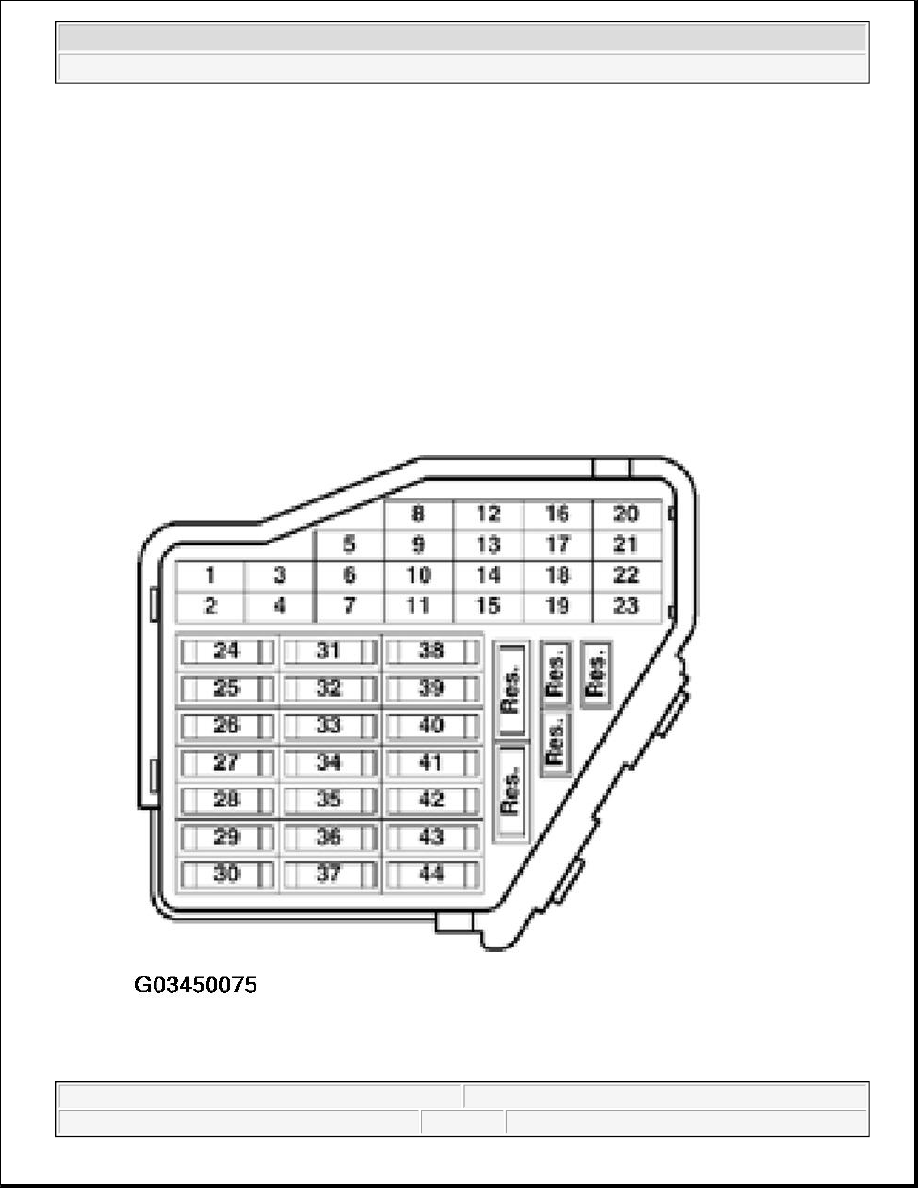

Fig. 100: Locating Fuses
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Battery voltage must be at least 11.5 V

z

Exhaust system between Three Way Catalytic Converter (TWC) and cylinder head must be free of leaks

z

Engine Coolant Temperature (ECT) must be at least 80 °C display group 04, display zone 3

Functional check

z

Connect VAG 1551 scan tool ((VAG 1552). Start engine and select "Address word" 01 of Motronic
Engine Control Module (ECM) -J220-. Engine must be running at idle speed. Connecting scan tool and
selecting Motronic Engine Control Module (ECM) -J220-, see VAG 1551, CONNECTING AND
SELECTING MOTRONIC ENGINE CONTROL MODULE (ECM) -J220-
 .

Indicated on display

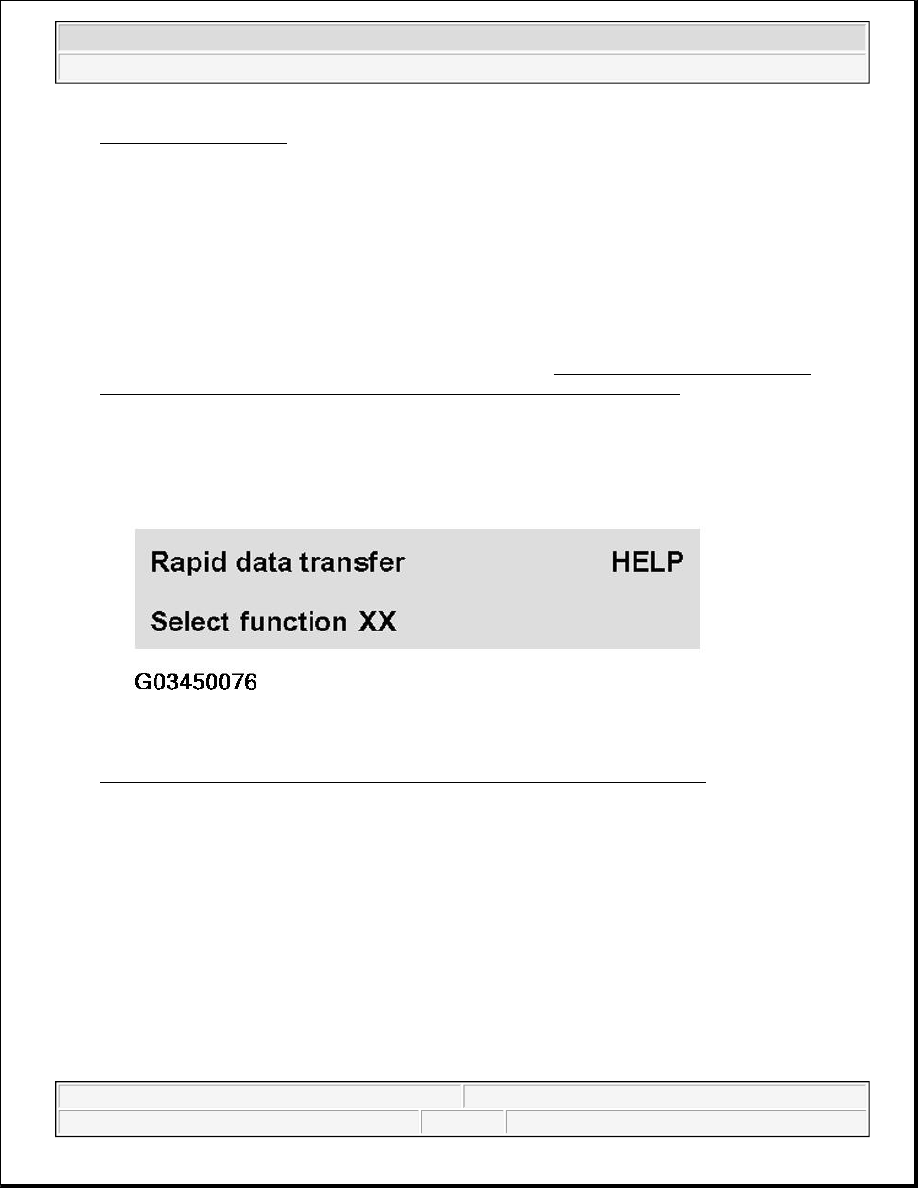

Fig. 101: Identifying Scan Tool Display - Checking HO2S Before TWC (1 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0- and -8- for function "Read measuring value block" and confirm entry with -Q- button.

Indicated on display



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

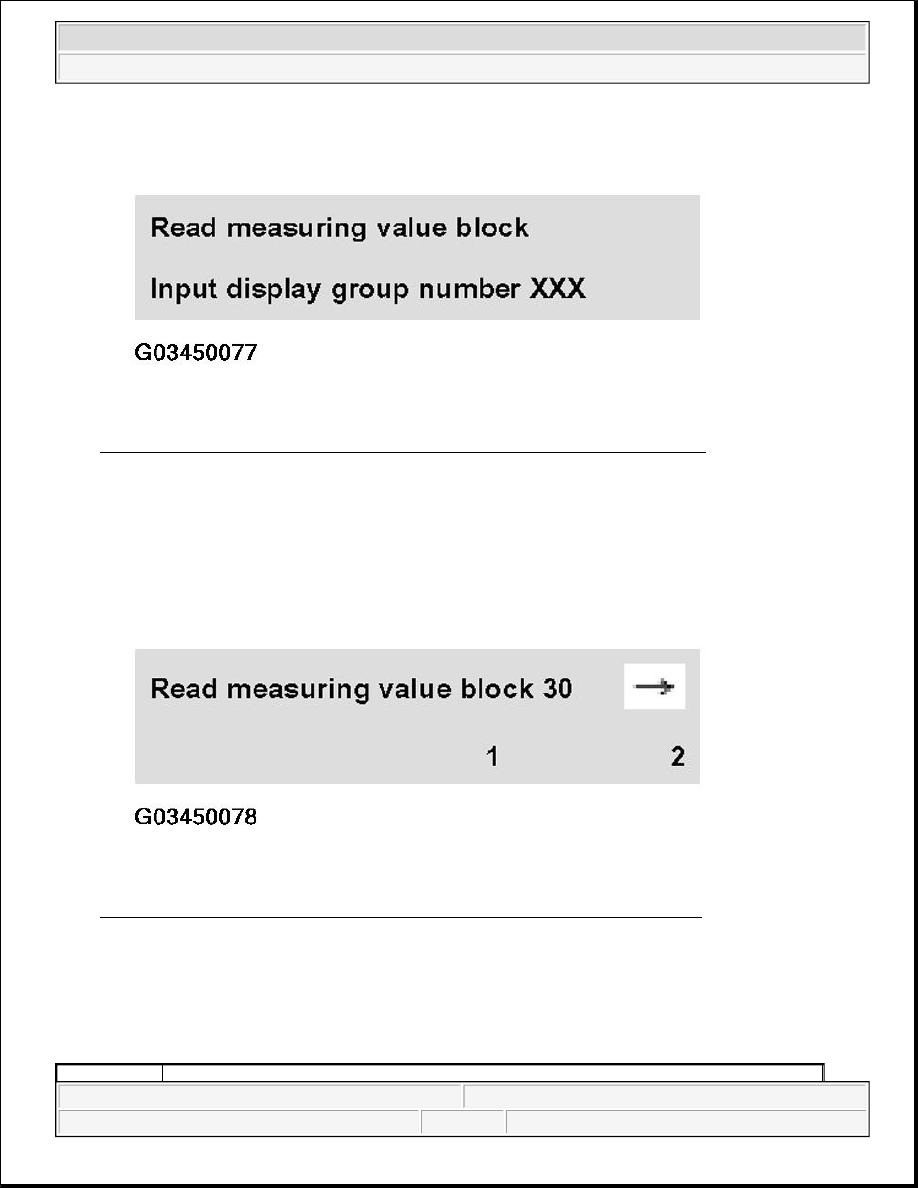

Fig. 102: Identifying Scan Tool Display - Checking HO2S Before TWC (2 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0-, -3- and -0- for "Display group number 30" and confirm entry with -Q- button.

Indicated on display (1 to 2 - Display zones)

Fig. 103: Identifying Scan Tool Display - Checking HO2S Before TWC(3 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check status of the oxygen sensor control before Three Way Catalytic Converter (TWC) (display zone 1):

Specification: 1 1 1

DISPLAY GROUP 30: OXYGEN SENSOR CONTROL



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle
