Volkswagen New Beetle. Manual - part 1681

Test sequence

z

Disconnect connectors from fuel injectors.

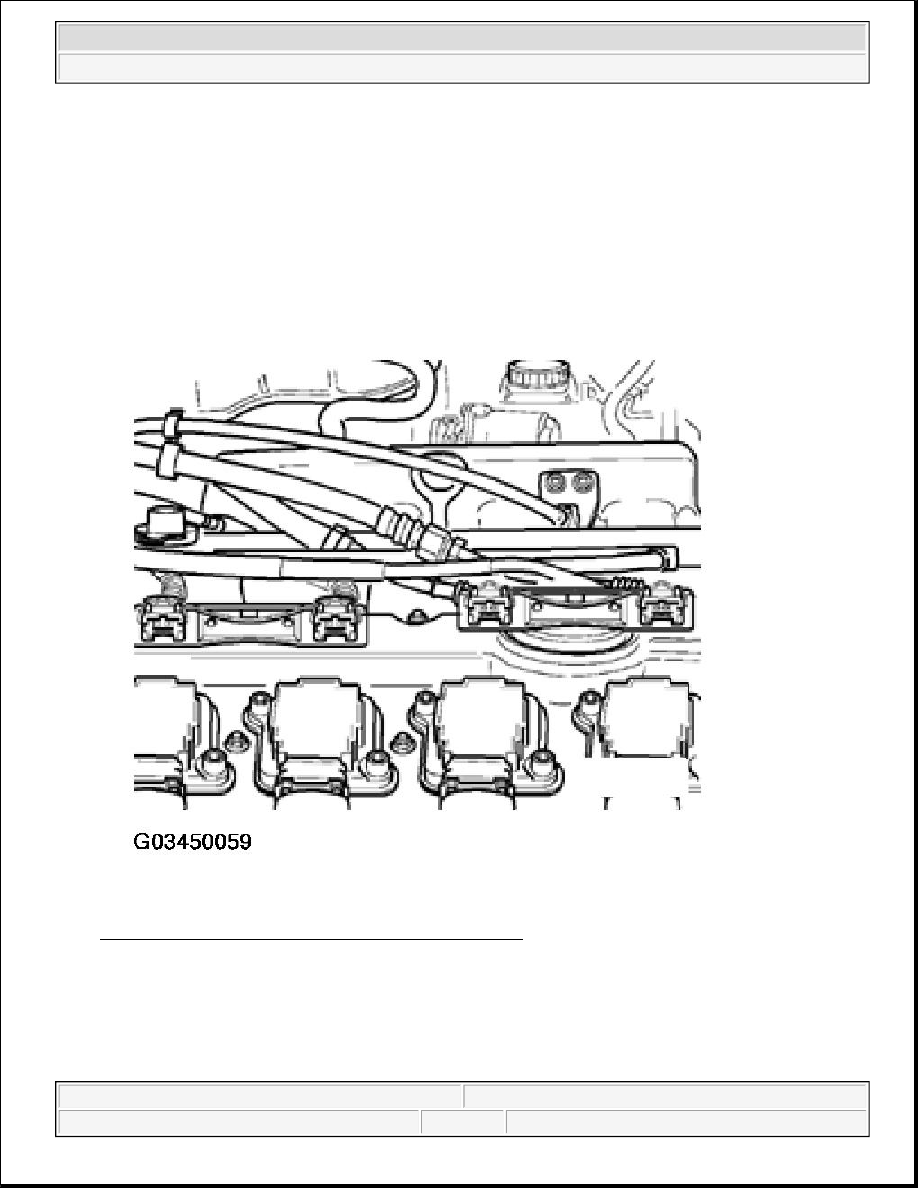

Fig. 84: Disconnecting Connectors From Fuel Injectors
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Remove fuel rail complete.

z

Disconnect vacuum hose from fuel pressure regulator.

z

Lift fuel rail with fuel injectors off intake manifold and support it.

WARNING:

Fuel system is under pressure! Before opening the system place a cloth
around the connection. Then release pressure by carefully loosening the
connection.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Checking for leaks

z

Initiate output Diagnostic Test Mode (DTM), see OUTPUT DIAGNOSTIC TEST MODE (DTM)
(FUNCTION 03), INITIATING (fuel pump must run).

z

Check fuel injector for leaks (visual check). Only 1 to 2 drops per minute must emit from each valve
when fuel pump is running.

If the fuel loss is greater:

z

Switch off ignition.

z

Replace malfunctioning fuel injector, see item 10 .

Pay attention to the following when installing the fuel injector:

z

Replace O -rings on all fuel injectors and lightly moisten with clean engine oil.

z

Insert fuel injectors vertically and in the correct position into the fuel rail and secure with retaining clips.

z

Install fuel rail with secured fuel injectors onto intake manifold and press in evenly.

z

The connectors must audibly engage in the fuel injectors when pushed on.

z

Check DTC Memory, if necessary, repair any malfunctions and then Erase DTC Memory, see DTC
MEMORY OF MOTRONIC ENGINE CONTROL MODULE (ECM) -J220-, CHECKING AND
ERASING .

z

Read readiness code, see READINESS CODE, DISPLAYING . If DTC memory has been erased or
Motronic Engine Control Module (ECM) -J220- was disconnected from battery positive, readiness code
must be generated again, see READINESS CODE, GENERATING .

Checking injected quantity

z

Insert fuel injector to be checked in a measuring glass of VAG 1602 tester for injected quantity.

z

Connect one terminal of fuel injector to be tested to engine Ground (GND) using auxiliary cables from
VAG 1594.

z

Connect second fuel injector terminal with auxiliary cable to VAG 1348/3 remote control using VAG
1348/3 -2 adapter cable.

NOTE:

This work sequence allows the fuel pump to run when the engine is not
running.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

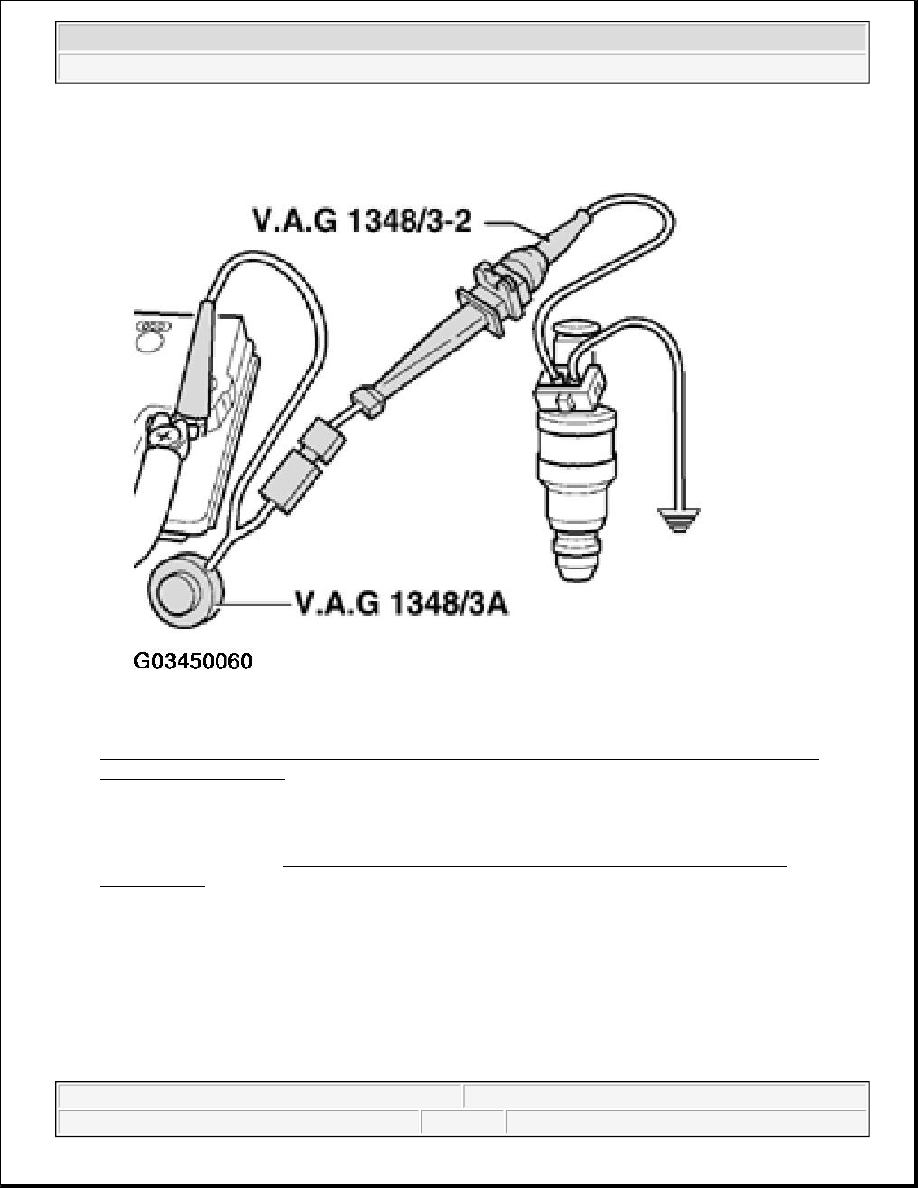

Fig. 85: Connecting One Terminal Of Fuel Injector To Engine Ground (Gnd) Using Auxiliary
Cables From VAG 1594
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Connect alligator clip to battery (+).

z

Initiate output DTM, see OUTPUT DIAGNOSTIC TEST MODE (DTM) (FUNCTION 03),
INITIATING (fuel pump must run).

z

Operate VAG 1348/3 remote control for 30 seconds.

z

Repeat check on other fuel injectors. Use new measuring glasses.

z

After all fuel injectors have been activated, place measuring glasses on a horizontal surface and compare
injected quantity.

NOTE:

This work sequence allows the fuel pump to run when the engine is not
running.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Specification: 133 to 157 ml per injector

If the measuring values of one or more fuel injectors are above or below the prescribed specifications:

z

Switch off ignition.

z

Replace malfunctioning fuel injector, see item 10 .

Pay attention to the following when installing the fuel injector:

z

Replace O -rings on all fuel injectors and lightly moisten with clean engine oil.

z

Insert fuel injectors vertically and in the correct position into the fuel rail and secure with retaining clips.

z

Install fuel rail with secured fuel injectors onto intake manifold and press in evenly.

z

Check DTC Memory, if necessary, repair any malfunctions and then Erase DTC Memory, see DTC
MEMORY OF MOTRONIC ENGINE CONTROL MODULE (ECM) -J220-, CHECKING AND
ERASING .

z

Read readiness code, see READINESS CODE, DISPLAYING . If DTC memory has been erased or
Motronic Engine Control Module (ECM) -J220- was disconnected from battery positive, readiness code
must be generated again, see READINESS CODE, GENERATING .

Fuel pressure regulator and holding pressure, checking

The fuel pressure regulator controls the fuel pressure dependent upon intake manifold pressure.

Special tools, test equipment and auxiliary items

z

VAG 1318 Pressure gauge

z

1318/9 Adapter

z

1318/17 Adapter
