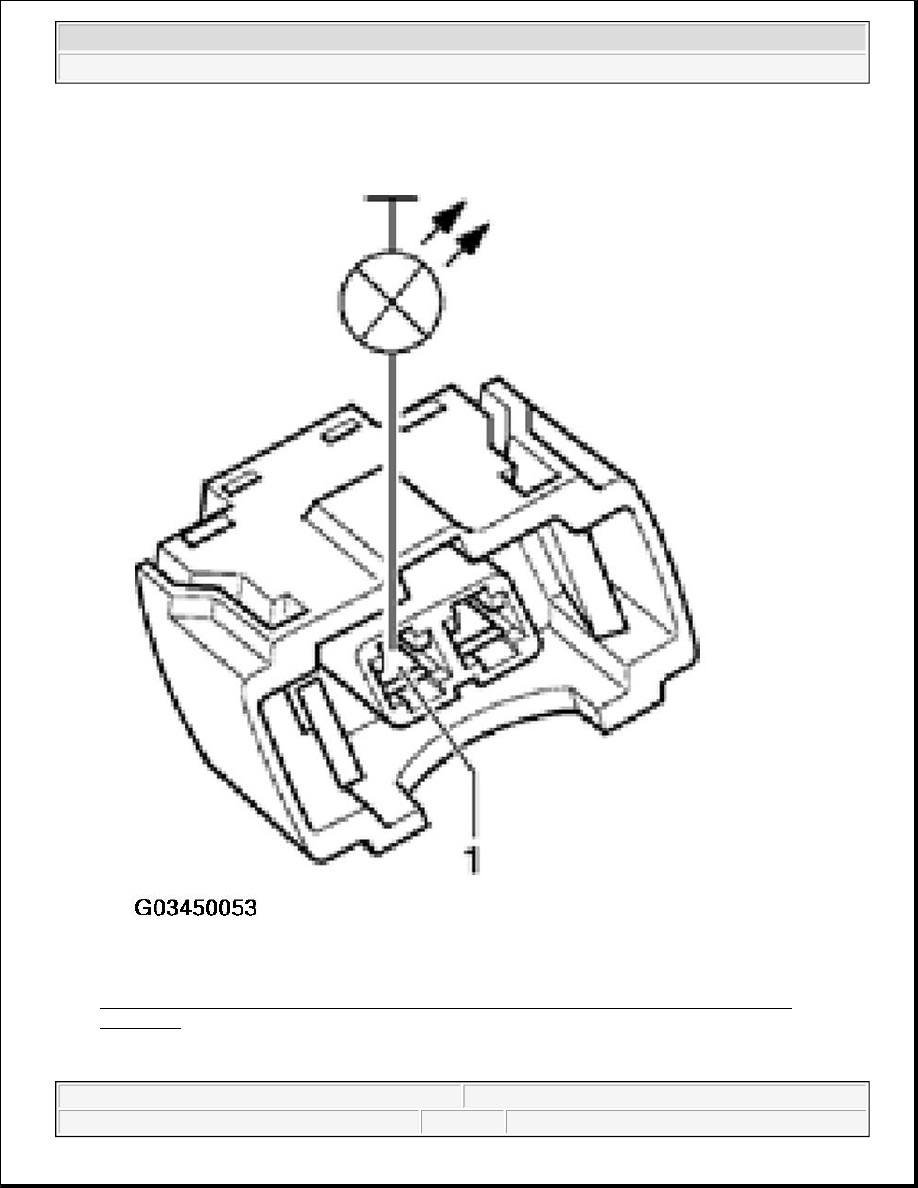

Fig. 78: Connecting LED Test Light To Terminal 1 And Ground Of Fuel Injector Harness
Connector
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



z

Operate starter and check voltage supply for fuel injector.

LED must light up.

If the LED does not light up:

z

Switch off ignition.

z

Check wire between 2 pin connector terminal 1 and Fuel Pump (FP) Relay -J17- for open circuit using
Electrical Wiring Diagram.

Wire resistance: max. 1.5

Checking activation and voltage supply

z

Disconnect connectors from fuel injectors.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



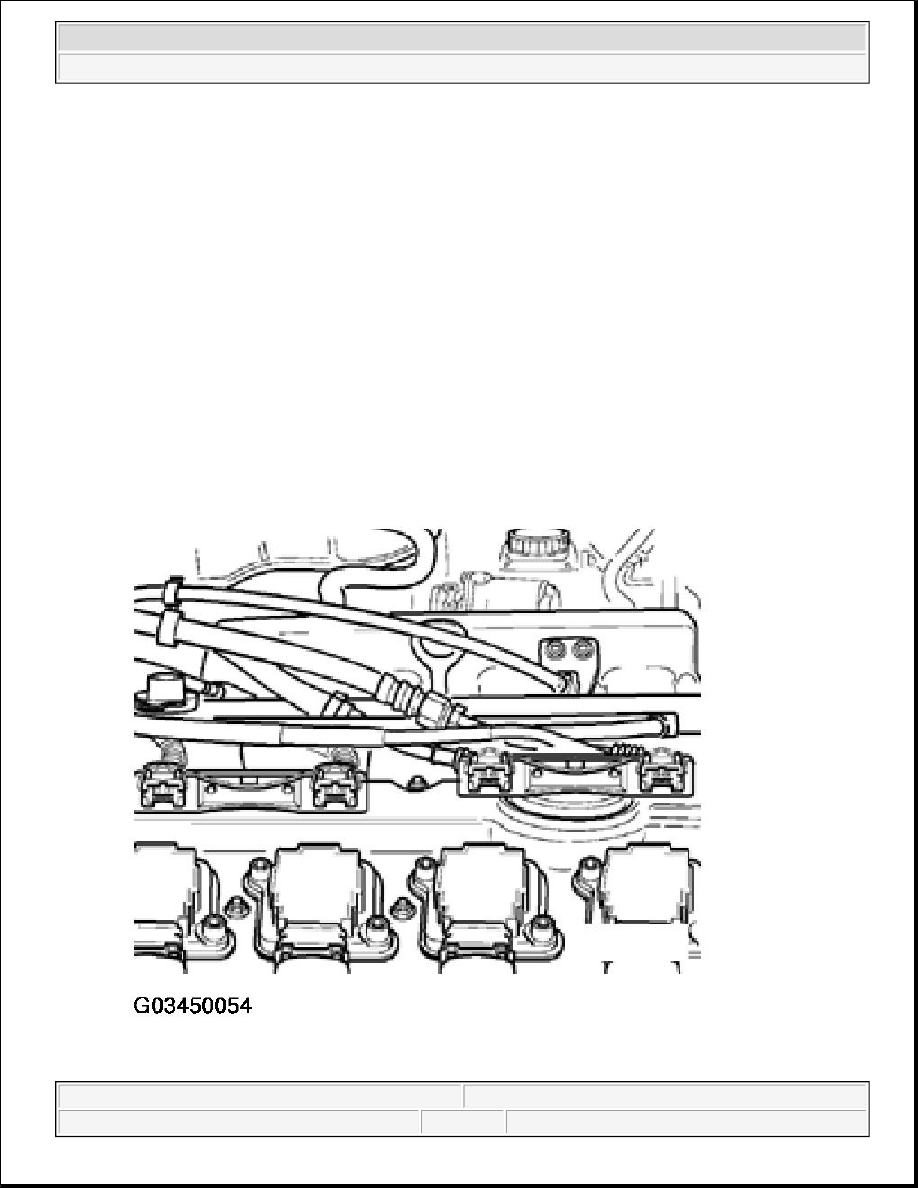

Fig. 79: Disconnecting Connectors From Fuel Injectors
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Connect VAG1527 voltage tester to connector terminals of fuel injector to be tested using cables from
VAG 1594.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



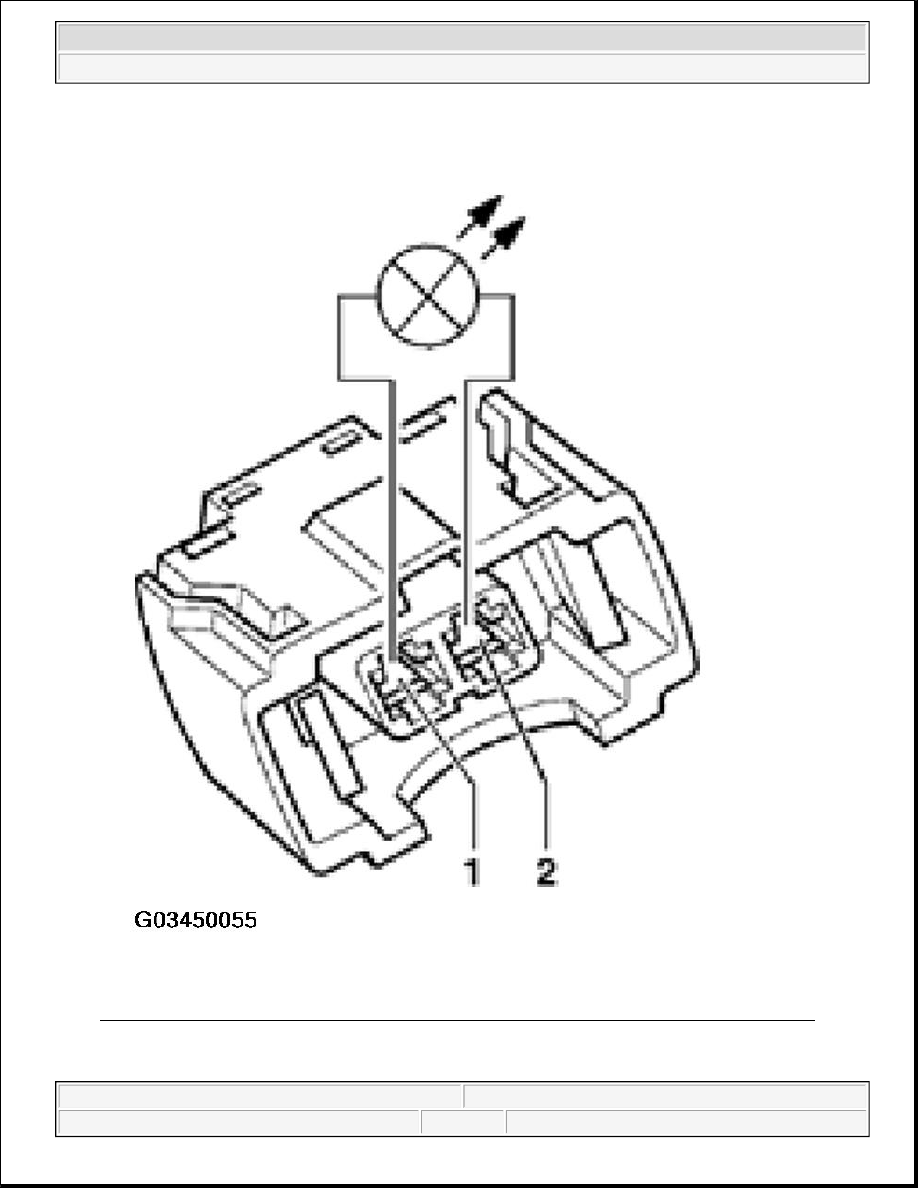

Fig. 80: Connecting VAG1527 Voltage Tester To Fuel Injector Harness Connector Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Operate starter and check activation for fuel injector.
