Volkswagen New Beetle. Manual - part 1652





z

See IGNITION SYSTEM COMPONENTS, REMOVING AND INSTALLING , item 2

9. Wastegate Bypass Regulator Valve - N75-

z

Checking charge pressure system

See TURBOCHARGER, G-CHARGER

10. Protective housing

z

For Secondary Air Injection (AIR) Pump Relay -J299-

z

Secondary air system

See SECONDARY AIR INJECTION (AIR) SYSTEM

11. Motronic Engine Control Module (ECM) -J220-

(Motronic Motronic Engine Control Module (ECM) -J220- -J220-)

z

Location: below inner cover of plenum chamber, left side in driver compartment

12. O-ring

z

Replace if damaged

13. Engine Coolant Temperature (ECT) sensor -G62-

z

For Motronic Engine Control Module (ECM) -J220-

z

With Engine Coolant Temperature (ECT) gauge sensor -G2-

z

If necessary release pressure in cooling system before removing

z

Checking, see ENGINE COOLANT TEMPERATURE (ECT) SENSOR -G62-, CHECKING

14. Retaining clip

z

Check for secure seating

15. Mass Air Flow (MAF) sensor -G70-

16. Valve 1 for camshaft adjustment - N205-

z

Servicing valve train; checking camshaft adjustment

See ENGINE - CYLINDER HEAD, VALVETRAIN

17. Fuel pressure regulator

18. Injectors -N30- to -N33-

19. 10 Nm

20. Engine Speed (RPM) Sensor -G28-

z

Checking, see ENGINE SPEED (RPM) SENSOR, CHECKING

21. O-ring

z

Replace

22. 20 Nm



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



z

Tightening torque influences the function of the knock sensor

23. Knock Sensor (KS) 2 -G66-

z

Black

z

See IGNITION SYSTEM COMPONENTS, REMOVING AND INSTALLING , item 13

24. 2-pin connector

z

Black

z

For Knock Sensor (KS) 2 -G66-

z

Identify before disconnecting

25. Secondary Air Injection (AIR) pump motor -V101-

z

Secondary air system

See SECONDARY AIR INJECTION (AIR) SYSTEM

26. 20 Nm

z

Tightening torque influences the function of the knock sensor

27. Knock Sensor (KS) 1 -G61-

z

Black

z

See IGNITION SYSTEM COMPONENTS, REMOVING AND INSTALLING , item 12

28. 2-pin connector

z

Black

z

For knock sensor 1 -G61-

z

Identify before disconnecting

29. Charge pressure sensor -G31-

z

Checking charge pressure system

See TURBOCHARGER, G-CHARGER

30. Throttle Valve Control Module -J338-

z

No cable disc for accelerator cable as this is an Electronic Power Control (EPC)

z

Checking, see THROTTLE VALVE CONTROL MODULE -J338-, CHECKING

z

If replaced, adapt Motronic Engine Control Module (ECM) -J220-, see MOTRONIC ENGINE
CONTROL MODULE (ECM) - J220- TO THROTTLE VALVE CONTROL MODULE -
J338-, ADAPTING


31. Intake Air Temperature (IAT) sensor - G42-

z

Checking, see INTAKE AIR TEMPERATURE (IAT) SENSOR, CHECKING

32. Evaporative Emission (EVAP) Canister Purge Regulator Valve -N80-

z

Evaporative Emission (EVAP) system:

See EVAP CANISTER SYSTEM



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle





2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

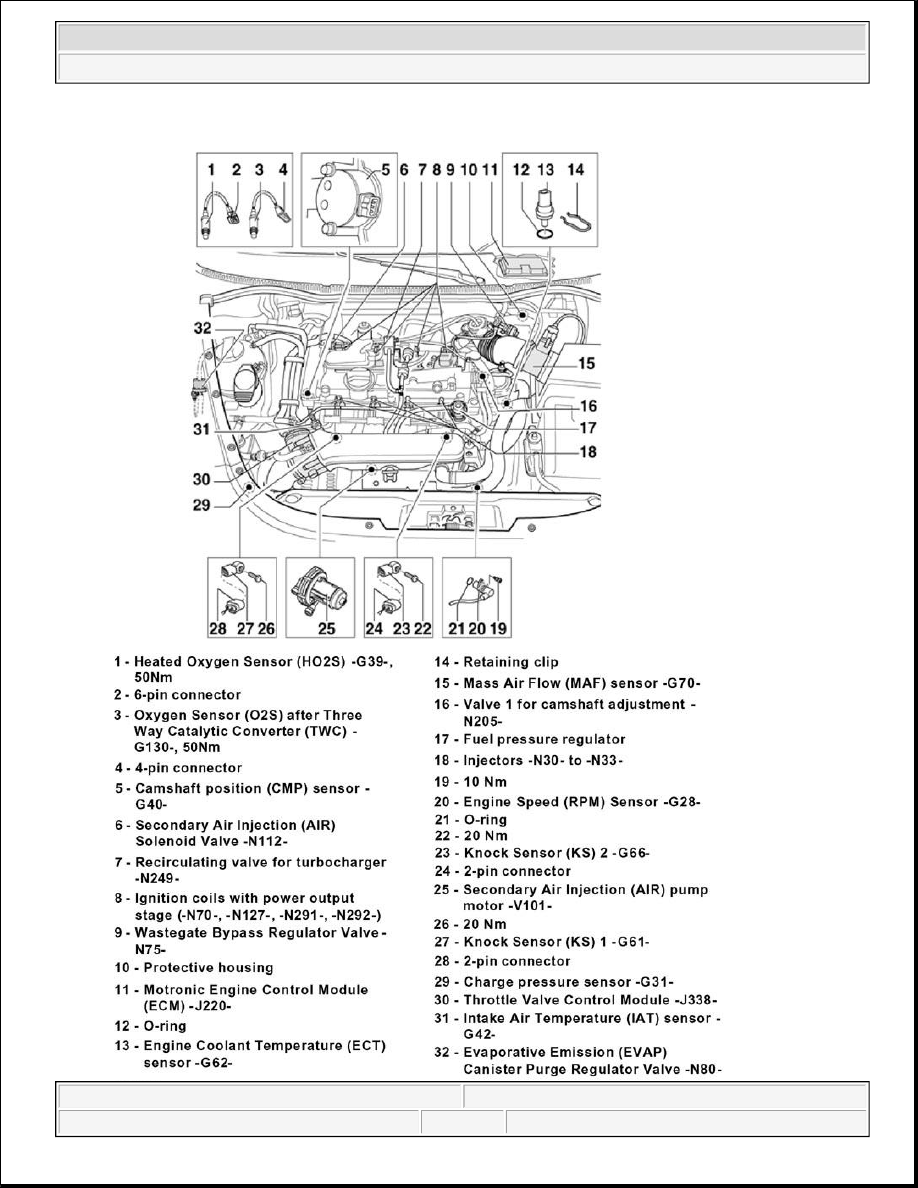

Fig. 1: Identifying Fuel Injection System Components
Courtesy of VOLKSWAGEN OF AMERICA, INC.


Fuel injection, general information

Servicing ignition system, see IGNITION SYSTEM, SERVICING

Safety precautions, see SAFETY PRECAUTIONS

Rules for cleanliness, see RULES OF CLEANLINESS

Technical data, see TECHNICAL DATA

NOTE:

z

The Motronic Engine Control Module (ECM) - J220- is equipped with On
Board Diagnostic (OBD). Before carrying out repairs and troubleshooting
the DTC memory of all control modules must be checked using the
automatic test sequence. This is necessary as various control modules
are connected to each other via a data bus. The vacuum hoses and
connections must also be checked (unmetered air).

z

Fuel hoses in engine compartment must only be secured with spring type
clips. The use of clamp or screw type clips is not permissible.

z

Disconnecting and connecting the battery must only be done with the
ignition switched off, otherwise the Motronic Engine Control Module (ECM)
-J220- could be damaged.

z

Components marked with * are checked via the On Board Diagnostic
(OBD), see DTC MEMORY OF MOTRONIC ENGINE CONTROL MODULE
(ECM) -J220-, CHECKING AND ERASING .

z

Components marked with **can be checked with the Output Diagnostic
Test Mode (DTM), see OUTPUT DIAGNOSTIC TEST MODE (DTM) .

z

For trouble -free operation of the electrical components, a voltage of at
least 11.5 V is necessary.

z

Do not use sealants containing silicone. Particles of silicone drawn into
the engine, will not be burned in the engine and damage the oxygen
sensor.

z

Some checks can cause the control module to recognize and store a DTC.
Therefore after completing all checks and repairs the DTC memory must
be checked and if necessary erased, see DTC MEMORY OF MOTRONIC
ENGINE CONTROL MODULE (ECM) -J220-, CHECKING AND ERASING .

z

Vehicles with an airbag are built with a crash/fuel shut -off. It reduces the
risk of a vehicle burning in the event of a crash and that the fuel pump is
switched off by the fuel pump relay. At the same time, this device
improves the starting of the engine because as soon as the door is
opened, the fuel pump is activated for 2 seconds to build up pressure in
the fuel system.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle
