Fig. 189: Connecting VAG 1598/31 Test Box To Control Module Wiring Harness
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check wiring from Motronic Engine Control Module (ECM) -J220- to CCS operating switch for
open/short circuits:

z

Check DTC Memory, if necessary, repair any malfunctions and then Erase DTC Memory, see DTC
MEMORY OF MOTRONIC ENGINE CONTROL MODULE (ECM) -J220-, CHECKING AND
ERASING
 .

z

Read readiness code, see READINESS CODE, DISPLAYING . If DTC memory has been erased or
Motronic Engine Control Module (ECM) -J220- was disconnected from battery positive, readiness code
must be generated again, see READINESS CODE, GENERATING .

CAN-bus, checking

Function

The Motronic Engine Control Module (ECM) - J220- communicates with all data -bus capable control modules
via a CAN -bus.

The data-bus capable control modules are connected and exchange information (messages) via two data -bus
wires (CAN -High and CAN-Low) that are twisted to each other. Missing information on the data-bus is
recognized as a malfunction by the Motronic Engine Control Module (ECM) -J220- as well as by other CAN-
bus control modules.

The data-bus requires an adapting resistor to function fault-free. This central adapting resistor is located in the
Motronic Engine Control Module (ECM) -J220-.

Diagnosis via the CAN-bus wire is undertaken via the diagnostic interface for data -bus -J533- in the
"Gateway".

See DATA BUS ON BOARD DIAGNOSTIC INTERFACE -J533- "GATEWAY"

Further information:

See Self Study Program "The CAN data bus".

Special tools and equipment

z

VAG 1598/31 test box

z

Multimeter (Fluke 83 or equivalent)

z

VW 1594 adapter set

NOTE:

Control modules which are actively connected via data bus to the Motronic
Engine Control Module (ECM) -J220- can be read in measured value blocks 125
and 126.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



z

Electrical Wiring Diagram

Test conditions

z

Malfunction has been recognized by Data Bus On Board Diagnostic (OBD)

z

All fuses must be OK

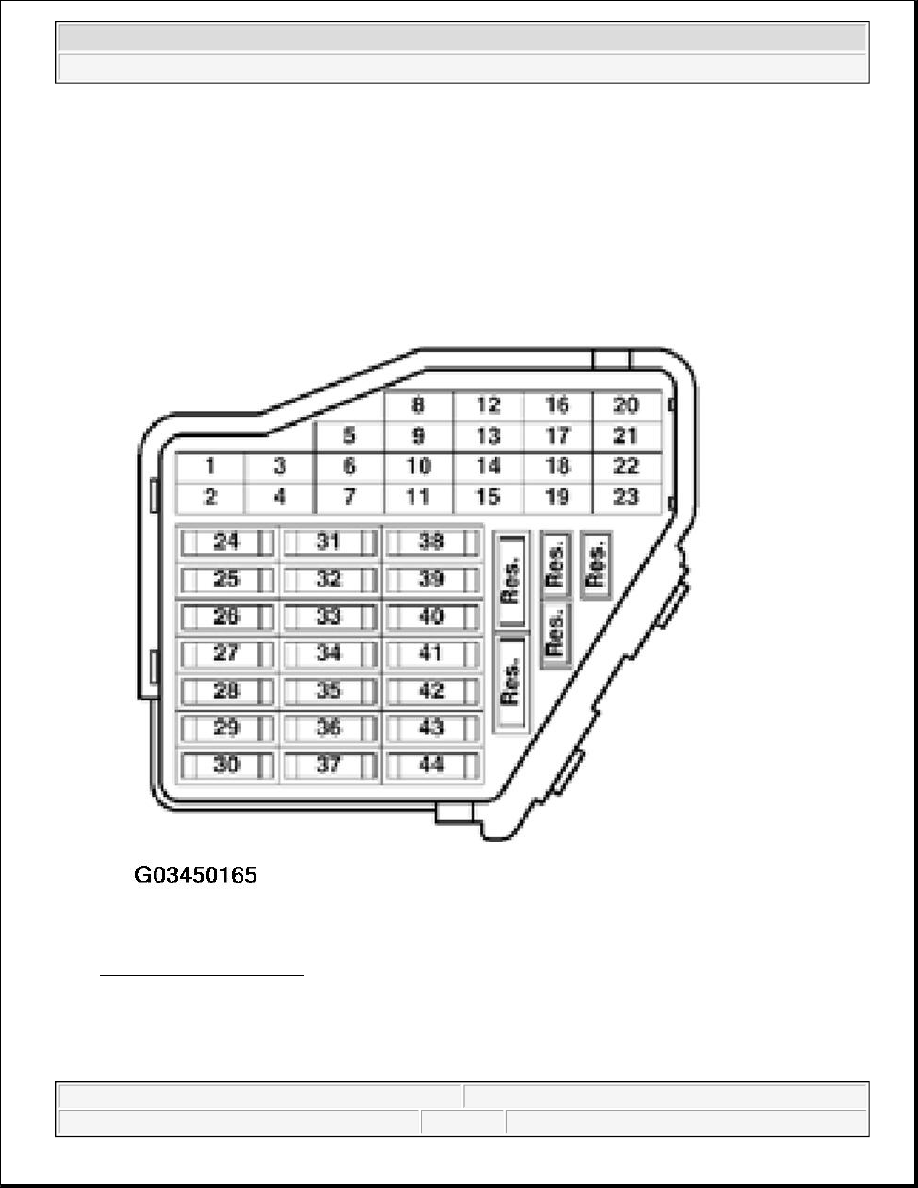

Fig. 190: Identifying Fuses
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Battery voltage must be at least 11.5 V

z

All electrical accessories, e.g. lights and rear window defroster must be switched off



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



z

Air conditioner must be switched off

z

Selector lever of the automatic transmission must be in "P" or "N" position

Test sequence

z

Switch off ignition.

z

Unlock Motronic Engine Control Module (ECM) - J220- connector and disconnect it.

z

Connect VAG 1598/31 test box to Motronic Engine Control Module (ECM) -J220-. Control module
wiring harness is not connected by this action.

z

Check centralized adapting resistor in Motronic Engine Control Module (ECM) -J220- by performing a
resistance measurement between test box

Sockets 58 + 60

Specification: 60 to 72

If the resistance value is outside the specified range:

z

Replace Motronic Engine Control Module (ECM) -J220-, see MOTRONIC ENGINE CONTROL
MODULE (ECM) - J220-, REPLACING
 .

If the resistance value is within the specified range:

z

Check CAN-Bus wiring using Electrical Wiring Diagram.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



1998-2004 ENGINE PERFORMANCE

Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

MULTIPORT FUEL INJECTION (MFI)

FUEL INJECTION SYSTEM, SERVICING

Component locations, overview

The following list pertains to Fig. 1 .

1. Heated Oxygen Sensor (HO2S) -G39-, 50Nm

z

Location: before Three Way Catalytic Converter (TWC)

2. 6-pin connector

z

Black

z

Terminals gold plated

z

For Heated Oxygen Sensor (HO2S) before Three Way Catalytic Converter (TWC) -G39- and
oxygen sensor heater -Z19-

z

Right on underside of vehicle

3. Oxygen Sensor (O2S) after Three Way Catalytic Converter (TWC) - G130-, 50Nm

z

Location: behind Three Way Catalytic Converter (TWC)

4. 4-pin connector

z

Black

z

Terminals 3 and 4 gold-plated

z

For Oxygen Sensor (O2S) after Three Way Catalytic Converter (TWC) - G130- and oxygen sensor
heating - Z29-

z

Right on underside of vehicle

5. Camshaft position (CMP) sensor - G40-

z

See IGNITION SYSTEM COMPONENTS, REMOVING AND INSTALLING , item 7

6. Secondary Air Injection (AIR) Solenoid Valve -N112-

z

Secondary air system:

See SECONDARY AIR INJECTION (AIR) SYSTEM

7. Recirculating valve for turbocharger -N249-

z

Checking charge pressure system

See TURBOCHARGER, G-CHARGER

8. Ignition coils with power output stage (-N70-, -N127-, -N291-, -N292-)



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle





2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle
