z

Check wiring to speedometer/speedometer sensor.

z

Check DTC Memory, if necessary, repair any malfunctions and then Erase DTC Memory, see DTC
MEMORY OF MOTRONIC ENGINE CONTROL MODULE (ECM) -J220-, CHECKING AND
ERASING .

z

Read readiness code, see READINESS CODE, DISPLAYING . If DTC memory has been erased or
Motronic Engine Control Module (ECM) -J220- was disconnected from battery positive, readiness code
must be generated again, see READINESS CODE, GENERATING .

Signal from/to air conditioning, checking

Special tools, test equipment and auxiliary items

z

VAG 1551 scan tool or VAG 1552 mobile scan tool with VAG 1551/3B cable

z

VAG 1598/31 test box

z

VAG 1526 A or Fluke 83 multimeter

z

VAG 1594 adapter set

z

Electrical Wiring Diagram

Test conditions

z

All fuses must be OK. Fuse block is located behind access panel at far left end of dash.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

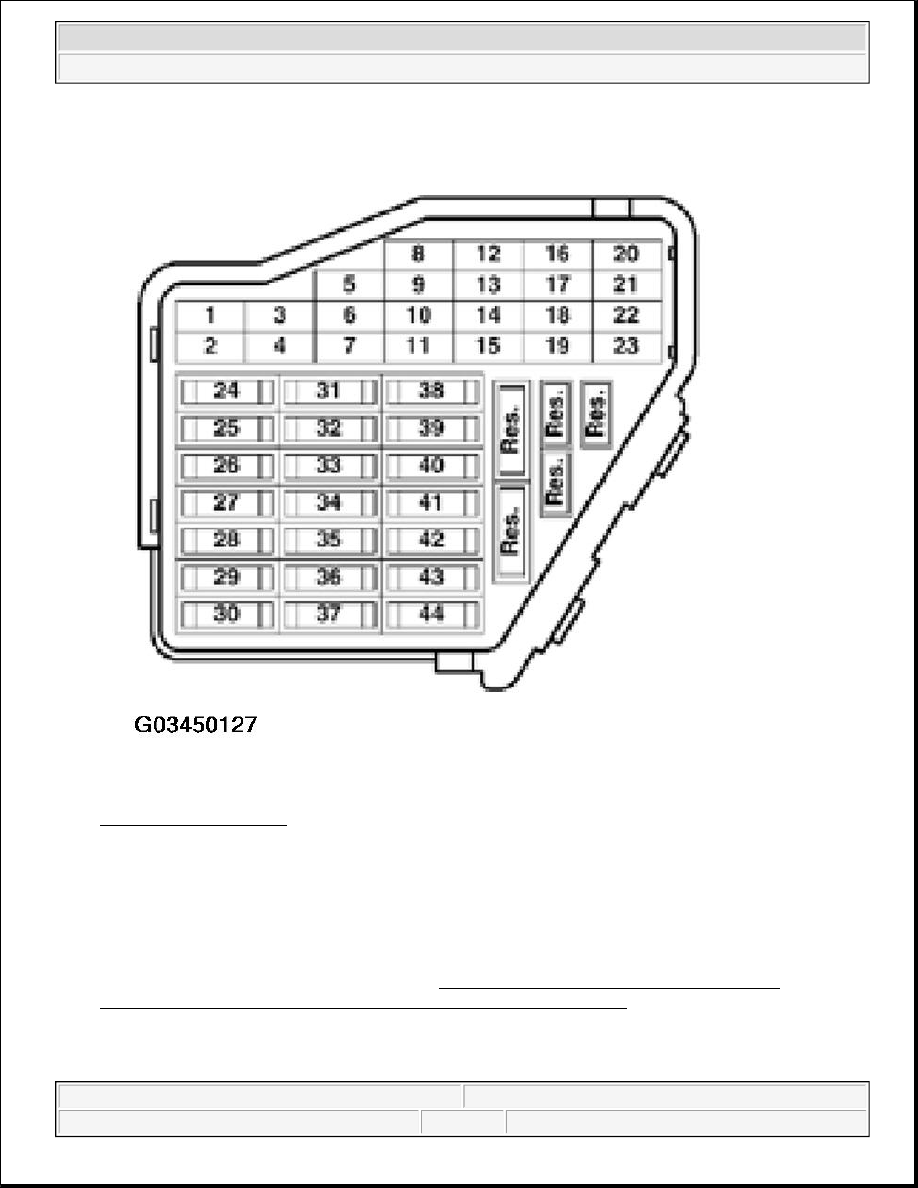

Fig. 152: Locating Fuses
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Battery voltage must be at least 11.5 V

z

Air conditioner functioning OK

z

Air conditioner must be switched off

z

All electrical accessories, e.g. lights and rear window defroster must be switched off

z

No DTCs must be stored in DTC memory, see DTC MEMORY OF MOTRONIC ENGINE
CONTROL MODULE (ECM) -J220-, CHECKING AND ERASING

z

Vehicle at room temperature (warmer than + 15 °C)

Test sequence



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



z

Connect VAG 1551 scan tool ((VAG 1552). Start engine and select "Address word" 01 of Motronic
Engine Control Module (ECM) -J220-. Engine must be running at idle speed. Connecting scan tool and
selecting Motronic Engine Control Module (ECM) -J220-, see VAG 1551, CONNECTING AND
SELECTING MOTRONIC ENGINE CONTROL MODULE (ECM) -J220- .

Indicated on display

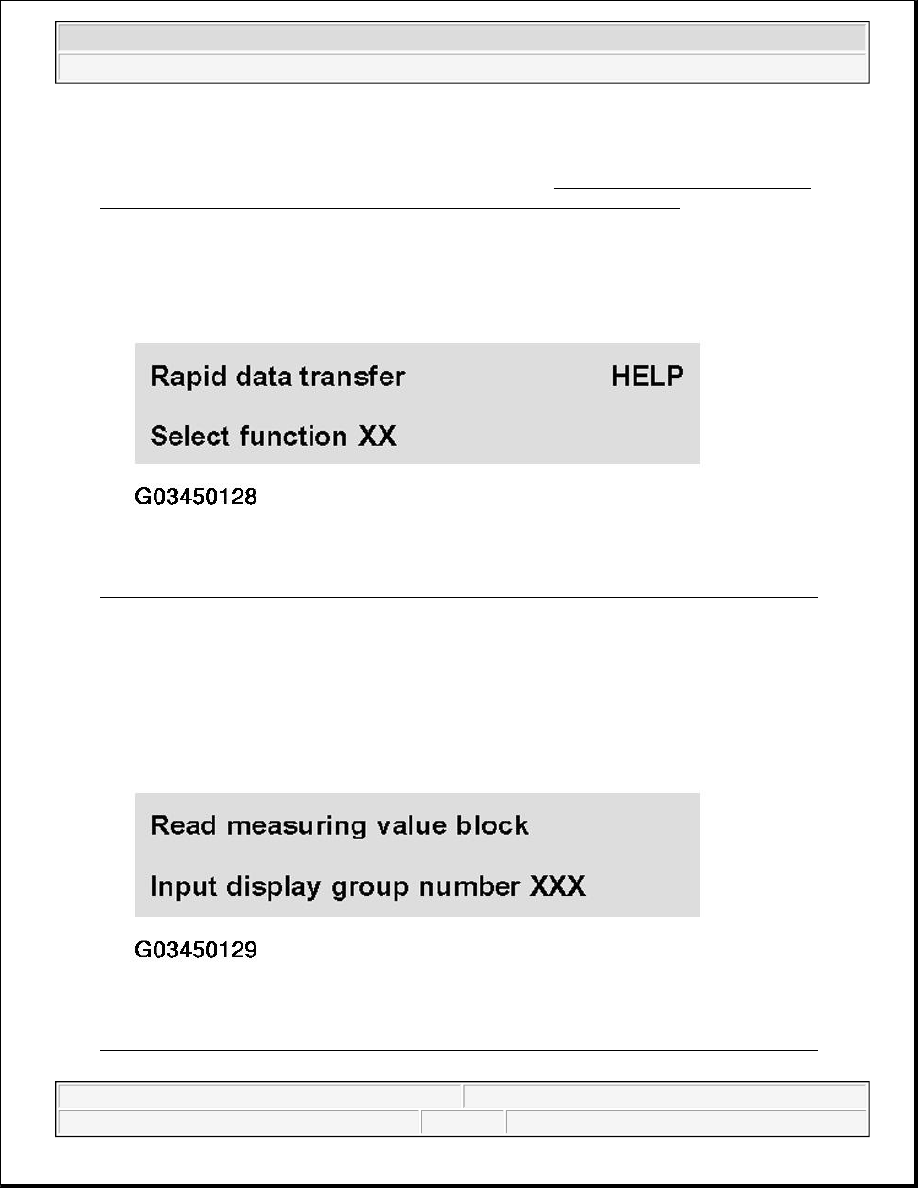

Fig. 153: Identifying Scan Tool Display - Signal From/To Air Conditioning, Checking (1 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0- and -8- for function "Read measuring value block" and confirm entry with -Q- button.

Indicated on display

Fig. 154: Identifying Scan Tool Display - Signal From/To Air Conditioning, Checking (2 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



z

Press buttons -0-, -5- and -0- for "Display group number 50" and confirm entry with -Q- button.

Indicated on display (1 to 4 - Display zones)

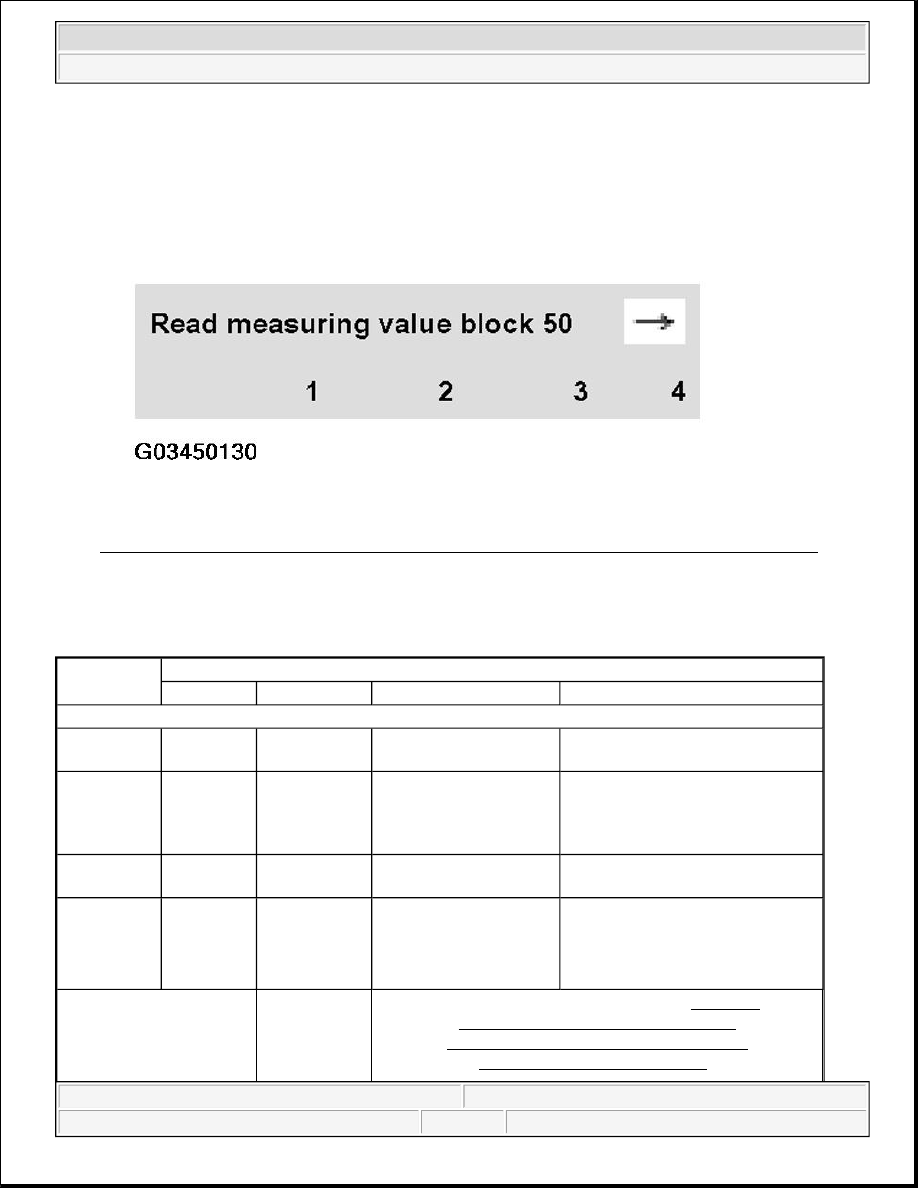

Fig. 155: Identifying Scan Tool Display - Signal From/To Air Conditioning, Checking (3 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check specifications for air conditioner (display zones 3 and 4)

DISPLAY GROUP 50: SIGNALS TO MOTRONIC ENGINE CONTROL MODULE (ECM) -J220-



Display zones

1

2

3

4

Display group 50: Signals to Motronic Engine Control Module (ECM) -J220-
Display

xxxx RPM

xxxx RPM

A/C-LOW

A/C-HIGH

Compr. ON

Compr. OFF

Indicated

Actual
engine

speed (in

steps of 10)

Specified

engine speed

(in steps of 10)

Air conditioner status

Air conditioner compressor status

Working
range

0 to 6800
RPM

-

-

-

Specification 760 to 810

RPM

(1)



700 to 750

RPM

(2)

760 RPM

(1)



700 RPM

(2)

A/C -LOW

Compressor on:

Compr. ON

Compressor off:

Compr. OFF

-

-

If specification is not obtained, see SIGNAL

FROM CLUTCH VACUUM VENT

VALVE SWITCH -F36-, CHECKING,

VEHICLES FROM MY 2001 ,
