Volkswagen New Beetle. Manual - part 1639





After an interruption a DTC is stored in DTC memory. When next switching on ignition the basic setting
is automatically performed again.

z

End engine basic setting by pressing button.

z

Press buttons -0- and -6- for function "End output" and confirm entry with -Q- button.

z

Switch off ignition.

Kick-down position, learning

Following replacement of the Motronic Engine Control Module (ECM) -J220- or the accelerator pedal, vehicles
with automatic transmission must relearn the kick -down point.

Test conditions

z

Ignition on, engine not running

Test sequence

z

Connect scan tool VAG 1551 ((VAG 1552). Switch ignition on and select Motronic Engine Control
Module (ECM) -J220- with "Address word" 01. (Connecting scan tool and selecting Motronic Engine
Control Module (ECM) -J220-, see VAG 1551, CONNECTING AND SELECTING MOTRONIC
ENGINE CONTROL MODULE (ECM) -J220-
 ).

Indicated on display:

NOTE:

If the basic setting of the control module is interrupted, the cause could be
one of the following:

z

The test conditions were not fulfilled.

z

Throttle valve cannot reach the mechanical idle speed stop because
of contamination e.g. oil deposits.

z

Throttle Valve Control Module is malfunctioning or there is a
malfunction in the wiring, checking, see THROTTLE VALVE
CONTROL MODULE -J338-, CHECKING .



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

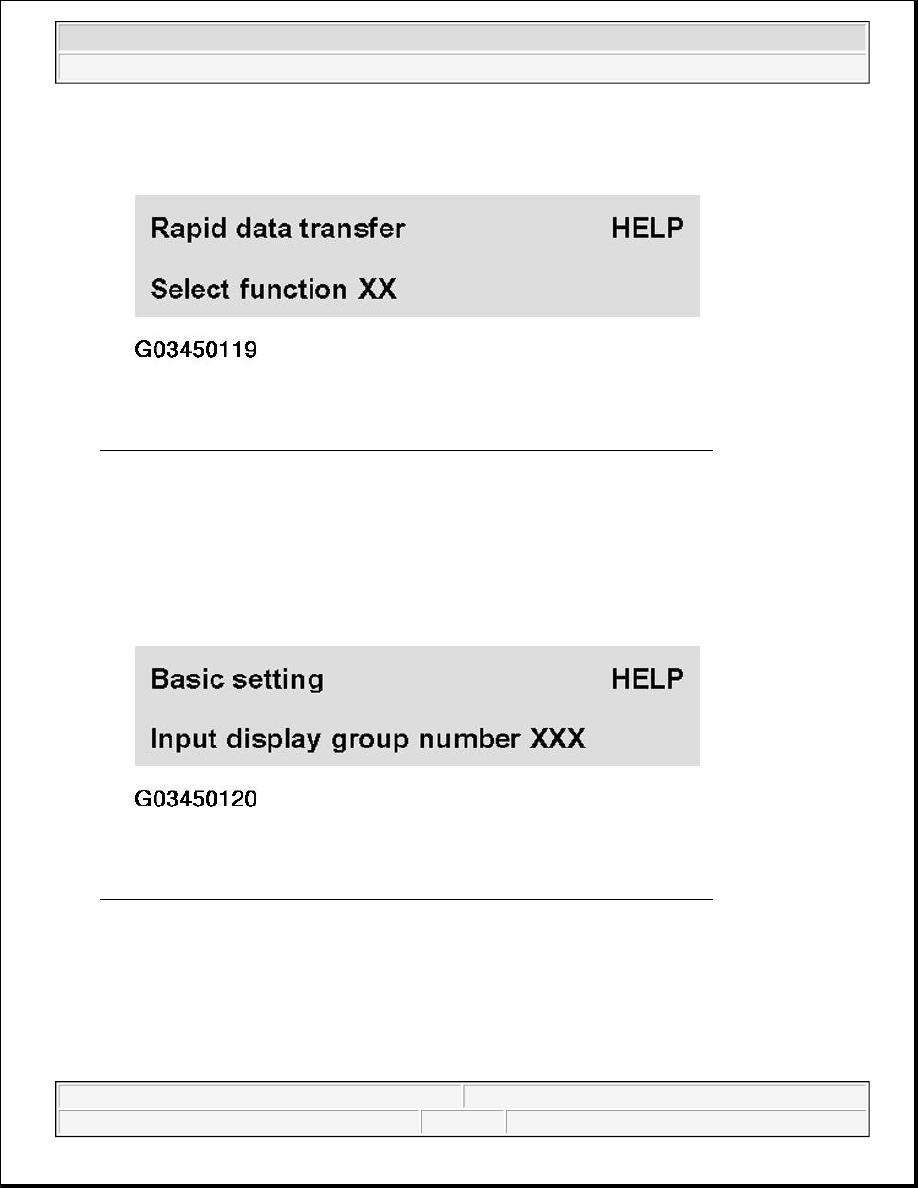

Fig. 144: Identifying Scan Tool Display - Kick-Down Position, Learning (1 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0- and -4- for function "Introduction of basic setting" and confirm entry with -Q- button.

Indicated on display:

Fig. 145: Identifying Scan Tool Display - Kick-Down Position, Learning (2 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0-, -6- and -3- for "Display group number 63" and confirm with -Q- button.

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

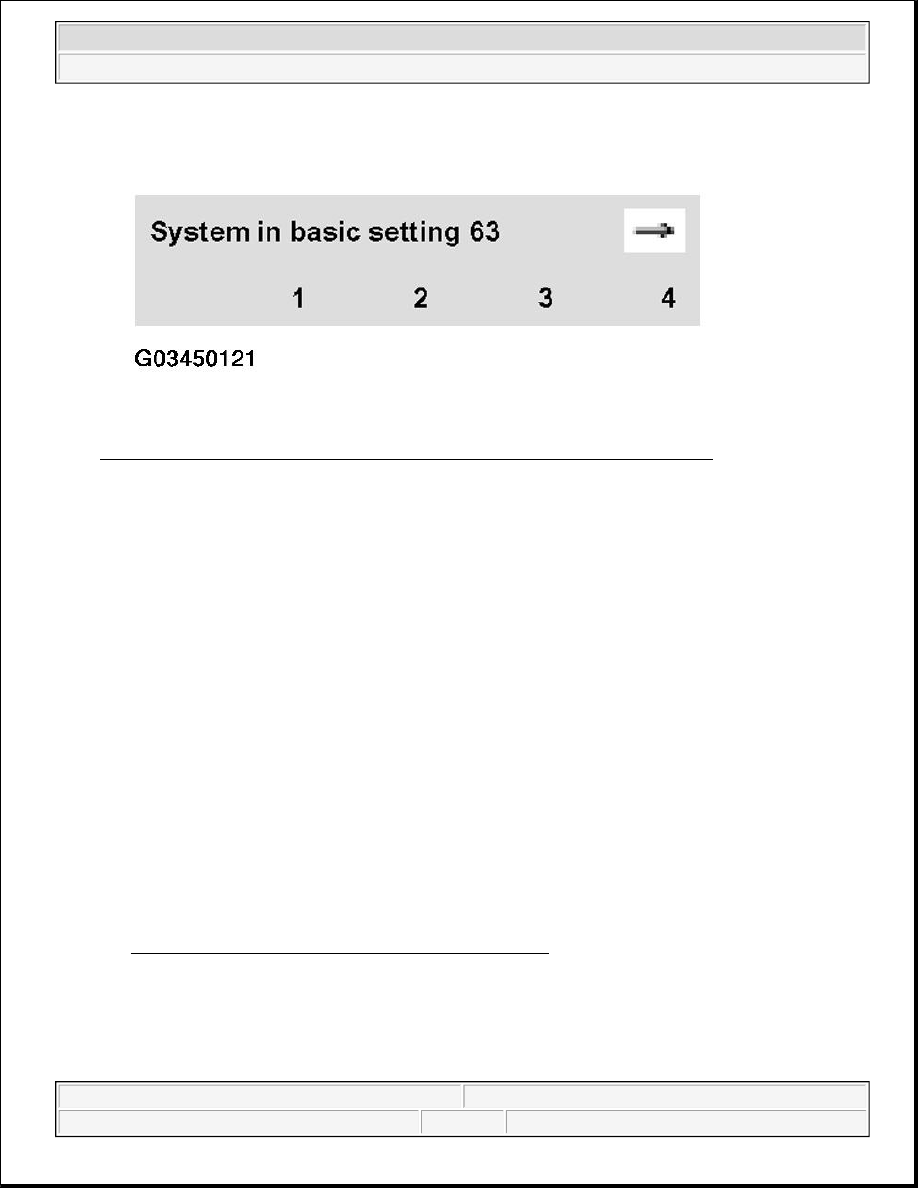

Fig. 146: Identifying Scan Tool Display - Kick-Down Position, Learning (3 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Observe display in display zones 3 and 4:

Display: Operate kick down

z

Press accelerator pedal beyond kick -down pressure point to floor.

z

Hold pedal at this point for at least 2 seconds.

z

Observe display in display zones 3 and 4:

Specification: Kick Down ADP. runs then

Specification: Kick Down ADP. OK

z

Observe display in display zones 3 and 4:

Display: Kick Down ERROR

z

End engine basic setting by pressing the button.

z

Press buttons -0- and -6- for function "End output" and confirm entry with -Q- button.

z

Check Throttle Position (TP) sensor:

See THROTTLE POSITION (TP) SENSOR, CHECKING

ADDITIONAL SIGNALS, CHECKING

Engine speed signal (RPM), checking

Special tools, test equipment and auxiliary items



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



z

VAG 1551 scan tool or VAG 1552 mobile scan tool with VAG 1551/3B cable

z

VAG 1598/31 test box

z

VAG 1526 A or Fluke 83 multimeter

z

VAG 1594 adapter set

z

Electrical Wiring Diagram

Test conditions

z

All fuses must be OK. Fuse holder is located behind access panel at far left end of dash.

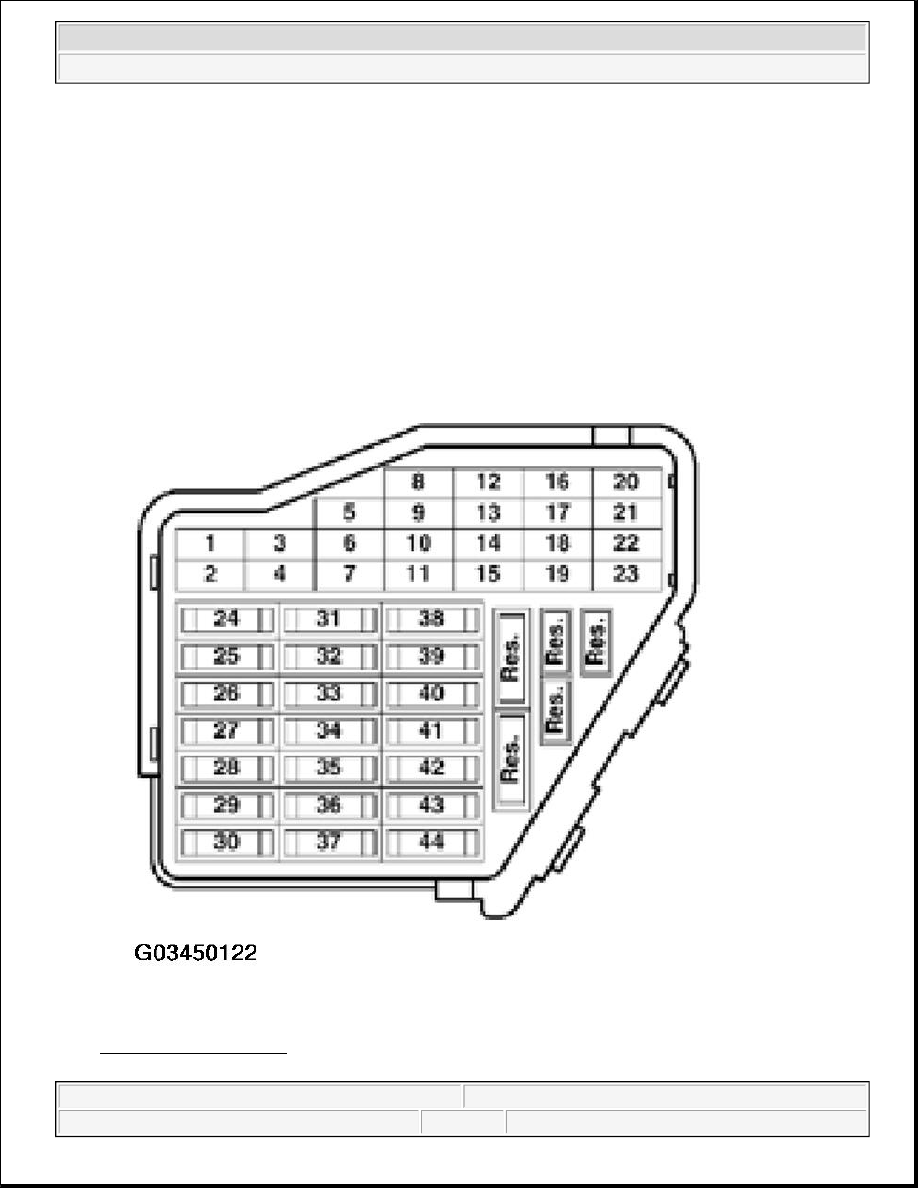

Fig. 147: Locating Fuses
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle
