ERASING .

z

Read readiness code, see READINESS CODE, DISPLAYING . If DTC memory has been erased or
Motronic Engine Control Module (ECM) -J220- was disconnected from battery positive, readiness code
must be generated again, see READINESS CODE, GENERATING .

Checking voltage supply terminal 15

z

Measure supply voltage between test box sockets 2 + 3 using multimeter and cables from VAG 1594.

z

Switch on ignition.

Specification: min. 11.5 V

If the specification is not obtained:

z

Check wiring connections to relay plate according to Electrical Wiring Diagram.

z

Check DTC Memory, if necessary, repair any malfunctions and then Erase DTC Memory, see DTC
MEMORY OF MOTRONIC ENGINE CONTROL MODULE (ECM) -J220-, CHECKING AND
ERASING
 .

z

Read readiness code, see READINESS CODE, DISPLAYING . If DTC memory has been erased or
Motronic Engine Control Module (ECM) -J220- was disconnected from battery positive, readiness code
must be generated again, see READINESS CODE, GENERATING .

Procedure after correcting voltage supply open circuit

All values learned by the Motronic Engine Control Module (ECM) -J220- and the basic setting values as well as
the readiness code will be erased if the voltage supply is interrupted. Therefore, depending upon the vehicle
mileage it can lead to serious engine running problems.

Special tools, test equipment and auxiliary items

z

VAG 1551 scan tool or VAG 1552 mobile scan tool with VAG 1551/3B cable

Work sequence

Perform the following operations after voltage supply open circuit:

z

Switch ignition on for at least 10 seconds.

z

Switch off ignition.

z

Adapt Motronic Engine Control Module (ECM) - J220- to Throttle Valve Control Module -J338-, see
MOTRONIC ENGINE CONTROL MODULE (ECM) - J220- TO THROTTLE VALVE
CONTROL MODULE - J338-, ADAPTING
 .

z

Perform idle check, see FUNCTIONS, CHECKING .

z

Generate readiness code, see READINESS CODE, GENERATING .

NOTE:

During idling check the EVAP canister purge regulator valve and the air



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



z

Perform a longer test drive until poor driving characteristics are eliminated.

Observe the valid safety precautions when road testing, see SAFETY PRECAUTIONS .

z

During the road test the following operating conditions must be fulfilled:

z

Engine Coolant Temperature (ECT) must exceed 80 °C

When the temperature is reached, the operating conditions:

z

Idling

z

Part throttle

z

Full throttle

z

Overrun

Must be obtained several times.

z

At full throttle the speed must exceed 3500 RPM

Motronic Engine Control Module (ECM) - J220-, replacing

Special tools, test equipment and auxiliary items

z

VAG 1551 scan tool with VAG 1551/3B cable

Removing

z

First print out control module identification and thereby previous control module coding as follows:

z

Connect VAG 1551 scan tool ((VAG 1552). Switch ignition on and select Motronic Engine Control
Module (ECM) -J220- with "Address word" 01. Connecting scan tool and selecting Motronic Engine
Control Module (ECM) -J220-, see VAG 1551, CONNECTING AND SELECTING MOTRONIC
ENGINE CONTROL MODULE (ECM) -J220-
 .

The control module identification and coding are indicated on the display, e.g.:

conditioner are switched off and the oxygen sensor control learning procedure
is initiated.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



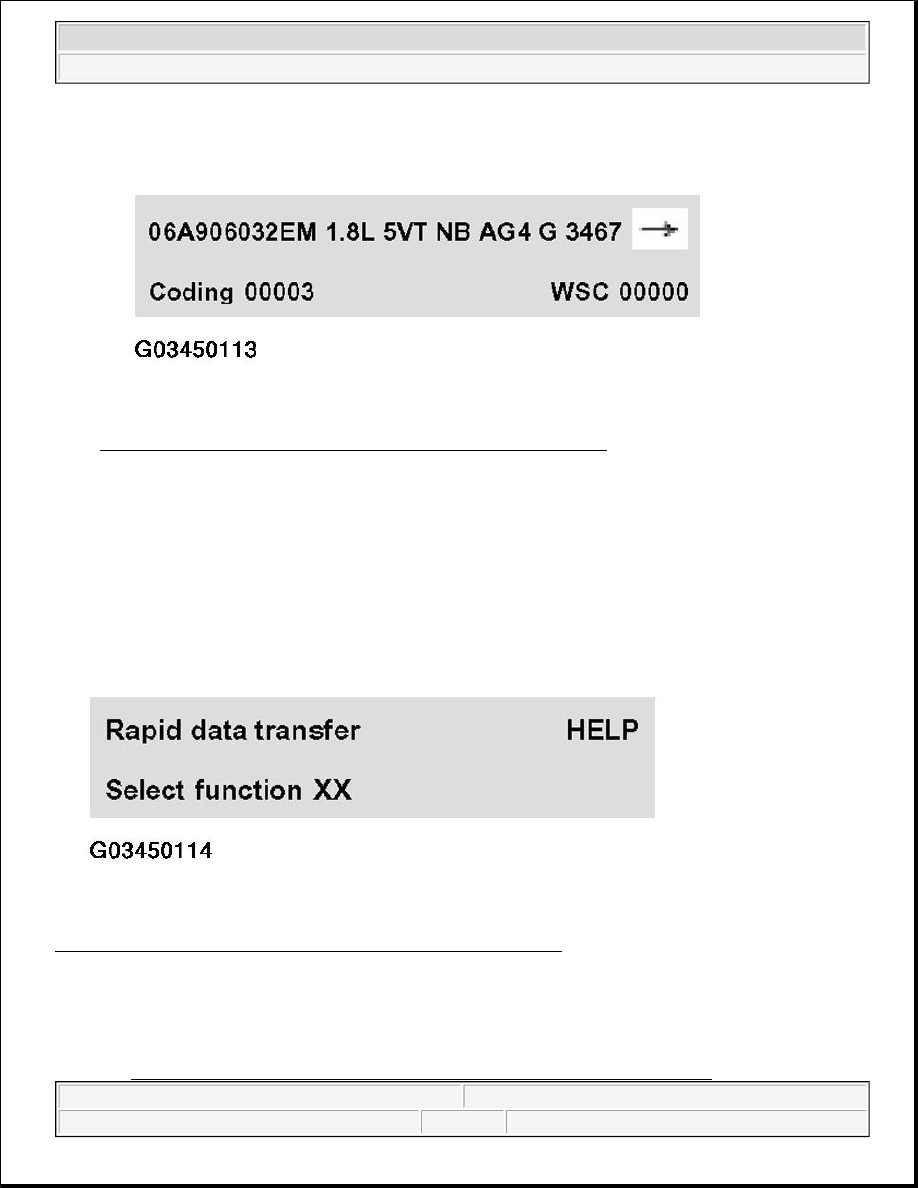

Fig. 138: Identifying Scan Tool Display - ECM, Replacing (1 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Print out control module identification by pressing scan tool print button.

z

Press --> button.

z

Press buttons -0- and -6- for function "End output" and confirm entry with -Q- button.

Indicated on display:

Fig. 139: Identifying Scan Tool Display - ECM, Replacing (2 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Switch off ignition.

z

Remove inner plenum chamber cover, left:

See PLENUM CHAMBER INNER COVER, REMOVING AND INSTALLING



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



z

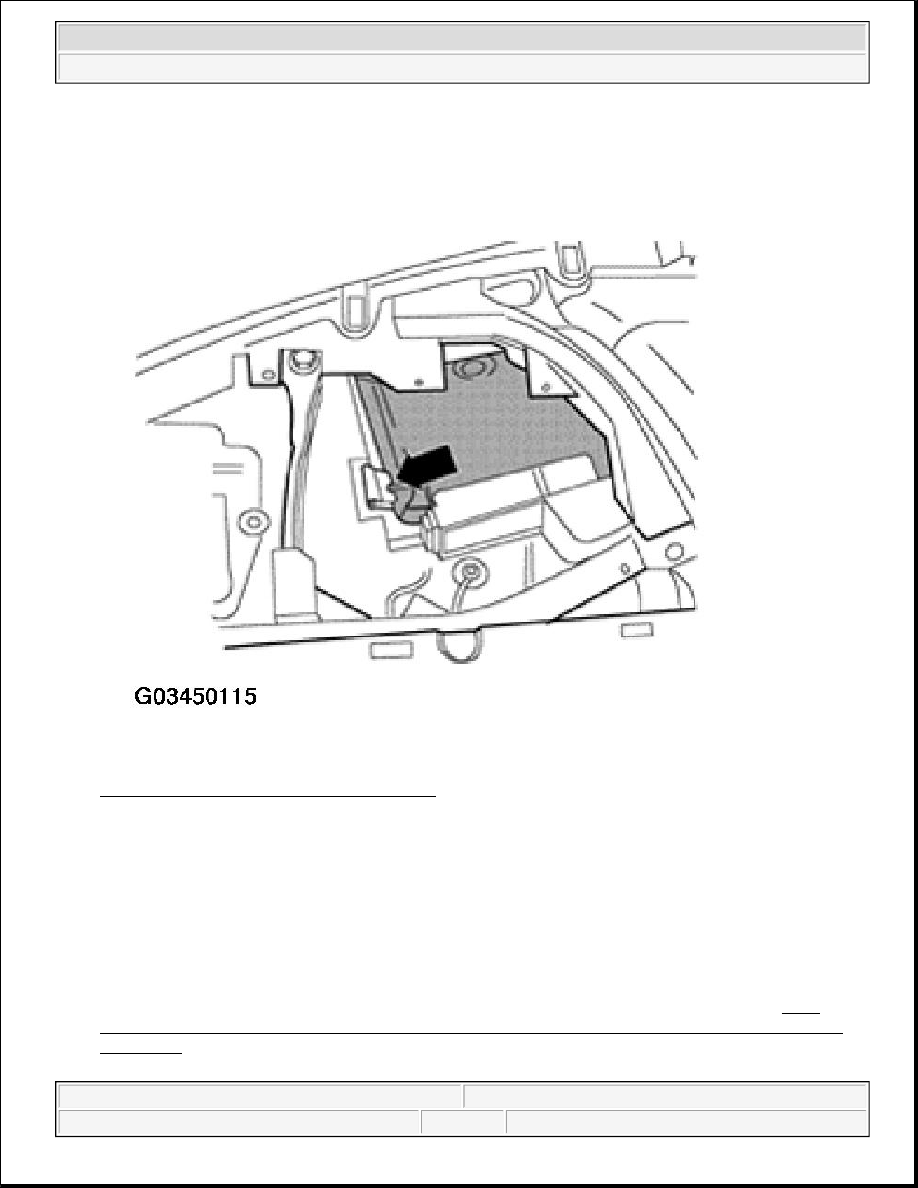

Press retaining tab -arrow- to left and pull control module out.

Fig. 140: Removing Engine Control Module
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Release connector from control module and disconnect it.

z

Remove control module.

Installing

z

Install control module connector and lock.

z

Place new control module into retaining frame.

z

Check DTC Memory, if necessary, repair any malfunctions and then Erase DTC Memory, see DTC
MEMORY OF MOTRONIC ENGINE CONTROL MODULE (ECM) -J220-, CHECKING AND
ERASING
 .

z

Adapt new control module to immobilizer Repair Manual, Electrical Equipment On Board Diagnostic



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle
