Volkswagen New Beetle. Manual - part 1635

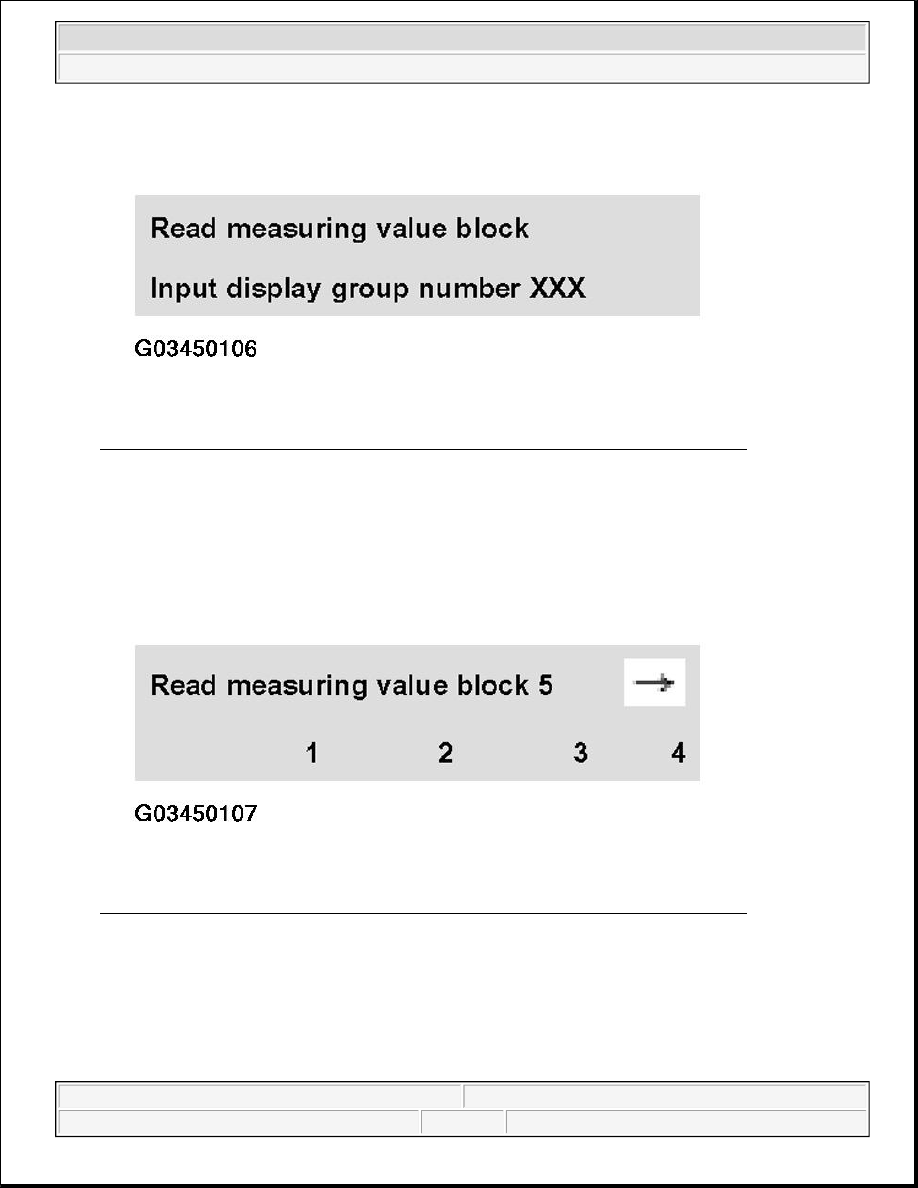

Fig. 131: Identifying Scan Tool Display - Engine Operating Mode, Checking (2 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0-, -0- and -5- for "Display group number 5" and confirm entry with -Q- button.

Indicated on display (1 to 4 - Display zones)

Fig. 132: Identifying Scan Tool Display - Engine Operating Mode, Checking (3 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check whether control module recognizes operating mode (display zone 4):

Idling:

As long as the engine is running at idle speed "idling" must be displayed



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



z

Display: Idling

Overrun mode:

z

Increase engine speed to above 3000 RPM.

z

Close throttle abruptly.

z

As long as the engine speed is above 1400 RPM "overrun" must be displayed

z

Display: Overrun

Observe the valid safety precautions when carrying out a road test, see SAFETY PRECAUTIONS .

Part throttle:

z

Rev up evenly.

As long as the engine is being revved up evenly, "part throttle" must be displayed

z

Display: Part throttle

Enrichment:

z

Floor accelerator pedal (onto throttle valve stop).

Acceleration "enrichment" must be displayed briefly

z

Display: Enrichment

Full throttle:

z

Floor accelerator pedal (onto throttle valve stop).

"Full throttle" must be displayed briefly

z

Display: Full throttle

Observe the valid safety precautions when carrying out a road test, see SAFETY PRECAUTIONS .

z

Press --> button.

NOTE:

z

A test drive may have to be performed to show "Overrun" in display.

z

Below 1400 RPM idling speed will be recognized.

NOTE:

A test drive may have to be performed to show "Full throttle" in the
display.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



z

Press buttons -0- and -6- for function "End output" and confirm entry with -Q- button.

If the specifications are not obtained:

z

Check DTC Memory, if necessary, repair any malfunctions and then Erase DTC Memory, see DTC
MEMORY OF MOTRONIC ENGINE CONTROL MODULE (ECM) -J220-, CHECKING AND
ERASING
 .

z

Check accelerator mechanism for ease of operation.

z

Check throttle valve potentiometer, see THROTTLE VALVE CONTROL MODULE -J338-,
CHECKING
 .

z

Read readiness code, see READINESS CODE, DISPLAYING . If DTC memory has been erased or
Motronic Engine Control Module (ECM) -J220- was disconnected from battery positive, readiness code
must be generated again, see READINESS CODE, GENERATING .

MOTRONIC ENGINE CONTROL MODULE (ECM)

Motronic Engine Control Module (ECM) - J220- voltage supply, checking

Special tools, test equipment and auxiliary items

z

VAG 1551 scan tool or VAG 1552 mobile scan tool with VAG 1551/3B cable

z

VAG 1598/31 test box

z

VAG 1526 A or Fluke 83 multimeter

z

VAG 1594 adapter set

z

Electrical Wiring Diagram

Test conditions

z

All fuses must be OK. Fuse holder is located behind access panel at far left end of dash.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

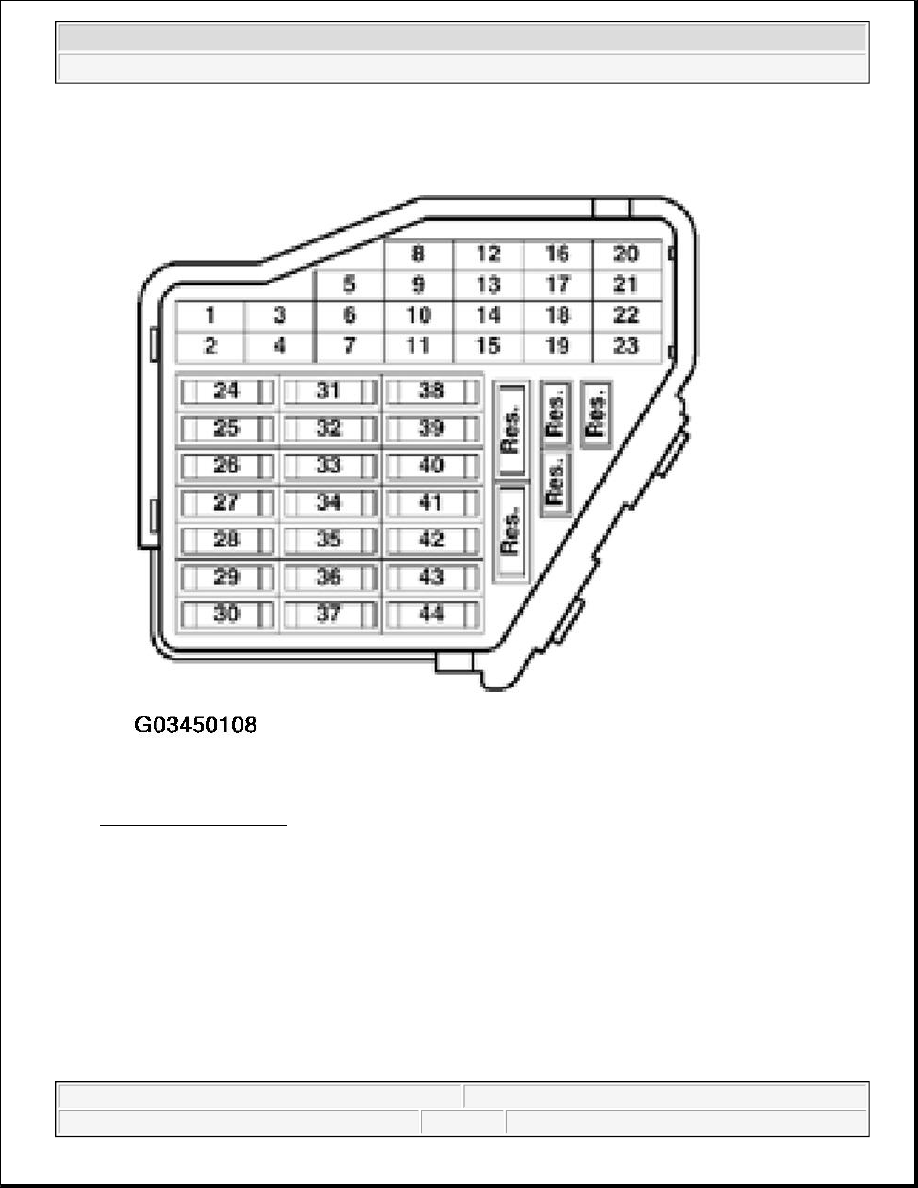

Fig. 133: Locating Fuses
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Battery voltage must be at least 11.5 V

z

All electrical accessories, e.g. lights and rear window defroster must be switched off

z

If the vehicle is equipped with air conditioning, it must be turned off

z

Selector lever must be in position "P" or "N" on vehicles with an automatic transmission

z

Alternator OK.

Test sequence

z

Connect VAG 1551 scan tool ((VAG 1552). Start engine and select "Address word" 01 of Motronic



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle
