Volkswagen New Beetle. Manual - part 1629





If no wiring malfunction is found:

z

Replace Heated Oxygen Sensor (HO2S) before Three Way Catalytic Converter (TWC) -G39-, see item
10 .

z

Check DTC Memory, if necessary, repair any malfunctions and then Erase DTC Memory, see DTC
MEMORY OF MOTRONIC ENGINE CONTROL MODULE (ECM) -J220-, CHECKING AND
ERASING
 .

z

Read readiness code, see READINESS CODE, DISPLAYING . If DTC memory has been erased or
Motronic Engine Control Module (ECM) -J220- was disconnected from battery positive, readiness code
must be generated again, see READINESS CODE, GENERATING .

Oxygen sensor and oxygen sensor control after Three Way Catalytic Converter (TWC), checking

Special tools, test equipment and auxiliary items

z

VAG 1551 scan tool or VAG 1552 mobile scan tool with VAG 1551/3B cable

z

VAG 1598/31 test box

z

VAG 1526 A or Fluke 83 multimeter

z

VAG 1594 adapter set

z

Electrical Wiring Diagram

Test conditions

z

All fuses must be OK. Fuse holde is located behind access panel at far left end of dash.

NOTE:

z

Raise vehicle to reach oxygen sensor connector.

z

Only gold terminals may be used for servicing terminals 3 and 4 in
connector for oxygen sensor.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

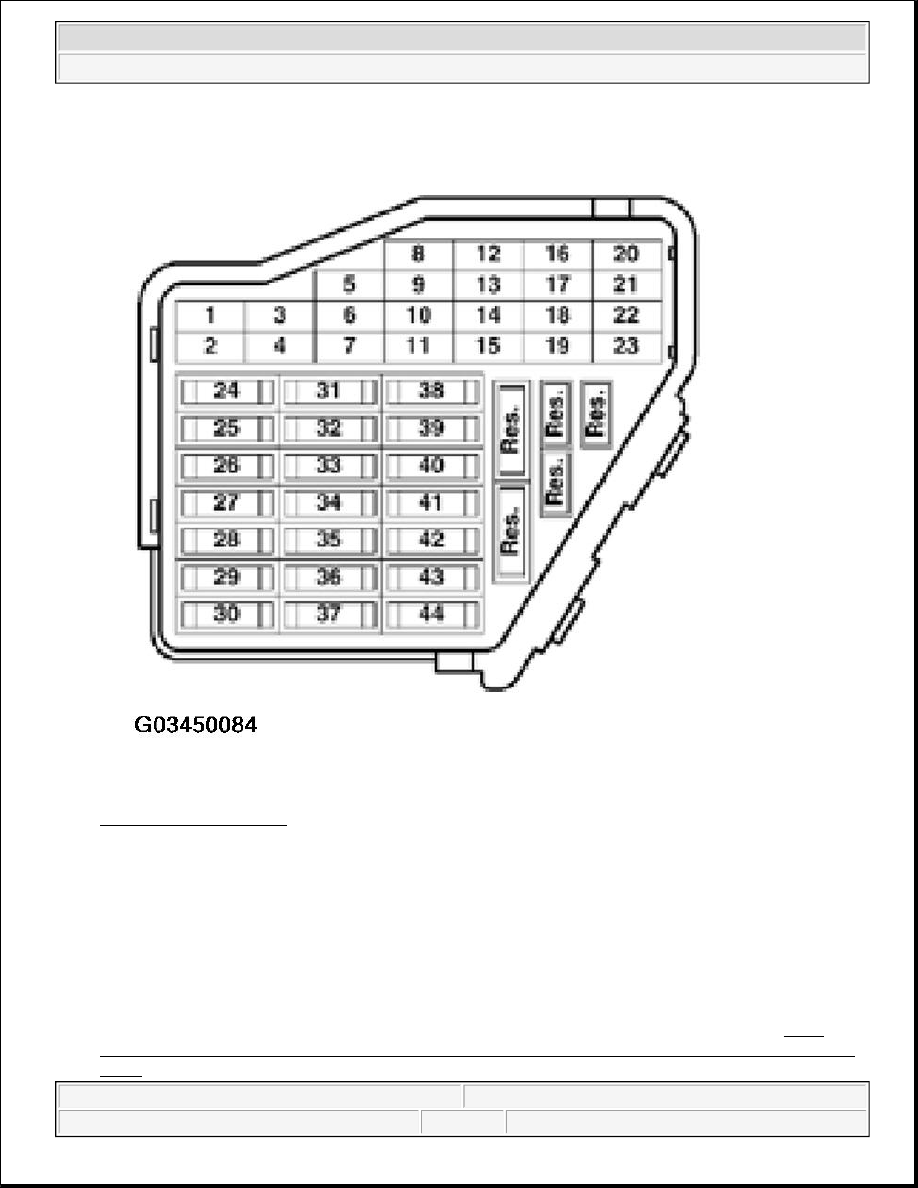

Fig. 109: Locating Fuses
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Battery voltage must be at least 11.5 V.

z

Exhaust system between Three Way Catalytic Converter (TWC) and cylinder head must be free of leaks

z

Engine Coolant Temperature (ECT) must be at least 80 °C display group 04, display zone 3

Functional check

z

Connect VAG 1551 scan tool ((VAG 1552). Start engine and select "Address word" 01 of ECM. Engine
must be running at idle speed. Connecting scan tool and selecting Engine Control Module, see VAG
1551, CONNECTING AND SELECTING MOTRONIC ENGINE CONTROL MODULE (ECM) -
J220-
 .



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Indicated on display

Fig. 110: Identifying Scan Tool Display - Checking HO2S After TWC (1 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

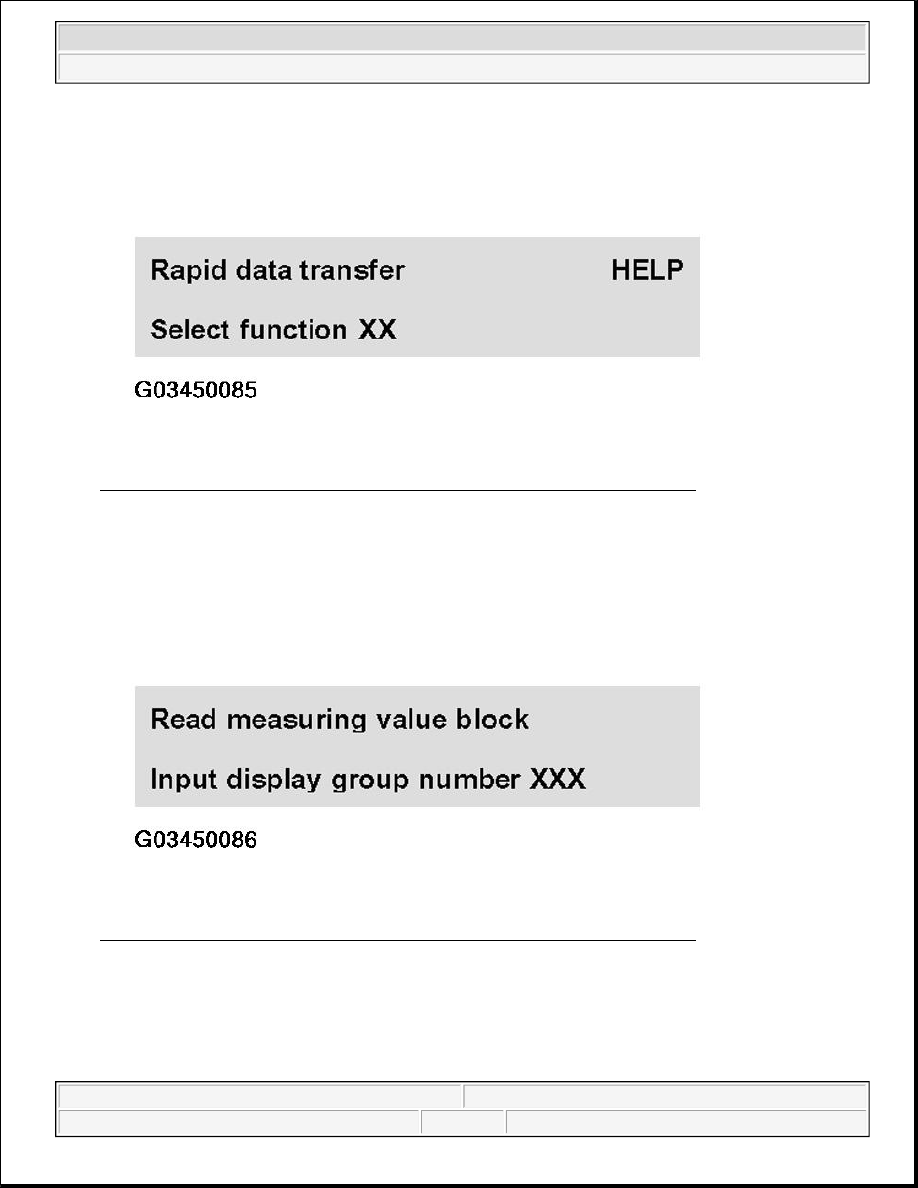

Press buttons -0- and -8- for function "Read measured value block" and confirm entry with -Q- button.

Indicated on display

Fig. 111: Identifying Scan Tool Display - Checking HO2S After TWC (2 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

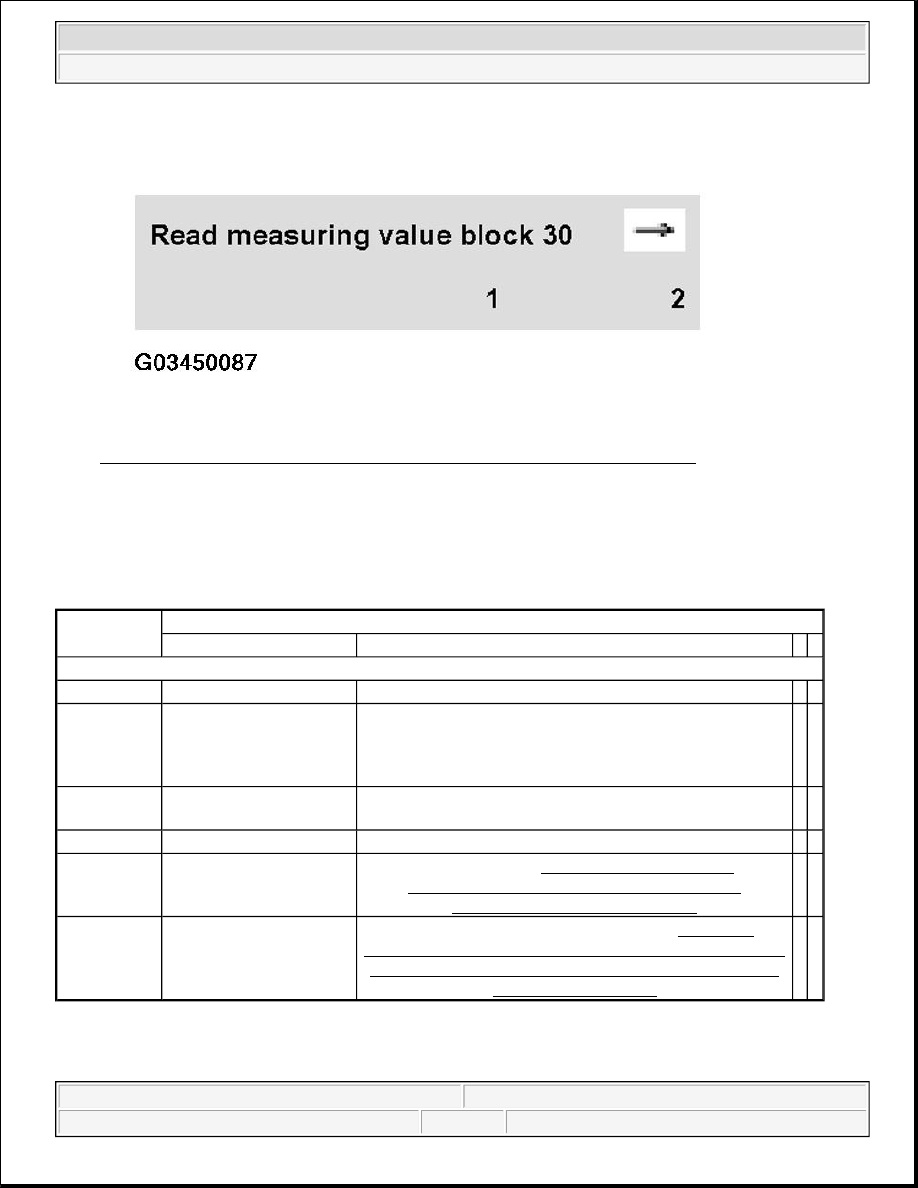

Press buttons -0-, -3- and -0- for "Display group number 30" and confirm entry with -Q- button.

Indicated on display (1 to 2 - Display zones)



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Fig. 112: Identifying Scan Tool Display - Checking HO2S After TWC (3 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check status of oxygen sensor control after Three Way Catalytic Converter (TWC) (display zone 2).

Specification: 1 1 0

DISPLAY GROUP 30: OXYGEN SENSOR CONTROL

Notes on display zone 2:

z

The first figure in the 3 figure number block periodically changes between 0 and 1 (Heated Oxygen



Display zones

1

2

3 4

Display group 30: Oxygen sensor control
Display

xxx

xxx

- -

Indicated

Status of oxygen sensor

control before Three Way

Catalytic Converter

(TWC)

Status of oxygen sensor control after Three Way Catalytic

Converter (TWC)

- -

Working
range

-

-

- -

Specification

111

110

- -



-

Significance, see POSSIBLE CAUSES OF

MALFUNCTION IF SENSOR CONTROL

FREQUENCY IS TOO SLOW:

- -



-

If the specification is not obtained, see HEATED

OXYGEN SENSOR (HO2S) FOR OXYGEN SENSOR

AFTER THREE WAY CATALYTIC CONVERTER

(TWC), CHECKING

- -



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle
