Volkswagen New Beetle. Manual - part 1594

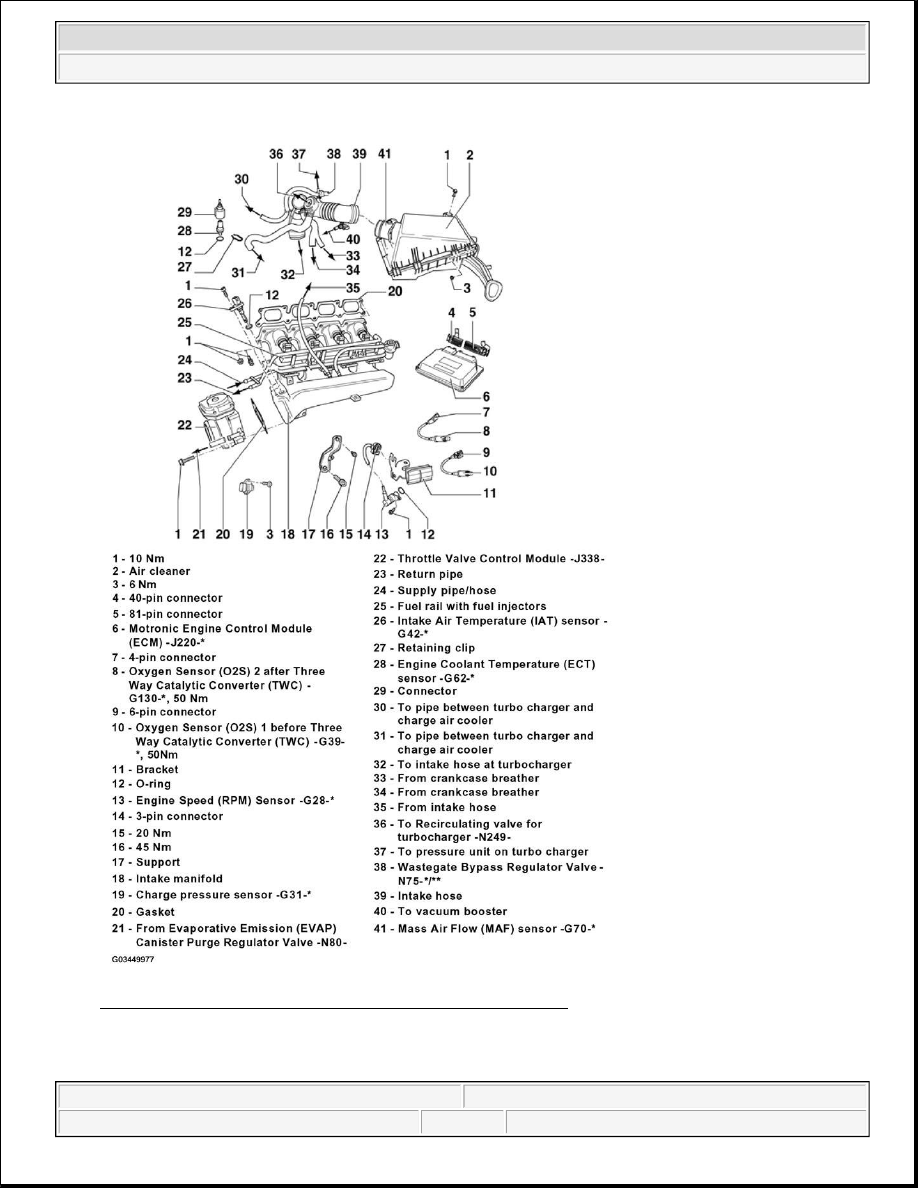

Fig. 2: Exploded View Of Fuel Injection System Components
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Air cleaner, disassembling and assembling



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



The following list pertains to Fig. 3 .

1. 10 Nm

2. Mass Air Flow (MAF) sensor -G70-

z

Sensor and connector terminals are gold-plated

z

Socket 1 not occupied

z

Checking, see MASS AIR FLOW (MAF) SENSOR, CHECKING

3. Connector

z

Black, 5-pin

z

Sensor and connector terminals are gold-plated

z

Socket 1 not occupied

4. Seal

z

Replace if damaged

5. Air cleaner upper part

6. 6 Nm

7. Filter element

8. Air cleaner lower part

9. Air duct

10. O-ring

z

Replace if damaged

11. Intake hose

z

Ensure seated tightly

z

Press together at front to release

z

To Secondary air injection (AIR) pump motor -V101-:

See EXHAUST SYSTEM, EMISSION CONTROLS



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

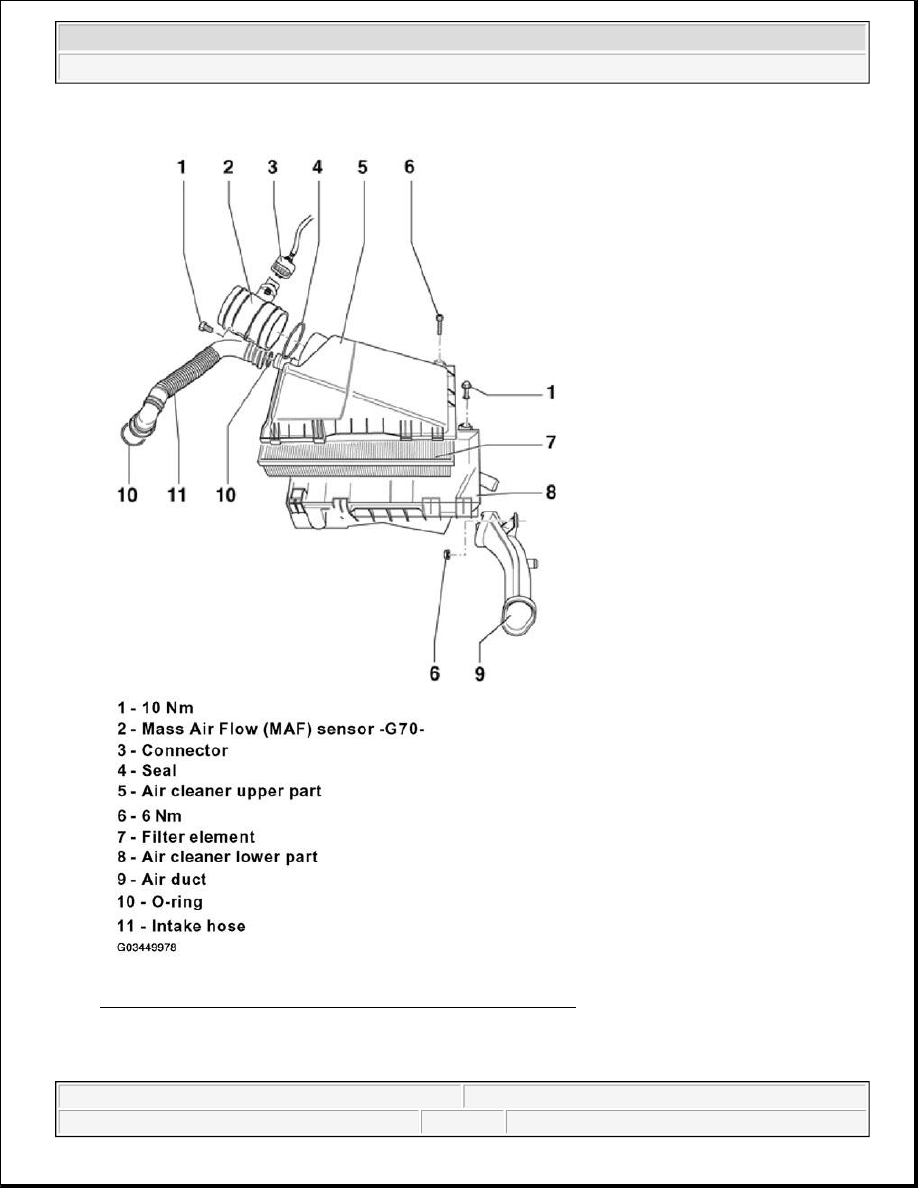

Fig. 3: Identifying MAF Sensor And Air Cleaner Components
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Fuel rail with fuel injectors, disassembling and assembling



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



The following list pertains to Fig. 4 .

1. Fuel rail

2. Retaining clip

z

Check securely seated

3. O-ring

z

Replace if damaged

z

Before installing moisten with clean engine oil

4. Fuel pressure regulator

z

Checking, see FUEL PRESSURE REGULATOR AND HOLDING PRESSURE, CHECKING

5. Vacuum hose

To intake manifold

6. 10 Nm

7. Return flow connection

8. Supply connection

9. Retaining clip

z

Ensure seated correctly at injector and fuel rail

10. Fuel injectors (-N30- to -N33-)*

z

Checking, see FUEL INJECTORS, CHECKING

z

2-pin connector

z

Resistance 12 to 17

11. O-ring

z

Replace

z

Before installing moisten with clean engine oil



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle
