Volkswagen New Beetle. Manual - part 1592

z

Tightening torque influences the function of the knock sensor

23. Knock Sensor (KS) 2 -G66-

z

Black

z

See IGNITION SYSTEM COMPONENTS, REMOVING AND INSTALLING , item 13

24. 2-pin connector

z

Black

z

For Knock Sensor (KS) 2 -G66-

z

Identify before disconnecting

25. Secondary Air Injection (AIR) pump motor -V101-

z

Secondary air system

See SECONDARY AIR INJECTION (AIR) SYSTEM

26. 20 Nm

z

Tightening torque influences the function of the knock sensor

27. Knock Sensor (KS) 1 -G61-

z

Black

z

See IGNITION SYSTEM COMPONENTS, REMOVING AND INSTALLING , item 12

28. 2-pin connector

z

Black

z

For knock sensor 1 -G61-

z

Identify before disconnecting

29. Charge pressure sensor -G31-

z

Checking charge pressure system

See TURBOCHARGER, G-CHARGER

30. Throttle Valve Control Module -J338-

z

No cable disc for accelerator cable as this is an Electronic Power Control (EPC)

z

Checking, see THROTTLE VALVE CONTROL MODULE -J338-, CHECKING

z

If replaced, adapt Motronic Engine Control Module (ECM) -J220-, see MOTRONIC ENGINE
CONTROL MODULE (ECM) - J220- TO THROTTLE VALVE CONTROL MODULE -
J338-, ADAPTING

31. Intake Air Temperature (IAT) sensor - G42-

z

Checking, see INTAKE AIR TEMPERATURE (IAT) SENSOR, CHECKING

32. Evaporative Emission (EVAP) Canister Purge Regulator Valve -N80-

z

Evaporative Emission (EVAP) system:

See EVAP CANISTER SYSTEM



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle





2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

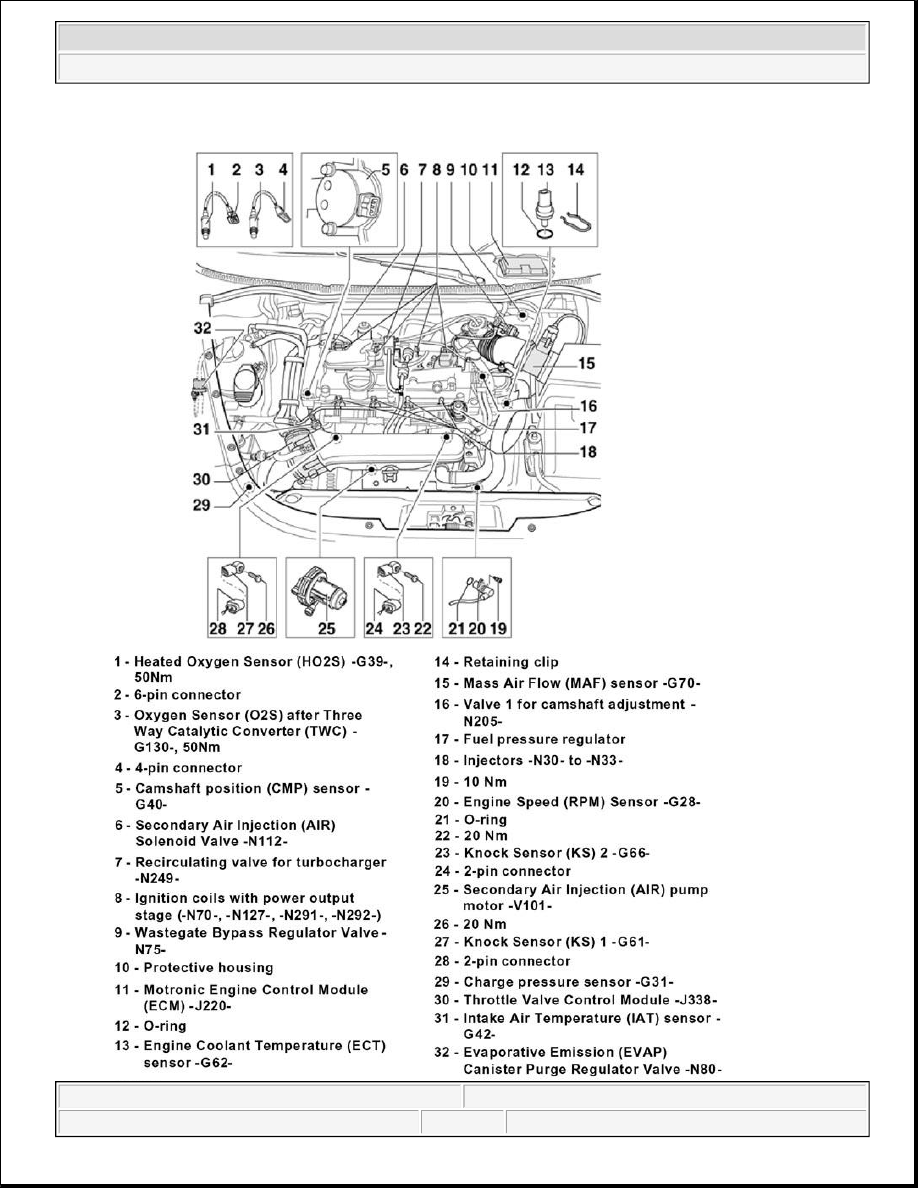

Fig. 1: Identifying Fuel Injection System Components
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Fuel injection, general information

Servicing ignition system, see IGNITION SYSTEM, SERVICING

Safety precautions, see SAFETY PRECAUTIONS

Rules for cleanliness, see RULES OF CLEANLINESS

Technical data, see TECHNICAL DATA

NOTE:

z

The Motronic Engine Control Module (ECM) - J220- is equipped with On
Board Diagnostic (OBD). Before carrying out repairs and troubleshooting
the DTC memory of all control modules must be checked using the
automatic test sequence. This is necessary as various control modules
are connected to each other via a data bus. The vacuum hoses and
connections must also be checked (unmetered air).

z

Fuel hoses in engine compartment must only be secured with spring type
clips. The use of clamp or screw type clips is not permissible.

z

Disconnecting and connecting the battery must only be done with the
ignition switched off, otherwise the Motronic Engine Control Module (ECM)
-J220- could be damaged.

z

Components marked with * are checked via the On Board Diagnostic
(OBD), see DTC MEMORY OF MOTRONIC ENGINE CONTROL MODULE
(ECM) -J220-, CHECKING AND ERASING .

z

Components marked with **can be checked with the Output Diagnostic
Test Mode (DTM), see OUTPUT DIAGNOSTIC TEST MODE (DTM) .

z

For trouble -free operation of the electrical components, a voltage of at
least 11.5 V is necessary.

z

Do not use sealants containing silicone. Particles of silicone drawn into
the engine, will not be burned in the engine and damage the oxygen
sensor.

z

Some checks can cause the control module to recognize and store a DTC.
Therefore after completing all checks and repairs the DTC memory must
be checked and if necessary erased, see DTC MEMORY OF MOTRONIC
ENGINE CONTROL MODULE (ECM) -J220-, CHECKING AND ERASING .

z

Vehicles with an airbag are built with a crash/fuel shut -off. It reduces the
risk of a vehicle burning in the event of a crash and that the fuel pump is
switched off by the fuel pump relay. At the same time, this device
improves the starting of the engine because as soon as the door is
opened, the fuel pump is activated for 2 seconds to build up pressure in
the fuel system.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Checking engine operating mode, see ENGINE OPERATING MODE, CHECKING

Fuel injection system components, removing and installing

The following list pertains to Fig. 2 .

1. 10 Nm

2. Air cleaner

z

Disassembling and assembling, see AIR CLEANER, DISASSEMBLING AND ASSEMBLING

3. 6 Nm

4. 40-pin connector

z

Only disconnect or connect with ignition switched off

z

Release to disconnect

5. 81-pin connector

z

Only disconnect or connect with ignition switched off

z

Release to disconnect

6. Motronic Engine Control Module (ECM) -J220-*

(Motronic Motronic Engine Control Module (ECM) -J220- -J220-)

z

Component location, see MULTIPORT FUEL INJECTION (MFI) , engine compartment
overview

z

Checking voltage supply, see MOTRONIC ENGINE CONTROL MODULE (ECM)

z

Procedure after voltage supply open circuit, see PROCEDURE AFTER CORRECTING
VOLTAGE SUPPLY OPEN CIRCUIT

z

Replace, see MOTRONIC ENGINE CONTROL MODULE (ECM) - J220-, REPLACING

z

If replaced, carry out basic setting, see MOTRONIC ENGINE CONTROL MODULE (ECM) -
J220- TO THROTTLE VALVE CONTROL MODULE - J338-, ADAPTING

7. 4-pin connector

z

Component location, see MULTIPORT FUEL INJECTION (MFI) , engine compartment
overview

z

Brown/Black

z

For oxygen sensor 2 after Three Way Catalytic Converter (TWC) -G130- and Heated Oxygen
Sensor (HO2S) - Z29-

z

Terminals 3 and 4 gold plated

8. Oxygen Sensor (O2S) 2 after Three Way Catalytic Converter (TWC) - G130-*, 50 Nm

z

With 4-pin connector

z

Component location, see MULTIPORT FUEL INJECTION (MFI)

z

Grease only the threads with G 052 112 A3 hot bolt paste (anti-seize compound). Grease must not
get into slots on sensor body

z

Remove and install with ring wrench 3337
