Volkswagen New Beetle. Manual - part 1531





Test sequence

z

Disconnect the 6-pin connector from the power output stage for ignition coils (arrow).

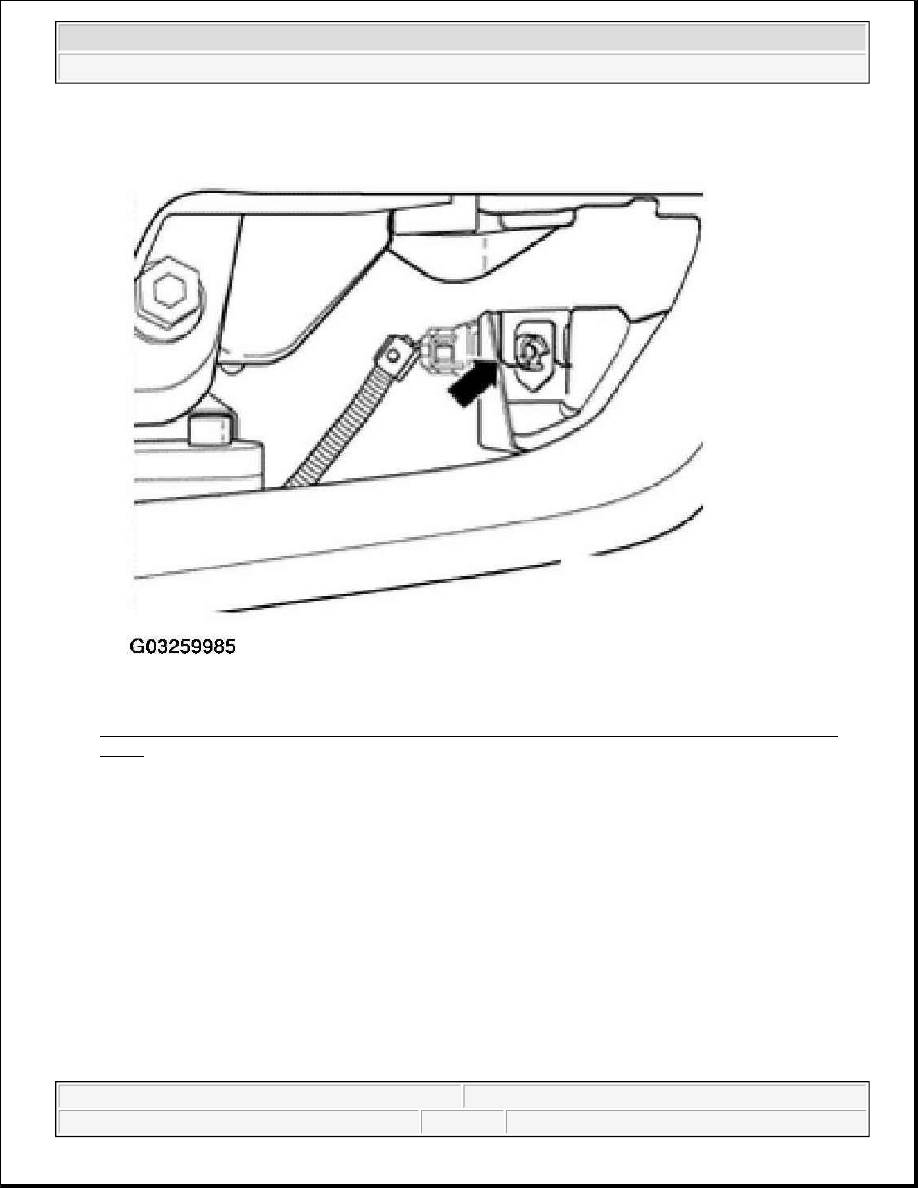

Fig. 28: Disconnecting 6-Pin Connector From Power Output Stage For Ignition Coils (Engine Code
AVH, AZG, BDC)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Checking voltage supply

z

Use multimeter and adapter cables to measure voltage supply between terminals 1 + 6 of the disconnected
connector.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Ignition-Glow Plug System, 2.0L Generic Scan Tool - New Beetle



Fig. 29: Identifying Ignition Coil 6-Pin Harness Connector Terminals (Engine Code AVH, AZG,
BDC)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Switch on ignition. Specified value: at least 11.5 V

z

Switch ignition off.

If there is no voltage:

z

Check wire between 6-pin connector terminal 6 and Motronic Engine Control Module (ECM) Power
Supply Relay -J271- for open circuit according to wiring diagram. Wire resistance: max. 1.5 ohm



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Ignition-Glow Plug System, 2.0L Generic Scan Tool - New Beetle



Fig. 30: Identifying Ignition Coil 6-Pin Harness Connector Terminals (Engine Code AVH, AZG,
BDC)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check wires between 6-pin connector terminal 1 and Ground (GND) for open circuit according to wiring
diagram. Wire resistance: max. 1.5 ohm

If there is no malfunction in voltage supply:

z

Check activation. See CHECKING ACTIVATION .

Checking activation

z

Remove fuse 32 from fuse holder. Fuse holder is lcoated behind access panel at far left end of dash.

WARNING:

Do not touch ignition coil connecting parts or adapter cables during the
following test.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Ignition-Glow Plug System, 2.0L Generic Scan Tool - New Beetle



Fig. 31: Locating Fuse 32
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Using adapter cables, connect voltage tester (VAG1527) to

Terminals 1 + 2 (ignition output 1)

Terminals 1 + 3 (ignition output 2)

Terminals 1 + 4 (ignition output 3)

Terminals 1 + 5 (ignition output 4) of disconnected connector.

NOTE:

By removing fuse 32, voltage supply to the fuel injectors is interrupted.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Ignition-Glow Plug System, 2.0L Generic Scan Tool - New Beetle
