If no malfunctions are found in the wires and there was voltage between terminal 2 + 4:

z

Replace Motronic Engine Control Module (ECM) -J220-. See REPLACING ENGINE CONTROL
MODULE (ECM)
 .

Checking secondary resistances

z

Check secondary resistances at terminal 4 between Cyl. 1 + Cyl. 4, Cyl. 2 + Cyl. 3. Specified value: 4.0...
6.0 k ohm



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Ignition-Glow Plug System, 2.0L Generic Scan Tool - New Beetle



Fig. 26: Checking Secondary Resistances At Terminal 4 Between Cyl. 1 And Cyl. 4, Cyl. 2 And Cyl.
3 (Engine Code AEG)

Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Ignition-Glow Plug System, 2.0L Generic Scan Tool - New Beetle



If specified values are not obtained:

z

Replace Ignition Coil -N152-. See item 12 .

z

Erase DTC memory of Engine Control Module (ECM). See DIAGNOSTIC MODE 4: RESET/ERASE
DIAGNOSTIC DATA
 .

z

Generate readiness code. See READINESS CODE, GENERATING .

Checking ignition coils with power output stages (Vehicles with engine code AVH, AZG, BDC)

Special tools and equipment

z

VAG1526 multimeter or VAG1715 multimeter

z

VAG1527 voltage test lamp

z

VAG1594 connector test kit

z

VAG1598/31 test box

z

Wiring diagram

Test requirements

z

The respective fuses of ignition coils must be OK.

NOTE:

Ignition coils and power output stages are one component and cannot be
replaced individually.

NOTE:

Fuse holder is located behind access panel at far left end of dash.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Ignition-Glow Plug System, 2.0L Generic Scan Tool - New Beetle



Fig. 27: Identifying Fuses
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Motronic Engine Control Module (ECM) Power Supply Relay -J271- must be OK.

z

Battery voltage must be at least 11.5 volts.

z

All electrical consumers such as, for example, lights and rear window defroster must be switched off.

z

Parking brake must be engaged or else daylight driving lights will be switched on.

z

For vehicles with automatic transmission, selector lever must be in position -P- or -N-.

z

If vehicle is equipped with an A/C system, it must be switched off.

z

Ground (GND) connections between engine and chassis must be OK.

z

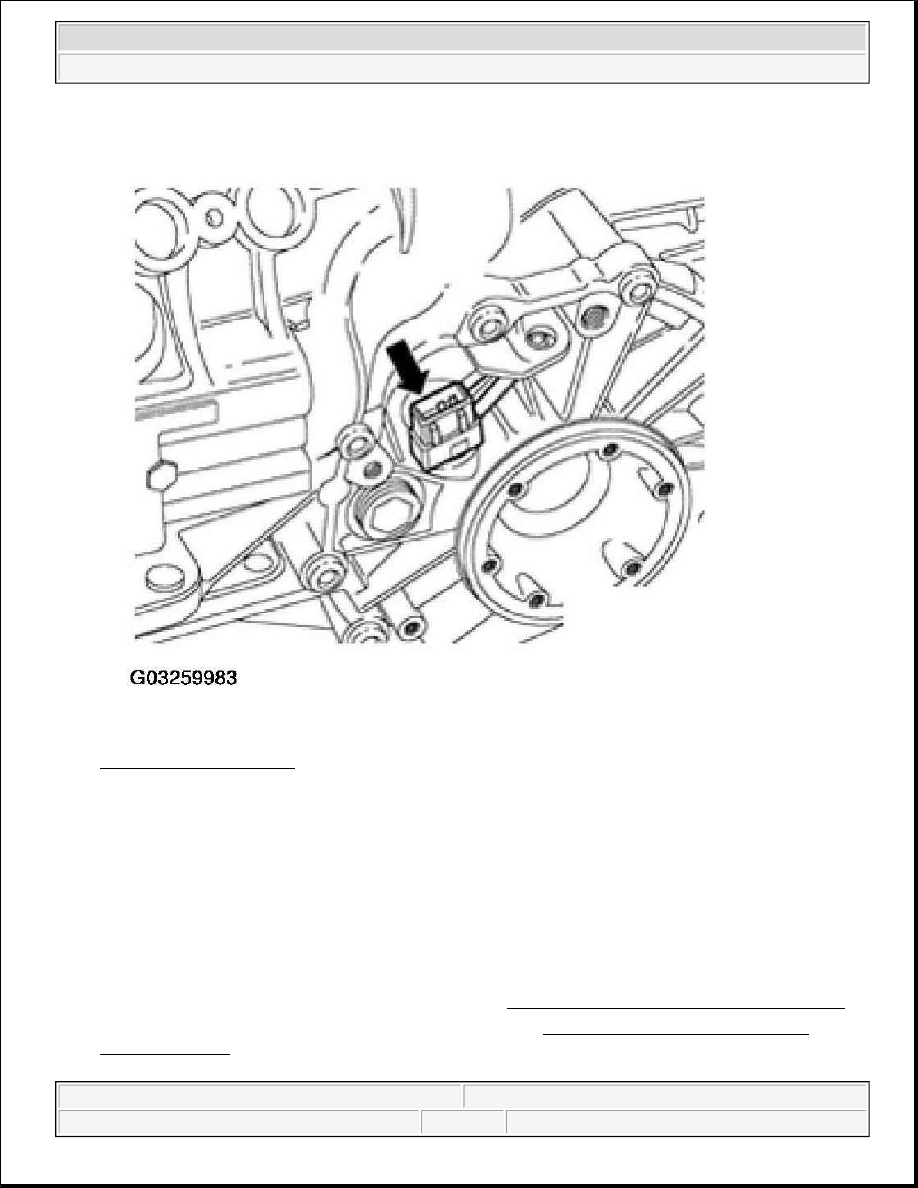

Engine speed (RPM) sensor must be OK, checking. See CHECK ENGINE SPEED (RPM) SENSOR .

z

Camshaft Position (CMP) sensor must be OK, checking. See CHECK CAMSHAFT POSITION
(CMP) SENSOR
 .

z

Ignition switched off.
