Fig. 24: Identifying Knock Sensor Harness Connector Terminals (Engine Code APH)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Wire resistance: max. 1.5 ohm

z

Also check wires for short circuit to each other.

Specified value:INFINITY ohm



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Ignition-Glow Plug System, 1.8L Generic Scan Tool - New Beetle



If specified value is not obtained:

z

Replace the respective knock sensor:

z

Knock Sensor (KS) 1 -G61-, see item 12 .

z

Knock Sensor (KS) 2 -G66-, see item 17 .

z

Erase DTC memory of Engine Control Module (ECM), see DIAGNOSTIC MODE 4: RESET/ERASE
DIAGNOSTIC DATA
 .

z

generate readiness code, see READINESS CODE, GENERATING .

Vehicles with engine code AWP, AWV

z

Check wires between test box and 2-pin connector for open circuit according to wiring diagram.

Terminal 1 + socket

106 (Knock Sensor (KS) 1 -G61-)

107 (Knock Sensor (KS) 2 -G66-)

Terminal 2 + socket

99 (Knock Sensor (KS) 1 -G61-)

99 (Knock Sensor (KS) 2 -G66-)



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Ignition-Glow Plug System, 1.8L Generic Scan Tool - New Beetle

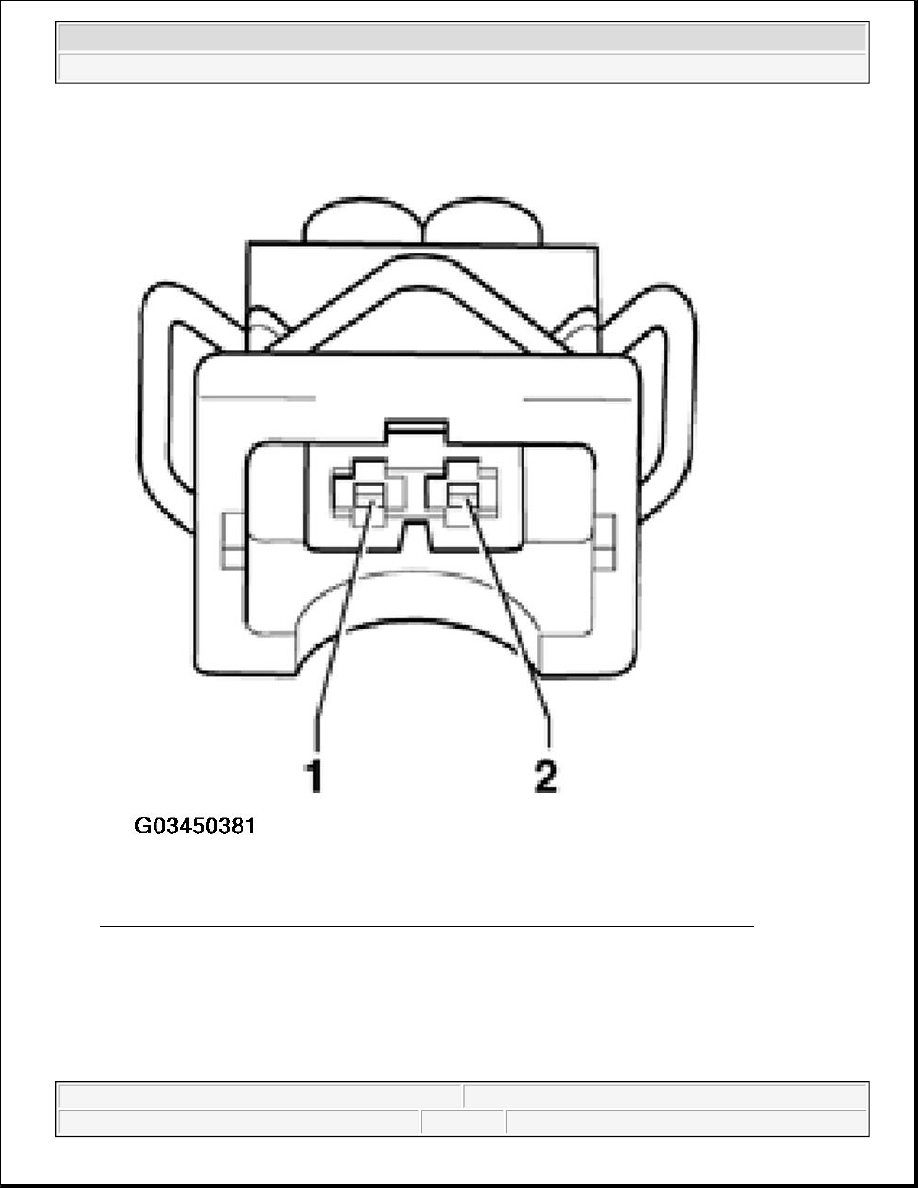

Fig. 25: Identifying Knock Sensor 2-Pin Harness Connector Terminals (Engine Code AWP, AWV)
Courtesy of VOLKSWAGEN OF AMERICA, INC.


z

Wire resistance: max. 1.5 ohm

z

Also check wires for short circuit to each other.

Specified value: ohm

If specified value is not obtained:

z

Replace the respective knock sensor:

z

Knock Sensor (KS) 1 -G61-, see item 12 .

z

Knock Sensor (KS) 2 -G66-, see item 13 .

z

Erase DTC memory of Engine Control Module (ECM), see DIAGNOSTIC MODE 4: RESET/ERASE
DIAGNOSTIC DATA
 .

z

generate readiness code, see READINESS CODE, GENERATING



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Ignition-Glow Plug System, 1.8L Generic Scan Tool - New Beetle



Valve for camshaft adjustment, checking (Vehicles with engine code AWP, AWV)

Function

The camshaft adjustment is load - and RPM dependent. The electrical valve for camshaft adjustment switches
oil pressure onto camshaft adjuster (mechanical adjustment mechanism), which adjusts the camshaft.

Recommended special tools and equipment

z

VAG1526 multimeter or VAG1715 multimeter

z

VAG1594 connector test kit

z

Wiring diagram

Test requirements

z

The respective fuses of the Valve -1- for camshaft adjustment - N205-must be OK.

z

Fuel Pump (FP) Relay -J17- must be OK. Fuse box is located behind access panel at far left end of dash.
