Volkswagen New Beetle. Manual - part 1507





Cylinder 4 terminal 3 + socket 94

Wire resistance: max. 1.5 ohm

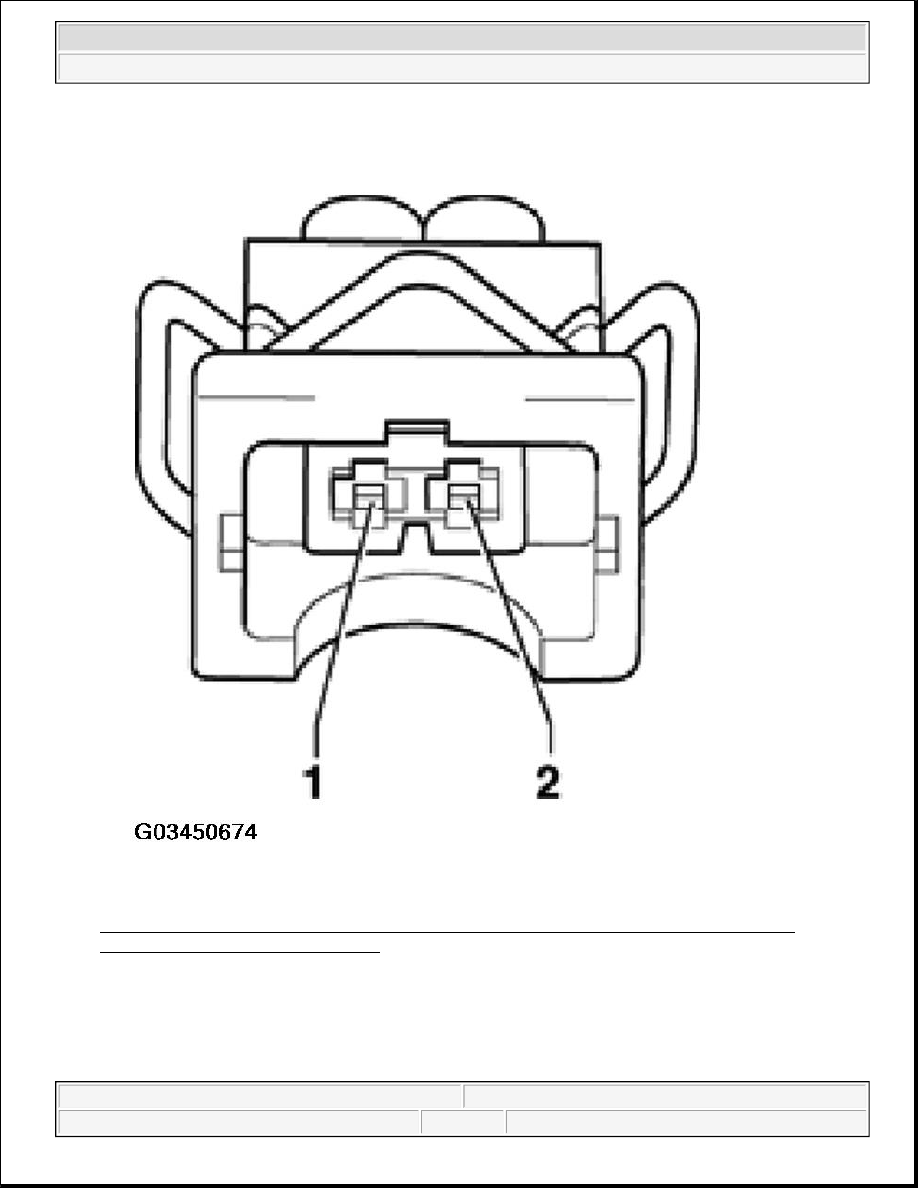

Fig. 19: Identifying 4-Pin Harness Connector Terminals (Engine Code AWP, AWV)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Continuation for all vehicles

z

Check wires for short circuit to each other.

If there is no malfunction in wire connections:

z

Replace Engine Control Module (ECM), see REPLACING ENGINE CONTROL MODULE (ECM)



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Ignition-Glow Plug System, 1.8L Generic Scan Tool - New Beetle



Check knock sensors

z

Contact surfaces between knock sensor and cylinder block must be free of corrosion, dirt and grease.

z

For the Knock Sensors to function properly, it is important for tightening torque to be exactly 20 Nm.

z

Use only gold-plated terminals when servicing terminals in harness connector of knock sensors.

Recommended special tools and equipment

z

VAG1526 multimeter or VAG1715 multimeter

z

VAG1594 connector test kit

z

Wiring diagram

Test requirements

z

Knock sensor securing bolt tightened to 20 Nm.

z

On Board Diagnostic (OBD) must have recognized a malfunction at one or both of the Knock Sensors
(KS).

z

Ignition switched off.

Checking resistance values of knock sensors

Vehicles with engine code APH

z

Disconnect 2-pin harness connector to Knock Sensor (KS) 1 -G61-(-1-) and/or 2 -pin harness connector
to Knock Sensor (KS) 2 -G66-(-2-).



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Ignition-Glow Plug System, 1.8L Generic Scan Tool - New Beetle

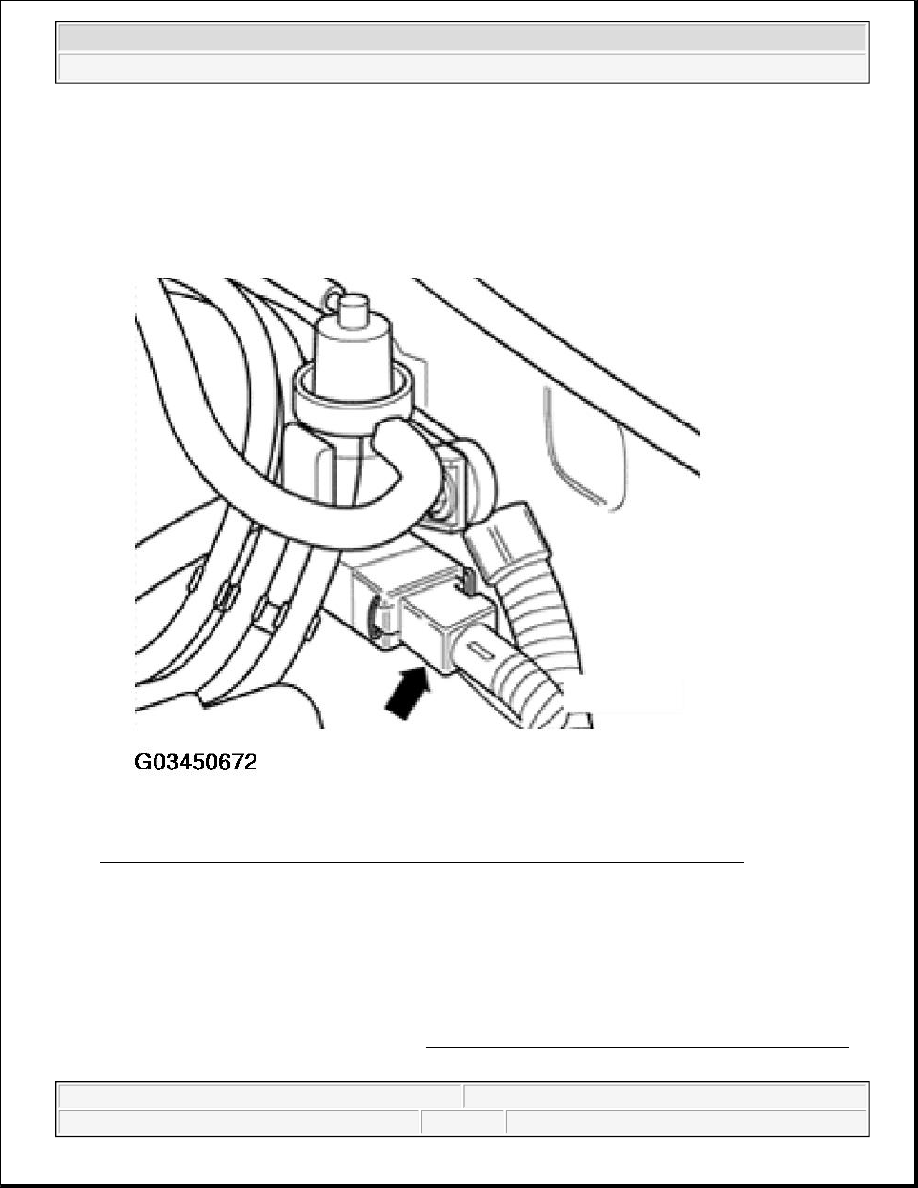

Fig. 20: Disconnecting 2-Pin Harness Connector To Knock Sensor (Engine Code APH)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Measure resistance from knock sensor between terminal 1 (signal) and terminal 2 (Ground -GND-).

Specified value: INFINITY ohm



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Ignition-Glow Plug System, 1.8L Generic Scan Tool - New Beetle

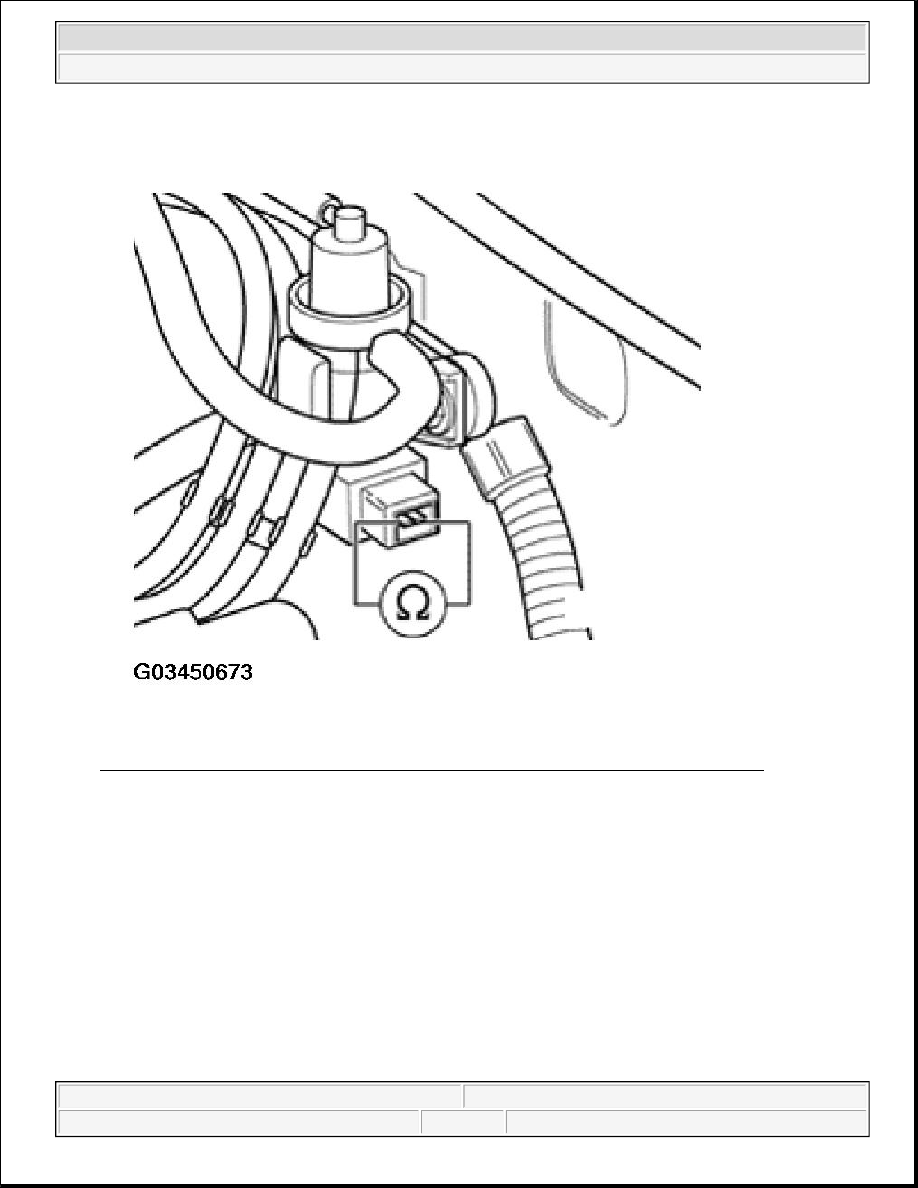

Fig. 21: Measuring Resistance Between Knock Sensor Terminal 1 (Signal) And Terminal 2
(Ground -Gnd-) - Engine Code APH

Courtesy of VOLKSWAGEN OF AMERICA, INC.

If specified value is not obtained:

z

Replace the respective knock sensor:

z

Knock Sensor (KS) 1 -G61-, see item 12 .



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Ignition-Glow Plug System, 1.8L Generic Scan Tool - New Beetle
