Check Modulating piston displacement sensor -G149- Voltage supply value in Display zone 3.

Fig. 89: Scan Tool Display - Modulating Piston Displacement Sensor & Quantity Adjuster (5 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.


z

Specification: 1.450 to 2.000 Volts

If specification not obtained:



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



z

Check Modulating piston displacement sensor -G149- and quantity adjuster as described in following:

Modulating piston displacement sensor -G149-, checking

z

Press --> button.

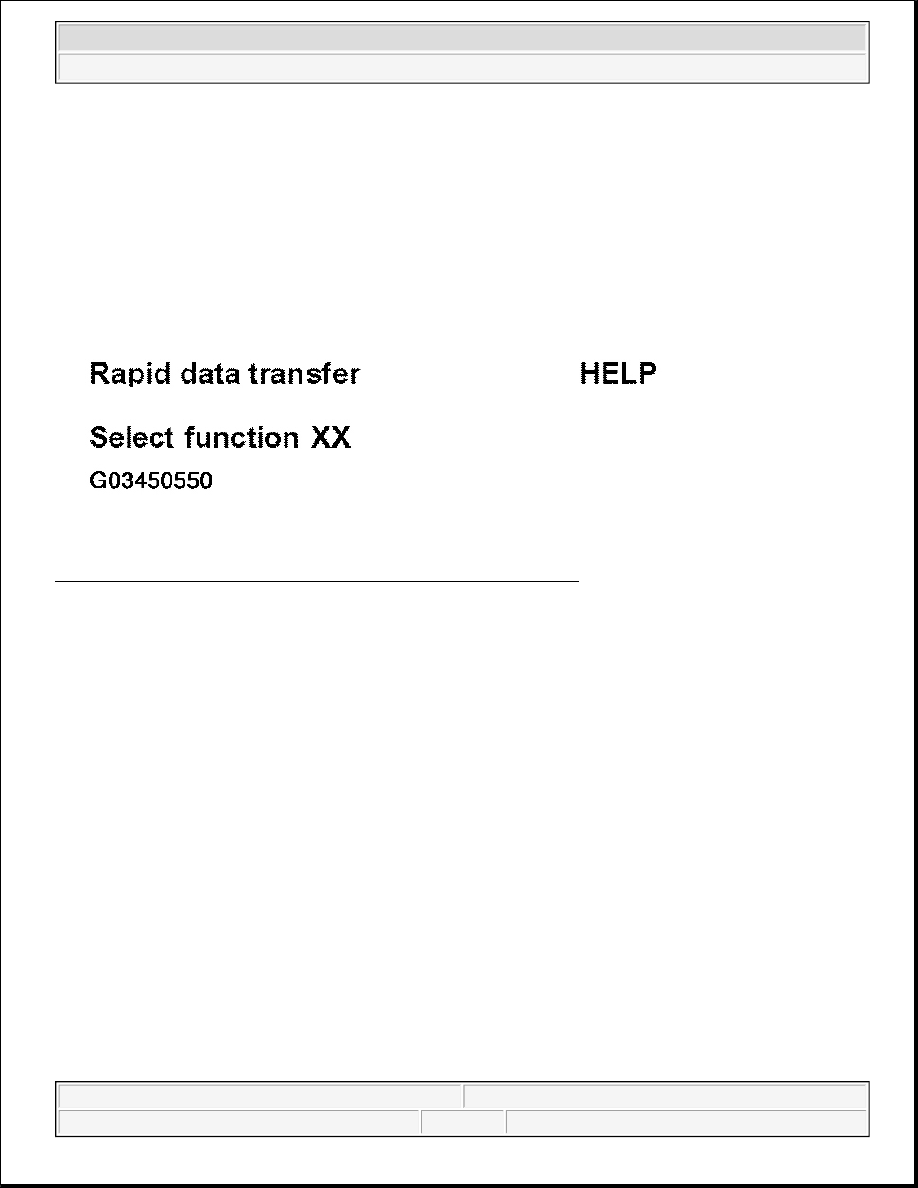

Display will appear as shown:

Fig. 90: Scan Tool Display - Modulating Piston Displacement Sensor
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -0- and -6- buttons to select Function 06: "End output".

z

Press -Q- button to enter input.

z

Switch OFF ignition.

z

Disconnect 10-pin Fuel Temperature sensor harness connector (connection to Diesel injection pump
metering control).



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



Fig. 91: Identifying 10-Pin Fuel Temperature Sensor Connector Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Switch Fluke 83 multimeter to resistance range.

z

Measure resistance between connector terminals: 1 + 2 and 2 + 3.

z

Specification: 4.9 to 7.5ohm

If specification not obtained:

z

Replace Diesel injection pump. See DIESEL INJECTION PUMP, REMOVING AND
INSTALLING
 .

z

Display the Readiness code. See READINESS CODE, DISPLAYING .

If DTC memory was erased:



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



z

Set the readiness code. See READINESS CODE, SETTING .

If specification obtained:

z

Connect VAG1598/22 (or 1598/31) Test Box to ECM wiring harness.

Fig. 92: Connecting VAG1598/22 (Or 1598/31) Test Box To ECM Wiring Harness
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check wiring for open circuit between Test Box and harness connector using Wiring diagram.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle
