Volkswagen New Beetle. Manual - part 1386





z

Terminal 4 + socket 103

z

Wire resistance: 1.5 ohm maximum

z

Check wires for short to one another, to Ground and to Battery +

z

Specification: INFINITY ohm

If wiring OK:

z

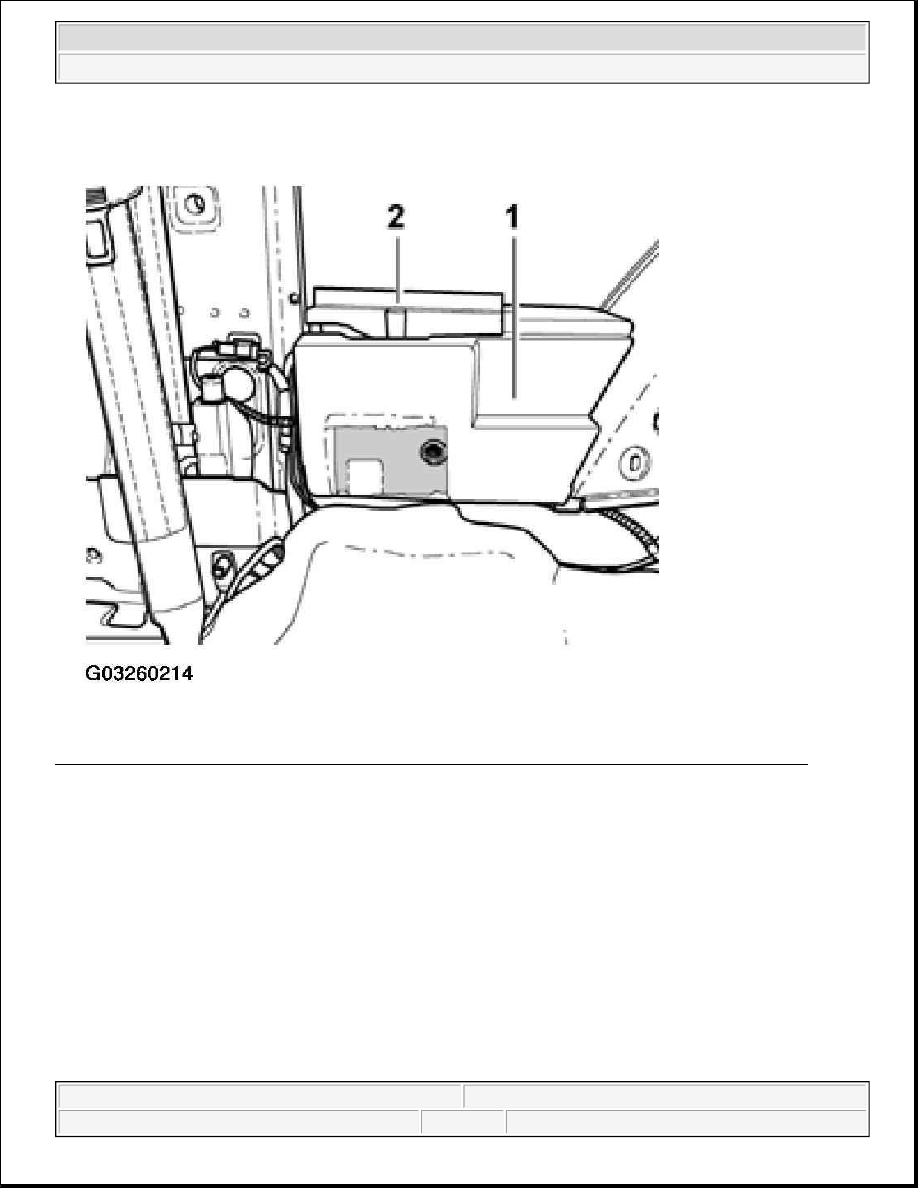

Replace Engine Control Module -J248-. See Engine Control Module (ECM), replacing .

z

Display the Readiness code. See READINESS CODE, DISPLAYING .

If DTC memory was erased:

z

Set the readiness code. See READINESS CODE, SETTING .

Modulating piston displacement sensor -G149- and quantity adjuster -N146-, checking

The quantity adjuster -N146- is an electro-magnetic swivel type positioner, controlled by the ECM via regulated
duty cycle (ON-OFF ratio). The eccentric shaft on -N146- moves the Modulating piston on the high pressure
piston thereby regulating the quantity of fuel injected.

The Modulating piston displacement sensor -G149- communicates the position of -N146- to the ECM thereby
determining the quantity of fuel to be injected.

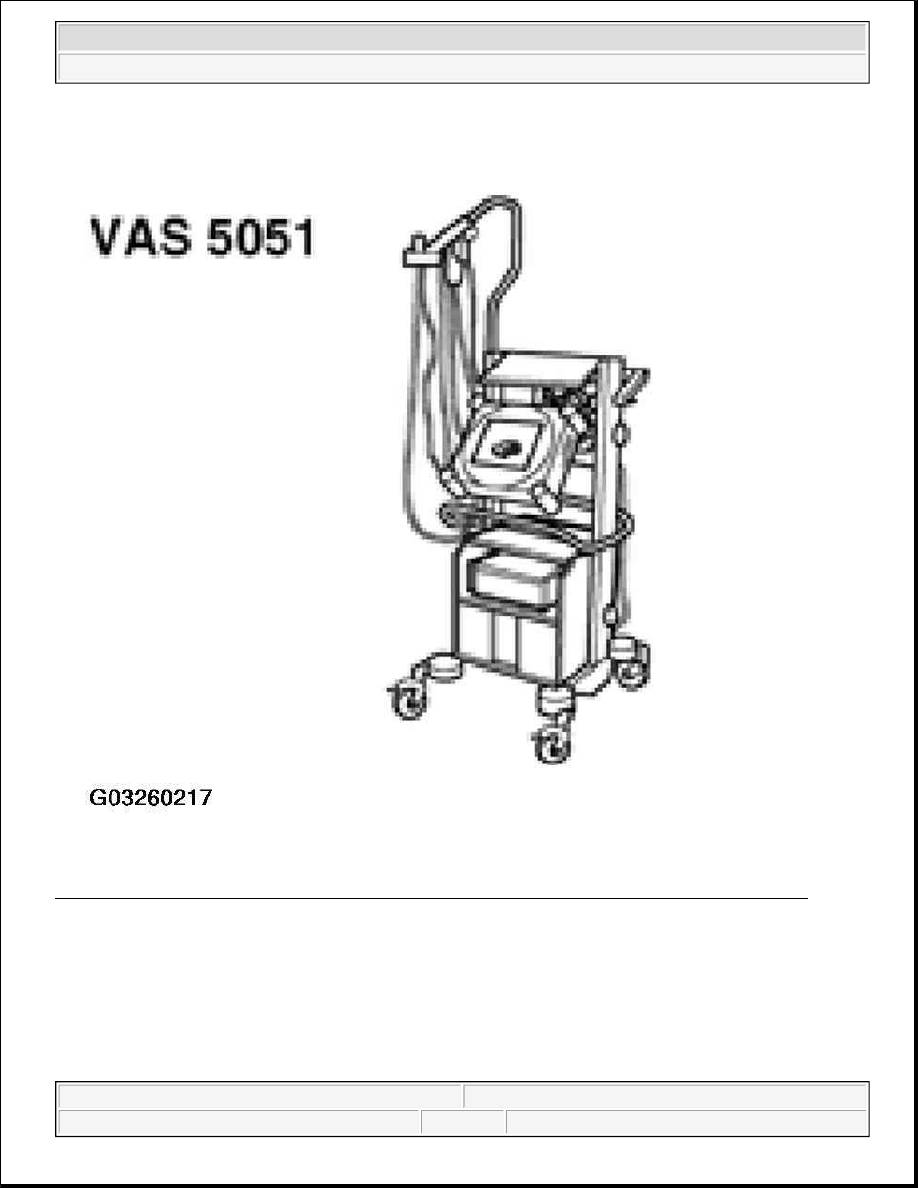

Special tools

z

VAG1551/1552 Scan Tool using VAG1551/3 Adapter cable

z

VAG1598/22 Test Box (MY 1999)

z

VAG1598/31 Test Box (from MY 2000)

z

Fluke 83 multimeter

z

VW 1594 Adapter kit

z

Wiring diagram

Test sequence

z

Connect VAG1551/1552 Scan Tool. See VAG1551/1552 SCAN TOOL, CONNECTING .

z

Start engine and let idle.

z

Press -0- and -1- buttons to select Address word 01: "Engine electronics"

Display will appear as shown (example only):



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



Fig. 85: Scan Tool Display - Modulating Piston Displacement Sensor & Quantity Adjuster (1 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press --> button.

Display will appear as shown:



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle

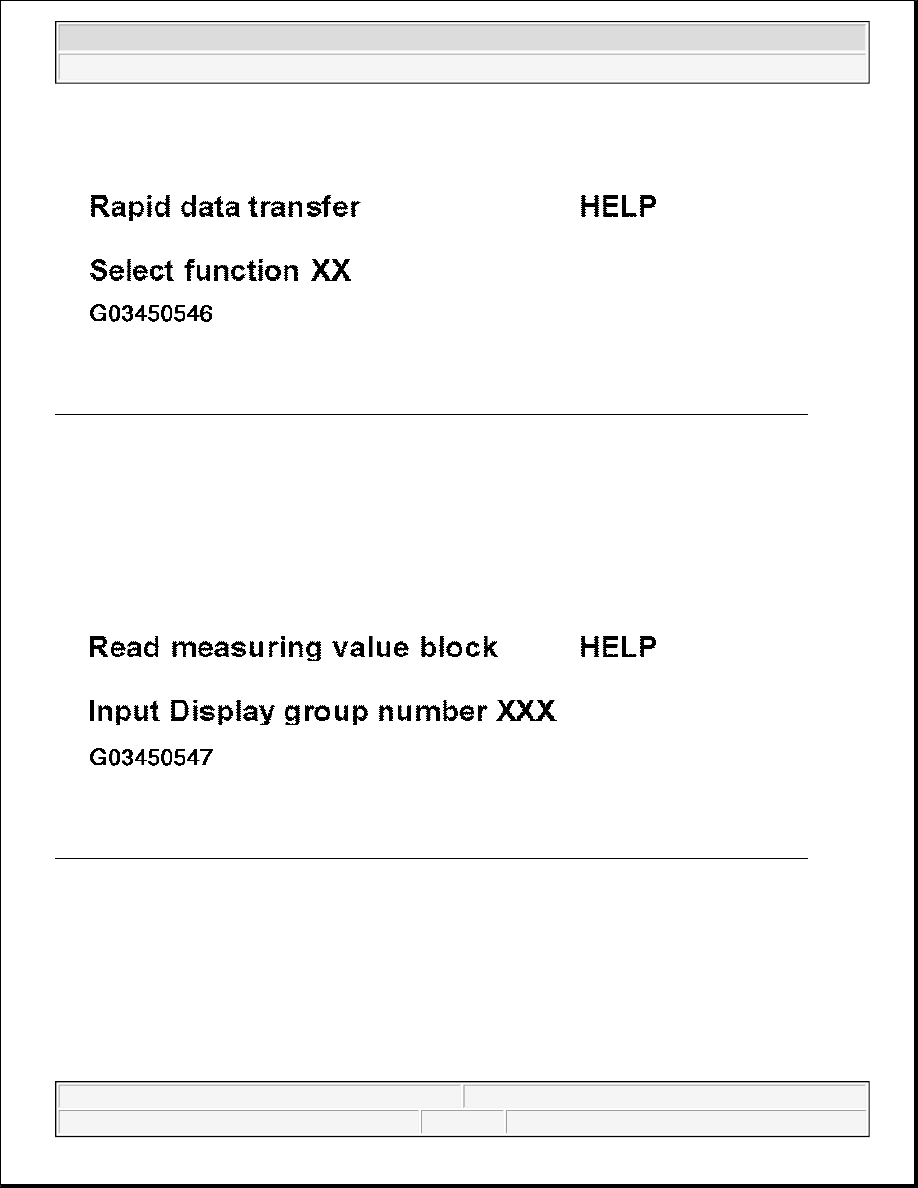

Fig. 86: Scan Tool Display - Modulating Piston Displacement Sensor & Quantity Adjuster (2 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -0- and -8- buttons to select Function 08: "Read measuring value block".

z

Press -Q- button to enter input.

Display will appear as shown:

Fig. 87: Scan Tool Display - Modulating Piston Displacement Sensor & Quantity Adjuster (3 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0-, -0- and -1- to select "Display group 1".

z

Press -Q- button to enter input.

Display will appear as shown:



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



Fig. 88: Scan Tool Display - Modulating Piston Displacement Sensor & Quantity Adjuster (4 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check Engine Coolant Temperature value in Display zone 4.

z

Specification: 85 °C minimum

z

Continue with check only when temperature speck. is obtained.

z

Check value in Display zone 3 (Voltage from Modulating piston movement).



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle
