Volkswagen New Beetle. Manual - part 1382





Fig. 70: Scan Tool Display - Intake Air Temperature Sensor (4 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

If an unrealistic value appears in Display zone 3 or a substitute temperature of 136.8 °C is displayed

z

Check Intake Air Temperature (IAT) Sensor -G72- and wiring to sensor as follows:

z

Press --> button.

Display will appear as shown:



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



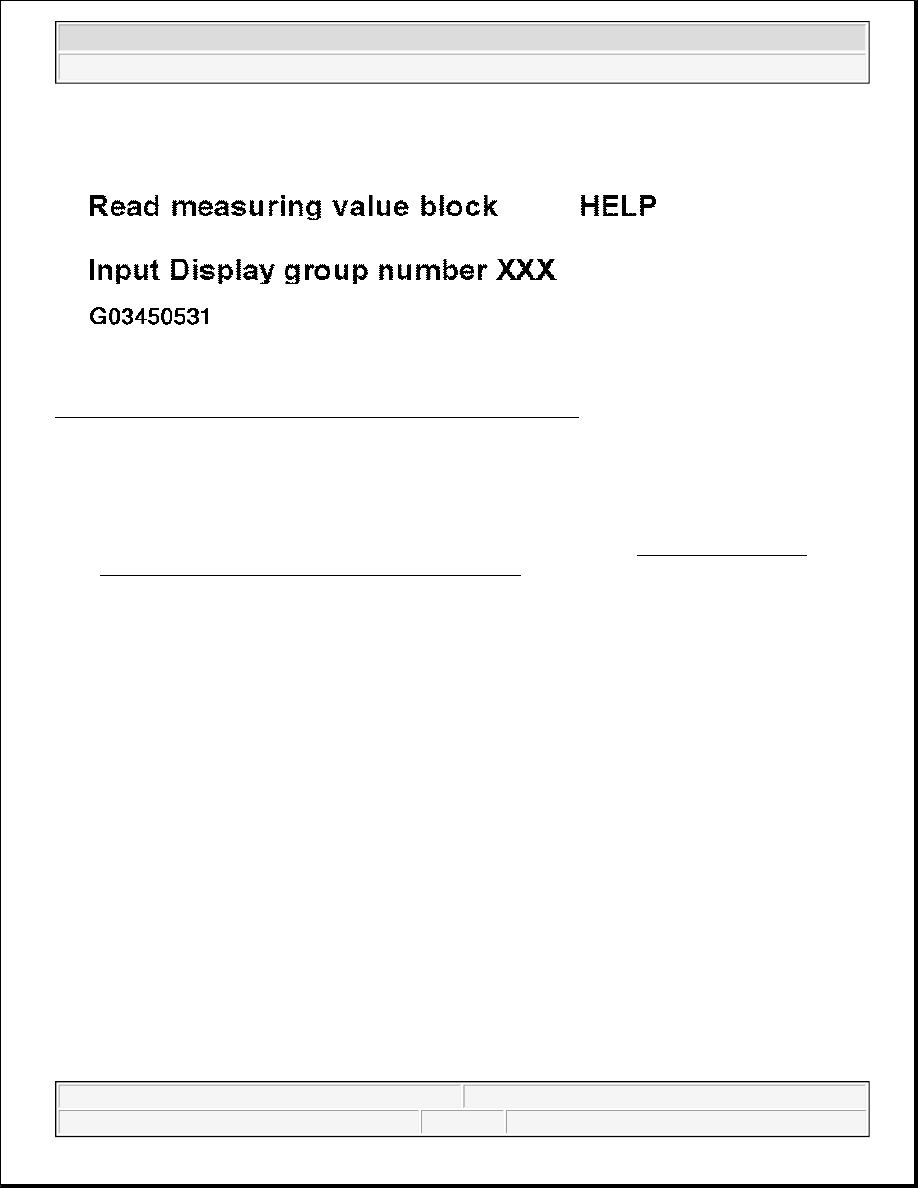

Fig. 71: Scan Tool Display - Intake Air Temperature Sensor (5 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -0- and -6- buttons to select Function 06: "End output".

z

Press -Q- button to enter input.

z

Switch OFF ignition.

z

Disconnect -G72- harness connector: Component locations overview. See DIESEL INJECTION
SYSTEM, COMPONENT LOCATIONS OVERVIEW



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



Fig. 72: Identifying IAT Sensor -G72- Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Measure resistance between sensor terminals 1 + 2.

Specification (see Fig. 73 ):

Scale A shows resistance values for temperature range 0 to 50 °C and scale B the values for temperature range
50 to 100 °C.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



Fig. 73: IAT Sensor Resistance Versus Temperature Range Graph
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Examples:



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle
