Volkswagen New Beetle. Manual - part 1332





Fig. 91: Identifying 10-Pin Fuel Temperature Sensor Connector Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Switch Fluke 83 multimeter to resistance range.

z

Measure resistance between connector terminals: 1 + 2 and 2 + 3.

z

Specification: 4.9 to 7.5ohm

If specification not obtained:

z

Replace Diesel injection pump. See DIESEL INJECTION PUMP, REMOVING AND
INSTALLING
 .

z

Display the Readiness code. See READINESS CODE, DISPLAYING .

If DTC memory was erased:



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



z

Set the readiness code. See READINESS CODE, SETTING .

If specification obtained:

z

Connect VAG1598/22 (or 1598/31) Test Box to ECM wiring harness.

Fig. 92: Connecting VAG1598/22 (Or 1598/31) Test Box To ECM Wiring Harness
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check wiring for open circuit between Test Box and harness connector using Wiring diagram.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



Fig. 93: Identifying 10-Pin Harness Connector Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Up to MY 1999

z

Terminal 1 + socket 56

z

Terminal 2 + socket 57

z

Terminal 3 + socket 64



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



From MY 2000

z

Terminal 1 + socket 108

z

Terminal 2 + socket 106

z

Terminal 3 + socket 99

z

Wire resistance: 1.5ohm maximum

z

Check wires for shorting to: one another, Ground and Battery +

z

Specification: INFINITY ohm

If wiring OK:

z

Replace Engine Control Module -J248-. See Engine Control Module (ECM), replacing .

z

Display the Readiness code. See READINESS CODE, DISPLAYING .

If DTC memory was erased:

z

Set the readiness code. See READINESS CODE, SETTING .

Quantity adjuster -N146-, checking

z

Press --> button.

Display will appear as shown:

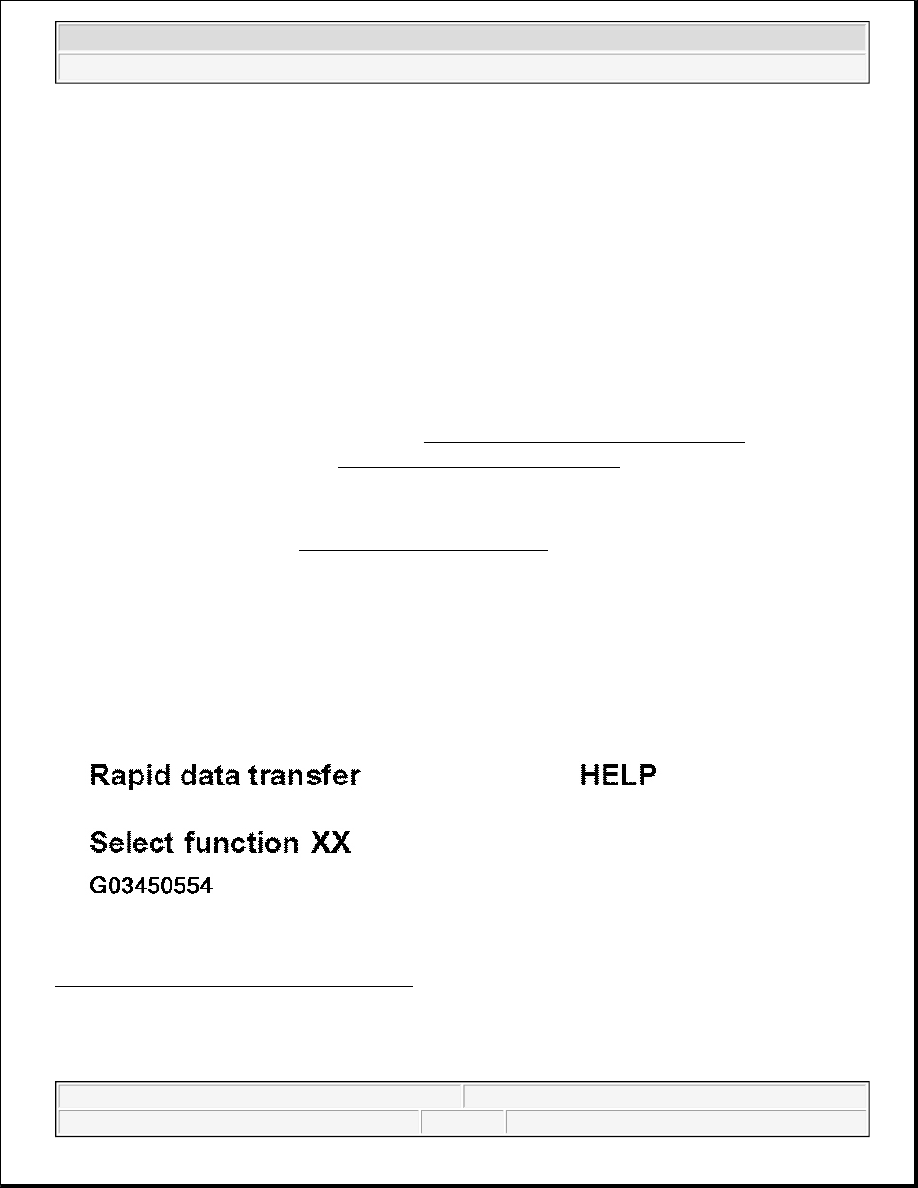

Fig. 94: Scan Tool Display - Quantity Adjuster
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -0- and -6- buttons to select Function 06: "End output".

z

Press -Q- button to enter input.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle
