Volkswagen New Beetle. Manual - part 1318





The BARO -F96- sensor is located in the Engine Control Module - Direct Injection System. The intake
manifold pressure sensor is a separate component and is located in the pipe between the charge air cooler and
intake manifold.

Special tools

z

VAG1551/1552 Scan Tool using VAG1551/3 Adapter cable

Test sequence

z

Connect VAG1551/1552 Scan Tool. See VAG1551/1552 SCAN TOOL, CONNECTING .

z

Switch ON ignition but do not start engine.

z

Press -0- and -1- buttons to select Address word 01: "Engine electronics"

Display will appear as shown (example only):

Fig. 35: Scan Tool Display - MAP Sensor & BARO Sensor (1 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press --> button.

Display will appear as shown:



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



Fig. 36: Scan Tool Display - MAP Sensor & BARO Sensor (2 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -0- and -8- buttons to select Function 08: "Read measuring value block".

z

Press -Q- button to enter input.

Display will appear as shown:

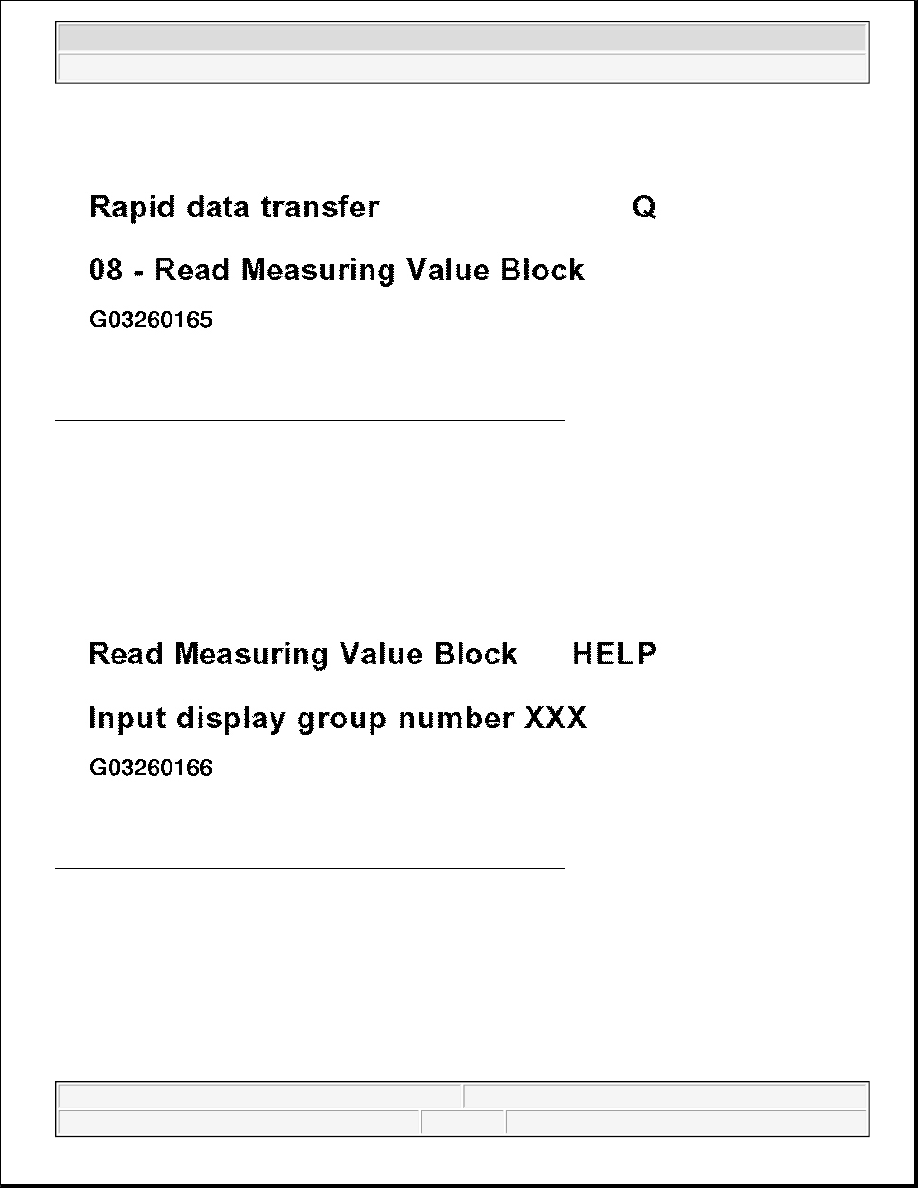

Fig. 37: Scan Tool Display - MAP Sensor & BARO Sensor (3 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -0-, -1- and -0- buttons to select "Display group 10".

0 mg/H 1027 mbar 1013 mbar 0.0 %

Compare Display zone 2 (Barometric Pressure (BARO) Sensor -F96-) with Display zone 3 (Manifold Absolute
Pressure (MAP) Sensor -G71-).



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



Fig. 38: Scan Tool Display - MAP Sensor & BARO Sensor (4 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Specification: pressures must be the same (+/-30 mbar)

If value in Display zone 2 deviates:

z

Replace Engine Control Module -J248-. See Engine Control Module (ECM), replacing .

If value in Display zone 3 deviates:

z

Press --> button.

Display will appear as shown:



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle





2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle
