Volkswagen New Beetle. Manual - part 1315





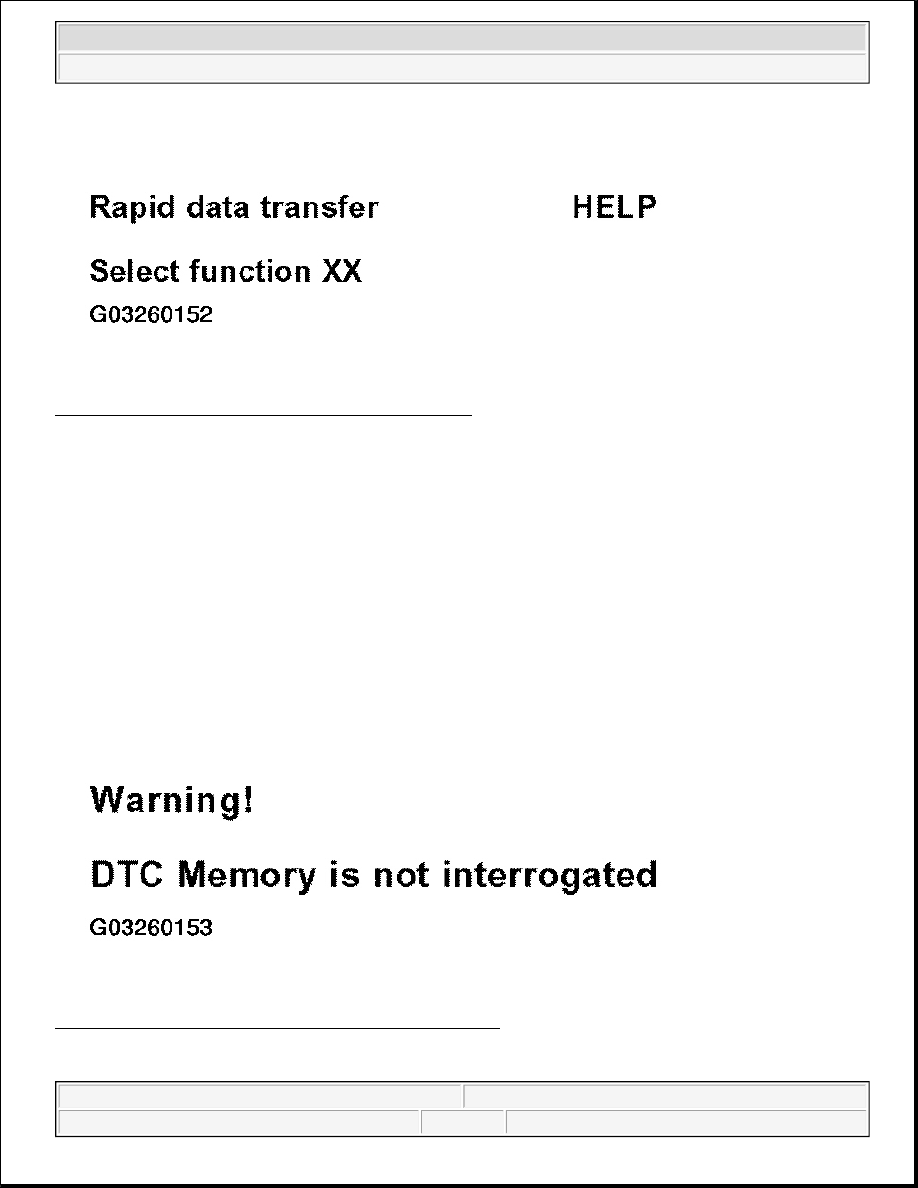

Fig. 21: Scan Tool Display - Start Of Injection (2 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -0- and -4- buttons to select Function 04: "Basic setting"

z

Press -Q- button to enter input.

Display will appear as shown

Fig. 22: Scan Tool Display - Start Of Injection (3 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -0-, -0-, -0- button to select "Display group 0".

z

Press -Q- button to enter input.

Display will appear as shown (1 to 10 = Display zones)



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



Fig. 23: Scan Tool Display - Start Of Injection (4 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check Engine Coolant Temperature in Display zone 7.

z

Specification: less than 73 (equates to 85 °C)

Continue check only when Engine Coolant Temperature is obtained:.

Start of injection (in Display zone 2) is dependent on the Fuel temperature in Display zone 9.

A. Display zone 2 Start of injection

B. Display zone 9 Fuel temperature

C. Specified range for Start of injection

Fig. 24: Specification Range For Start Of Injection Graph
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



Example:

Value 90 in Display zone 9 (B) corresponds to a numerical range from 35 to 74 in Display zone 2 (A).

If Start of injection is outside specification, adjust as follows:

z

Remove connecting line between charge air cooler and intake manifold.

z

Remove upper toothed belt guard.

z

Loosen two injection pump sprocket mounting bolts -1-.

Fig. 25: Locating Injection Pump Sprocket Mounting Bolts & Hub Nut
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Place 22 mm box wrench onto hub nut -2- to counter-hold pump shaft. DO NOT loosen hub nut.

z

Loosen 3rd injection pump sprocket mounting bolt and slightly turn pump shaft

z

Left = advance Start of injection

z

Right = retard Start of injection

z

Tighten new mounting bolts for injection pump sprocket.

z

20 Nm (15 ft lb)

NOTE:

If, when checking Start of injection, the specifications are within zone -C-, no
adjustment is required. After repairs, e.g. removing and installing injection
pump or adjusting timing, Start of injection must be set to the mean value
(dashed line) in zone -C-.

CAUTION: Do not loosen hub nut -2- for ANY reason. Otherwise, the Diesel injection

pump basic setting will be altered and cannot be reset with normal
workshop equipment.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



If injection pump has not previously been removed and installed

z

Screw in new injection pump sprocket mounting bolts one after the other.

z

Observe values in zone 2 and adjust again, if necessary, until the mean value for specification zone -C- is
displayed.

z

Tighten injection pump sprockets 1/ 4 turn (90 °) additional.

z

Press --> button.

Display will appear as shown:

Fig. 26: Scan Tool Display - Start Of Injection (5 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

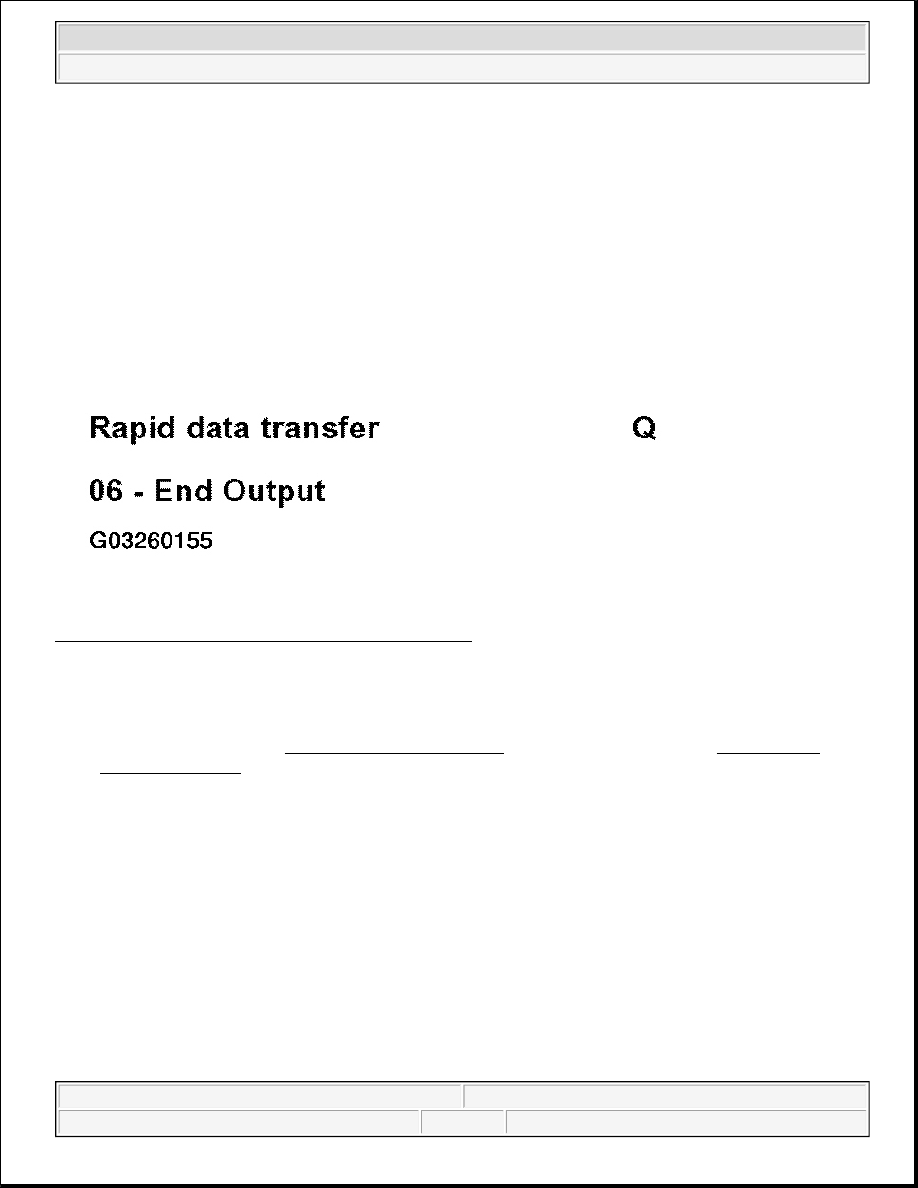

Press -0- and -6- buttons to select Function 06: "End output".

z

Press -Q- button to enter input.

z

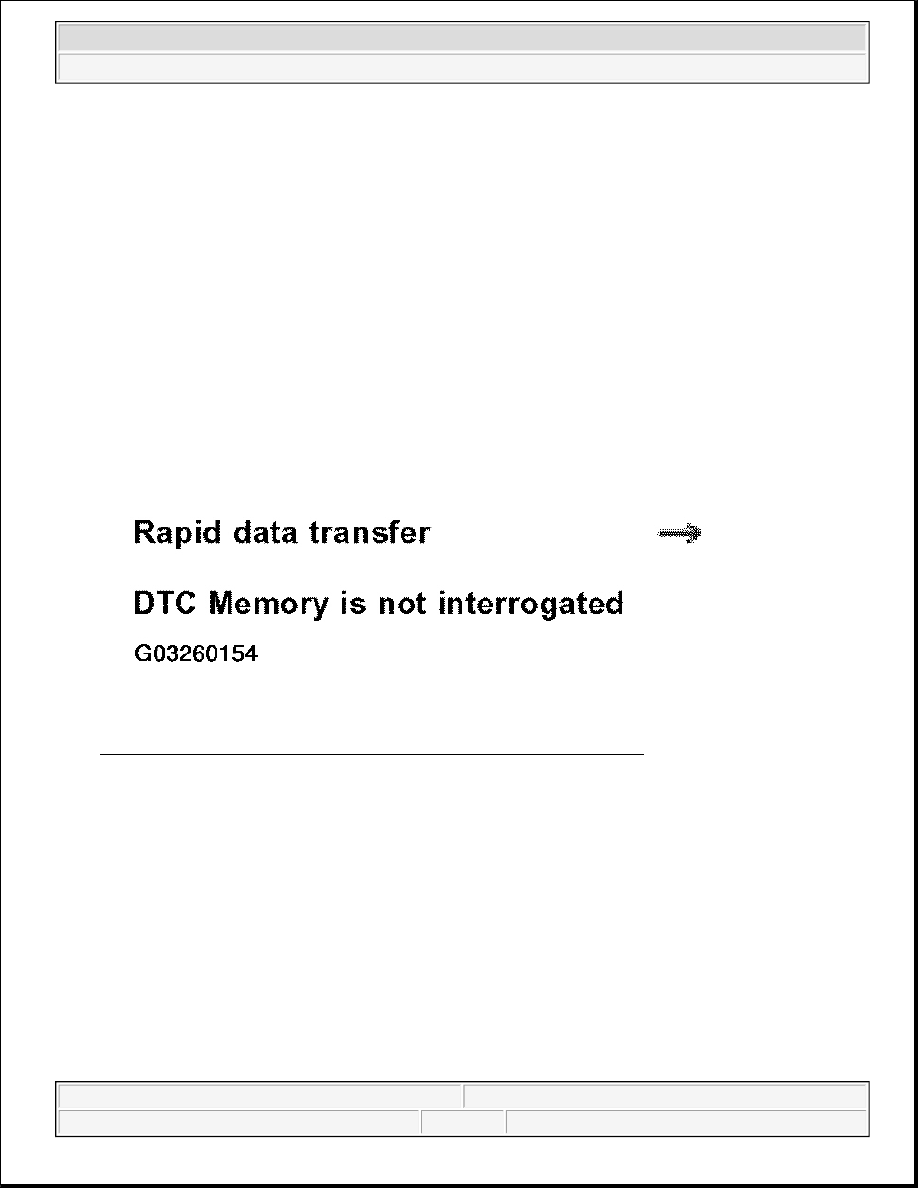

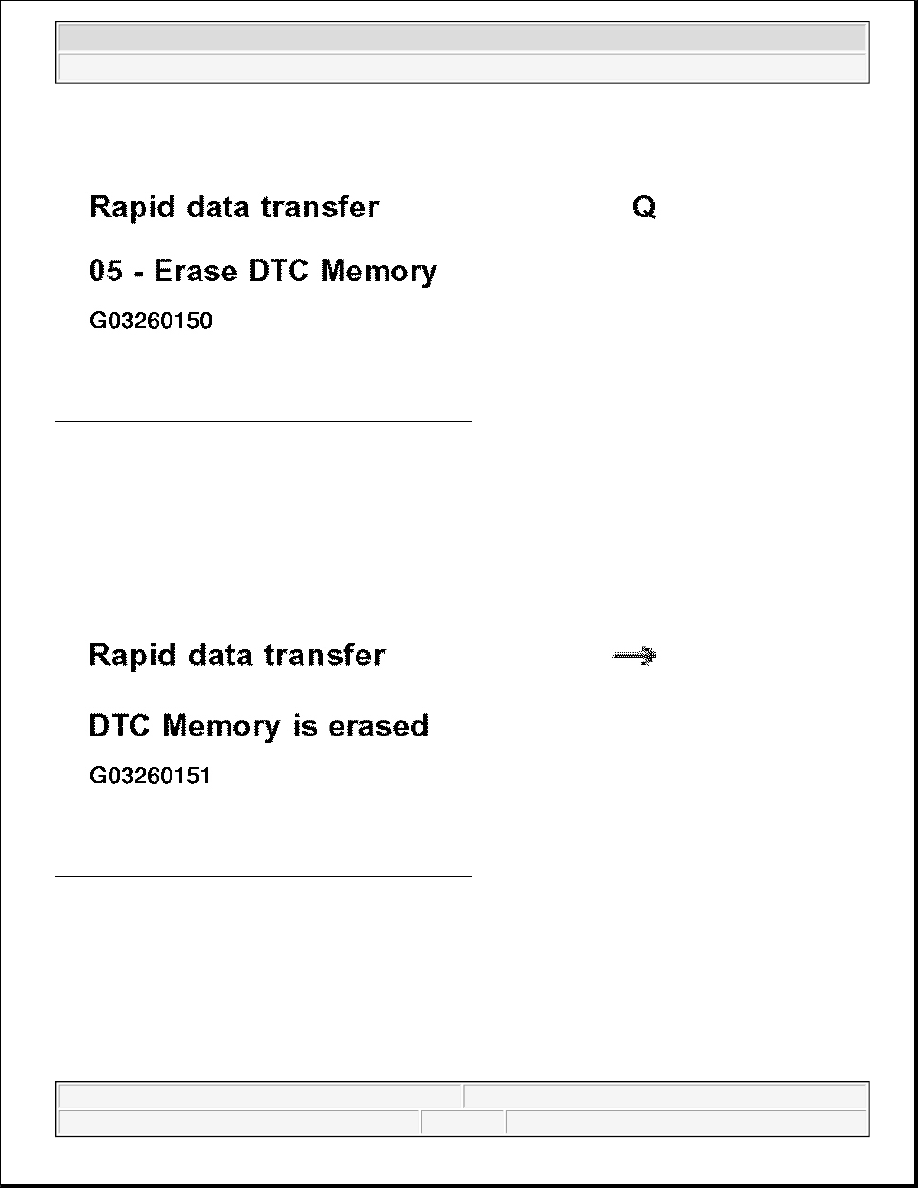

Erase DTC memory. See DTC MEMORY, ERASING . Set the readiness code. See READINESS
CODE, SETTING
 .

Fuel injectors, removing and installing

Special tools

z

VAG1331 Torque wrench (5 to 50 Nm) or equivalent



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle
