Volkswagen New Beetle. Manual - part 1288





z

Check for secure fitting

4. Secondary Air Injection (AIR) Pump Relay -J299-*

5. O-ring

z

Replace if damaged

6. Pressure hose

z

Check for secure fitting

z

To disengage, squeeze together at front

7. Intake hose

z

Check for secure fitting

z

To disengage, squeeze together at front

z

from upper air filter housing. See item 6 in AIR FILTER, DISASSEMBLING AND
ASSEMBLING (VEHICLES WITH ENGINE CODE AEG, AVH, AZG)
 .

8. Secondary Air Injection (AIR) Pump Motor -V101-*

z

Checking. See SECONDARY AIR INJECTION (AIR) PUMP MOTOR, CHECKING .

9. 10 Nm

10. Bracket

z

For Secondary Air Injection (AIR) pump motor

z

secured to lower part of intake manifold at bottom

11. Connector

z

2-pin

z

For Secondary Air Injection (AIR) pump motor

12. 25 Nm

13. Lower part of intake manifold

14. to connecting piece at exhaust manifold

Vehicles with engine code AEG:

z

See item 7 .

Vehicles with engine code AVH; AZG:

z

See item 7 .

15. 30 Nm

16. Connection tube

17. Connecting piece, 35 Nm

18. Heat shield

19. Seal

z

replace

20. Combination valve



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Exhaust System Emission Controls, 2.0L Generic Scan Tool - New Beetle



z

Checking. See COMBINATION VALVE, CHECKING .

Vehicles with engine code AEG as of 06.99:

z

without vacuum connection to Secondary Air Injection (AIR) solenoid valve -N112-

Fig. 8: Identifying Parts Of Secondary Air Injection System (Vehicles With Engine Code AEG, AVH,
AZG)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Parts of Secondary Air Injection (AIR) system, removing and installing (Vehicles with engine code BDC)

1. Combination valve

z

Checking. See COMBINATION VALVE, CHECKING .

z

To replace, remove warm air collector plate

2. O-ring

z

Replace if damaged

3. Pressure hose

z

Check for secure fitting

z

to disengage, squeeze together at front

4. Intake hose

z

Check for secure fitting

z

To disengage, squeeze together at front

5. To upper part of air filter

NOTE:

Components marked with * are tested via On Board Diagnostic (OBD). See
DIAGNOSTIC MODE 3: CHECK DTC MEMORY .

NOTE:

The following list refers to Fig. 9 .



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Exhaust System Emission Controls, 2.0L Generic Scan Tool - New Beetle



z

See item 3 in AIR FILTER, DISASSEMBLING AND ASSEMBLING (VEHICLES WITH
ENGINE CODE BDC)
 .

6. Secondary Air Injection (AIR) Pump Motor -V101-*

z

Checking. See SECONDARY AIR INJECTION (AIR) PUMP MOTOR, CHECKING .

z

Activation via Secondary Air Injection (AIR) Pump Relay -J299-*. See Secondary Air Injection
(AIR) pump relay -J299-* (arrow)
 .

7. Connector

z

2-pin

z

For Secondary Air Injection (AIR) pump motor

8. 10 Nm

9. 25 Nm

10. 15 Nm

11. Bracket

z

For Secondary Air Injection (AIR) pump motor

z

secured to lower part of intake manifold at bottom

12. Lower part of intake manifold

13. 10 Nm

14. to connecting piece at exhaust manifold

z

See item 7 .

15. 30 Nm

16. Connection tube

17. Connecting piece, 35 Nm

18. Warm air collector plate

z

With intake manifold support

z

With mount for combination valve

19. Seal

z

replace



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Exhaust System Emission Controls, 2.0L Generic Scan Tool - New Beetle



Fig. 9: Identifying Parts Of Secondary Air Injection System (Vehicles With Engine Code BDC)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Secondary Air Injection (AIR) pump relay -J299-* (arrow)

In protective housing for relays in engine compartment (inserted in wiring beside master brake cylinder).

Fig. 10: Identifying Secondary Air Injection (Air) Pump Relay -J299-
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Secondary Air Injection (AIR) system, checking for proper seal

Function test

NOTE:

z

Remove battery Ground (GND) strap if tools are necessary for removal of
relays or control modules from the relay carrier.

z

Obtain radio code for radios with anti-theft coding before disconnecting
battery.

z

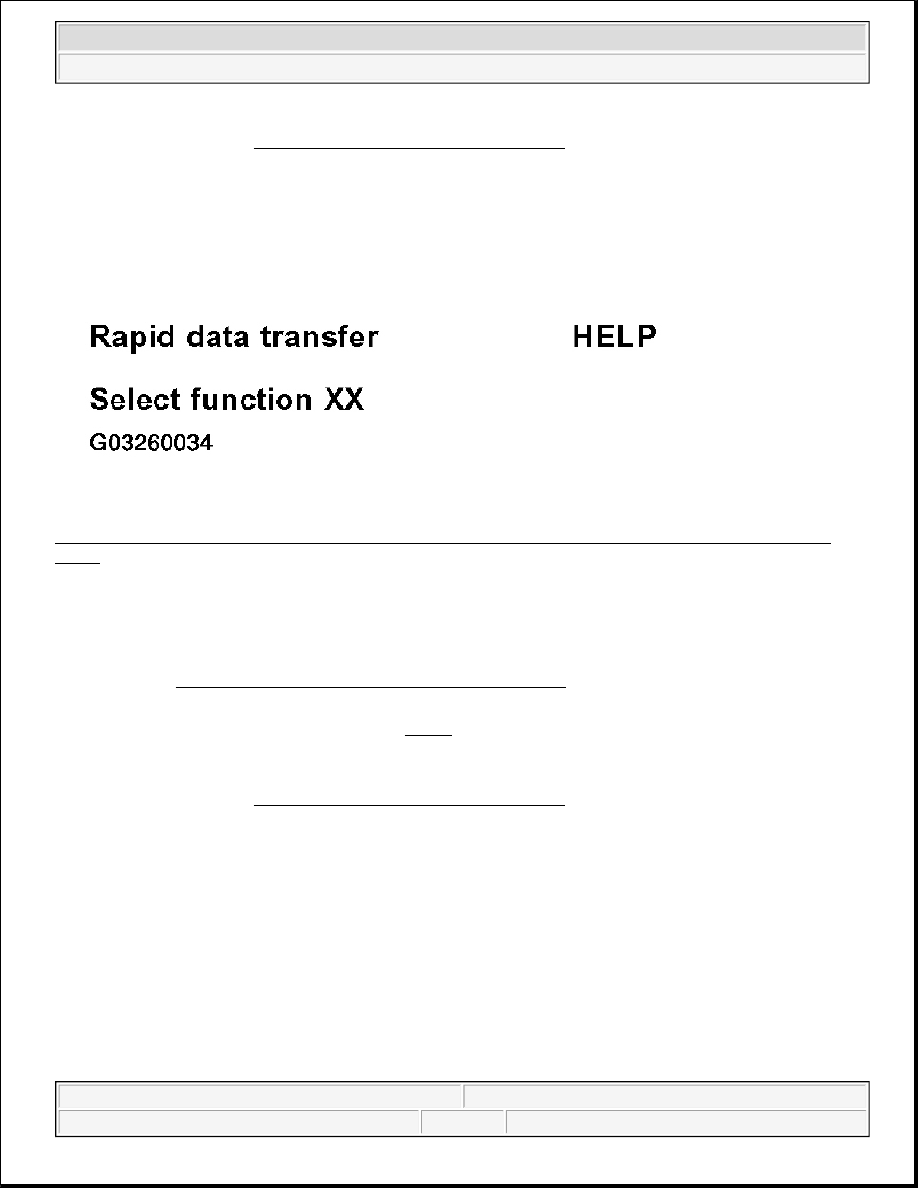

Checking relay activation:



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Exhaust System Emission Controls, 2.0L Generic Scan Tool - New Beetle
