Volkswagen New Beetle. Manual - part 1268





Fig. 25: Identifying Special Tools Display (3 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Display in field 2 must fluctuate every 10 seconds between EGR active or EGR inactive (n.aktiv).

Displays in display zones 3 and 4 must fluctuate within following control range:

See Mass Air Flow (MAF) Sensor -G70-, Checking .

If EGR NOT active:

Specification display zone 3: 420 to 560 mg/stroke

Specification display zone 4: 0 to 5%

If EGR active:

Specification display zone 3: 170 to 340 mg/stroke

Specification display zone 4: 95 to 100%

If specifications not obtained:

z

Check mechanical EGR valve. See EXHAUST GAS RECIRCULATION (EGR) VALVE,
CHECKING
 .

z

Check vacuum hoses. See VACUUM HOSE CONNECTIONS, DIAGRAM .

z

Check EGR Vacuum Regulator solenoid valve as follows:

NOTE:

If a constant value of 550 mg/H is indicated in display zone 3, check Mass Air
Flow sensor.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - 1.9L 4-Cyl. - ALH, New Beetle



z

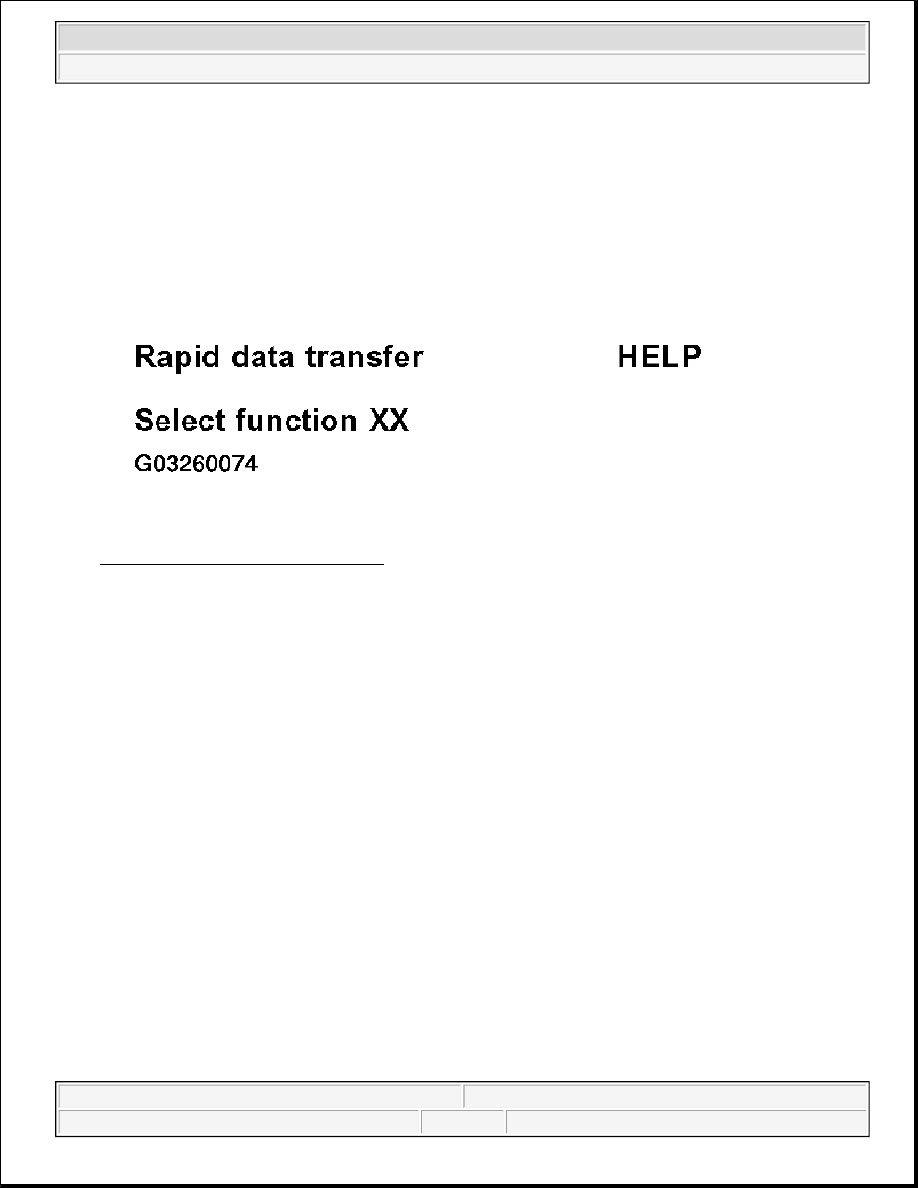

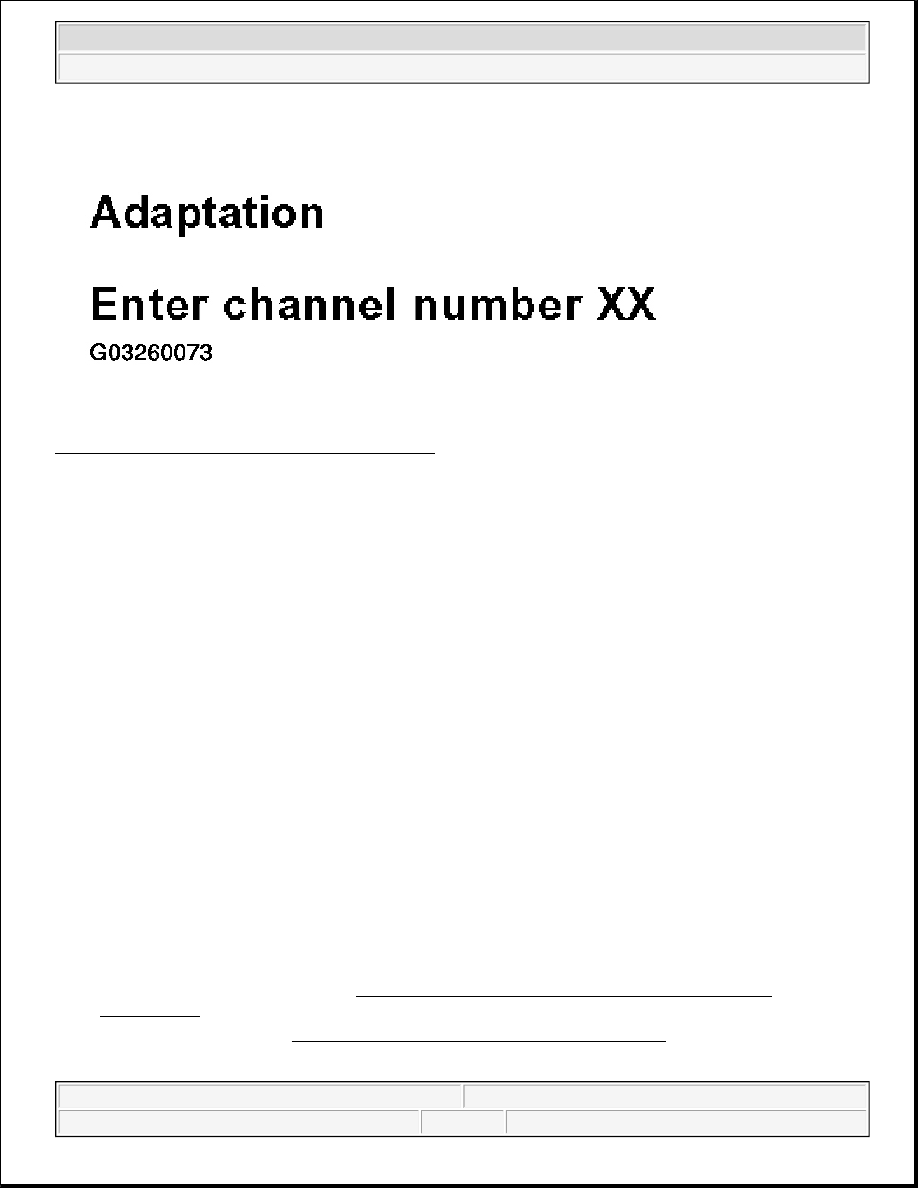

Press --> button.

z

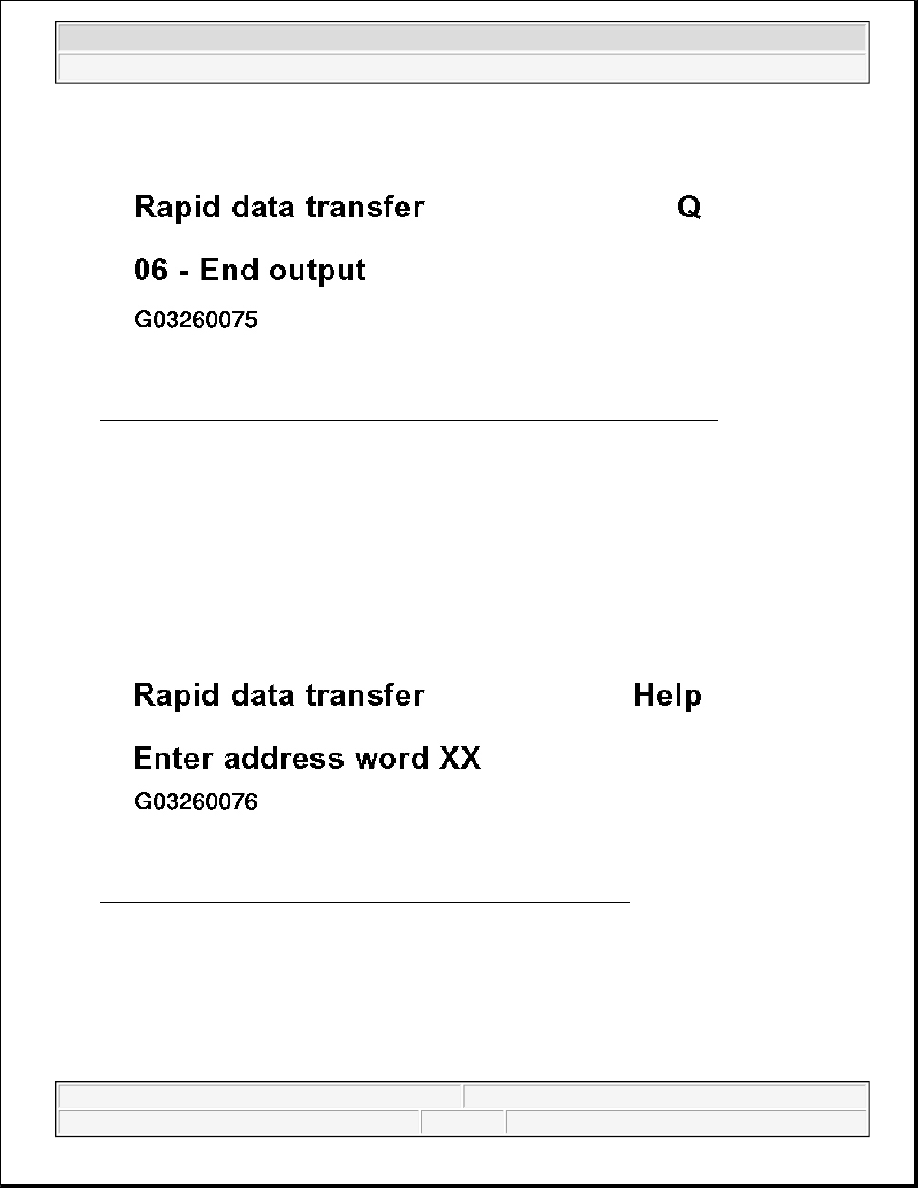

Press 0 and 6 buttons to select Function 06: "End transfer"

z

Press Q button to enter input.

z

Switch ignition off.

z

Disconnect harness connector -1- from EGR valve -2-.

Fig. 26: Locating Harness Connector
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Measure resistance across valve.

Specification: 14 to 20 ohms

If specification not obtained:

z

Replace EGR Vacuum Regulator solenoid valve -N18-.

If specification obtained:

z

Switch ignition on.

z

Measure supply voltage at valve connector terminal 1 and at engine Ground.

NOTE:

At room temperature, resistance lies in the lower tolerance range and in
the upper range at operating temperature.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - 1.9L 4-Cyl. - ALH, New Beetle



Fig. 27: Identifying EGr Vacuum Regulator Solenoid Valve Connector Terminal
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Specification: approx. battery voltage

If specification not obtained:

z

Switch ignition off.

z

Connect Test Box VAG 1598/22 to ECM wiring harness.

Fig. 28: Connecting Test Box VAG 1598/22 To ECM Wiring Harness
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check wiring for open circuit between Test Box and harness connector using wiring diagram.

Up to MY 1999

z

Socket 1 + terminals 2 + 28

z

Socket 2 + terminal 29



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - 1.9L 4-Cyl. - ALH, New Beetle



From MY 2000

z

Socket 1 + terminals 1 + 2

z

Socket 2 + terminal 61

Wire resistance: 1.5 ohms maximum

z

Check wires for short to one another, to vehicle Ground and to battery Positive (+).

Specification: "INFINITE" ohms

If wiring OK:

z

Replace Diesel Direct Fuel Injection (DFI) Engine Control Module (ECM) -J248:

See Engine Control Module (ECM), Replacing .



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - 1.9L 4-Cyl. - ALH, New Beetle
