Volkswagen New Beetle. Manual - part 1246





Fig. 25: Identifying Special Tools Display (3 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Display in field 2 must fluctuate every 10 seconds between EGR active or EGR inactive (n.aktiv).

Displays in display zones 3 and 4 must fluctuate within following control range:

See Mass Air Flow (MAF) Sensor -G70-, Checking .

If EGR NOT active:

Specification display zone 3: 420 to 560 mg/stroke

Specification display zone 4: 0 to 5%

NOTE:

If a constant value of 550 mg/H is indicated in display zone 3, check Mass Air
Flow sensor.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - 1.9L 4-Cyl. - ALH, New Beetle



If EGR active:

Specification display zone 3: 170 to 340 mg/stroke

Specification display zone 4: 95 to 100%

If specifications not obtained:

z

Check mechanical EGR valve. See EXHAUST GAS RECIRCULATION (EGR) VALVE,
CHECKING
 .

z

Check vacuum hoses. See VACUUM HOSE CONNECTIONS, DIAGRAM .

z

Check EGR Vacuum Regulator solenoid valve as follows:

z

Press --> button.

z

Press 0 and 6 buttons to select Function 06: "End transfer"

z

Press Q button to enter input.

z

Switch ignition off.

z

Disconnect harness connector -1- from EGR valve -2-.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - 1.9L 4-Cyl. - ALH, New Beetle

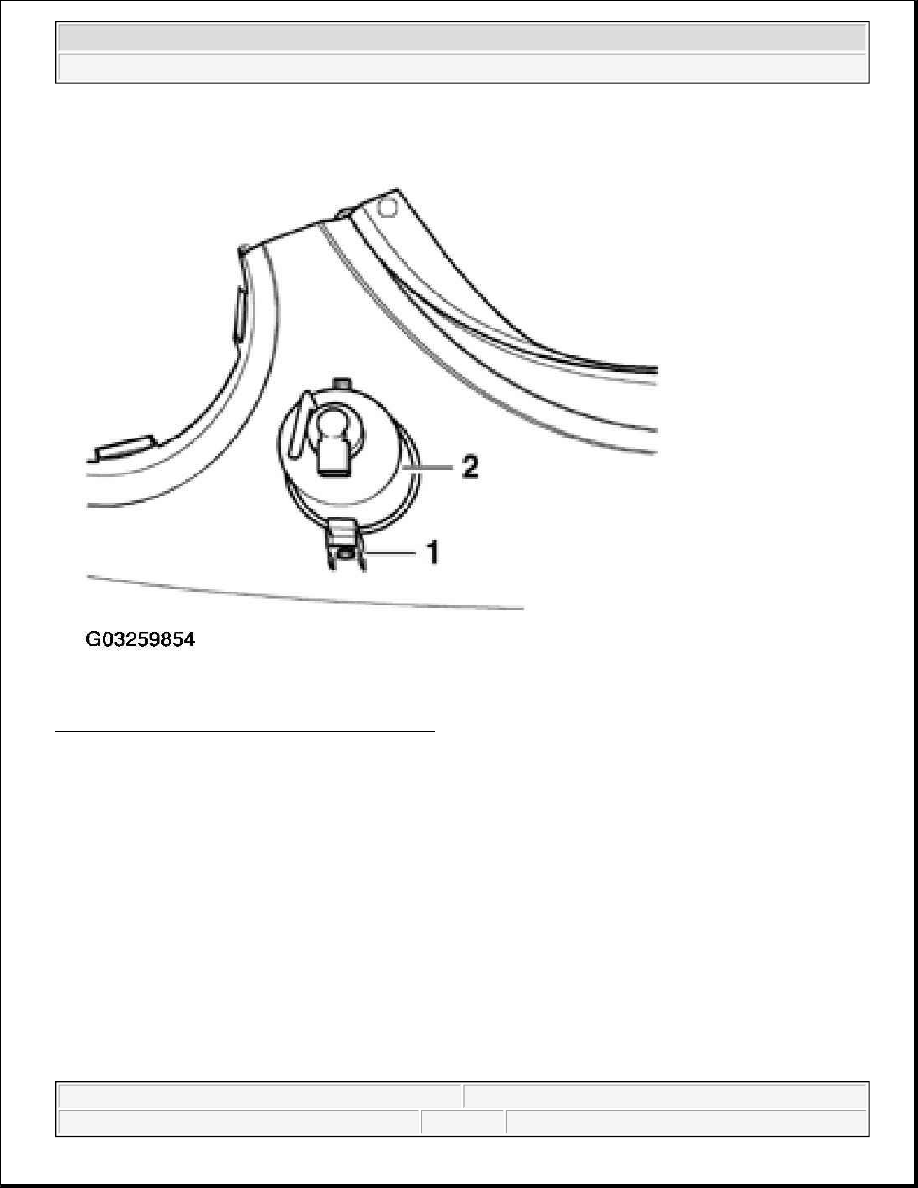

Fig. 26: Locating Harness Connector
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Measure resistance across valve.

Specification: 14 to 20 ohms

If specification not obtained:

z

Replace EGR Vacuum Regulator solenoid valve -N18-.

If specification obtained:

z

Switch ignition on.

NOTE:

At room temperature, resistance lies in the lower tolerance range and in
the upper range at operating temperature.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - 1.9L 4-Cyl. - ALH, New Beetle



z

Measure supply voltage at valve connector terminal 1 and at engine Ground.

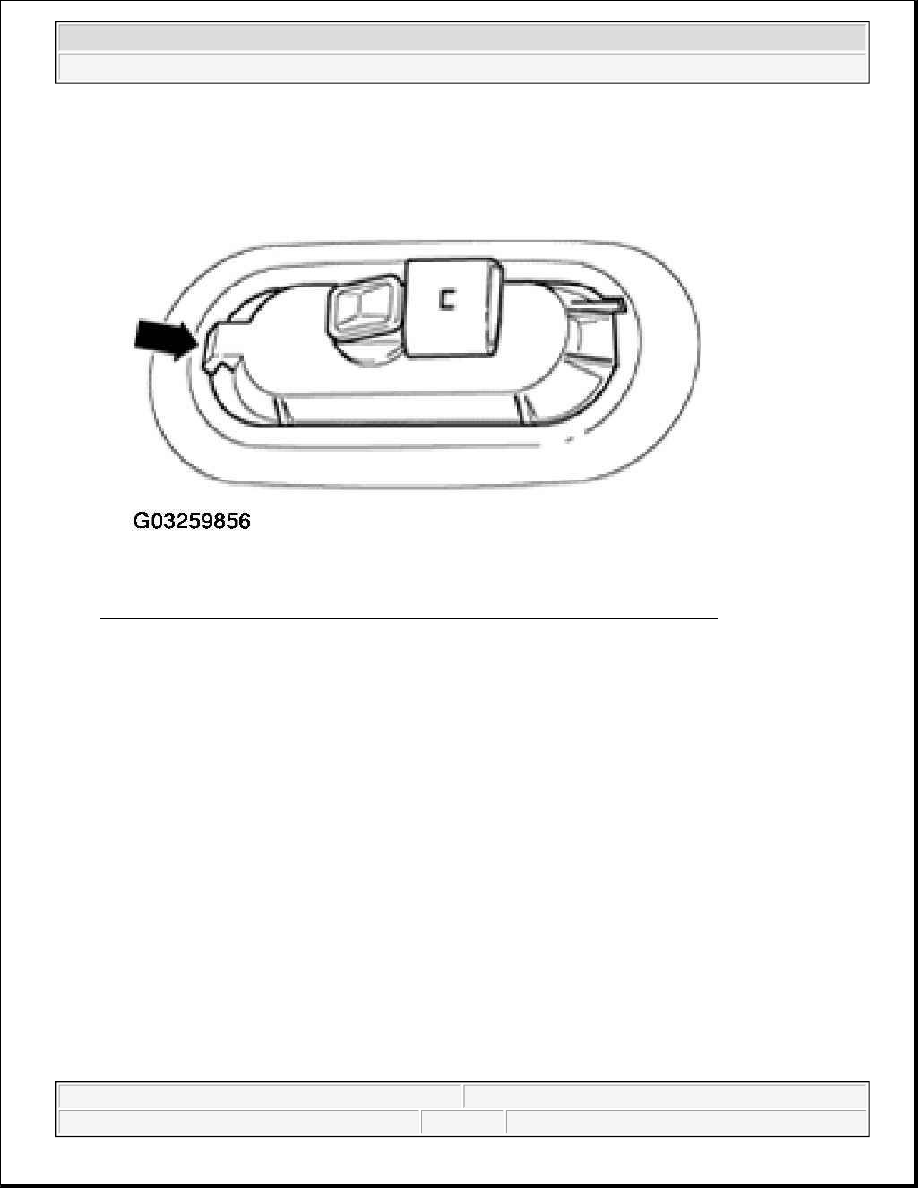

Fig. 27: Identifying EGr Vacuum Regulator Solenoid Valve Connector Terminal
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Specification: approx. battery voltage

If specification not obtained:

z

Switch ignition off.

z

Connect Test Box VAG 1598/22 to ECM wiring harness.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - 1.9L 4-Cyl. - ALH, New Beetle
