z

Engine oil temperature min. 80° C

Test sequence

The charge air pressure is measured under full load, while driving or on a rolling road.

Observe applicable safety precautions when carrying out a road test. See SAFETY PRECAUTIONS .

z

Connect VAG 1551 Scan Tool (VAG 1552). Start engine and select engine electronics control module
with "Address word" 01. Connecting scan tool and selecting engine control module:

See V.A.G 1551 Scan Tool, Connecting And Selecting Engine Control Module

Indicated on display:



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - New Beetle, 1.8L (APH, AWV & AWP)



Fig. 12: V.A.G 1551 Scan Tool Display - Checking Charge Air Pressure System (1 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

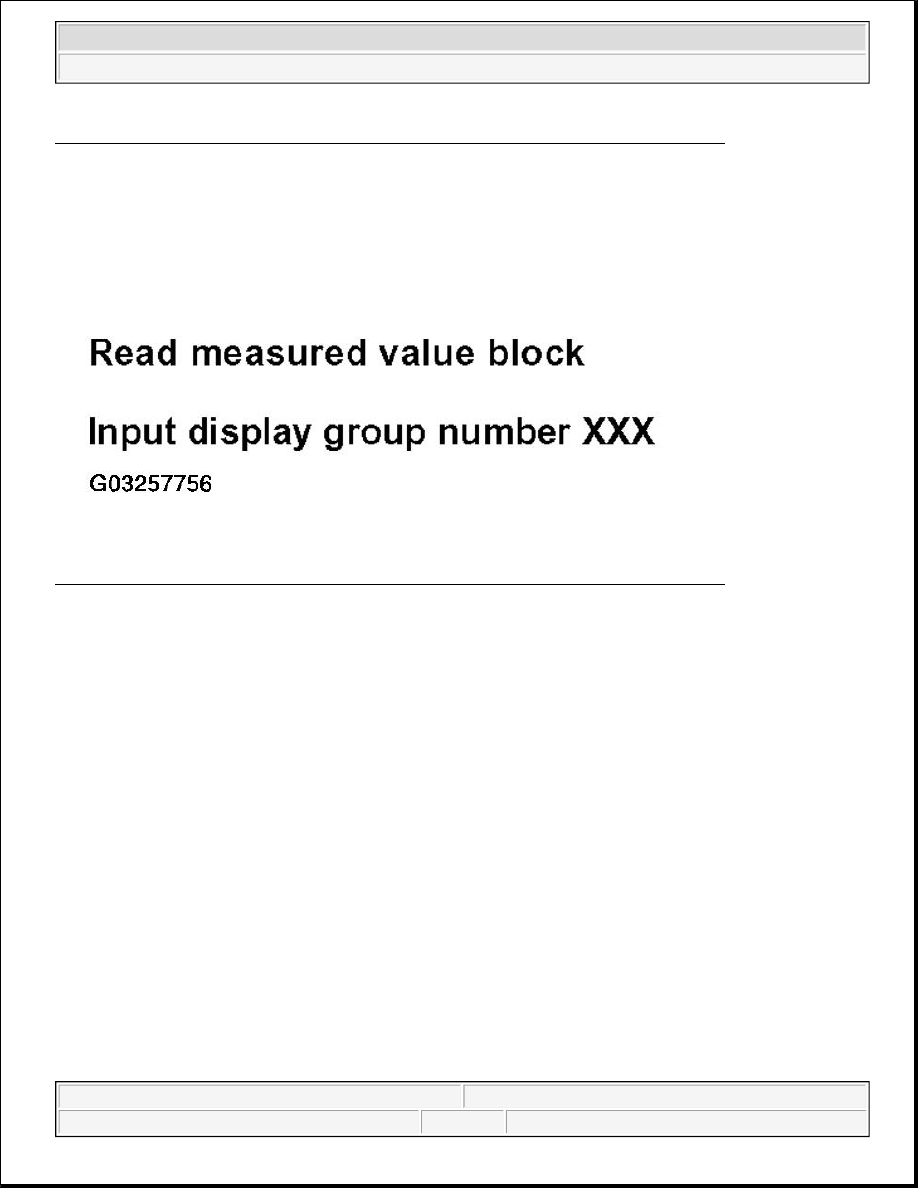

Press buttons -0- and -8- for function "Read measured value block" and confirm entry with -Q- button.

Indicated on display:

Fig. 13: V.A.G 1551 Scan Tool Display - Checking Charge Air Pressure System (2 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -1-, -1- and -4- for "Display group number 114" and confirm entry with -Q- button.

Indicated display: (1 to 4 = Display zones)



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - New Beetle, 1.8L (APH, AWV & AWP)



Fig. 14: V.A.G 1551 Scan Tool Display - Checking Charge Air Pressure System (3 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check duty cycle of Wastegate Bypass Regulator Valve (N75) in display zone 4 (at wide open throttle
between 1800 to 2300 RPM) during a test drive or on a rolling road.

Specification: 5.0...95.0%

If the specification is obtained:

z

Change to display group 115 as follows:

VAG 1551: press button 3

VAG 1552: press button "UPARROW"

Indicated display: (1 to 4 = Display zones)



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - New Beetle, 1.8L (APH, AWV & AWP)



Fig. 15: V.A.G 1551 Scan Tool Display - Checking Charge Air Pressure System (4 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check charge pressure (actual value) at wide open throttle in display zone 4:

On rolling road

In 3rd gear or in 2nd driving range

During test drive

Vehicles with manual transmission.

z

Accelerate in 2nd gear with wide open throttle.

Vehicles with automatic transmission.

z

Manually select drive mode 3 and accelerate vehicle from a low speed at Wide Open Throttle (WOT,
without Kick-Down).

Engine code AWV

z

Press print button between 1800 to 2300 RPM and read charge air pressure actual value in display zone 4.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - New Beetle, 1.8L (APH, AWV & AWP)
