Ensure ignition is off. Reconnect horn/air bag clockspring connector. Reconnect passenger air bag connector.
Reconnect negative battery cable. System is now activated. Perform SYSTEM OPERATION CHECK .

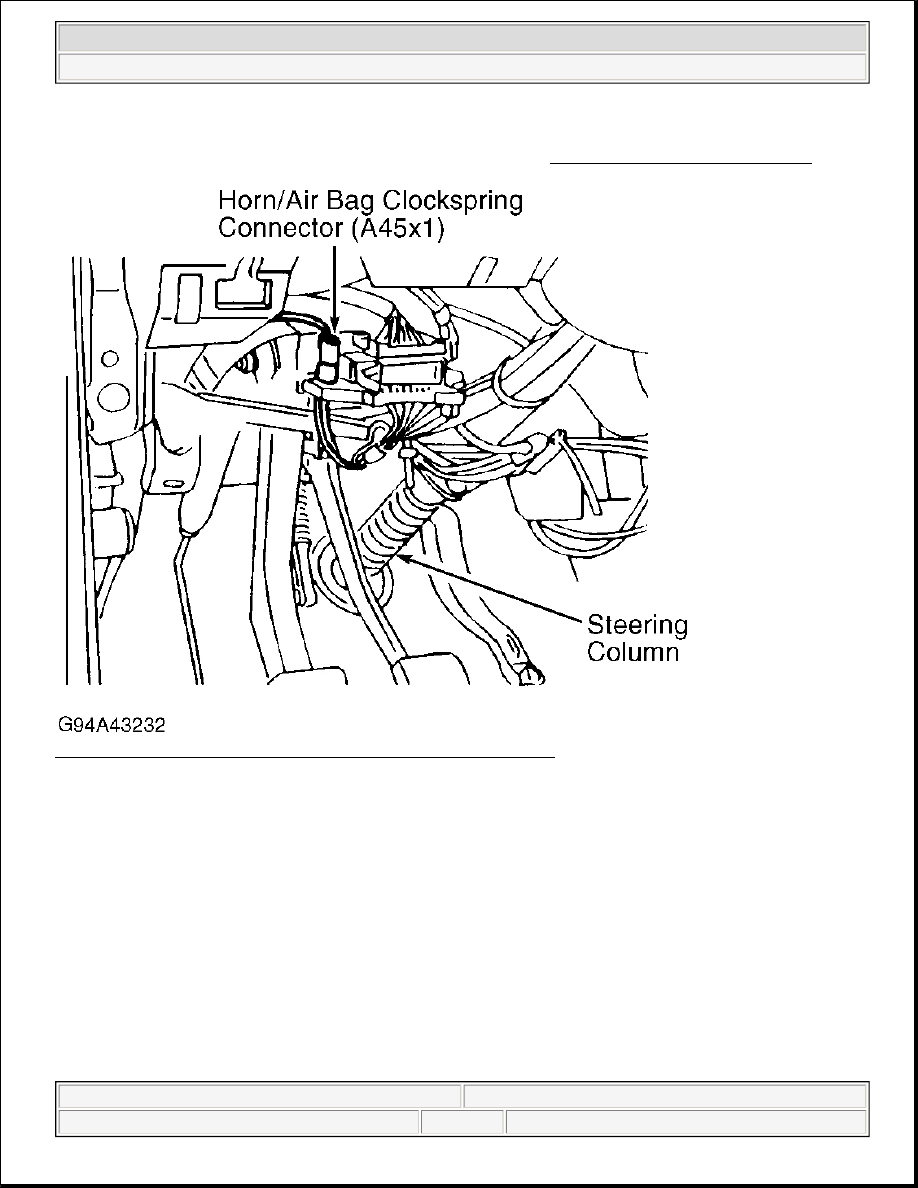

Fig. 30: Locating Air Bag Clockspring Connector (C230 & C280)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA



1997 Lexus SC 300

GENERAL INFORMATION Air Bag Deactivation Procedures



Helpmelearn Repair Manuals



Wednesday, January 18, 2006 7:48:26 PM

Page 47

© 2004 Mitchell Repair Information Company, LLC.

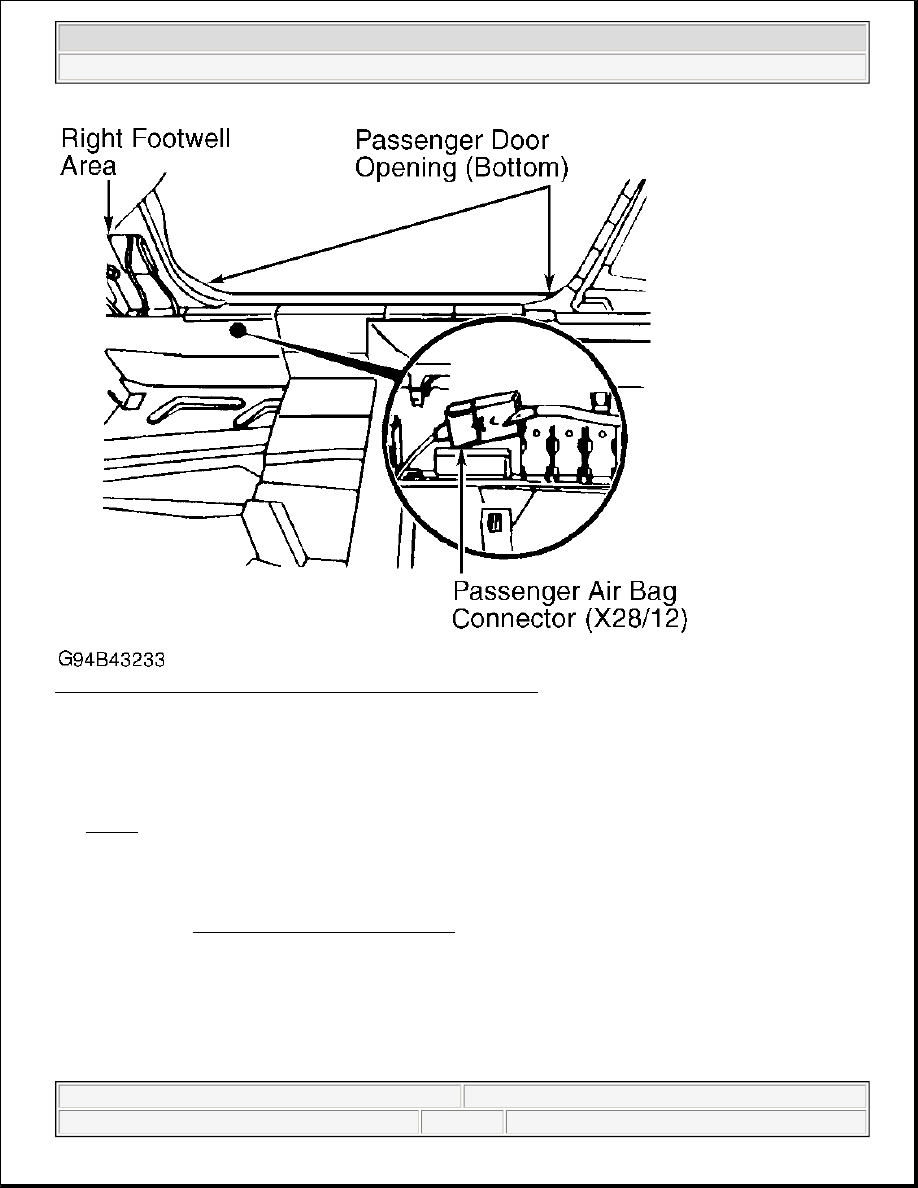

Fig. 31: Locating Passenger Air Bag Connector (C230 & C280)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA

Disabling System (E300D, E300DT, E320, E420 & E430)

Turn ignition off and remove ignition key. Disconnect and shield negative battery cable. Remove passenger foot
mat. Remove passenger footrest. Disconnect SRS system connector (X29/9) located at passenger footwell area.
See Fig. 32 . System is now disabled.

Activating System

Ensure ignition is off. Reconnect SRS system connector. Reconnect negative battery cable. System is now
activated. Perform SYSTEM OPERATION CHECK



1997 Lexus SC 300

GENERAL INFORMATION Air Bag Deactivation Procedures



Helpmelearn Repair Manuals



Wednesday, January 18, 2006 7:48:26 PM

Page 48

© 2004 Mitchell Repair Information Company, LLC.

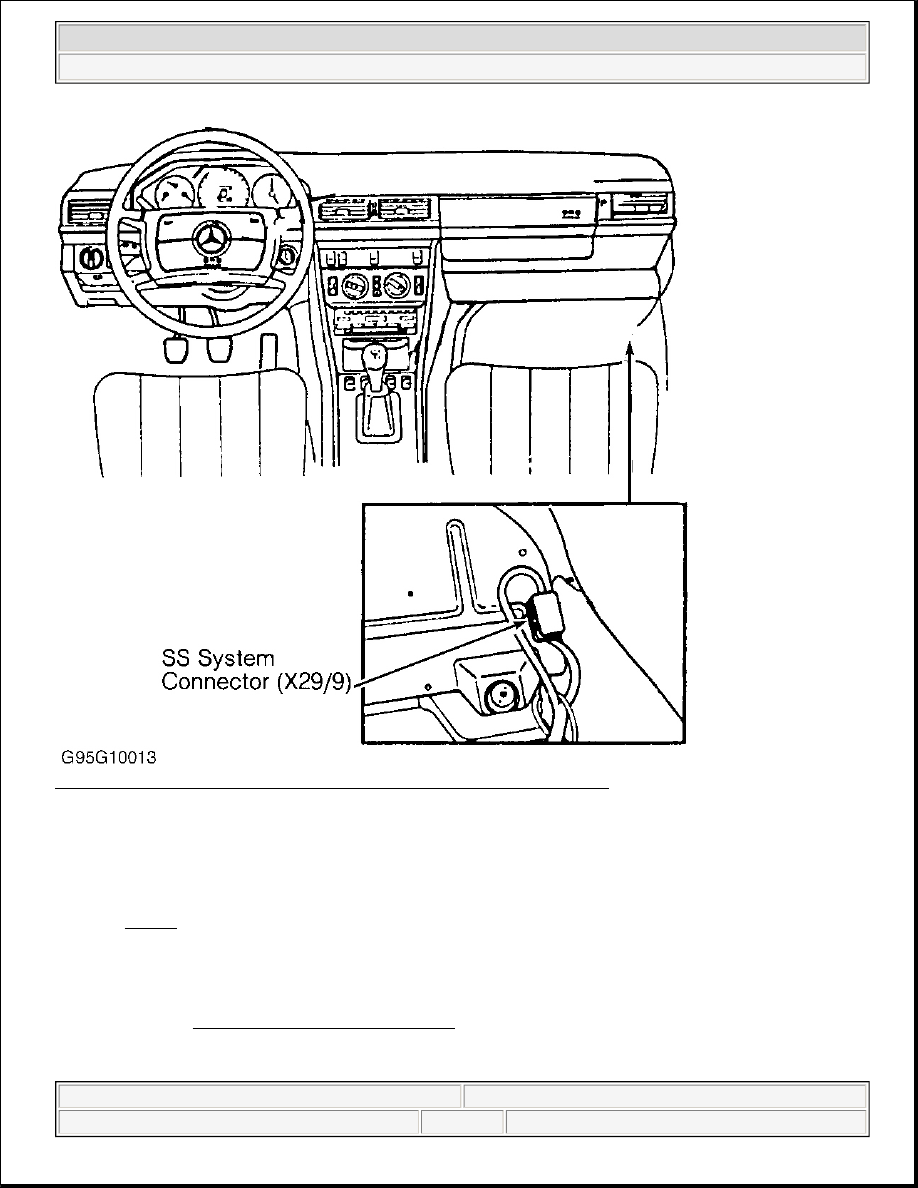

Fig. 32: Locating SRS Connector (E300D, E300DT, E320, E420 & E430)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA

Disabling System (S320, S420 & S500)

Turn ignition off and remove ignition key. Disconnect and shield negative battery cable. Remove passenger foot
mat. Remove passenger footrest. Disconnect Red SRS system connector (X11/13) located at passenger footwell
area. See Fig. 33 . System is now disabled.

Activating System

Ensure ignition is off. Reconnect Red SRS system connector. Reconnect negative battery cable. System is now
activated. Perform SYSTEM OPERATION CHECK



1997 Lexus SC 300

GENERAL INFORMATION Air Bag Deactivation Procedures



Helpmelearn Repair Manuals



Wednesday, January 18, 2006 7:48:26 PM

Page 49

© 2004 Mitchell Repair Information Company, LLC.

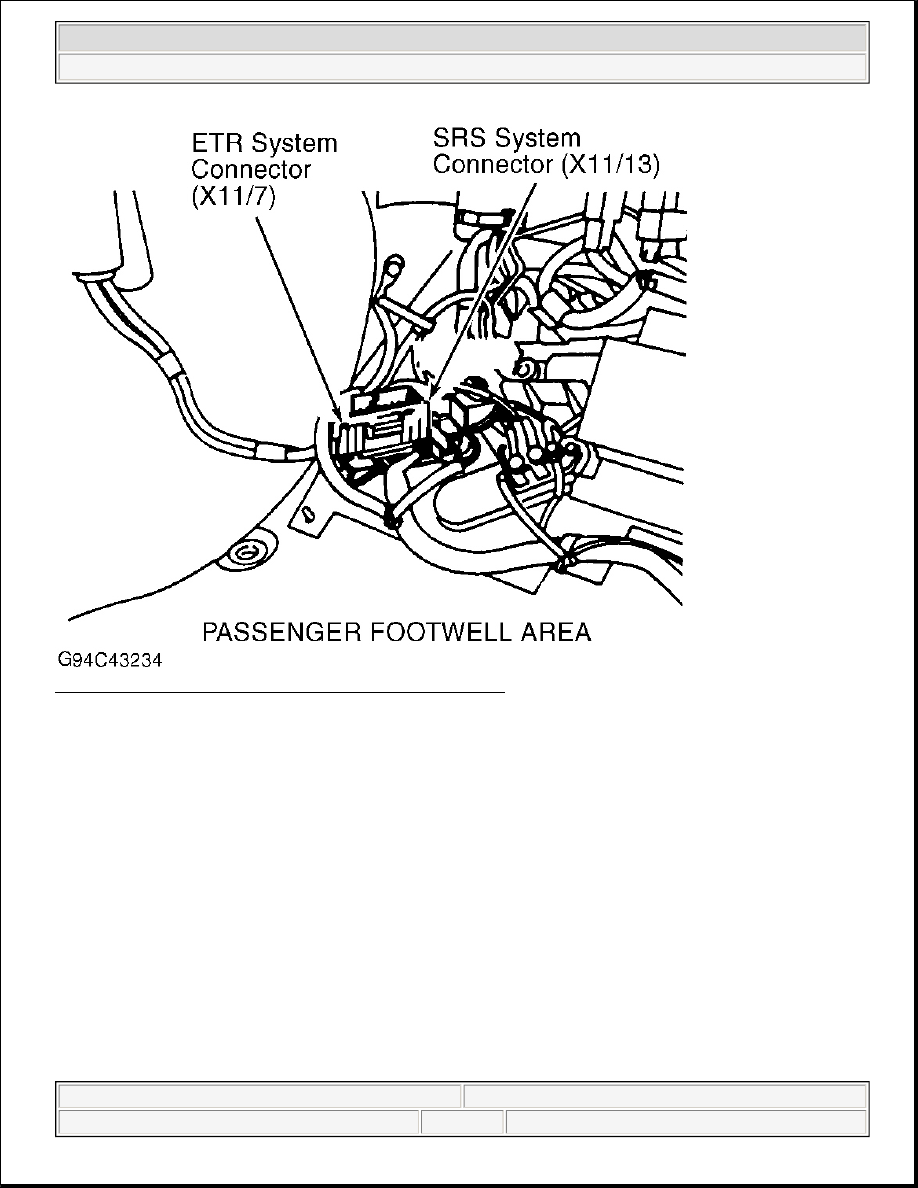

Fig. 33: Locating Red SRS Connector (S320, S420 & S500)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA

MITSUBISHI

SYSTEM OPERATION CHECK

Turn ignition on. SRS warning light on instrument panel should come on for about 7 seconds then turn off. This
indicates SRS is functioning properly. If SRS warning light does not come on, stays on, or comes on while
driving, SRS is malfunctioning and needs repair.

SERVICE PRECAUTIONS

Observe the following precautions when working with SRS:

z

Disable SRS before servicing any SRS or steering column component. Failure to do this may result in
accidental air bag deployment and possible personal injury.

z

Wait at least ONE MINUTE after disabling air bag system before servicing vehicle. Air bag system
maintains enough voltage to deploy air bags for ONE MINUTE after disconnecting battery.



1997 Lexus SC 300

GENERAL INFORMATION Air Bag Deactivation Procedures



Helpmelearn Repair Manuals



Wednesday, January 18, 2006 7:48:26 PM

Page 50

© 2004 Mitchell Repair Information Company, LLC.
