Volkswagen Golf Variant / Jetta. Manual - part 863





7.1

Buttons in centre console storage com‐

partment

Buttons in centre console storage compartment (depending on

equipment)
♦ TCS and ESP button -E256-
♦ Shock absorber damping adjustment button -E387-
♦ Park assist steering button -E581-
♦ Parking aid button -E266-
♦ Tyre pressure monitor display button -E492-
♦ Fuel selection switch (petrol, gas) -E395-

Note

The procedure for removal and installation is the same for all but‐

tons in the centre console storage compartment and is therefore

described for just one button.

7.2

Removing and installing buttons in cen‐

tre console storage compartment

Note

The procedure for removal and installation is the same for all but‐

tons in the centre console storage compartment and is therefore

described for just one button ( TCS and ESP button -E256- ).

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.
♦ When removing and installing components that are in view

(switches, covers, trim), mask off areas where tools ( re‐

moval wedge -VAS 3409- , screwdriver) are used to lever

out those components using commercially available

masking tape.

418



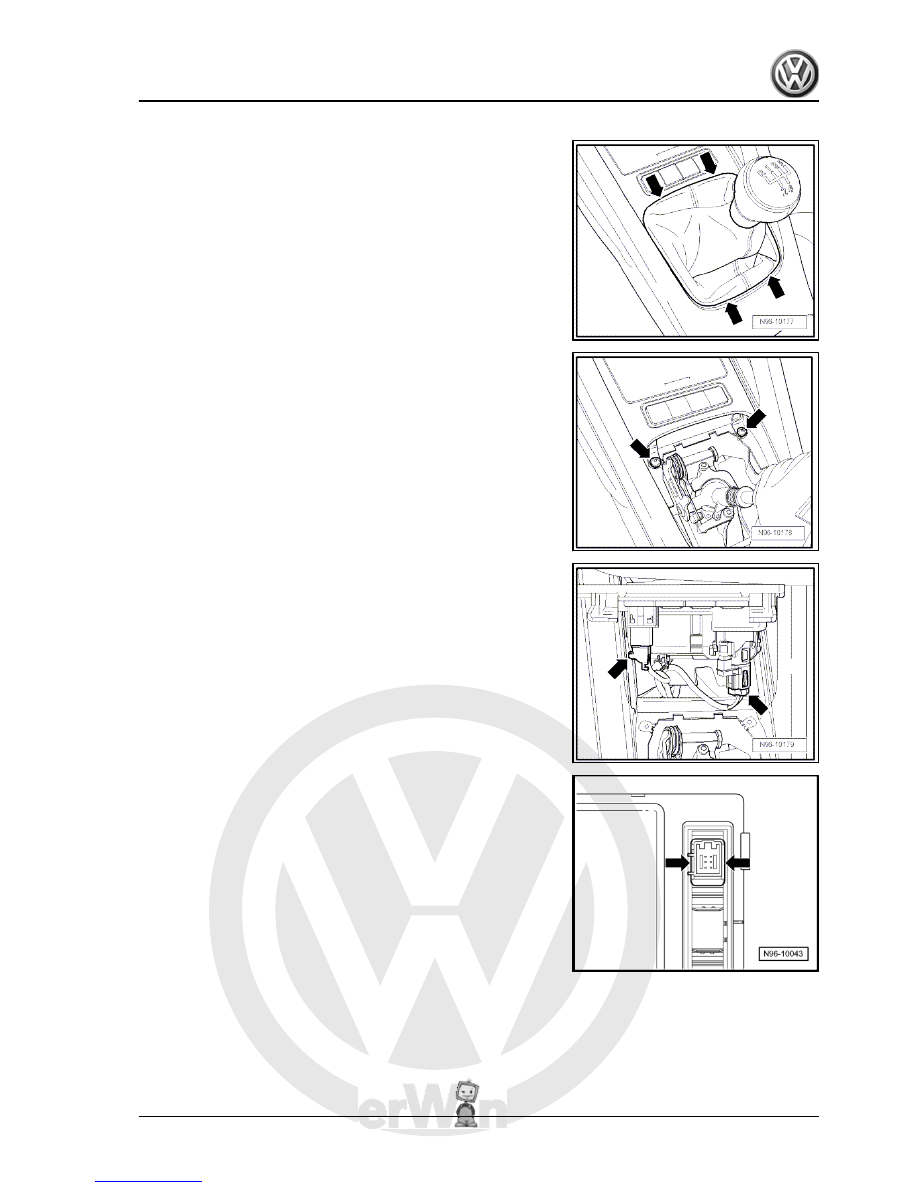

– Remove bolts -arrows-.
– Remove mounting frame together with ashtray out of centre

console.

– Disconnect connectors -arrows-.

– Release locking lugs -arrows- and remove TCS and ESP but‐

ton -E256- from installation frame.

Installing
Installation is carried out in reverse order of removal.

7. Lights and switches in centre console

419



verter with socket

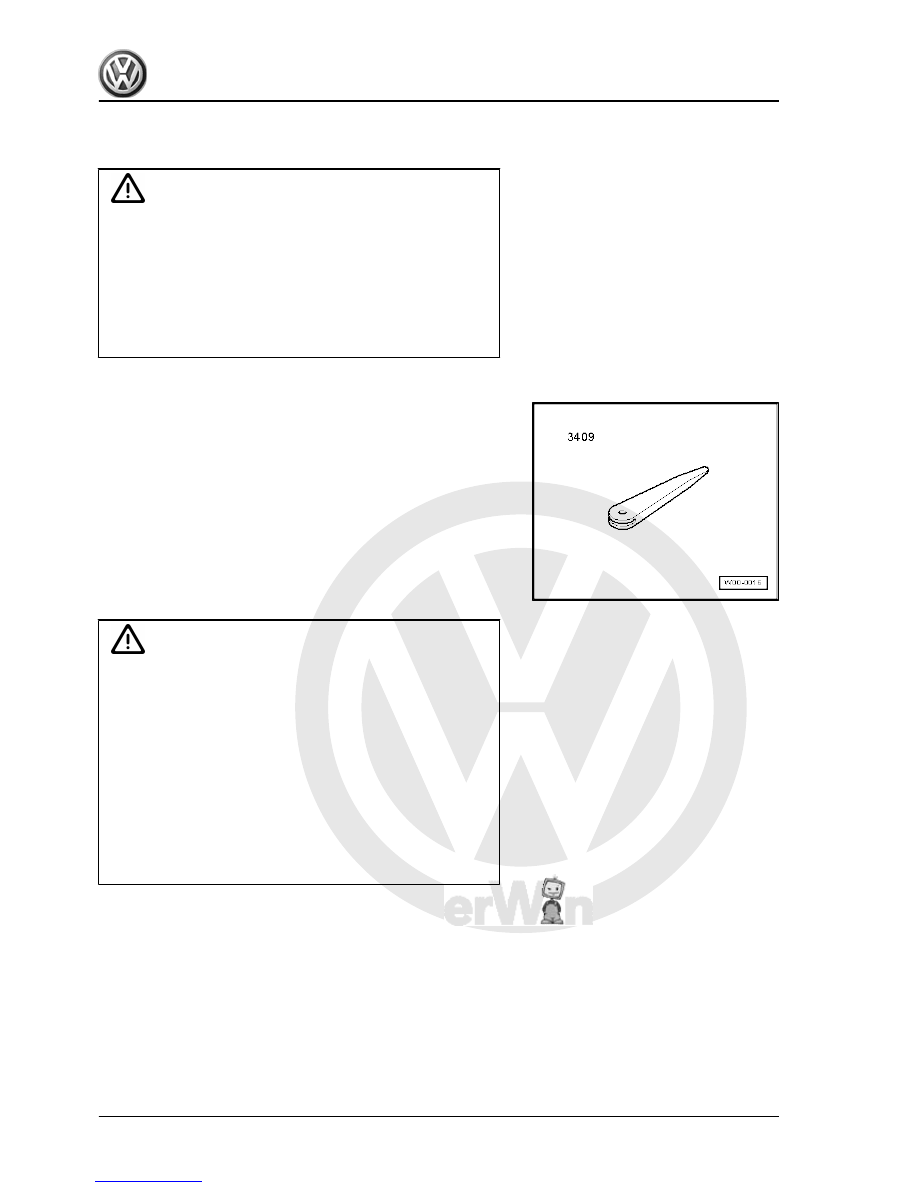

WARNING

♦ Capacitors are located in AC/DC converter with socket, 12

V - 230 V -U13- / AC/DC converter with socket, 12 V - 115

V -U27- , and these capacitors can be charged with a re‐

sidual voltage.

♦ There is a danger of an electric shock.
♦ Under no circumstances open housing of AC/DC convert‐

er with socket, 12 V - 230 V -U13- / AC/DC converter with

socket, 12 V - 115 V -U27- .

Special tools and workshop equipment required
♦ Removal wedge -3409-

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.
♦ When removing and installing components that are in view

(switches, covers, trim), mask off areas where tools ( re‐

moval wedge -VAS 3409- , screwdriver) are used to lever

out those components using commercially available

masking tape.

♦ The connector, wiring and 230 V socket must never be

repaired.

♦ The complete unit must be replaced if the connector, wir‐

ing and 230 V socket or the AC/DC converter are defec‐

tive.

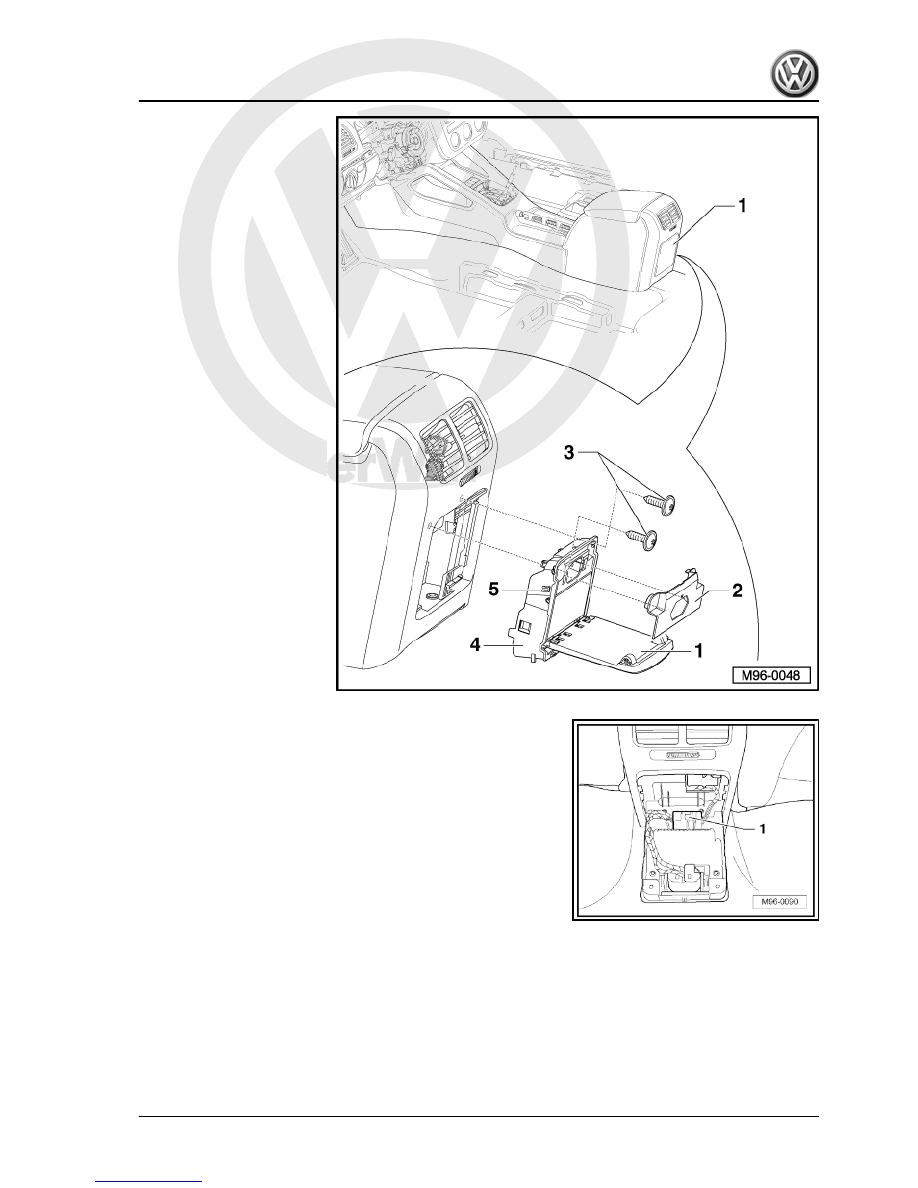

Removal
– Open folding cover -1-.
– Use removal wedge -VAS 3409- to remove socket cover -2-,

it is clipped in on both sides of socket.

– Remove two screws -3- (1.5 Nm).
– Remove inner socket unit -4-. Both side brackets -5- must be

released for this.

420



7. Lights and switches in centre console

421
