light -W45-

Note

If the rear interior light -W45- is removed, the anti-theft alarm

system must be deactivated

⇒ page 430

 (up to MY2009).

The anti-theft alarm ultrasonic sensor -G209- must not be

moved from its preset position (up to MY2009).

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.
♦ When removing and installing components that are in view

(switches, covers, trim), mask off areas where tools ( re‐

moval wedge -VAS 3409- , screwdriver) are used to lever

out those components using commercially available

masking tape.

Removing

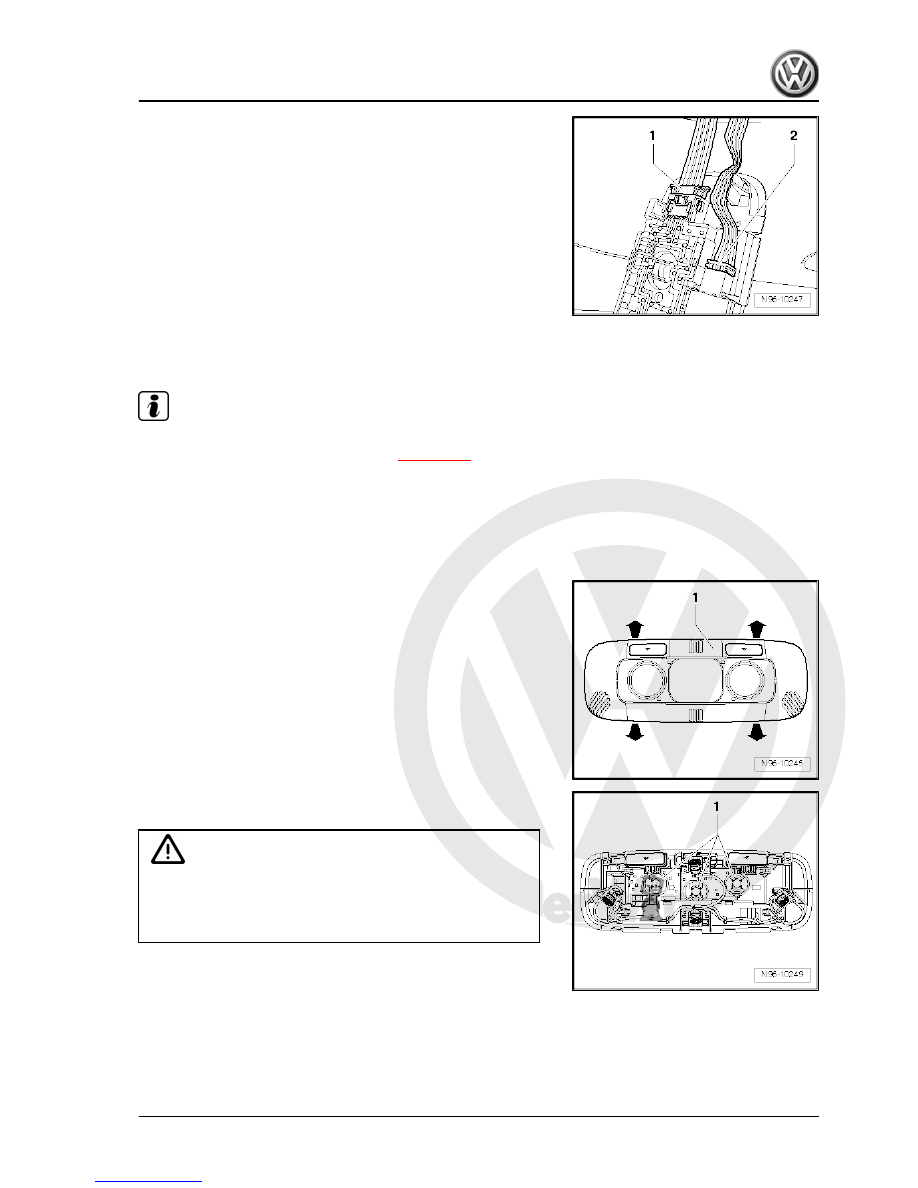

– Pull entire trim panel -1- (with lens and reflectors) vertically

downwards -arrows- out of rear interior light -W45- .

– Press both locking lugs -2- in -direction of arrow A- and remove

entire rear interior light -W45- -1- in -direction of arrow B- from

moulded headliner.

414



Renewing bulb of rear interior light -

W45-

Note

The anti-theft alarm system must be deactivated when the rear

interior light -W45- bulbs are replaced

⇒ page 430

 (up to

MY2009).

The anti-theft alarm ultrasonic sensor -G209- must not be

moved from its preset position (up to MY2009).

Removing
– Switch off ignition and all electrical consumers.

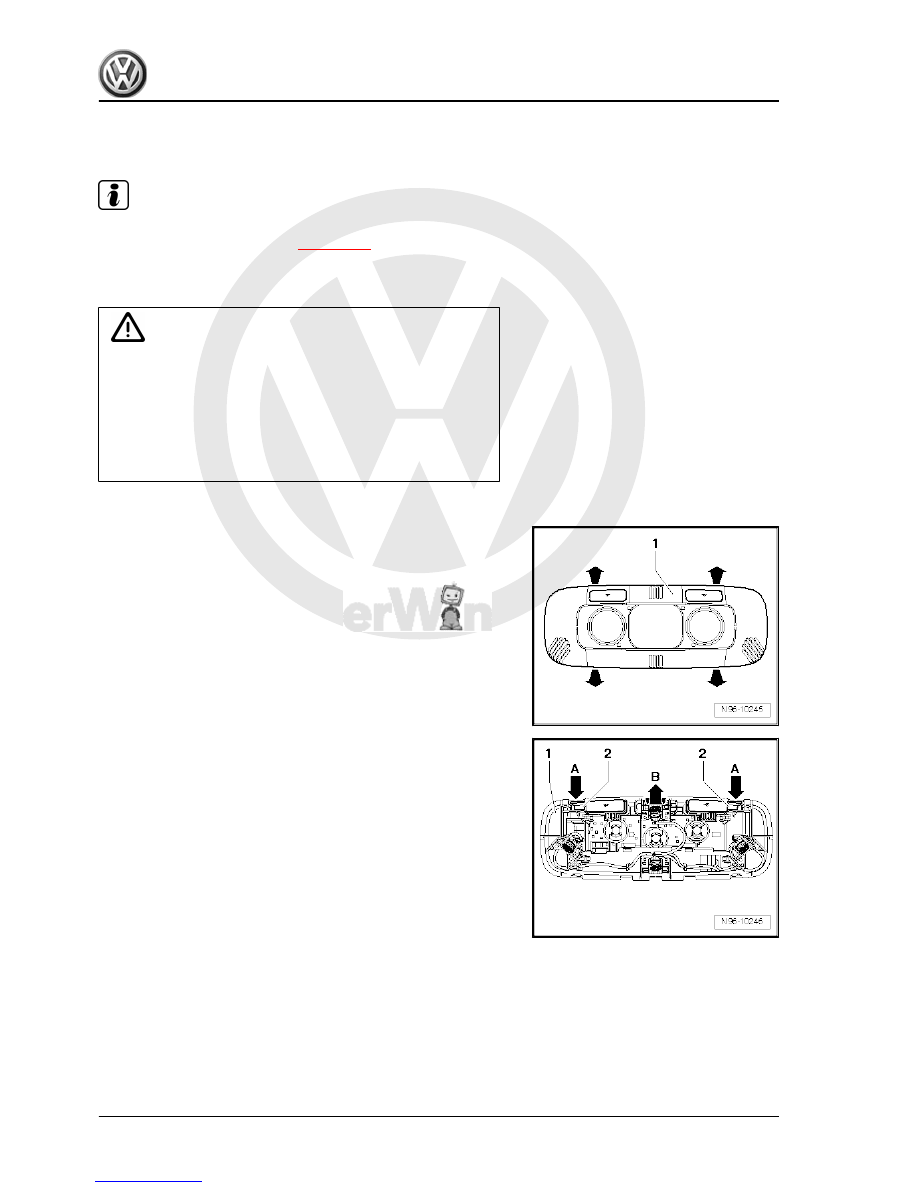

– Pull entire trim panel -1- (with lens and reflectors) vertically

downwards out of rear interior light -W45- .

– Pull glass-base bulb to be removed (12 V/5 W) -1- from bulb

holder.

Caution

♦ Do not touch glass envelope when fitting bulb. Fingers

leave traces of grease on the glass envelope, which evap‐

orate when the bulb is switched on and cause the glass

envelope to cloud over.

Installing
Installation is carried out in reverse order of removal.

6. Lights and switches in roof trim

415



vanity mirrors

The procedure for removing and installing front passenger side

illuminated vanity mirror -W14- / driver side illuminated vanity mir‐

ror -W20- is the same and is described for one only.
Special tools and workshop equipment required
♦ Removal wedge -VAS 3409-

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.
♦ When removing and installing components that are in view

(switches, covers, trim), mask off areas where tools ( re‐

moval wedge -VAS 3409- , screwdriver) are used to lever

out those components using commercially available

masking tape.

Removing

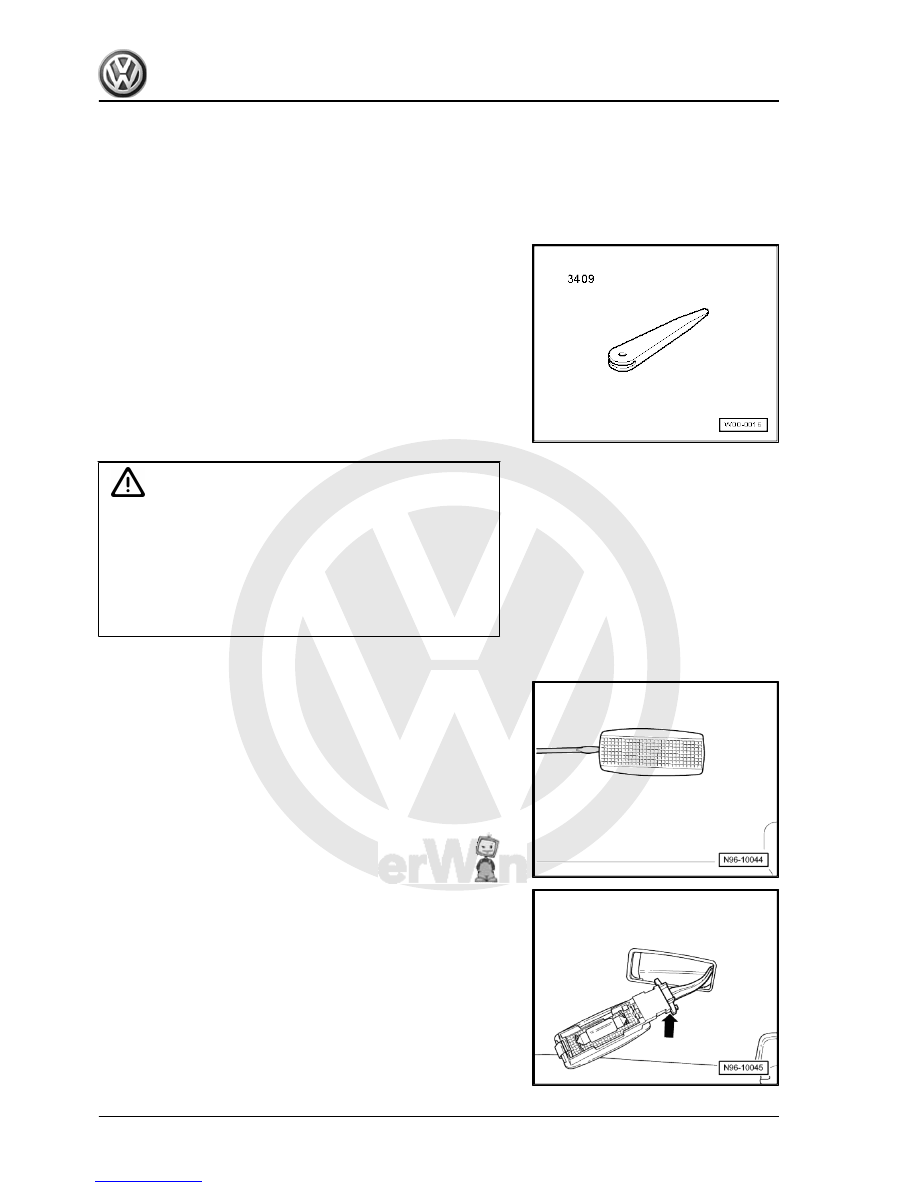

– Use removal wedge -VAS 3409- to prise front passenger side

illuminated vanity mirror -W14- carefully out of roof trim.

– Disconnect connector -arrow-.

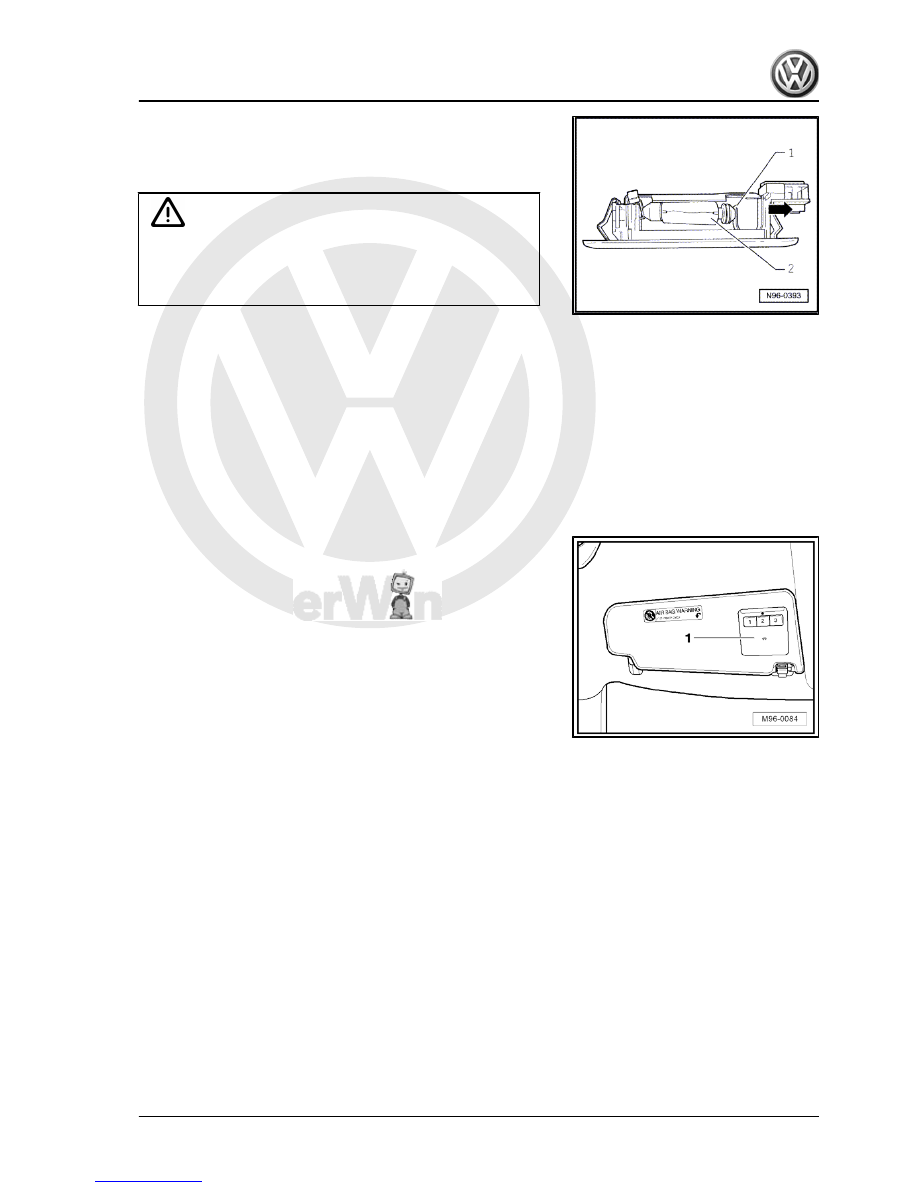

Renewing bulb:

416



-2- from bulb holder.

– Renew festoon bulb (12 V/ 5 W).

Caution

♦ Do not touch glass envelope when fitting bulb. Fingers

leave traces of grease on the glass envelope, which evap‐

orate when the bulb is switched on and cause the glass

envelope to cloud over.

Installing
Installation is carried out in reverse order of removal.

6.6

Removing and installing garage door

operating unit -E284-

Garage door operating unit -E284- is installed in sun visor on

driver side.
Sun visor and garage door operating unit -E284- can only be re‐

newed together.
Removing
– Remove sun visor on driver side together with garage door

operating unit -E284- -1- ⇒  General body repairs, interior;

Rep. gr.  68 .

Installing
Installation is carried out in reverse order of removal.
