partment

5.1

Removing and installing luggage com‐

partment light -W3-

The luggage compartment light -W3- is located in luggage com‐

partment cover on right side.

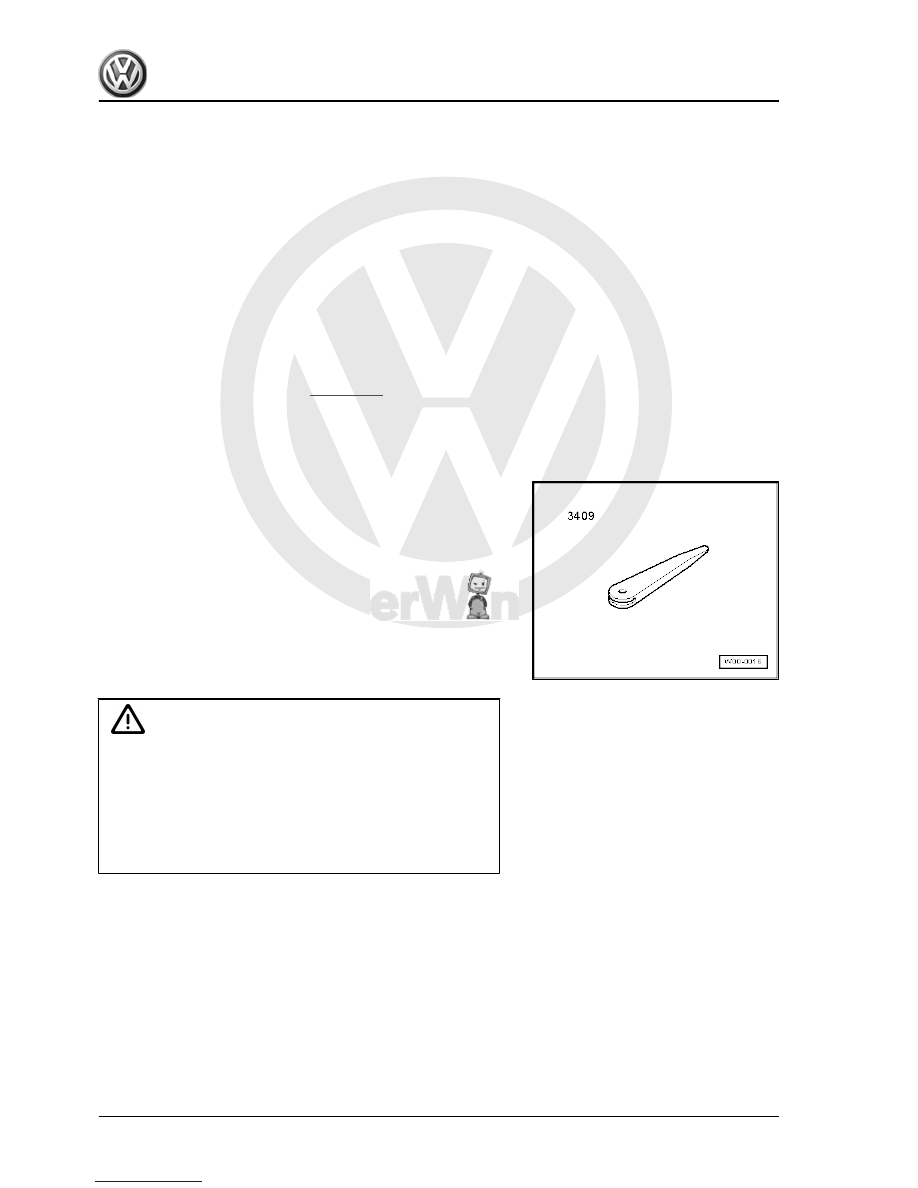

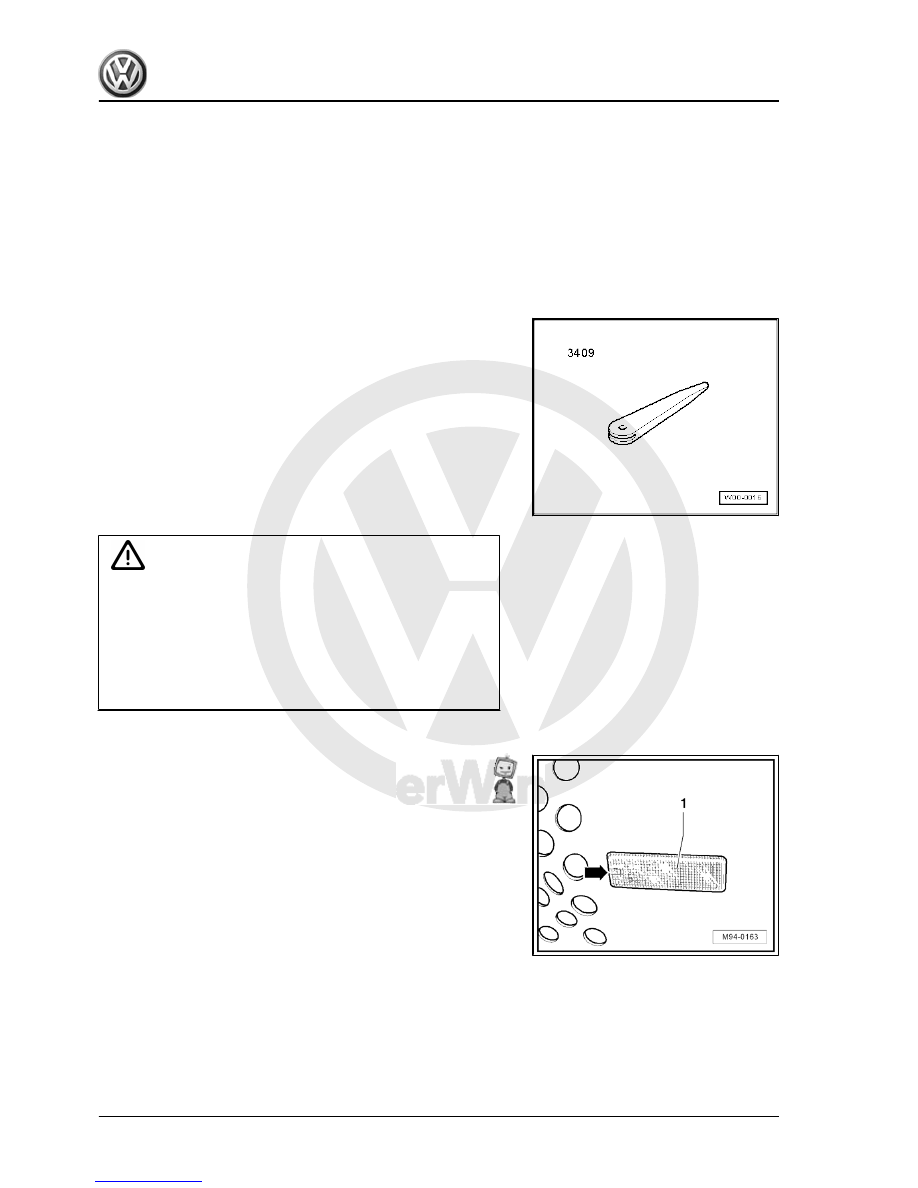

Special tools and workshop equipment required
♦ Removal wedge -VAS 3409-

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.
♦ When removing and installing components that are in view

(switches, covers, trim), mask off areas where tools ( re‐

moval wedge -VAS 3409- , screwdriver) are used to lever

out those components using commercially available

masking tape.

Removing

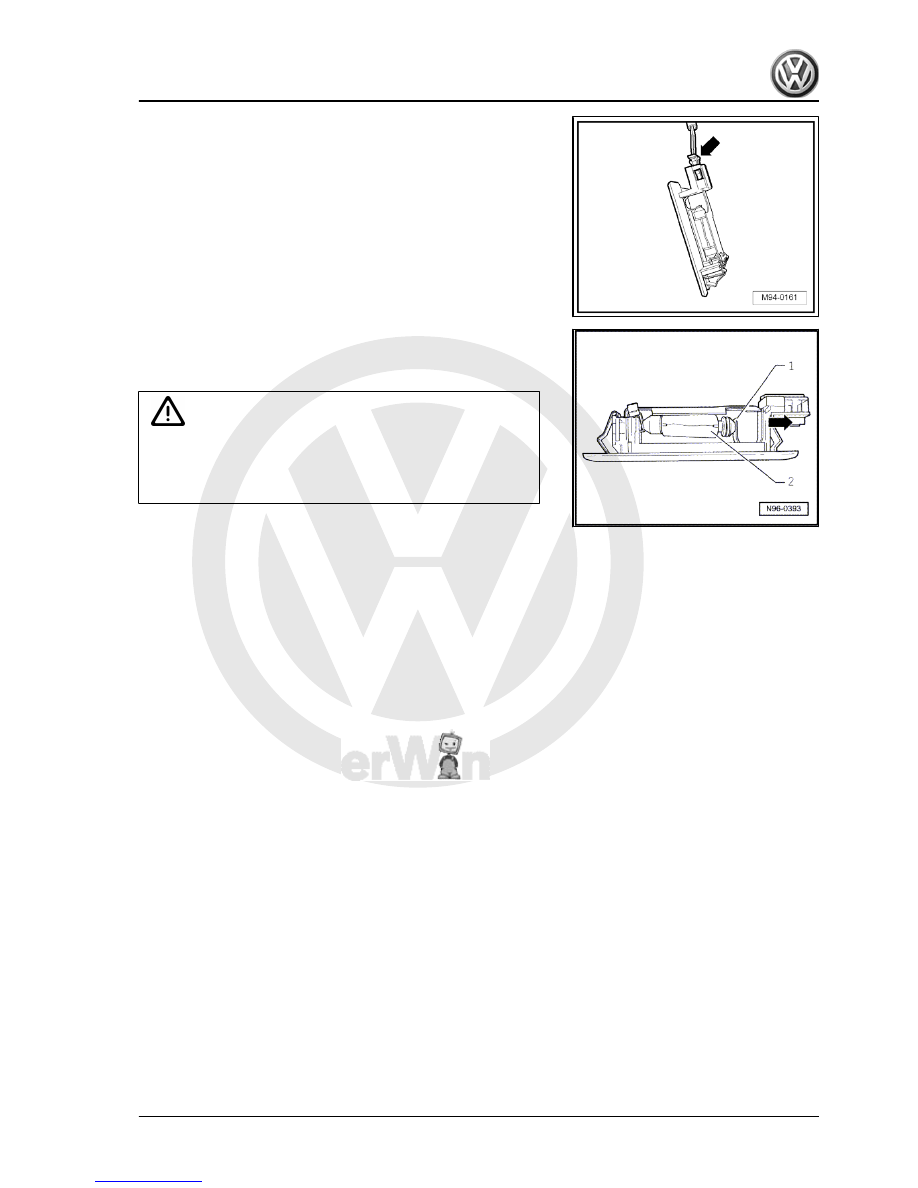

– Lever luggage compartment light -W3- -1- out of luggage com‐

partment trim using removal wedge -VAS 3409- -arrow-.

402



outwards and remove festoon bulb -2- from bulb holder.

– Renew festoon bulb (12 V/ 10 W).

Caution

♦ Do not touch glass envelope when fitting bulb. Fingers

leave traces of grease on the glass envelope, which evap‐

orate when the bulb is switched on and cause the glass

envelope to cloud over.

Installing
Installation is carried out in reverse order of removal.

5.2

Removing and installing rear lid lock unit

-F256-

The rear lid lock unit -F256- is integrated into the rear lid lock and

cannot be renewed individually.
If the rear lid lock unit -F256- is found to be defective, the entire

rear lid lock must always be renewed.
– Renew tailgate lock ⇒  General body repairs, exterior; Rep.

gr.  55 .

5. Lights and switches in luggage compartment

403



6.1

Front interior light -W1- (without sun‐

roof)

The following components are built into the front interior light -

W1- :
♦ Front interior light -W1-
♦ Left centre reading light -W39-
♦ Right centre reading light -W40-
Components cannot be renewed individually. Complete front in‐

terior light -W1- must be renewed.
– Renew front interior light -W1-

⇒ page 404

 .

6.1.1

Removing and installing front interior

light -W1-

Special tools and workshop equipment required
♦ Removal wedge -VAS 3409-

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.
♦ When removing and installing components that are in view

(switches, covers, trim), mask off areas where tools ( re‐

moval wedge -VAS 3409- , screwdriver) are used to lever

out those components using commercially available

masking tape.

404



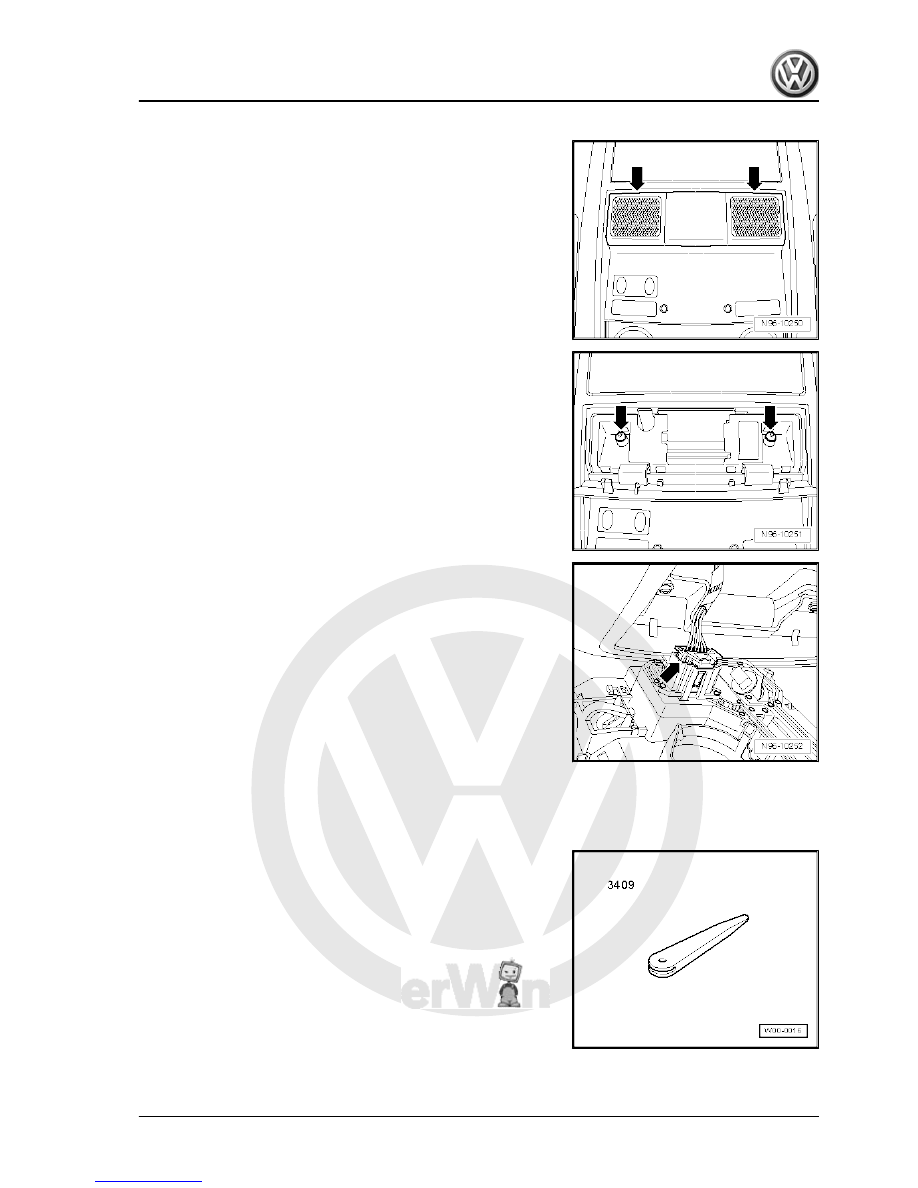

– Remove bolts -arrows-.
– Remove front interior light -W1- out of console in moulded

headliner.

– Disconnect connectors -arrows-.
Installing
Installation is carried out in reverse order of removal.

6.1.2

Removing and installing bulb of front in‐

terior light -W1-

Special tools and workshop equipment required
♦ Removal wedge -VAS 3409-

6. Lights and switches in roof trim

405
